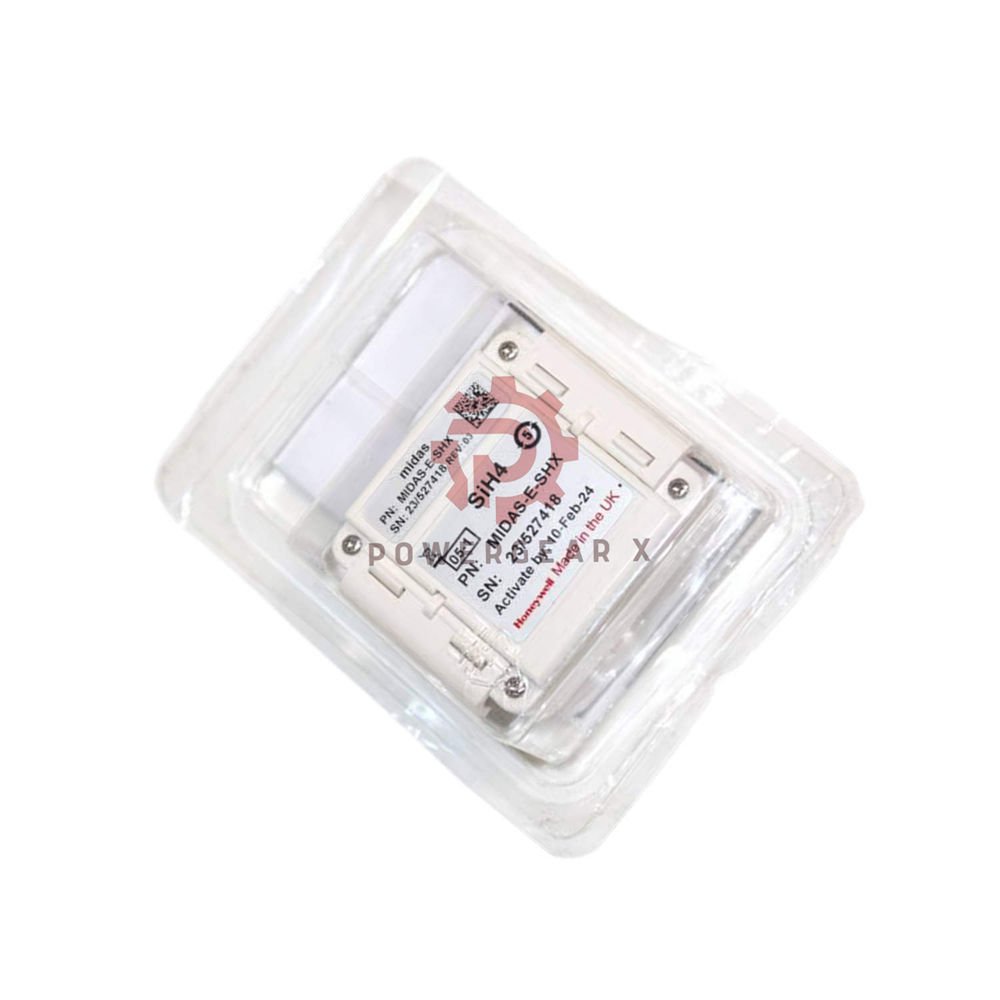

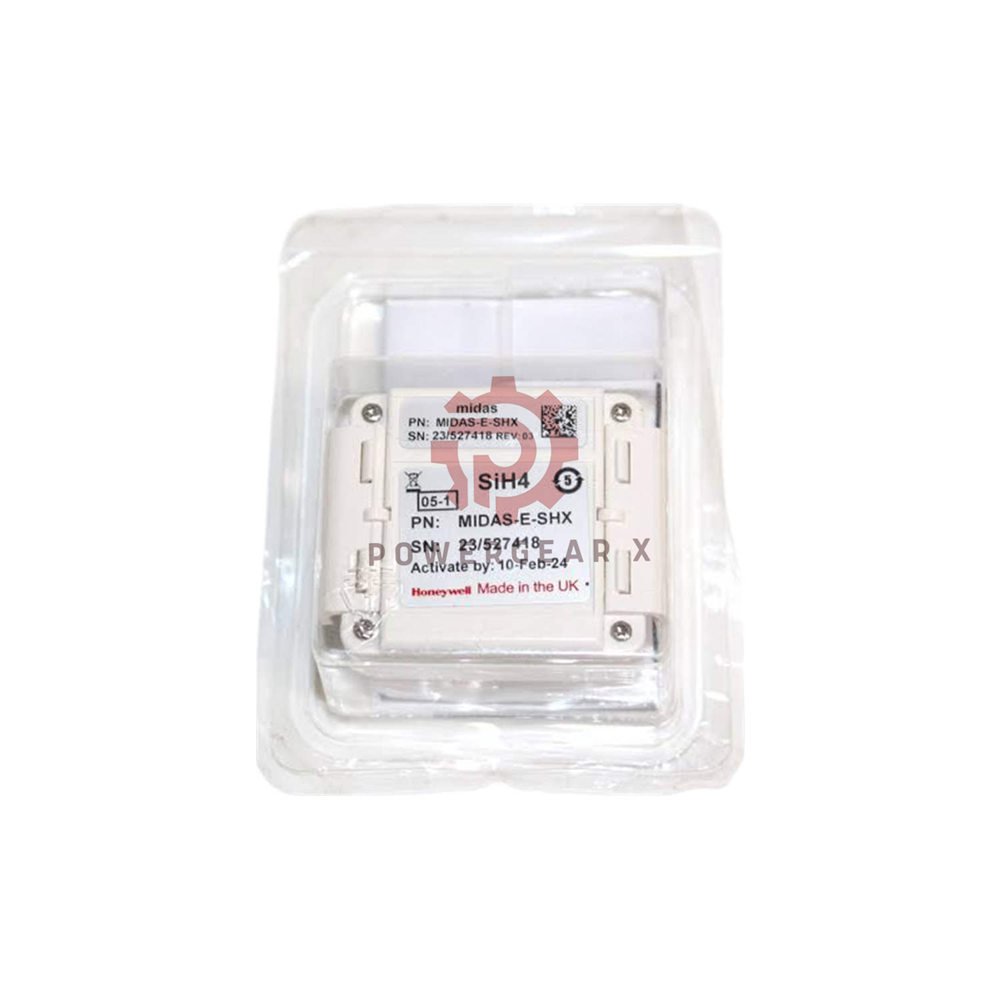

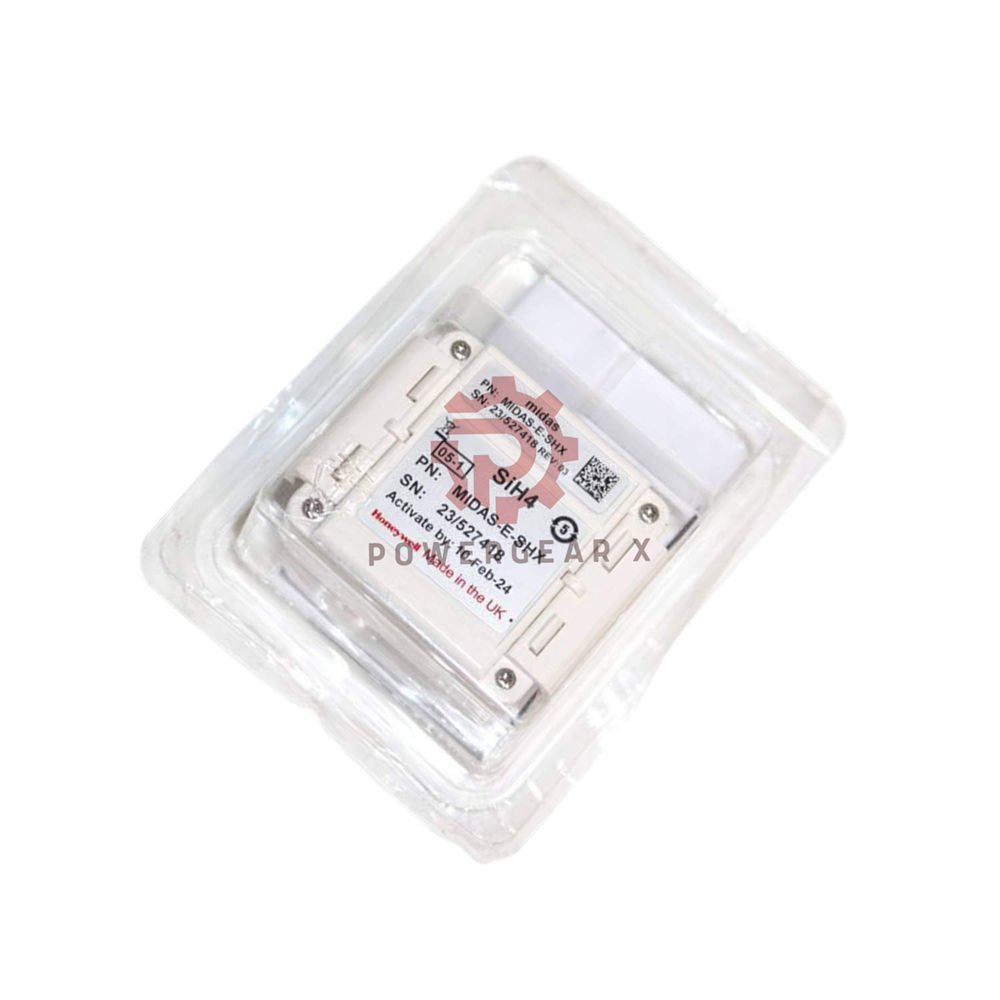

MIDAS-E-SHX Silane (SiH4) Gas Sensor Cartridge
Fast, accurate silane detection for industrial safety. The MIDAS-E-SHX cartridge uses a reliable 3-electrode electrochemical cell. It detects SiH4 from 0 to 20 ppm. The lower detection limit is 1.8 ppm. Response time is ≤ 3 seconds at t62.5. This fast response helps protect people and equipment in semiconductor fabs, gas cabinets, and research labs.
The cartridge delivers stable performance across 0°C to +40°C and 10 to 90% RH. It offers 0.1 ppm resolution and strong linearity. The expected cartridge life is ≥ 24 months under typical conditions. It suits continuous monitoring and low-maintenance deployments.
Need a quote or technical help? Email sales@powergearx.com or chat on WhatsApp at +86 18030005825. We reply fast and ship within 12–24 hours via FedEx, UPS, or DHL.
Technical Data
- Brand: MIDAS
- Model / Part Number: MIDAS-E-SHX
- Series: MIDAS Gas Sensor Cartridge Series
- Module Type: Electrochemical gas sensor cartridge
- Sensor Technology: 3-electrode electrochemical cell
- Measuring Range: SiH4 0–20 ppm
- Minimum Alarm 1 Set Point: 2.4 ppm
- Lower Detection Limit: 1.8 ppm
- Resolution: 0.1 ppm
- Linearity: < ±5% of measured value
- Repeatability: < ±5% of measured value
- Response Time: t62.5 ≤ 3 seconds (fast frequency response)
- Sensitivity: Stable electrochemical response; temperature effect < ±0.8% of measured value / °C; humidity effect < ±2% of measured value / % RH
- Zero Drift: < ±0.04 ppm / °C (temperature); < ±0.005 ppm / % RH (humidity); < 2 ppm/year (long term)
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Operating Humidity: 10 to 90% RH
- Operating Pressure: 90–110 kPa
- Environmental Resistance: Stable in typical industrial conditions; no position effect in typical application
- Anti-Interference: 3-electrode design supports stable readings; bump test gas: Hydrogen Sulfide (H2S)
- Warm Up Time: < 20 minutes
- Storage Temperature: +5°C to +25°C (+41°F to +77°F)
- Cartridge Life Expectancy: ≥ 24 months under typical application conditions
- Calibration Gas: Silane (SiH4)
Installation Guide
- Power off the host detector before you replace the cartridge.
- Align the MIDAS-E-SHX cartridge with the sensor bay.
- Seat the cartridge firmly. Do not force it.
- Power on the detector and allow < 20 minutes warm-up.
- Confirm zero reading in clean air.
- Apply calibration gas Silane (SiH4) if your site policy requires it.
Commissioning and Maintenance Ease
- Plug-and-play cartridge design cuts service time.
- Fast warm-up supports quick return to service.
- Long life expectancy lowers replacement frequency.
- Clear alarm set point simplifies configuration.
- Use H2S bump test gas for routine functional checks.
- Store spare cartridges at +5°C to +25°C.
Compatibility Notes
- Designed for MIDAS series detector platforms that accept MIDAS-E-SHX cartridges.
- Works with standard Silane (SiH4) calibration gas.
- Fits systems operating at 90–110 kPa and 10–90% RH.
- Check your detector firmware and cartridge part number before ordering.
Certifications and Quality
- Built to industrial gas detection quality standards.
- Performance data reflects typical application conditions.
- Contact sales@powergearx.com for current compliance documents.
Package List
- 1 × MIDAS-E-SHX Silane (SiH4) sensor cartridge
- 1 × Quick start and handling note
- Protective packaging for safe transport
Warranty and Shipping
- 12-month warranty covers manufacturing defects.
- Orders ship within 12–24 hours.
- Express options: FedEx, UPS, DHL.
- Tracking number provided after dispatch.
- Questions? WhatsApp +86 18030005825 or email sales@powergearx.com.
Expert Review
“The MIDAS-E-SHX stands out for its ≤ 3 second response and 1.8 ppm detection limit. For silane safety, speed matters. This cartridge gives engineers a practical balance of speed, stability, and long service life.”
Manager’s Insight
“We see strong demand for silane cartridges in semiconductor and PV lines. The MIDAS-E-SHX reduces downtime because warm-up is short and replacement is simple. Stock it as a critical spare. Fast shipping from our warehouse keeps your line running.”
Best Fit Devices and Applications
- Fixed gas detectors that accept MIDAS cartridges
- Semiconductor fabrication and thin-film deposition lines
- Silane gas cabinets and cylinder change stations
- Photovoltaic (solar cell) manufacturing
- Research and university laboratories
- Industrial safety monitoring and alarm systems
FAQ
Q: How fast does this cartridge respond to silane?
A: It responds in ≤ 3 seconds at t62.5. That is very fast for an electrochemical cell.
Q: What is the lowest level it can detect?
A: The lower detection limit is 1.8 ppm. The resolution is 0.1 ppm.
Q: How long does the cartridge last?
A: Expect ≥ 24 months under typical application conditions. Actual life depends on exposure and environment.
Q: Can I use it in cold rooms?
A: The operating range is 0°C to +40°C. Store spare cartridges at +5°C to +25°C.
Q: Which calibration gas should I use?
A: Use Silane (SiH4) for calibration. Use Hydrogen Sulfide (H2S) for bump tests.
Q: How do I confirm compatibility with my detector?
A: Check your detector manual for the MIDAS-E-SHX part number. Then email sales@powergearx.com for confirmation.
Q: How quickly will my order ship?
A: We ship within 12–24 hours via FedEx, UPS, or DHL.
Q: What if the cartridge fails early?
A: A 12-month warranty covers manufacturing defects. Contact us with your order number.
Q: Do you offer bulk pricing for plant spares?
A: Yes. Message WhatsApp +86 18030005825 with your quantities.
Q: What is your experience-based advice for first-time buyers?
A: Buy one extra cartridge as a spare. Silane lines cannot wait for a replacement. Also confirm your detector firmware accepts the MIDAS-E-SHX part number before you order.
Buying Guide
- Match the part number MIDAS-E-SHX to your detector model.
- Confirm your alarm set point needs (Alarm 1 at 2.4 ppm).
- Check site temperature and humidity stay within rated limits.
- Order a spare cartridge to avoid line downtime.
- Ask for bulk pricing on plant-wide rollouts.
- Keep calibration gas Silane (SiH4) and bump test gas H2S on hand.
