Product details

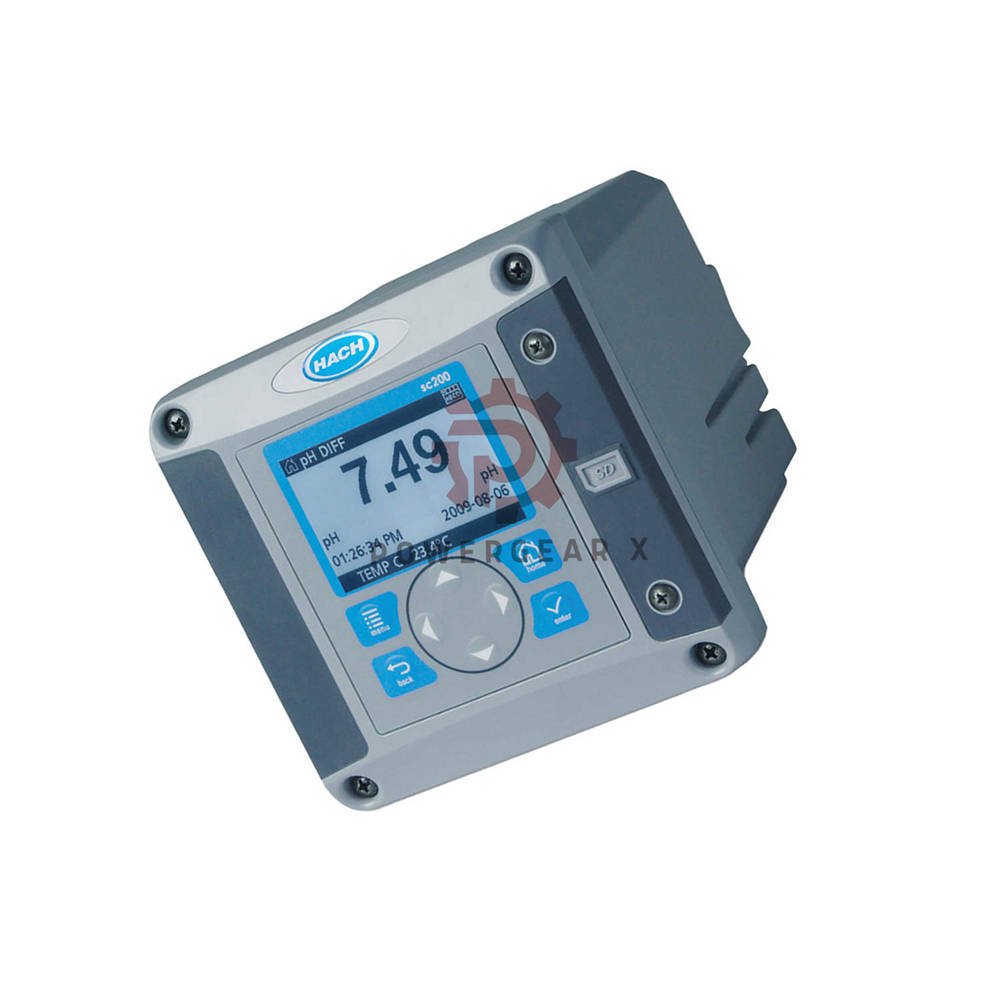

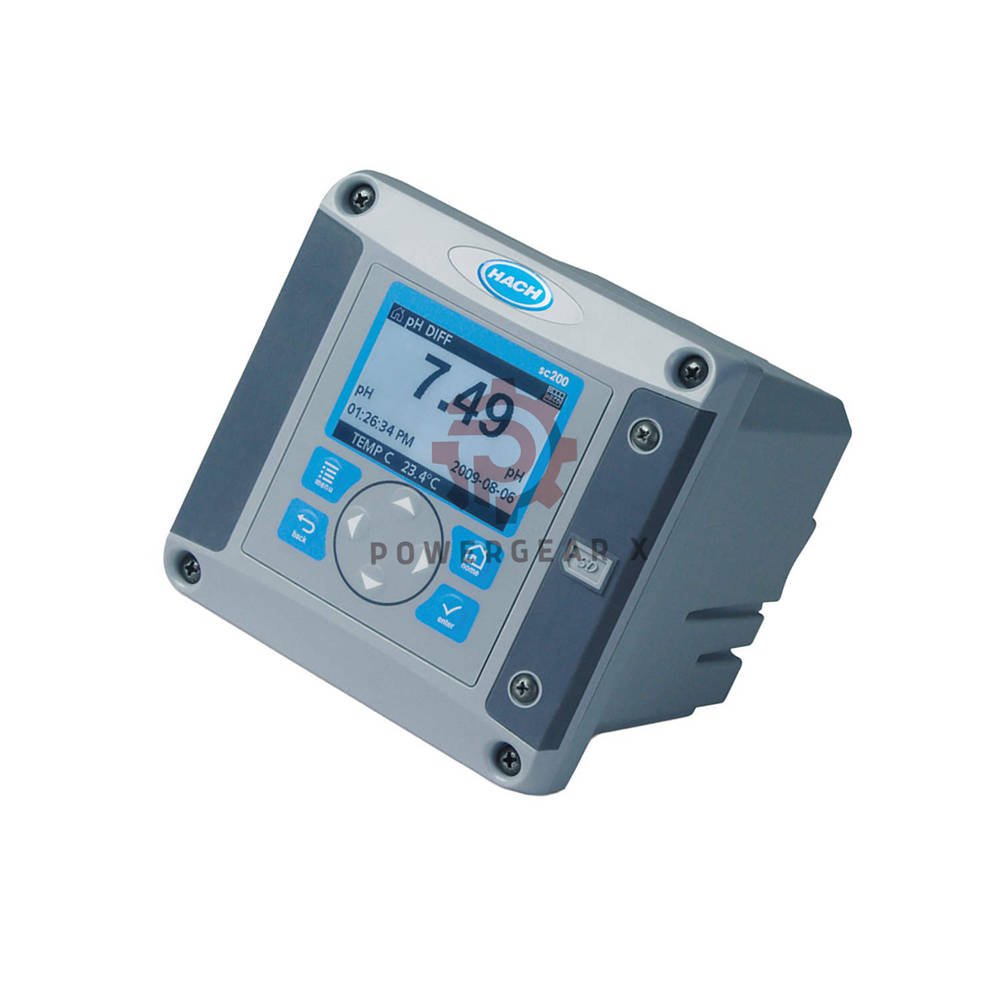

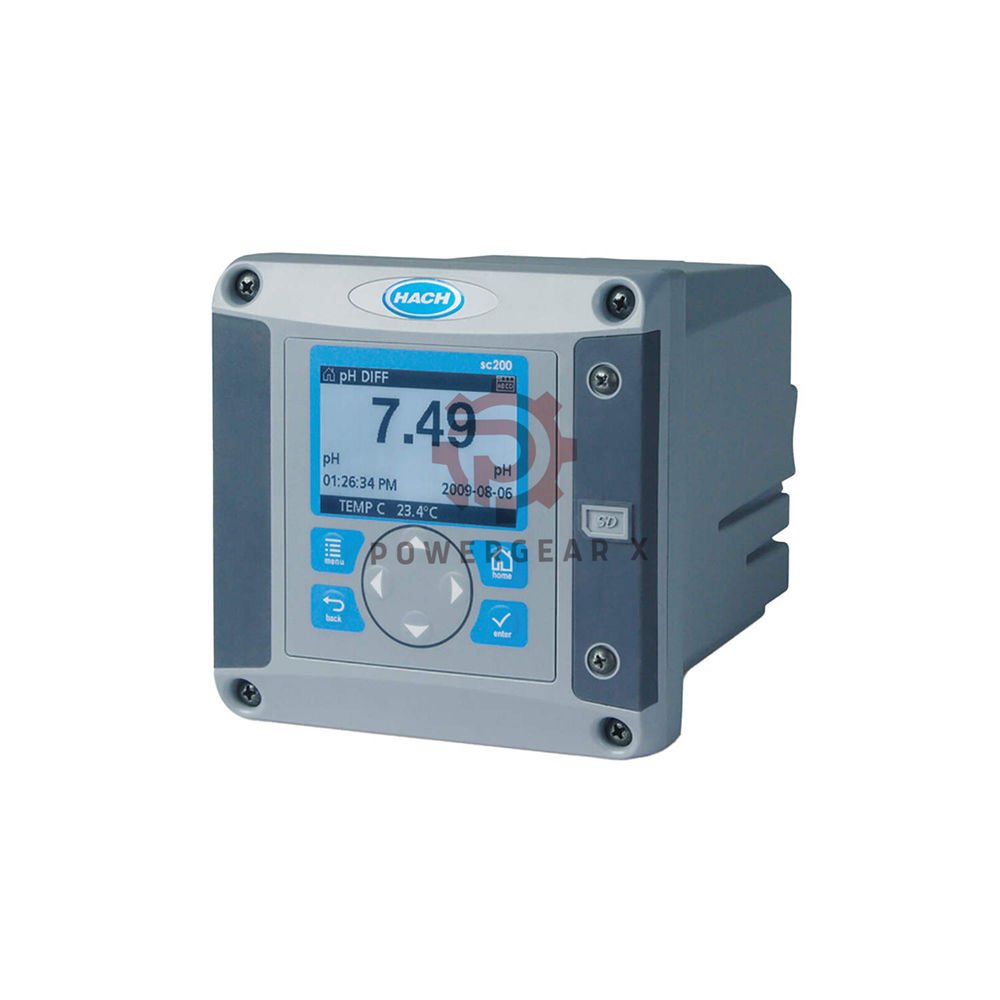

LXV404.99.00502 HACH SC200 Universal Controller
- Model: LXV404.99.00502
- Series: SC200
- Brand: HACH
- Type: Universal process controller
- This controller manages digital sensors and outputs control signals.
Performance Snapshot
- Wide power input: 100 to 240 VAC
- One digital sensor input for flexible use
- Two 4-20 mA outputs for signal transmission
- Relay output supports control actions
- Rugged enclosure rated NEMA 4X / IP66
Technical Core
- Power Supply: 100-240 VAC, 50/60 Hz
- Power Load: 50 VA typical, up to 100 VA
- Digital Input: 1 sensor channel
- Analog Outputs: 2 standard, expandable to 5
- Output Accuracy: ±0.1% at 25°C
- Load Capacity: max 550 Ω
- Relay Rating: 240 VAC, 5 A
- Display: LCD with LED backlight
- Resolution: 240 x 160 pixels
- Operating Temp: -20 to 60 °C
- Humidity: 0 to 95% non-condensing
- Weight: 1.70 kg
Control Flexibility
- Modes: linear, logarithmic, bi-linear, PID
- Relay logic: measurement or timer based
- Dual security levels protect system settings
- Supports calculated values for advanced control
Display & Interface
- Clear graphic LCD with backlight
- Easy menu navigation
- Real-time process visualization
- Compact panel-friendly size
Installation Options
- Wall mounting for easy access
- Pole mounting for field use
- Panel mounting for control cabinets
- Standard 1/2 inch conduit entry
Compatible Equipment
- Digital water quality sensors
- pH, ORP, conductivity probes
- Industrial analyzers
- Chemical dosing systems
- Water treatment monitoring units
Application Fields
- Municipal water treatment
- Industrial wastewater plants
- Power plant cooling systems
- Food and beverage processing
- Chemical production lines
Powergear X Automation’s Insight
- This controller is simple but very reliable.
- It fits both small and large systems.
- Strong enclosure handles outdoor conditions.
- Flexible outputs improve control accuracy.
FAQ
- Can this controller expand outputs?
- Yes, it supports up to five analog outputs with module.
- Is it suitable for outdoor use?
- Yes, IP66 rating protects against dust and water.
- What sensors can connect?
- It works with many HACH digital sensors.
- How to select the right controller?
- Check input type, output needs, and mounting style.
- What about delivery and support?
- 12 months warranty. Ships in 12 to 48 hours via DHL, UPS, FedEx.
