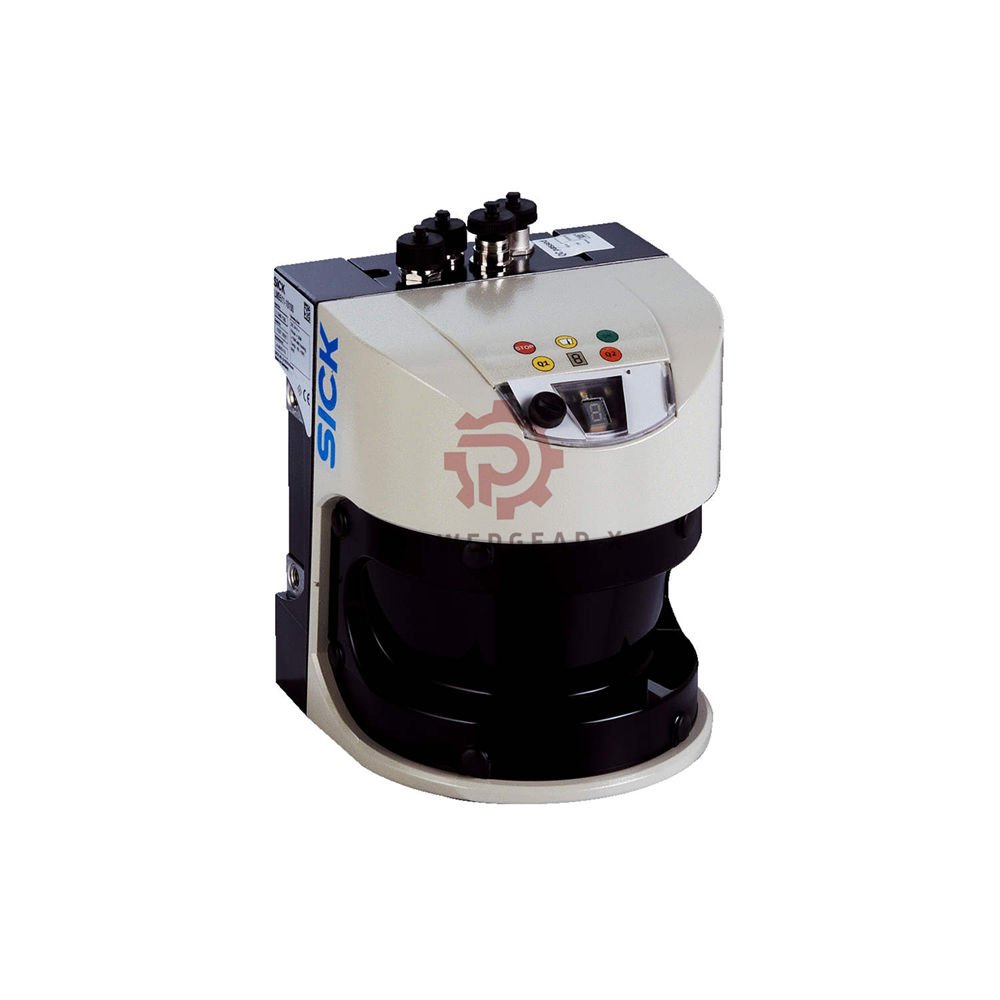

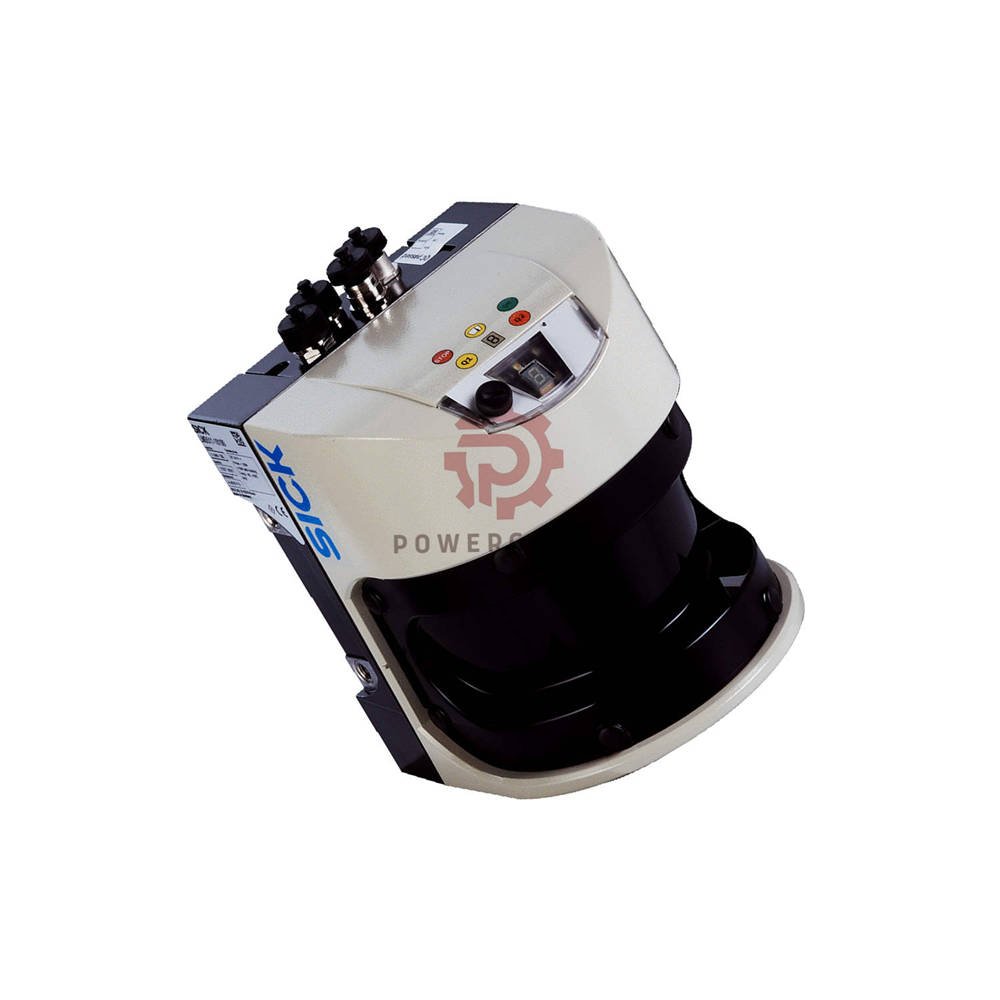

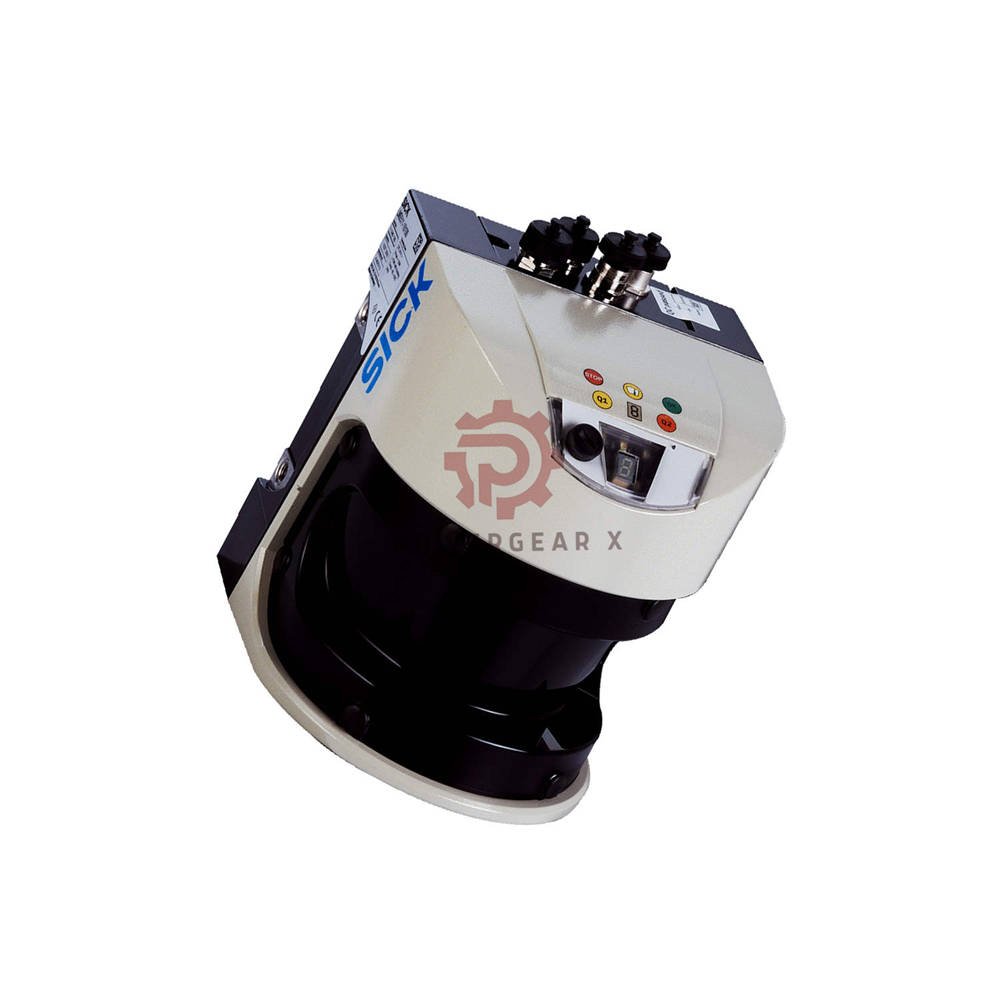

LMS511-10100 2D Laser Scanner – SICK 80m Range Outdoor IP67

Product Overview – LMS511-10100

• Type: 2D Laser Scanner
• Brand: SICK
• Model: LMS511-10100
• Series: LMS500
• Application: Outdoor & Indoor
• Range: Up to 80 m (40 m at 10% remission)
• Angle: 190° horizontal
• Laser Class: 1 (eye-safe)

Technical Data – Tree Structure

• Performance
  • Range: 0.2…80 m
  • Range at 10% remission: 40 m
  • Accuracy: ±24 mm
  • Systematic error: ±25…50 mm (depending on distance)
  • Statistical error: 6…14 mm
  • Response time: ≥ 10 ms
• Scanning
  • Frequency: 25 / 35 / 50 / 75 / 100 Hz
  • Angular resolution: 0.042°…1° (selectable)
  • Aperture: 190° horizontal
  • Echoes: 5 evaluations
• Interfaces
  • Ethernet: TCP/IP, UDP/IP (10/100 MBit)
  • Serial: RS-232, RS-422
  • CAN: 20/500 kBit/s, 1 MBit/s
  • USB: Mini-USB (service)
  • I/O: 4 inputs, 6 outputs
• Physical & Environmental
  • Housing: AlSi12, gray (RAL 7032)
  • Window: Polycarbonate, scratch-resistant
  • Enclosure: IP65 / IP67
  • Weight: 3.7 kg
  • Heating: Integrated (55 W)
  • Temp (operation): -30…+50 °C
  • Temp (storage): -40…+70 °C
  • Ambient light: 70,000 lx
  • MTBF / MTTFD: > 100 years
• Field & Filter
  • Field sets: 10
  • Filters: Echo, Fog, Particle, Average, Glare
  • Simultaneous evaluations: 10

Expert Review

LMS511-10100 offers reliable long-range detection up to 80 meters. The 190° angle covers wide areas. Multiple scan frequencies adapt to your application. Built-in heating ensures operation in cold climates. A robust choice for outdoor perimeter protection.

Manager’s Insight

This scanner reduces false alarms with advanced filters. The Ethernet interface simplifies integration. Use it for port monitoring, traffic control, or mining. The IP67 rating and heating make it suitable for harsh environments.

Compatible Devices & Applications

• Controllers: PLCs with Ethernet, SICK safety controllers
• Applications: Port crane anti-collision, traffic monitoring, mining vehicle detection
• Industries: Logistics, ports, mining, heavy industry
• Integration: TCP/IP, OPC, RS-232, CAN

Comparison – Similar Models

• LMS511-10100-S01 – same with special firmware
• LMS511-20100 – 20 m range, lower cost
• LMS511-30100 – 50 m range, outdoor

FAQ – Professional Questions

• Q: What is the maximum scanning range?
• A: 80 m on reflective objects, 40 m at 10% remission.
• Q: Can I use it in freezing temperatures?
• A: Yes, built-in heating supports -30 °C operation.
• Q: What communication protocols are supported?
• A: TCP/IP, UDP/IP, RS-232, RS-422, CAN.
• Q: How many fields can I configure?
• A: Up to 10 field sets.
• Q: Is it safe for human exposure?
• A: Yes, Class 1 laser (eye-safe).

Experience-based FAQ & Selection Guide

• Q: Why does my scanner miss small objects?
• A: Use higher angular resolution (e.g., 0.25° or lower).
• Q: Can I reduce false alarms from rain?
• A: Enable the fog and particle filters in the settings.
• Q: How to align the scanner horizontally?
• A: Use the mounting bracket and check the tilt compensation.
• Q: What power supply do I need?
• A: 24 V DC, ≥ 2.5 A (including heating).
• Q: Can I connect to a PC directly?
• A: Yes, via Ethernet or USB (Mini-USB for service).
• Q: Is there a software tool for configuration?
• A: Use SICK SOPAS or the web interface.

Selection Guide – What to Consider

• Range: 80 m for large areas like ports or mines.
• Frequency: Higher speed (100 Hz) for fast-moving objects.
• Environment: IP67 and heating for outdoor / cold climates.
• Interfaces: Ethernet for easy integration with PLCs.
• Field sets: Up to 10 fields for complex monitoring zones.

Warranty, Shipping & Support

• Warranty: 12 months against manufacturing defects.
• Dispatch: 12–24 hours after order confirmation.
• Couriers: FedEx, UPS, DHL (express delivery).
