Product details

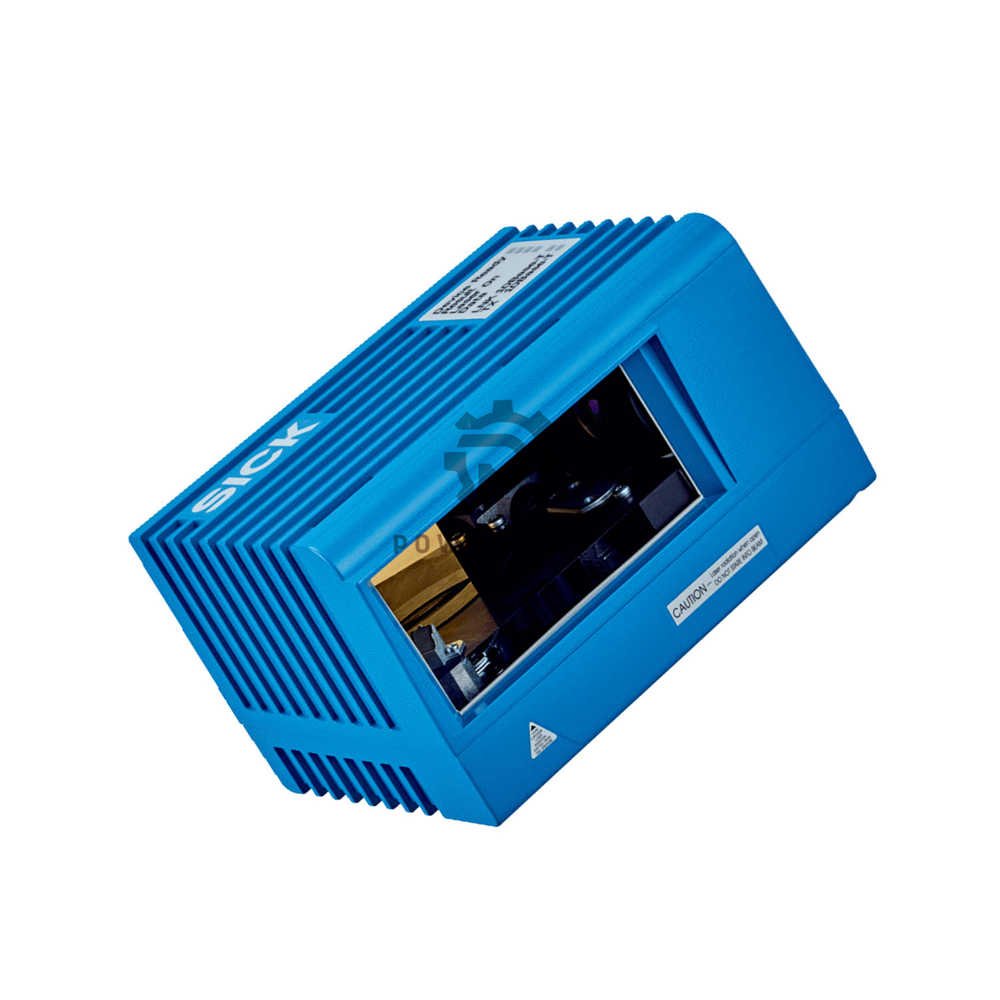

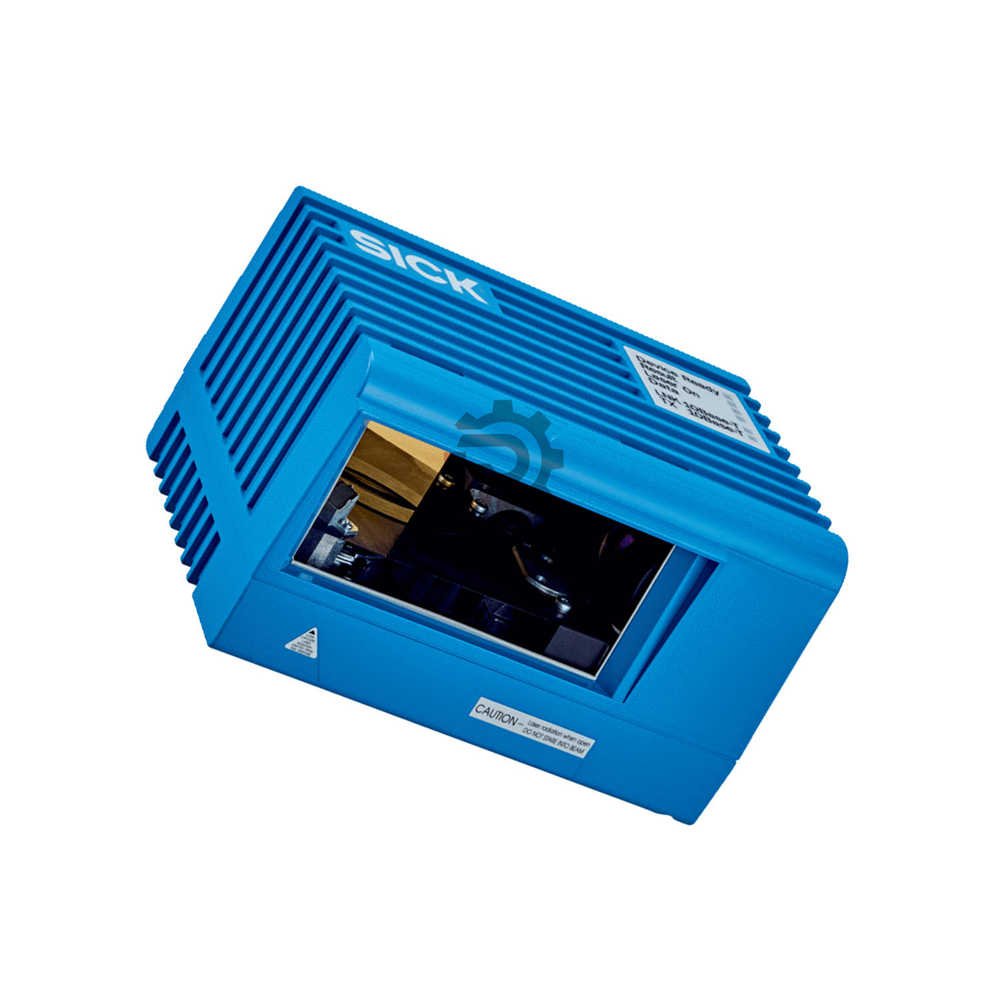

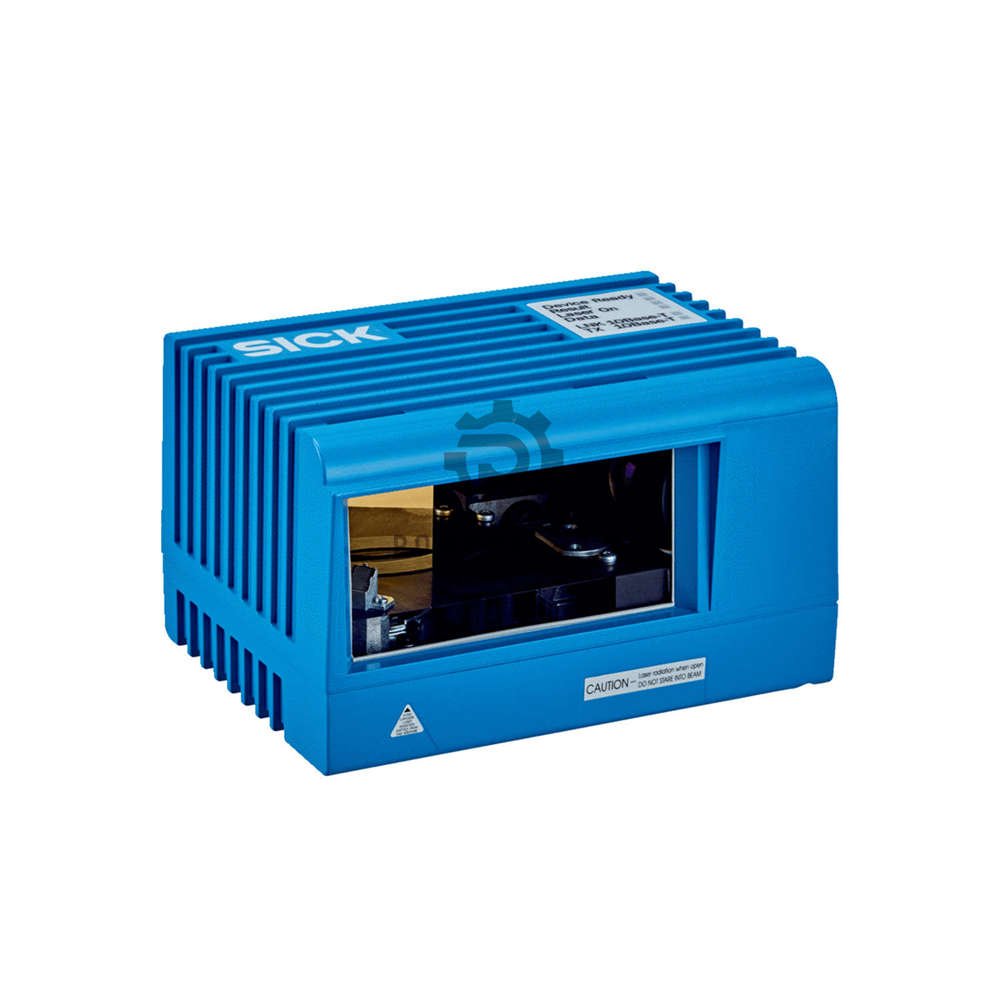

LMS400-2000 – SICK 2D Laser Scanner (Indoor)
Brand: SICK | Model: LMS400-2000 | Type: 2D Laser Scanner
0.7m to 3m working range. 500Hz scanning frequency. 0.1° angular resolution. ±4mm systematic error. IP65 rated. Ideal for indoor level control and object detection.
- Range: 0.7 to 3 meters (at 10% remission)
- Scan frequency: 300 to 500 Hz
- Resolution: 0.1° to 1.0° (configurable)
- Accuracy: ±4 mm systematic, 3 mm statistical
- Response time: ≥2 ms
Technical Specifications
- General
- Product ID: LMS400-2000
- Brand: SICK
- Application: Indoor
- Weight: 2.3 kg
- Dimensions: 179 x 107 x 130 mm (L x W x H)
- Laser & Optics
- Light source: Visible red light (650 nm)
- Laser class: 2 (standby: Class 1) per IEC 60825-1
- Reading field: Front
- Object remission: 4.5% to 100%
- Performance
- Working range: 0.7 to 3 m
- Scanning frequency: 300 to 500 Hz
- Angular resolution: 0.1° to 1.0° (configurable)
- Response time: ≥2 ms
- Systematic error: ±4 mm
- Statistical error: 3 mm
- Detection
- Min detectable object: 30mm x 30mm
- Min column width: ≥50mm
- Height threshold: 30mm above container floor
- ROI (region of interest): 50mm x 3000mm to 1000mm x 1750mm
- Columns: Up to 50 equidistant or 30 freely positionable
- Interfaces
- Ethernet: TCP/IP, 10 Mbit/s (half-duplex)
- Serial: RS-232 (data + service)
- Digital inputs: 4
- Digital outputs: 5 (4 x PNP + 1 analog 4-20mA)
- Indicators: 6 LEDs
- Electrical
- Supply voltage: ≤24V DC ±15%
- Power consumption: 25W
- Mechanical & Environment
- Housing: Aluminum die cast, light blue (RAL 5012)
- IP rating: IP65 (EN 60529)
- Operating temp: 0 to +40°C
- Storage temp: -20 to +70°C
- EMC: EN 61000-6-2 / -6-4
- Vibration/Shock: EN 60068-2-6, -27, -29, -64
- Integrated Application
- Level Control – built-in for container fill-level monitoring
Expert Review
“Fast and precise level control.” 500Hz scan frequency with 0.1° resolution. ±4mm accuracy. Detects objects as small as 30mm x 30mm. Built-in level control application – no extra programming needed.
Manager’s Insight
“Reliable indoor monitoring.” IP65 protects against dust and water. Ethernet and RS-232 for flexible integration. 5 outputs (4 digital + 1 analog) for direct control. Compact aluminum housing. 12-month warranty. Fast shipping via FedEx, UPS, DHL.
Typical Applications
- Container fill-level monitoring
- Object detection and profiling
- Positioning and stacking control
- Automated warehouse systems
- Robot guidance (indoor)
Compatibility & Integration
- Ethernet TCP/IP for easy PLC connection
- RS-232 for service and configuration
- SOPAS software for parameter setup
- Digital outputs: PNP (4) + analog 4-20mA
- Region of Interest (ROI) configurable via software
Compare with Other Models
- LMS400-2000 – 3m, 500Hz, level control
- LMS400-1000 – same but lower frequency
- LMS100 – outdoor, longer range, lower resolution
- LMS500 – higher range, outdoor use
Certifications
- CE, UL, TÜV, EAC
- Laser Class 2 (Class 1 in standby) – IEC 60825-1
- EMC: EN 61000-6-2, EN 61000-6-4
- IP65 (EN 60529)
Package & Warranty
- In box: LMS400-2000 scanner, M12 connector, documentation.
- Warranty: 12 months.
- Shipping: 12-24h dispatch via FedEx, UPS, DHL (tracking provided).
Frequently Asked Questions
- Is this a safety-rated device?
- No. This sensor is not a safety component. Use it for monitoring and control, not for personnel protection.
- What is the minimum object size it can detect?
- Minimum 30mm x 30mm. For columns, min width is 50mm.
- Can I use this outdoors?
- No. This model is for indoor use only (0 to +40°C). Check LMS100 or LMS500 for outdoor.
- What does “level control” application mean?
- It monitors fill levels in containers. The scanner measures height profiles and outputs switching signals.
- How do I configure the Region of Interest (ROI)?
- Use SICK SOPAS software. ROI can be set from 50mm x 3000mm up to 1000mm x 1750mm.
- What outputs does it provide?
- 4 PNP digital outputs + 1 analog output (4-20mA). Also Ethernet TCP/IP for data telegrams.
Selection Guide
- Choose LMS400-2000 if: you need indoor level control with 3m range and high speed (500Hz).
- For lower speed applications: consider LMS400-1000 (lower frequency, lower cost).
- For outdoor use: select LMS100 or LMS500 (longer range, weatherproof).
- Check your environment: temperature must be 0-40°C. IP65 handles dust and water.
- Interface: Ethernet is standard. RS-232 available for legacy systems.
