LMC058LF42 Schneider Modicon LMC058 Motion Controller 8 Axes

LMC058LF42 Schneider Electric Modicon LMC058 Motion Controller

• Product Overview

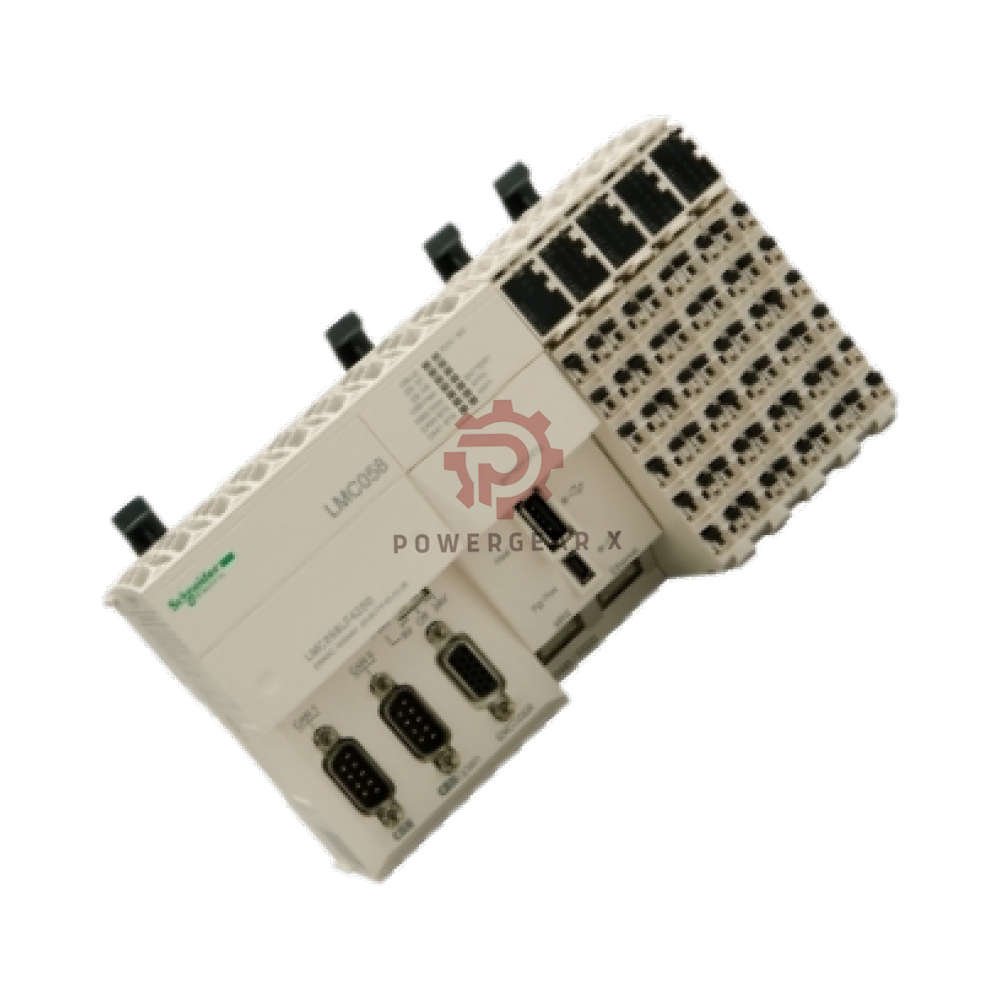

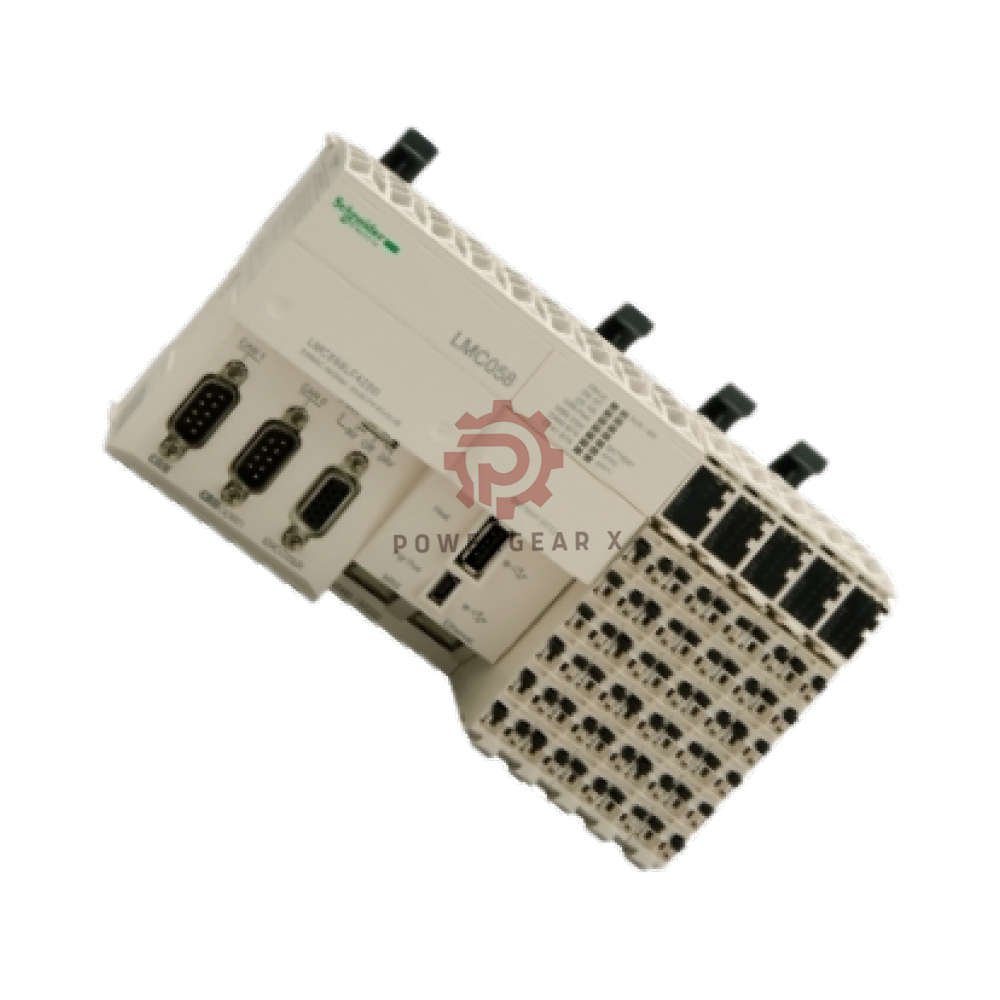

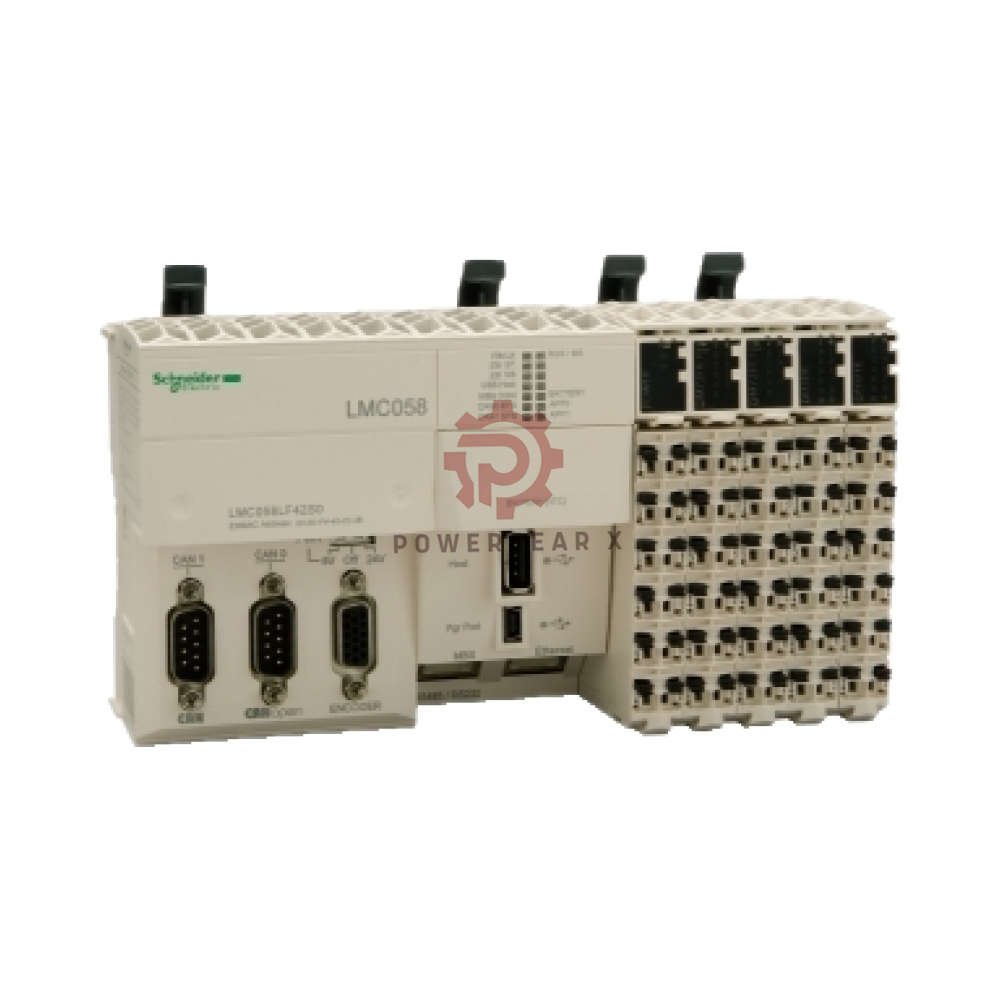

  • LMC058LF42 is a compact motion controller from Schneider Electric.
  • It belongs to the Modicon LMC058 series.
  • It manages up to 8 synchronized axes.
  • It offers 42 I/O points for machine control.
  • It uses the M258 platform with a dual-core ARM Cortex-A8 processor.
  • It fits high-speed motion tasks and logic control.
  • It supports CANmotion master and CANopen master.
  • It works with SoMachine and EcoStruxure Machine Expert.
  • It is ideal for modular machines and production lines.
  • It is now discontinued, with service until 2031-06-30.
  • Suggested replacement: Modicon M262 or LMCever.

Technical Specifications

• Brand and Model
  • Brand: Schneider Electric
  • Model: LMC058LF42
  • Series: Modicon LMC058
  • Product type: Motion Controller
• Core Performance
  • Processor: Dual-core ARM Cortex-A8
  • Platform: M258
  • Program memory: 128 MB Flash
  • Data memory: 64 MB RAM
  • Scan speed: 22 ns per Boolean instruction
  • Clock speed: not available
• I/O Capacity
  • Digital inputs: 26 total
  • Fast digital inputs: 10
  • Regular digital inputs: 12
  • Configurable digital inputs: 4
  • Digital outputs: 16 total
  • Regular digital outputs: 12
  • Fast digital outputs: 4
  • Analog inputs: none
  • Analog outputs: none
  • High-speed counters: integrated through fast inputs
  • Pulse outputs: 4 fast outputs
  • Expansion: up to 7 TM5 modules
• Motion Control
  • Axes: up to 8 synchronized axes
  • Cycle: 2 ms for 4 axes via CANmotion
  • Protocols: CANopen master and CANmotion master
  • Encoder input: 1 incremental encoder
  • Encoder interface: SUB-D15, 5V differential RS-422
• Communication
  • Ethernet: 1 RJ45, 10/100BASE-TX
  • Serial: 1 RS-232/RS-485
  • CAN: 2 SUB-D9 ports
  • Encoder: 1 SUB-D15
  • Programming: 1 USB-B mini
  • Memory stick: 1 USB-A
  • Protocols: Modbus TCP/IP, Modbus RTU/ASCII, CANopen, CANmotion
  • Expansion: EtherNet/IP, SERCOS III, serial, optional PCI modules
• Electrical Data
  • Supply voltage: 24 V DC
  • Range: 20.4 to 28.8 V
  • Power consumption: 13.03 W
  • Bus current: 0.28 A at 24 V DC
  • Expert module current: 0.04 A
  • Battery: 3 V CR2477M lithium
• Environmental Tolerance
  • Operating temperature: 0 to +55 °C
  • Storage temperature: -25 to +70 °C
  • Humidity: 10 to 95%, non-condensing
  • Protection: IP20
  • Noise immunity: designed for industrial control cabinets
• Physical Data
  • Dimensions: 175 × 99 × 85 mm
  • Weight: 0.55 kg
  • Mounting: symmetrical DIN rail

Installation Guide

• Mount the controller on a symmetrical DIN rail.
• Keep enough space for cables and airflow.
• Use a stable 24 V DC power supply.
• Check polarity before power-on.
• Connect Ethernet, serial, CAN, and encoder cables as needed.
• Use shielded cables for motion and encoder signals.
• Ground the panel to reduce electrical noise.
• Install the CR2477M battery for clock and data retention.
• Verify all I/O wiring before running the machine.
• Download the program with SoMachine or EcoStruxure Machine Expert.

Commissioning and Maintenance

• Use the USB-B mini port for programming.
• Use the USB-A port for memory stick tasks.
• Check firmware and project compatibility first.
• Test each axis at low speed before full operation.
• Monitor CANmotion and CANopen status LEDs.
• Replace the battery periodically to avoid data loss.
• Clean the module with a dry cloth only.
• Do not open the housing in dusty or wet areas.
• Keep spare TM5 modules for quick replacement.
• Record parameter settings for future service.

Compatibility Notes

• Works with SoMachine and EcoStruxure Machine Expert.
• Supports Modbus TCP/IP over Ethernet.
• Supports Modbus RTU/ASCII over serial.
• Supports CANopen and CANmotion networks.
• Accepts up to 7 TM5 expansion modules.
• Can use optional PCI communication modules.
• Works with incremental encoders using RS-422.
• Replacement options include Modicon M262 and LMCever.
• Check project migration before replacing an existing unit.

Certifications and Compliance

• Designed for industrial automation environments.
• Protection rating: IP20.
• Complies with common Schneider Electric industrial standards.
• Use in cabinets that meet local electrical codes.
• Confirm regional certifications before export or resale.
• Contact sales@powergearx.com for document requests.

Packing List

• 1 × LMC058LF42 motion controller
• 1 × 3 V CR2477M lithium battery
• 1 × quick start or safety note
• Protective packaging
• Accessories depend on order configuration.
• Please confirm contents upon delivery.
• Questions? Call +86 18030005825 on WhatsApp.

Warranty and Shipping

• 12-month warranty included.
• Orders usually ship within 12 to 24 hours.
• Shipping methods: FedEx, UPS, and DHL.
• Tracking information is provided after dispatch.
• Delivery time depends on destination and customs.
• Contact sales@powergearx.com for urgent orders.

Expert Review

• The LMC058LF42 is a strong fit for compact motion systems.
• It combines logic control and synchronized motion in one unit.
• 8 axes support packaging, handling, and assembly tasks.
• CANmotion gives fast cycle times for 4 axes.
• The 42 I/O design reduces extra components.
• TM5 expansion makes the system flexible.
• The 22 ns scan speed helps fast machine logic.
• It is best for users already using Schneider Electric tools.
• Since it is discontinued, plan migration carefully.
• Stock may be limited, so confirm availability early.

Manager’s Insight

• Buy this model when you need a proven Schneider motion controller.
• It suits spare parts, service, and existing machine upgrades.
• Check whether Modicon M262 fits your long-term plan.
• For current projects, confirm software and module support.
• Ask us for stock photos, labels, and firmware details.
• Email sales@powergearx.com for bulk needs.

Best Applications

• Packaging machines
• Assembly stations
• Material handling systems
• Pick-and-place units
• Printing and labeling equipment
• Small production lines
• Retrofits with CANopen drives
• Machines needing 8 synchronized axes

FAQ

• Q: Is the LMC058LF42 still available?
  • A: It is discontinued, but limited stock may remain.
• Q: What replaces it?
  • A: Schneider suggests Modicon M262 or LMCever.
• Q: How many axes can it control?
  • A: Up to 8 synchronized axes.
• Q: What software do I need?
  • A: Use SoMachine or EcoStruxure Machine Expert.
• Q: Does it have analog I/O?
  • A: No, it has no built-in analog inputs or outputs.
• Q: How fast does it ship?
  • A: Usually within 12 to 24 hours.
• Q: Which couriers do you use?
  • A: FedEx, UPS, and DHL.
• Q: What is the warranty?
  • A: 12 months.
• Q: Can I expand I/O later?
  • A: Yes, with up to 7 TM5 modules.
• Q: What should I check before buying?
  • A: Confirm firmware, software, axis count, and replacement plan.
• Q: Do you offer technical help?
  • A: Yes, contact sales@powergearx.com or WhatsApp +86 18030005825.

Buying Guide

• Match the controller to your axis count and cycle time.
• Check if your drives use CANopen or CANmotion.
• Count digital inputs and outputs before ordering.
• Plan for TM5 expansion if I/O may grow.
• Confirm your software license and project version.
• Ask for the CR2477M battery condition.
• For new designs, compare with Modicon M262.
• For service stock, buy only from a trusted supplier.
• Contact sales@powergearx.com for a quick quote.

Contact Information

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• We reply fast during business hours.
• Ask for stock, lead time, and shipping cost.
