High-Performance Braking for Industrial Drives

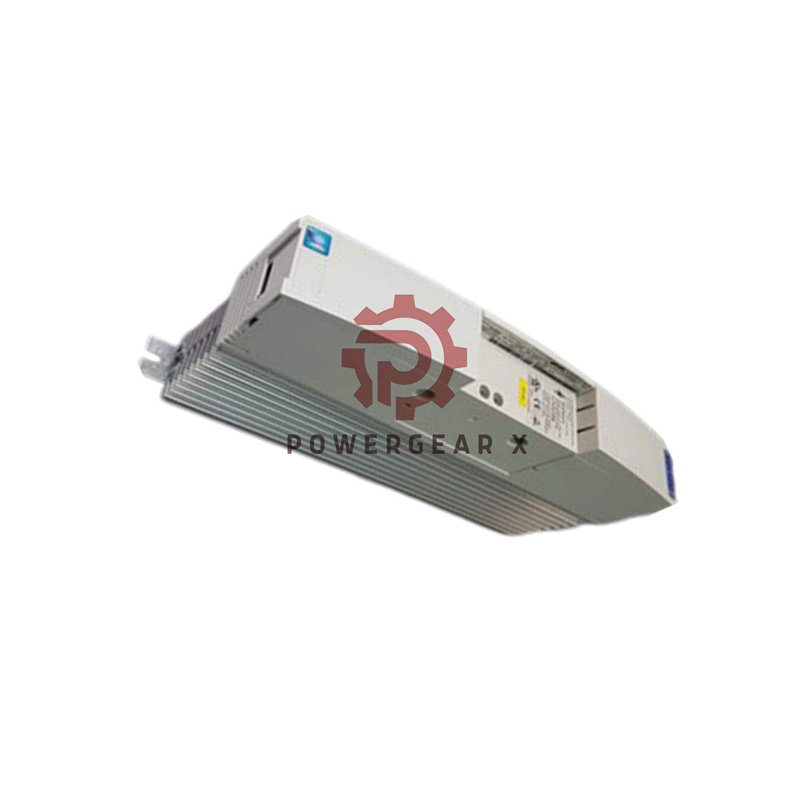

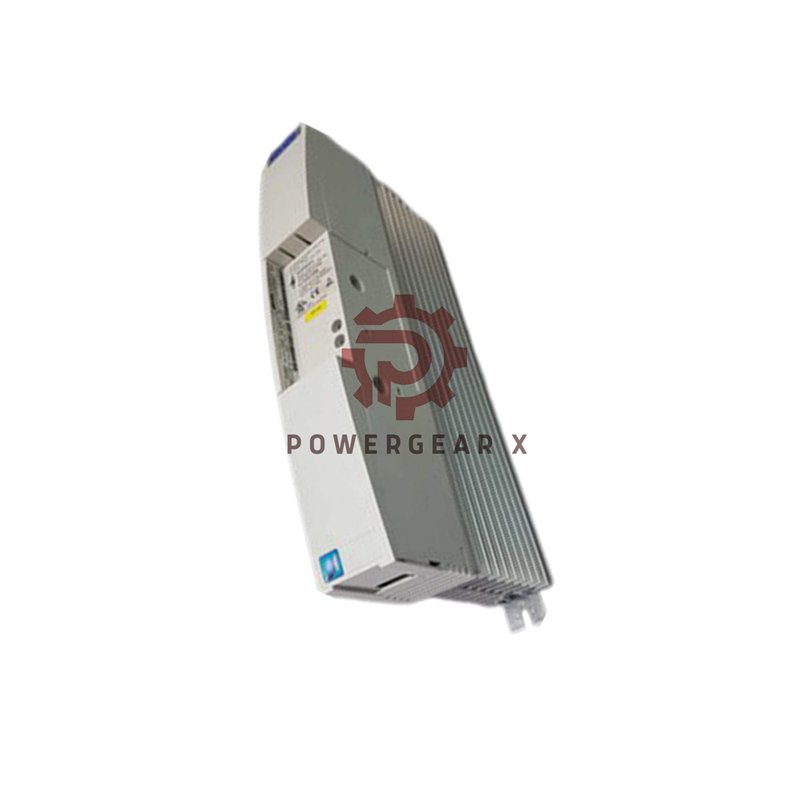

The EMB9352-C braking module delivers reliable stopping power for Lenze inverters. This unit handles demanding braking applications with precision. The EMB9352-C provides safe motor deceleration and energy dissipation. It ensures smooth operation across various industrial environments.
Technical Specifications
- Manufacturer: Lenze
- Model: EMB9352-C
- Series: 9300
- Voltage Range: 270-775 V DC
- Peak Braking Power: 25 kW at 765V
- Continuous Power: 11 kW at 765V
- Peak Current: 32 Amperes
- Braking Resistance: 47 ohms minimum
- Switching Thresholds: 375V, 725V, 726V
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -25°C to 70°C
- Protection Class: IP20
- Vibration Resistance: 0.7G
- Humidity Tolerance: 85% non-condensing
Product Advantages
- DIN rail mounting for easy installation
- LED status display for quick monitoring
- Wide voltage range compatibility
- High peak power handling capability
- Robust construction for industrial use
- Multiple switching thresholds
- Compact design saves space
- Reliable performance in harsh conditions
Power Performance Ratings
- 375V DC: 12kW peak / 5kW continuous
- 725V DC: 23kW peak / 10kW continuous
- 765V DC: 25kW peak / 11kW continuous
- Maximum Energy: 50 Watts
- Mounting: Standard DIN rail
- Display: Bright LED indicators
Compatible Products
Shipping & Service Information
- 12-month manufacturer warranty
- Global shipping via FedEx, UPS, DHL
- Fast order processing available
- Real-time tracking provided
- Technical documentation included
- Professional support team
Expert Technical Support
- 15+ years automation experience
- Quick response technical assistance
- Installation guidance available
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
- Comprehensive after-sales support
Technical Questions Answered
- What is the main purpose of this braking module?
It safely dissipates excess energy during motor deceleration.
- How do I select the proper braking resistance?
Use minimum 47 ohm resistance matching your voltage level.
- Can this module operate in high humidity areas?
Yes, it handles 85% humidity in non-condensing conditions.
- What does the IP20 protection rating mean?
It protects against finger touch but not against water ingress.
- How does temperature affect performance?
Full power available from 0°C to 40°C with reduced power at extremes.
