KEYENCE FS-V33CP Fiber Amplifier PNP M8 Connector

FS-V33CP Fiber Amplifier by KEYENCE: Fast, Flexible, and Built for Industrial Automation

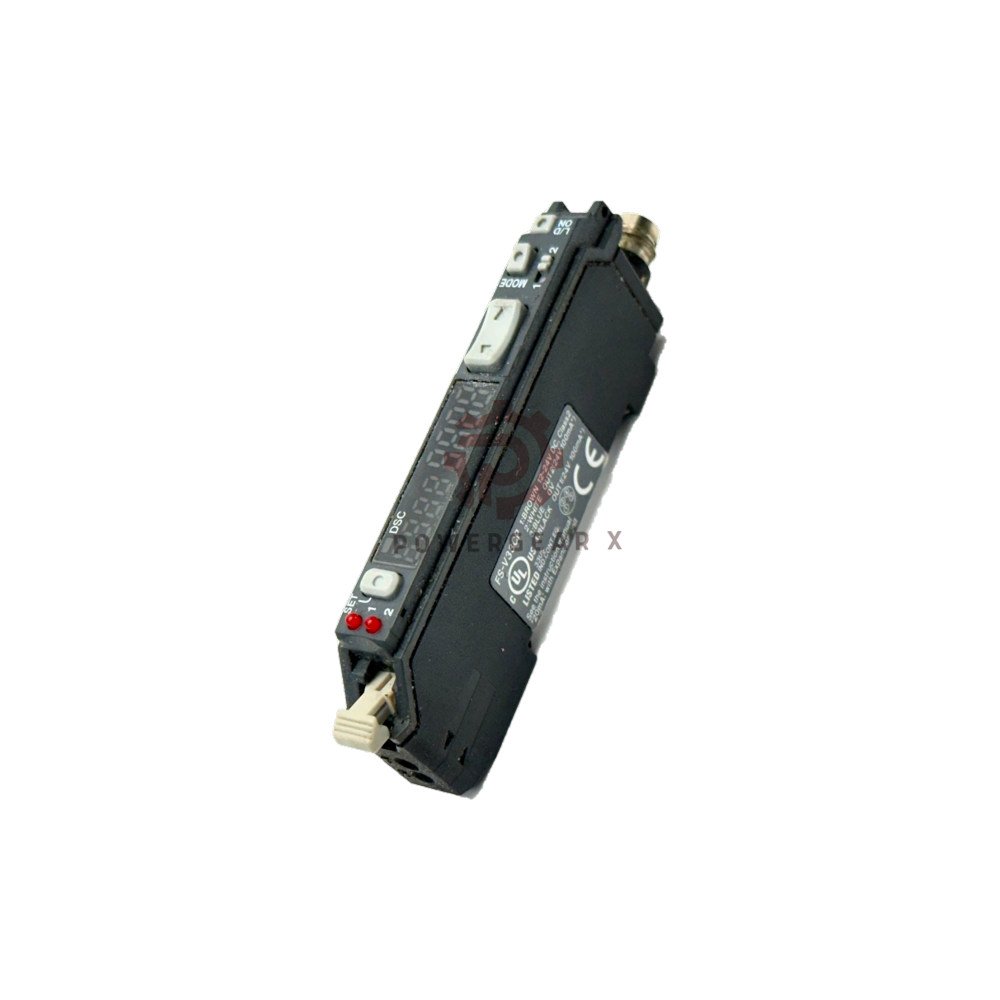

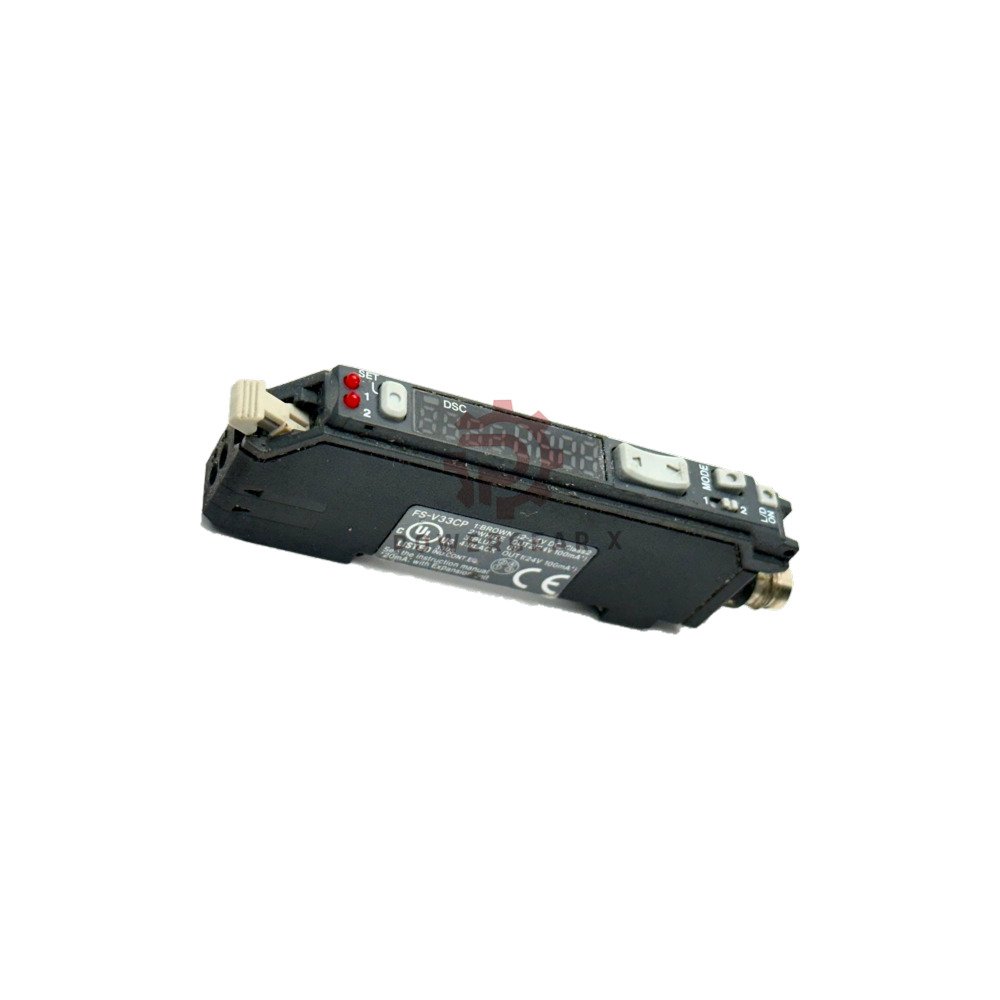

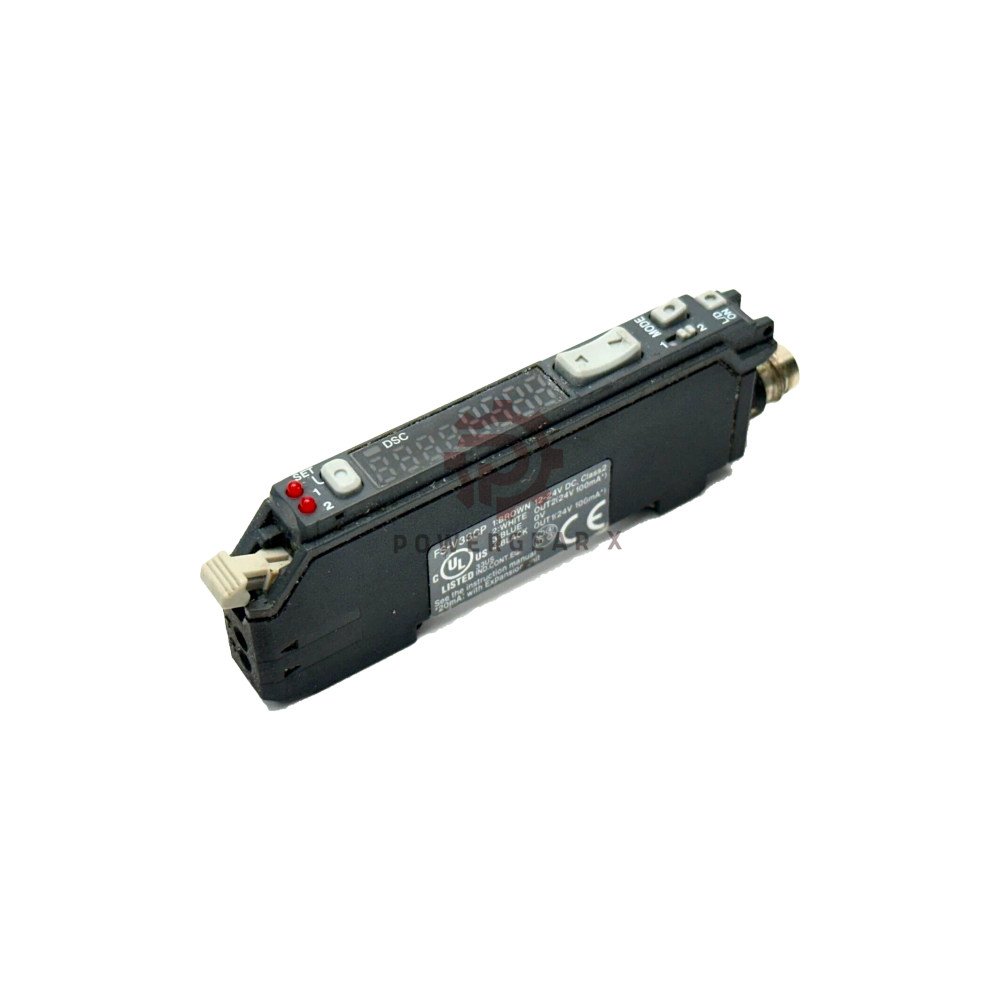

The KEYENCE FS-V33CP is a high-speed fiber amplifier with an M8 connector. It delivers precise detection for automated systems. This main unit offers two PNP outputs. It works well in tight spaces and harsh conditions. The dual digital monitor makes setup and monitoring easy.

Technical Specifications

• Brand: KEYENCE
• Model: FS-V33CP
• Type: 2-output with M8 connector
• Output: PNP
• Unit Role: Main unit
• Control Output: 2 outputs
• Light Source: Red, 4-element LED (640 nm)
• Response Time: 33 µs to 16 ms (six selectable modes)
• Output Selection: LIGHT-ON / DARK-ON (switch-selectable)
• Display: Dual 7-segment LED, green preset and red current value
• Current Value Range: 0 to 64,512
• Excess Gain: 0P to 999P
• Hold Function: Peak and bottom hold, 5 variations
• Bar LED Monitor: 85% to 115% in 7 steps
• Size: 30.3 mm H x 9.8 mm W x 71.8 mm D
• Detection Mode: Light intensity, area detection, automatic sensitivity tracking
• Timer Function: OFF-delay, ON-delay, one-shot, and combinations
• Timer Duration: 0.1 ms to 9,999 ms (max error ±10%)
• Control Output Rating: PNP open-collector 24 V, 100 mA max
• External Input: 2 ms ON / 20 ms OFF min
• Expansion: Up to 16 expansion units (17 total, 2-output counts as two)
• Interference Prevention: HIGH SPEED 0, FINE 4, TURBO/SUPER/ULTRA/MEGA 8 units
• Power Voltage: 12 to 24 VDC ±10%, ripple 10% or less
• Power Consumption: Normal 830 mW max, saving 660 mW max
• Ambient Light: Incandescent 20,000 lux, sunlight 30,000 lux
• Ambient Temperature: -10 to +55 °C (no freezing)
• Relative Humidity: 35 to 85% RH (no condensation)
• Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per axis
• Shock Resistance: 500 m/s², 3 times per axis
• Case Material: Polycarbonate
• Weight: Approx. 22 g
• Accessories: None

Installation Guide

• Mount the unit on a flat surface using M8 connector.
• Keep away from strong light sources.
• Connect power supply within 12 to 24 VDC range.
• Use shielded cables for stable signal.
• Allow space for expansion units if needed.
• Do not exceed 16 expansion units.
• Count 2-output type as two units.

Debugging and Maintenance

• Use dual digital monitor for easy setup.
• Select LIGHT-ON or DARK-ON with switch.
• Adjust timer via simple settings.
• Check bar LED for excess gain.
• Clean lens with soft cloth.
• Verify connections regularly.
• Replace unit if residual voltage exceeds 1 V.

Compatibility Notes

• Works with KEYENCE expansion units.
• Supports up to 17 total units.
• M8 connector fits standard industrial cables.
• Compatible with PNP input devices.
• External input accepts 2 ms ON pulse.
• Use with 24 V or 12 V power supplies.

Certifications and Compliance

• Meets industrial EMC standards.
• RoHS compliant materials.
• Designed for global automation use.
• Contact sales for detailed certificates.

Package Contents and Warranty

• 1 x KEYENCE FS-V33CP Fiber Amplifier
• No accessories included.
• Warranty: 12 months
• Shipping: 12 to 24 hours
• Carriers: FedEx, UPS, DHL

Expert Review

The FS-V33CP stands out for its speed and flexibility. The 33 µs response time is ideal for fast production lines. The dual digital monitor simplifies fine-tuning. The unit handles up to 16 expansions without signal loss. The timer functions add control without extra hardware. This amplifier is a solid choice for space-limited panels.

Manager’s Insight

This model fits well in electronics assembly, packaging, and small part detection. The PNP output works with most PLCs. The M8 connector reduces wiring time. The interference prevention feature keeps multiple units stable. For high-speed sorting, choose HIGH SPEED mode. For longer range, use MEGA TURBO. The 12-month warranty and fast shipping reduce downtime risk.

Best Applications and Equipment

• Electronics component detection
• Packaging line presence checks
• Small part counting
• Automated assembly stations
• Label detection on bottles
• Semiconductor wafer mapping
• Pharmaceutical blister pack inspection
• Robotic pick-and-place guidance

Frequently Asked Questions

Q: What is the response time of this amplifier?

A: It offers six modes from 33 µs to 16 ms.

Q: Can I use this unit as an expansion module?

A: No, it is a main unit. You can add up to 16 expansion units.

Q: How many interference prevention units work together?

A: Up to 8 units in TURBO or slower modes.

Q: Does it come with mounting brackets?

A: No, accessories are not included.

Q: What is the warranty period?

A: 12 months from the date of purchase.

Q: How fast do you ship?

A: We ship within 12 to 24 hours via FedEx, UPS, or DHL.

Q: Can I use this with a 12 V power supply?

A: Yes, it works from 12 to 24 VDC.

Q: What is the maximum output current?

A: 100 mA for main unit, 20 mA when expansion units connect.

Q: How do I set the timer?

A: Use the switch to select OFF-delay, ON-delay, one-shot, or combinations.

Q: Is the display easy to read in dark areas?

A: Yes, the dual 7-segment LED is bright and clear.

Q: What is the best mode for long-range detection?

A: Use MEGA TURBO for 16 ms response and higher gain.

Q: Can I use this in a vibrating machine?

A: Yes, it resists 10 to 55 Hz vibration at 1.5 mm amplitude.

Buying Guide

• Choose FS-V33CP for PNP output needs.
• Select M8 connector for quick installation.
• Pick this model for high-speed sorting.
• Add expansion units for multiple sensors.
• Use HIGH SPEED mode for microsecond detection.
• Use FINE mode for stable general purpose.
• Use TURBO or slower for long range.
• Check power supply ripple under 10%.
• Keep ambient light below 20,000 lux.
• Order now for 12 to 24 hour dispatch.
