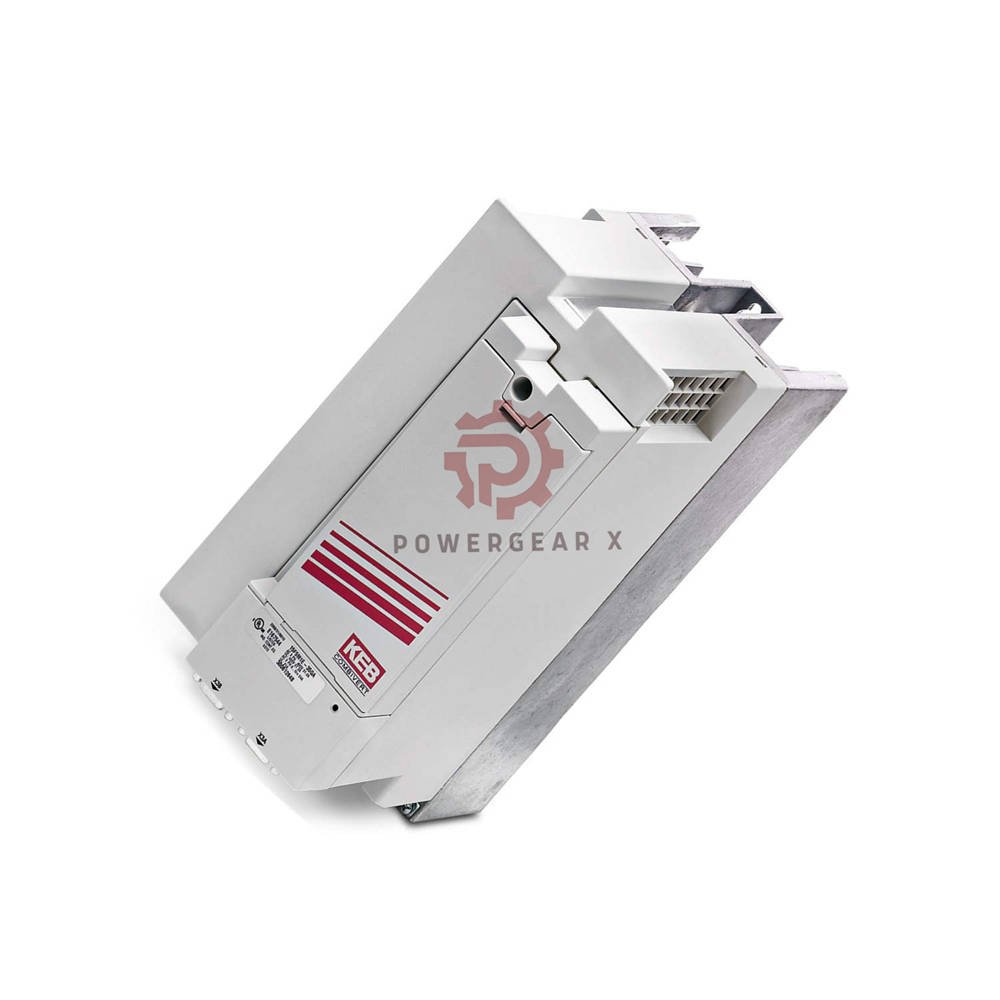

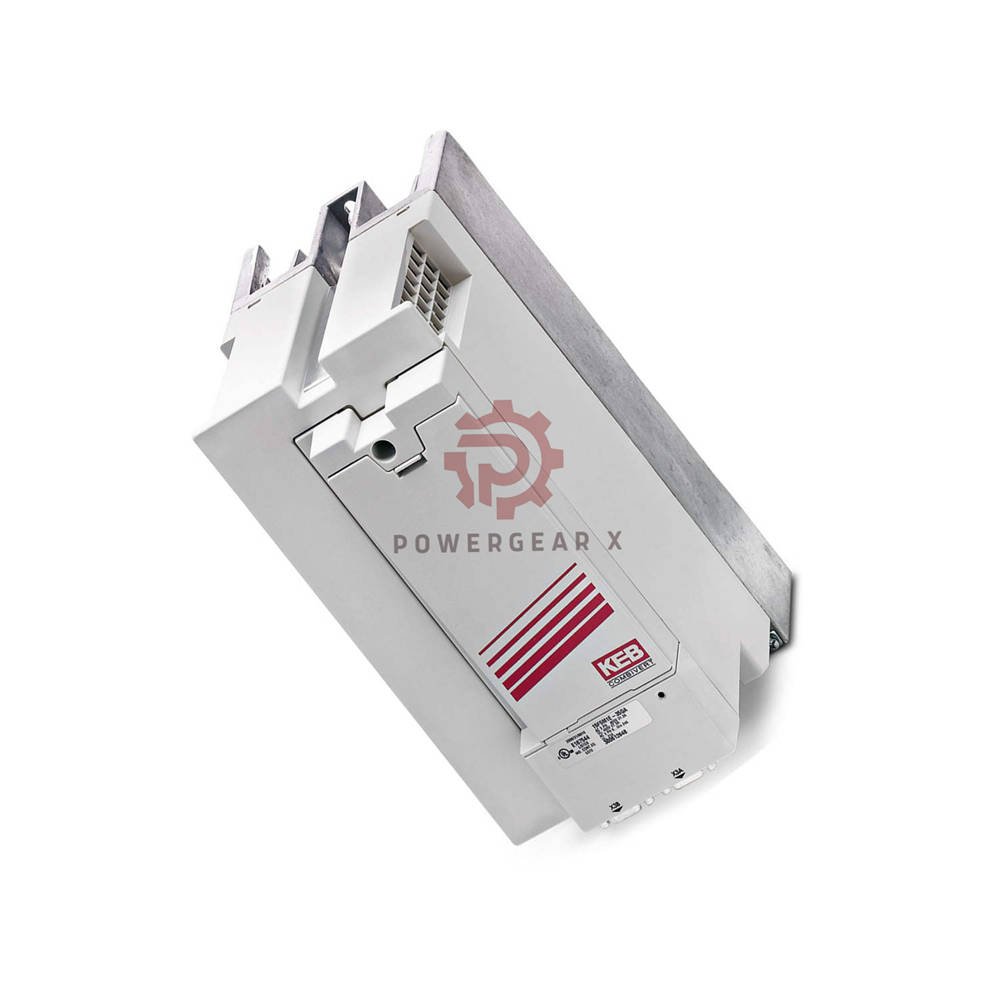

KEB 15F5M1E-35GA COMBIVERT F5 – 24A Servo Drive, 11kW, 0-480VAC for Automation

Product Overview

The KEB COMBIVERT F5 drive family offers versatile solutions for motor control. Choose from BASIC, COMPACT, or MULTI models. This 15F5M1E-35GA servo drive delivers 24/21A and 11kW power. It handles 0-480VAC input and fits many industrial machines. Its modular design ensures easy integration and reliable operation.

Drive Series Overview

• BASIC – Frequency inverter 0.37…15 kW
  • New compact, functional, and economical unit.
  • Handles simple to advanced mechanical tasks.
• COMPACT – Frequency inverter 0.37…90 kW
  • Universal features for high-quality machine design.
  • Offers more I/O and advanced control options.
• MULTI – Closed loop drive 0.37…800 kW
  • Controls asynchronous and synchronous servo motors.
  • Supports resolver, encoder, HIPERFACE®, and ENDAT®.

Technical Specifications (15F5M1E-35GA)

• Model: 15F5M1E-35GA Servo Drive
• Current: 24/21 Amp
• Phase: 3 Phase
• Voltage: 0-480 VAC
• Power: 11 KW / 17 KVA
• Frequency: 0-408 Hz
• Dimensions: 130 x 290 x 208 mm (IP20)
• Weight: 5 kg (11 lbs)
• Series: COMBIVERT F5

Key Features by Series

• BASIC Highlights
  • 1/3 phase 230V or 3 phase 400V input.
  • 17 pluggable control terminals (PNP logic).
  • Analog input: 0-10V, ±10V, or 0/4-20mA.
  • 5 digital inputs and 2 relay outputs.
  • Output frequency up to 1600 Hz.
  • Integrated filter per EN 55011/B.
• COMPACT Upgrades
  • 29 plug-in terminals for more connections.
  • 2 analog inputs and 2 analog outputs.
  • 8 digital inputs and 4 programmable outputs.
  • Sampling time under 2 ms.
  • Includes output phase monitoring.
• MULTI Capabilities
  • Open and closed loop control.
  • Supports various feedback devices.
  • Speed, torque, and position control.
  • Electronic gears and cam switches.
  • Decentralized automation solutions.

Installation & Mounting

• Mount vertically on a flat, non-combustible surface.
• Maintain 100mm clearance for airflow.
• Use shielded cables for control and feedback.
• Connect mains via the integrated filter.
• Set motor parameters before first start.

Calibration & Maintenance

• Calibration: Auto-tune function sets motor parameters.
• Maintenance: Check cooling fans and air filters.
• Cleaning: Use dry compressed air for dust removal.
• Firmware: Update via the serial interface.

Compatibility & Feedback

• Works with asynchronous and synchronous motors.
• Feedback options: Resolver, Incremental, Sin/Cos.
• Supports absolute, HIPERFACE®, and ENDAT® encoders.
• Optional Tacho feedback available.

Certifications & Standards

• CE marked for European compliance.
• UL recognized for US and Canada.
• RoHS compliant materials.
• EMC filter according to EN 55011/B.

Package Contents

• 1 x 15F5M1E-35GA Servo Drive
• 1 x Quick start guide
• 1 x Control terminal plug set

Warranty & Shipping

• Warranty: 12 months against defects.
• Shipping: Orders ship within 12-24 hours.
• Carriers: FedEx, UPS, DHL available.

Expert Review

Expert Insight: The 15F5M1E-35GA offers robust performance for demanding applications. Its modular design simplifies troubleshooting and reduces downtime. The MULTI series handles complex servo tasks with ease. Field-oriented control ensures precise torque and speed regulation. This drive is a reliable foundation for automation systems.

Manager’s Insight

Manager’s Perspective: Choosing the COMBIVERT F5 means investing in versatility. One drive family covers a wide power range. The 12-hour shipping keeps projects on schedule. Its built-in safety features lower operational risks. We recommend this series for its proven reliability and long-term value.

Applications & Suitable Equipment

• Conveyors: Speed control for belt and roller systems.
• Pumps: Variable flow control for centrifugal pumps.
• Fans: Energy-efficient air movement control.
• Packaging Machines: Synchronized motion and indexing.
• Machine Tools: Spindle and feed drive control.
• Textile Machinery: Precise tension and speed regulation.
• Robotics: Servo control for articulated arms.

Frequently Asked Questions (FAQ)

• What feedback types does the MULTI series support?
• It supports resolver, incremental encoder, Sin/Cos, absolute, HIPERFACE®, and ENDAT®.
• Can I use this drive with a single-phase supply?
• Yes, the BASIC series accepts 1/3 phase 230V or 3 phase 400V.
• How do I set up the PID controller?
• Use the parameter sets to configure PID for process control.
• Is the braking chopper built-in?
• Yes, internal braking chopper is standard (up to size G).
• What is the maximum output frequency?
• The drive can output up to 1600 Hz.

Experience & Selection Guide

• Experience Tip: Always use the auto-tune function for optimal motor control. Check the DC link voltage before power-up. For high inertia loads, enable the DC-braking function.
• Selection Guide: Choose BASIC for cost-effective solutions. Select COMPACT for advanced I/O and control needs. Opt for MULTI when closed-loop servo control is required. Ensure your motor feedback matches the option card.

Comparison with Similar Models

• KEB COMBIVERT F5 BASIC 5.5kW – Lower power, same compact design.
• KEB COMBIVERT F5 COMPACT 22kW – Higher power, more I/O.
• KEB COMBIVERT F5 MULTI 37kW – Larger frame, full servo support.
• KEB COMBIVERT F5 BASIC 7.5kW – Mid-range option for simple tasks.
