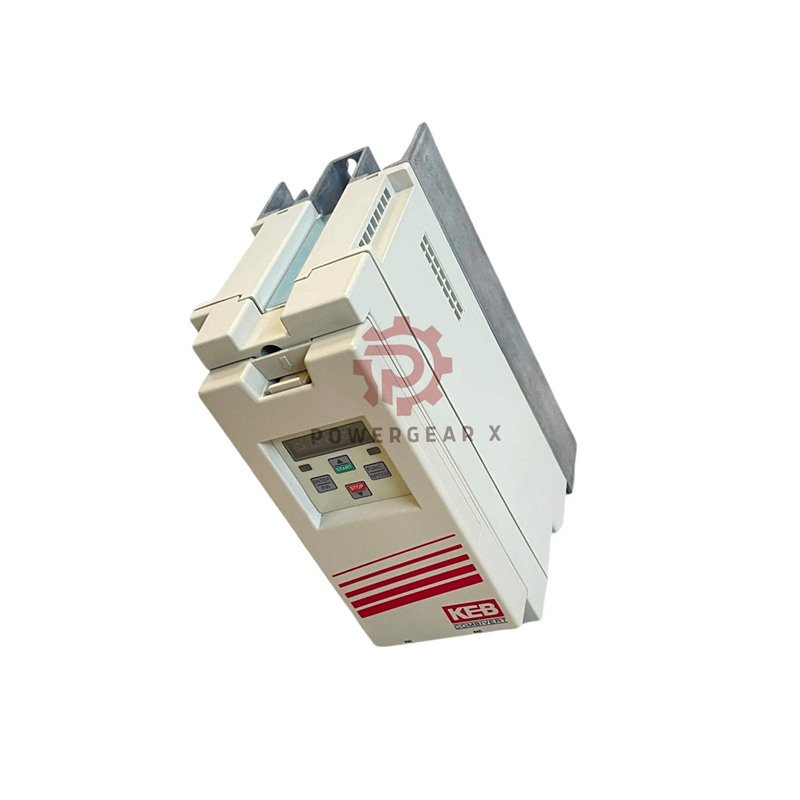

KEB 09F5C1B-3A0A Frequency Inverter
The KEB 09F5C1B-3A0A is a 1.5kW industrial drive. It provides precise motor control. This inverter is reliable for many automation tasks.
Key Product Details
- Model: KEB 09F5C1B-3A0A
- Series: Combivert F5
- Power: 1.5 kW
- Input: 3-Phase 400V AC, 5.7A
- Output: 0-480V AC, 0-800 Hz, 4.1A
- Housing: IP20 Protection
- Size: 160 x 90 x 220 mm
- Weight: 2.0 kg
Technical Specifications
- Electrical Standards:
- EN 61800-2, -5-1 (Safety)
- EN 61800-3 (EMC)
- Current Ratings:
- Rated Input: 5.7 A
- Max Output: 8.9 A
- Temperature Range:
- Operation: -10°C to +45°C
- Storage: -25°C to +70°C
- Control Features:
- Switching Frequency: 8 / 16 kHz
- Short-Circuit Monitoring
- Earth Fault Detection
- Feedback Support:
- Resolver Input
- Incremental Encoder
- Sin/Cos Encoder
- Absolute Encoder
- Communication:
- Serial Interfaces
- Potential-free Control Connections
Main Benefits
- Wide output frequency range up to 800 Hz
- Supports multiple encoder types for flexibility
- Built-in safety monitoring functions
- Compact design saves panel space
- Easy integration into existing systems
Warranty & Shipping
- 12-month product warranty
- Available for fast delivery
- Shipped worldwide via FedEx, UPS, DHL
Frequently Asked Questions
- What motor types work with this drive?
It controls standard 3-phase induction motors. - Can I use PROFIBUS or EtherCAT?
Yes, with optional communication cards. - Where should I install the unit?
Mount inside a clean, dry electrical cabinet. - How do I set motor parameters?
Use the keypad or KEB configuration software. - What if I see an overcurrent fault?
Check motor connections and load conditions first.
