Product details

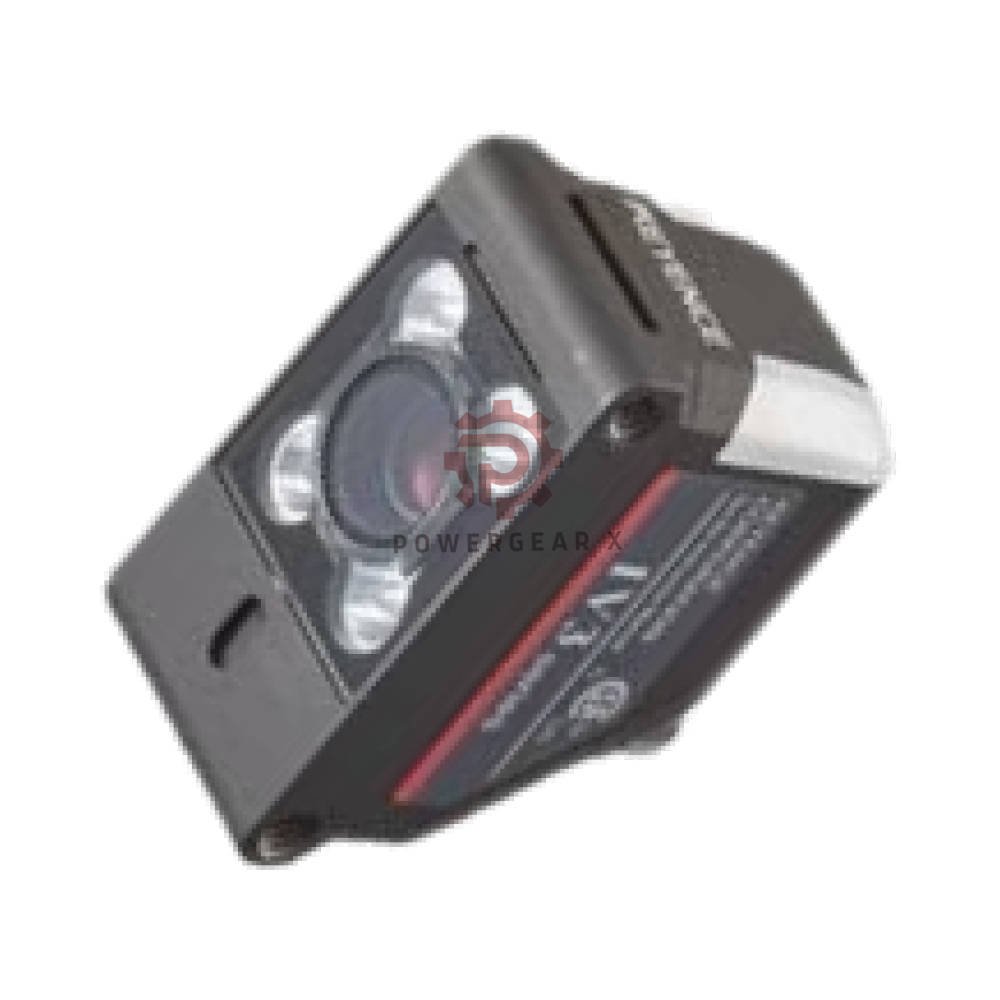

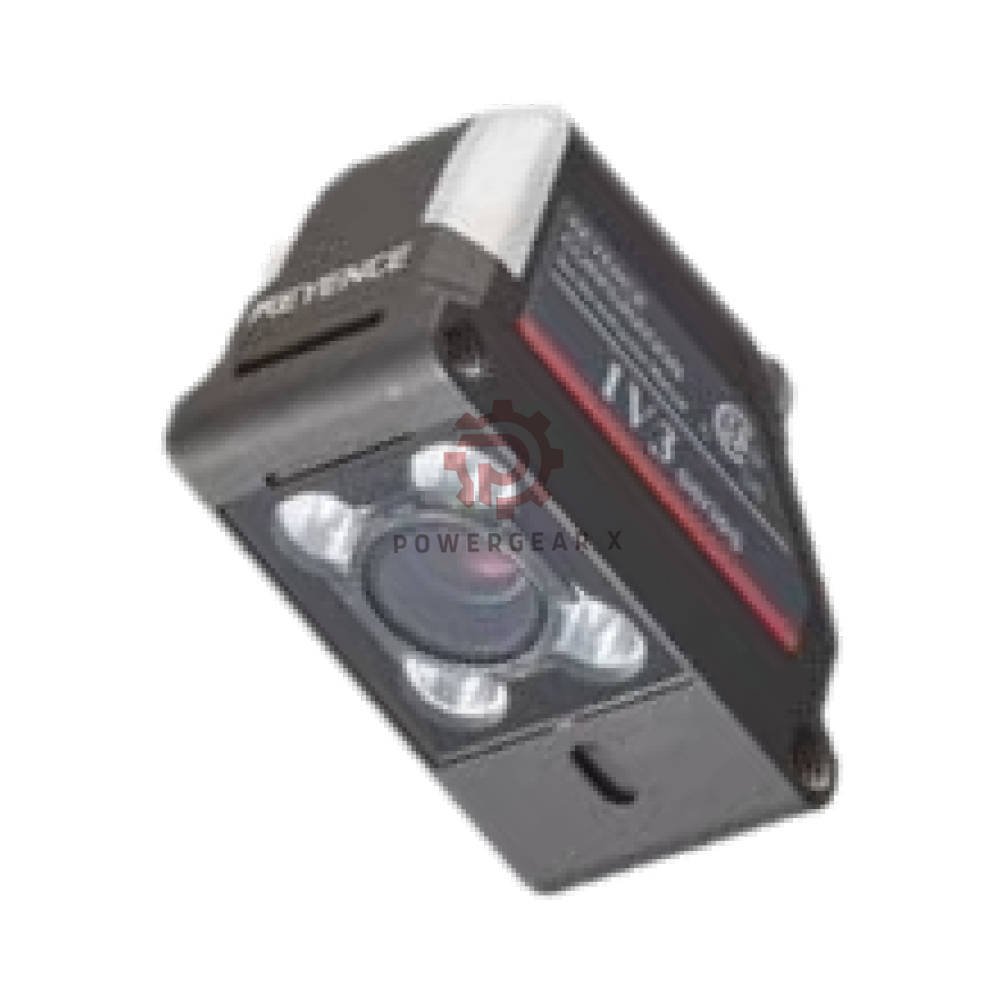

IV3-G600CA Keyence IV3 Series Wide-View Color AF Vision Sensor Head
IV3-G600CA is a compact wide-view color autofocus vision sensor head. It comes from the Keyence IV3 Series. This unit suits flexible visual inspection in factory automation. Because it offers a large field of view, it covers many part sizes. Also, it has built-in white LED lighting. As a result, it captures clear images at different distances and light levels. Condition: New / Never Used Surplus.
Technical Data
- Brand: Keyence
- Model: IV3-G600CA
- Series: IV3 Series
- Category: Sensors & Switches
- Subcategory: Sensor Accessory
- Type: Wide-view color AF model
- Image sensor: 1/2.9″ color CMOS
- Resolution: 1280 (H) × 960 (V) pixels
- Installed distance: 50 mm (1.97″) or more
- Field of view: 50 mm: 51 × 38 mm; 3000 mm: 2730 × 2044 mm
- Focus adjustment: Auto
- Exposure time: 12 µs to 9 ms
- Lighting: White LED (pulse / continuous selectable)
- Indicators: Dual indicator LEDs
- Enclosure rating: IP67
- Operating temperature: 0 °C to +50 °C (32 °F to 122 °F)
- Relative humidity: 35–85 % RH (non-condensing)
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude (2 h each X/Y/Z)
- Shock resistance: 500 m/s² (approx. 50 G), 3 times in each axis
- Material: Zinc die-cast case, acrylic front cover, TPU indicator cover
- Weight: 75 g (2.65 oz) without lighting unit / 225 g (7.94 oz) with lighting unit
Core Performance Details
- Measurement range: 50 mm up to 3000 mm working distance
- Frequency response: Exposure time from 12 µs to 9 ms
- Sensitivity: Color CMOS with white LED lighting
- Linearity: Stable image output across the field of view
- Resolution: 1280 × 960 pixels
- Temperature range: 0 °C to +50 °C
- Environmental tolerance: IP67 dust and water resistance
- Noise immunity: Handles vibration and shock in tough lines
Key Features
- Wide field of view: Captures large areas for multi-point checks.
- High-resolution imaging: 1/2.9″ color CMOS at 1280 × 960.
- Autofocus function: Keeps images sharp at varying distances.
- Built-in white LED: Gives even light in pulse or continuous mode.
- Durable design: IP67 housing resists dust, oil, and water.
- Flexible mounting: Compact body fits tight spaces.
- Stable performance: Withstands vibration and shock.
- Heat tolerant: Runs from 0 °C to +50 °C.
- Dual indicator LEDs: Simplify setup and status checks.
- Lightweight build: Only 75 g without the lighting unit.
Installation Guide
- Mount the head at 50 mm or more from the target.
- Then set the working distance for your field of view.
- Next, pick pulse or continuous LED mode.
- After that, let autofocus lock the image.
- Also keep the front cover clean.
- Finally, check the dual indicator LEDs.
Commissioning and Maintenance
- Test the field of view before full run.
- Also confirm lighting mode for your line speed.
- Then check focus at each distance.
- Next, clean the acrylic cover with care.
- In addition, inspect cables for wear.
- Replace damaged units promptly.
Compatibility Notes
- Works with the Keyence IV3 Series system.
- Also fits standard vision sensor mounts.
- Moreover, it pairs with common industrial controllers.
- However, it is a sensor head, not a full controller.
- Therefore, check your IV3 setup first.
- Confirm cable and lighting needs before ordering.
Certifications and Compliance
- Certification details are not listed in the source data.
- Also, enclosure rating is IP67.
- It meets common industrial sensor standards.
- Besides that, confirm local rules before use.
- Contact sales for document support.
Packaging List
- 1 × IV3-G600CA sensor head
- 1 × protective packaging
- Documentation may vary by stock.
- Lighting unit sold as listed.
Warranty and Shipping
- Warranty: 12 months
- Dispatch time: 12–24 hours
- Couriers: Fedex, UPS, DHL
- Tracking number provided after shipment.
- Delivery time depends on destination.
- Contact us for urgent orders.
Expert Review
The IV3-G600CA is a strong pick for wide-area vision tasks. It packs a 1/2.9″ color CMOS sensor with 1280 × 960 output. Also, autofocus cuts setup time. The white LED works in pulse or continuous mode. Because the body is IP67 rated, it handles dust and water. It also shrugs off vibration and shock. However, it is a sensor head only. Therefore, pair it with the right IV3 controller. All in all, it is a solid tool for fast, flexible inspection.
Manager’s Insight
- Best for wide-view color inspection.
- Also good for multi-point part checks.
- Useful for packaging and assembly lines.
- However, not a full vision system.
- Check stock before you commit.
- In addition, plan for lighting and cables.
- Keep a spare for key lines.
Suitable Equipment and Applications
- Keyence IV3 Series vision systems
- Packaging verification lines
- Assembly confirmation stations
- Quality inspection cells
- Part positioning tasks
- Multi-point inspection stations
- High-speed automation lines
- Dusty or wet factory areas
FAQ
Q: What makes the IV3-G600CA different from a standard sensor?
A: It adds color imaging, autofocus, and a wide field of view.
Q: Do I need a separate controller?
A: Yes, it is a sensor head and needs an IV3 controller.
Q: How close can the target be?
A: The minimum installed distance is 50 mm.
Q: Can it work in wet areas?
A: Yes, the IP67 housing resists dust and water.
Q: Which couriers do you use?
A: We use Fedex, UPS, and DHL.
Q: What warranty comes with it?
A: We offer a 12-month warranty.
Q: How fast do you ship?
A: We dispatch in 12–24 hours.
Q: What should I check before ordering?
A: Check stock, working distance, lighting mode, and controller fit.
Q: How do I reach sales?
A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
Buying Guide
- Confirm your system is Keyence IV3 Series.
- Also check your target size and distance.
- Then pick pulse or continuous lighting.
- Next, plan for cables and mounts.
- Keep it inside the 0 °C to +50 °C range.
- After that, ask for stock before payment.
- Request bulk pricing for many units.
- Contact us for urgent needs.
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
