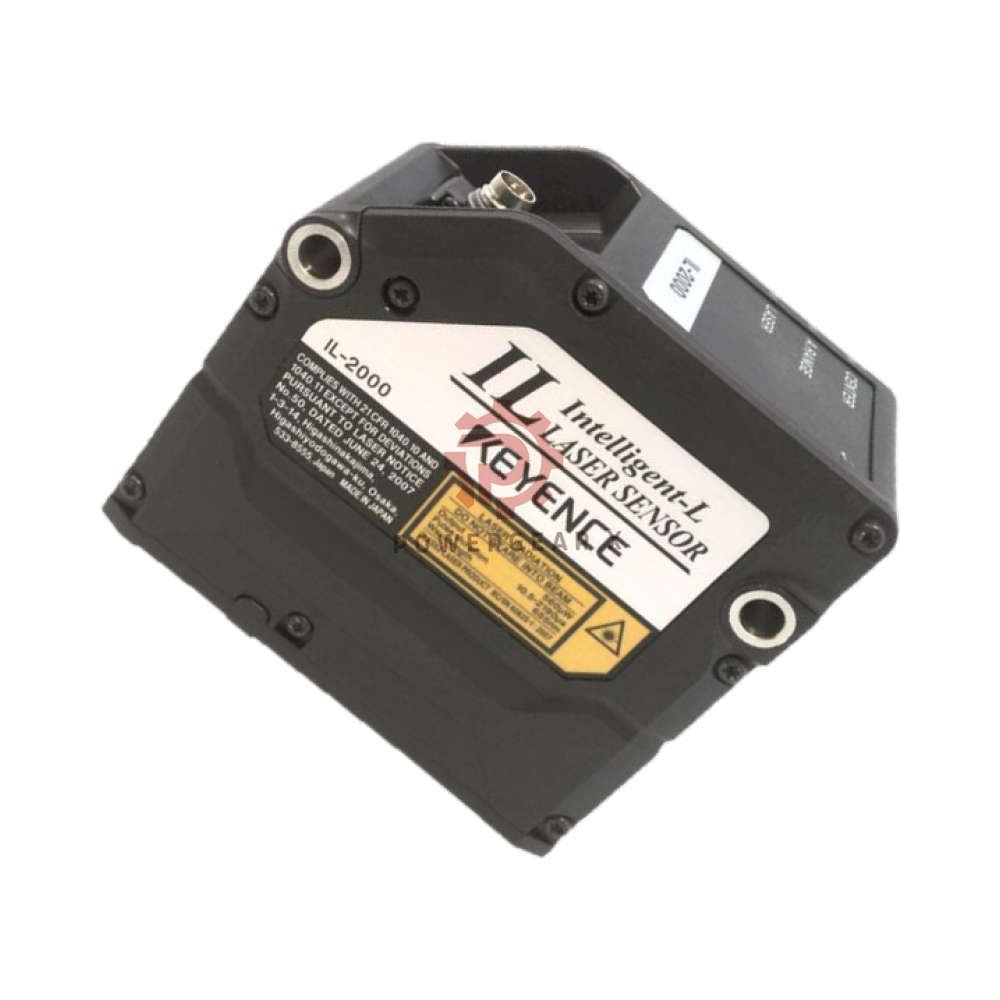

IL-2000 Laser Sensor Head for Long Range Measurement
IL-2000 is a laser sensor head built for long distance measurement. It covers 1000 to 3500 mm with a red semiconductor laser. The visible 655 nm beam makes alignment easy. A Class 2 rating keeps operation safe. The IP67 housing works in dust and water splash. This head suits inline inspection, positioning, and distance control.
Need a quote fast? Email sales@powergearx.com or message +86 18030005825. We ship in 12-24 hours by FedEx, UPS, or DHL.
Quick Look
- Long 1000 to 3500 mm range
- Visible red 655 nm laser
- Class 2 safe laser
- Fast 0.33 ms sampling
- Rugged IP67 body
Specification Tree
- Model
- IL-2000
- Type
- Sensor head
- Reference distance
- 2000 mm
- 78.74 inches
- Measurement range
- 1000 to 3500 mm
- 39.37 to 137.80 inches
- Light source
- Red semiconductor laser
- Wavelength 655 nm
- Visible light
- Laser class
- Class 2 FDA CDRH Part 1040.10
- Class 2 IEC 60825-1
- Output
- 560 microwatts
- Spot diameter
- About 1400 x 7000 micrometers
- At standard distance
- Linearity
- Plus or minus 0.16 percent of F.S.
- Across full range
- Repeatability
- 100 micrometers
- Sampling rate
- 0.33 ms
- 1 ms
- 2 ms
- 5 ms
- 4 levels available
- Status indicators
- Laser warning: green LED
- Analog range: orange LED
- Reference distance: red and green LED
- Temperature characteristics
- 0.016 percent of F.S. per degree C
- Environmental resistance
- Enclosure rating IP67
- Pollution degree 3
- Ambient light 10,000 lux
- Temperature minus 10 to plus 50 degrees C
- Humidity 35 to 85 percent RH
- Vibration 10 to 55 Hz
- Materials
- Housing PBT
- Metal parts SUS304
- Packing NBR
- Lens cover glass
- Cable PVC
- Weight
- About 350 g
Expert Review
The IL-2000 is a strong head for mid to long range work. The 3500 mm span fits many conveyor and roll lines. The visible beam cuts setup time. Fast sampling at 0.33 ms helps catch moving parts. Linearity of plus or minus 0.16 percent of F.S. gives steady readings.
The IP67 body shrugs off dust and splash. The wide 10,000 lux limit helps in bright plants. One weak point is spot size. The beam spreads at long range. Very small targets may need a closer head. Buyers should check target size first.
Manager’s Insight
This unit sells to integrators and plant engineers who need long range sensing. Demand is steady in packaging, metal, and wood lines. Stock moves fast when a line stops. Keep a spare on hand. Test each head before shipping. Pair it with a good controller and clean power for best results.
Best Fit Applications
- Conveyor and web loop control
- Roll diameter and tension checks
- Part presence on moving lines
- Height and thickness gauging
- Robotic positioning and pick tasks
- Outdoor or wet plant areas with IP67 need
FAQ
Is the laser safe for eyes?
Yes. It is Class 2. Brief exposure is safe, but never stare into the beam.
How far can it measure?
It covers 1000 to 3500 mm. The reference point sits at 2000 mm.
Can I use it outdoors?
The IP67 body handles rain and dust. Keep ambient light below 10,000 lux.
What makes setup simple?
The beam is visible. Green, orange, and red LEDs show laser, range, and reference status.
What if my target is tiny?
The spot grows at long range. Use a shorter distance or a small spot model.
How do I order and what support do I get?
We offer a 12-month warranty. Orders ship in 12-24 hours by FedEx, UPS, or DHL. Contact sales@powergearx.com or +86 18030005825.
Buying Guide
- Check your working range before you buy.
- Match target size to the spot at that range.
- Confirm your controller accepts this head.
- Plan a spare for critical lines.
- Ask for a tested unit and clear photos.
- Share your application for a fast quote.
