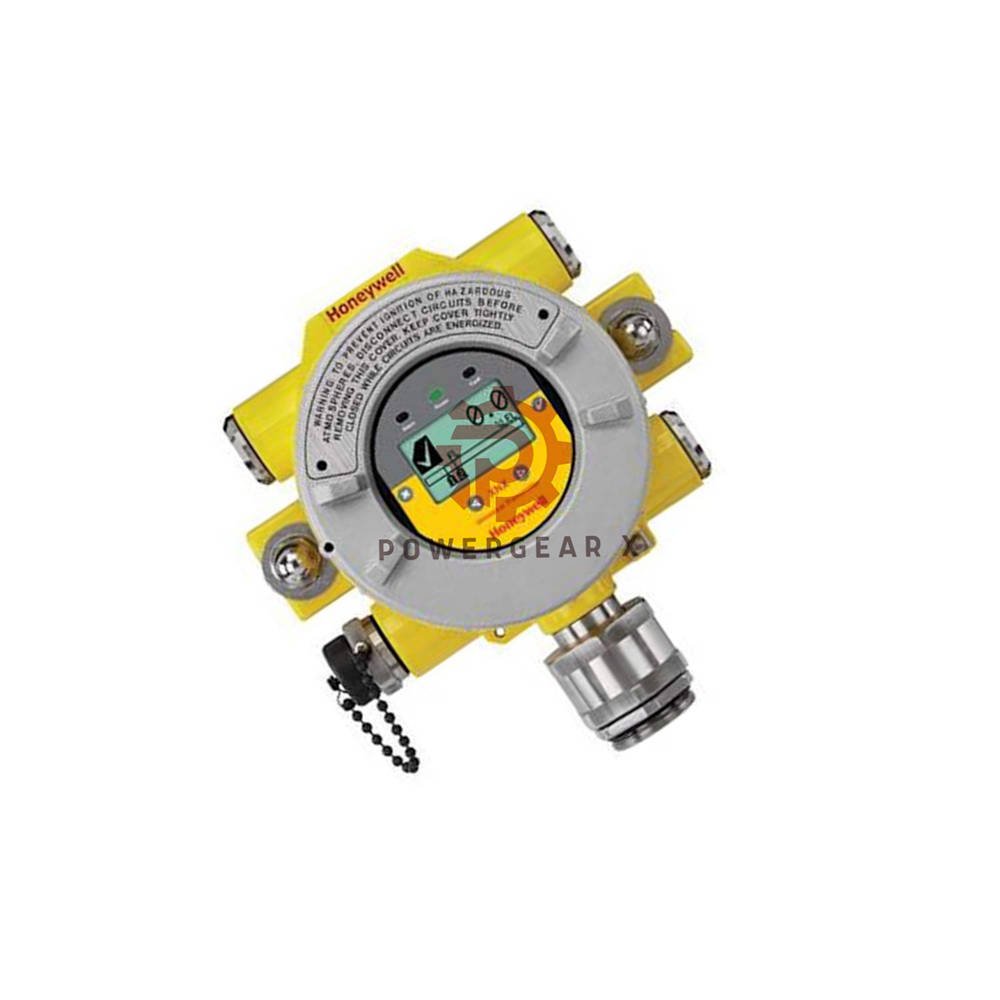

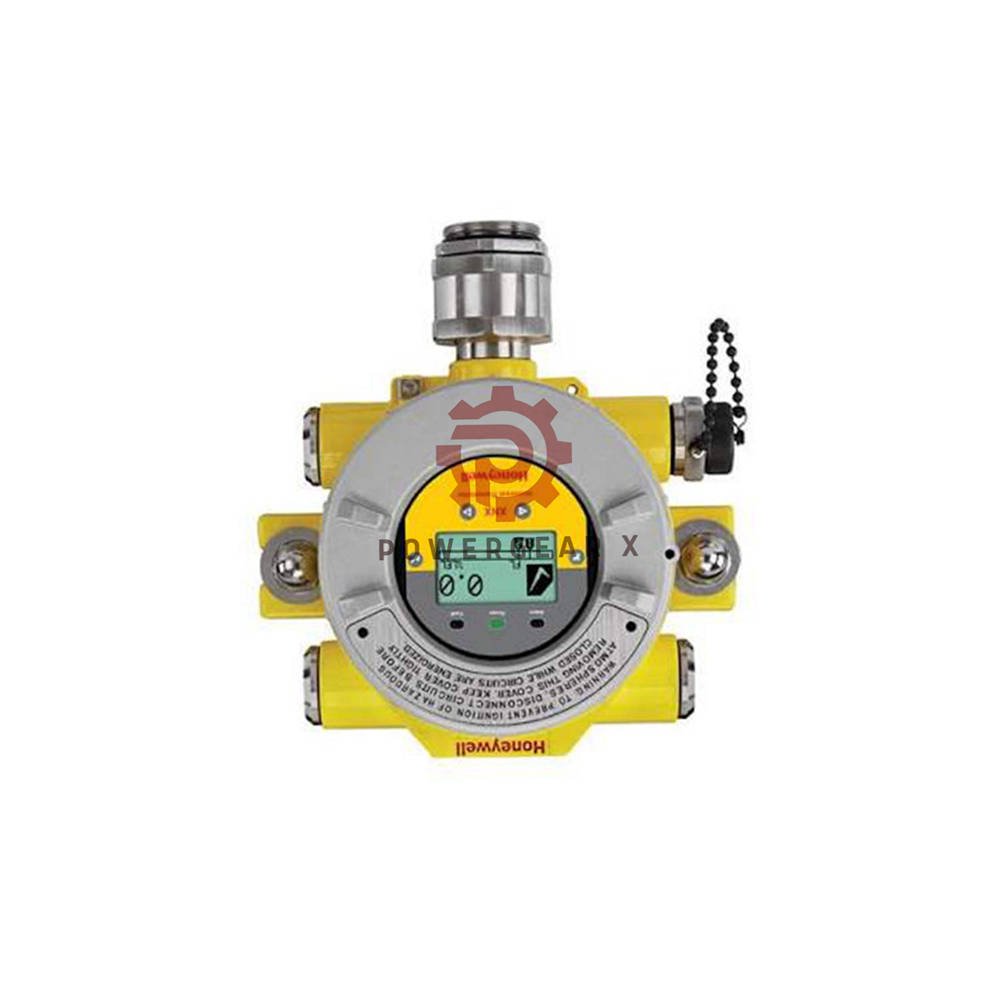

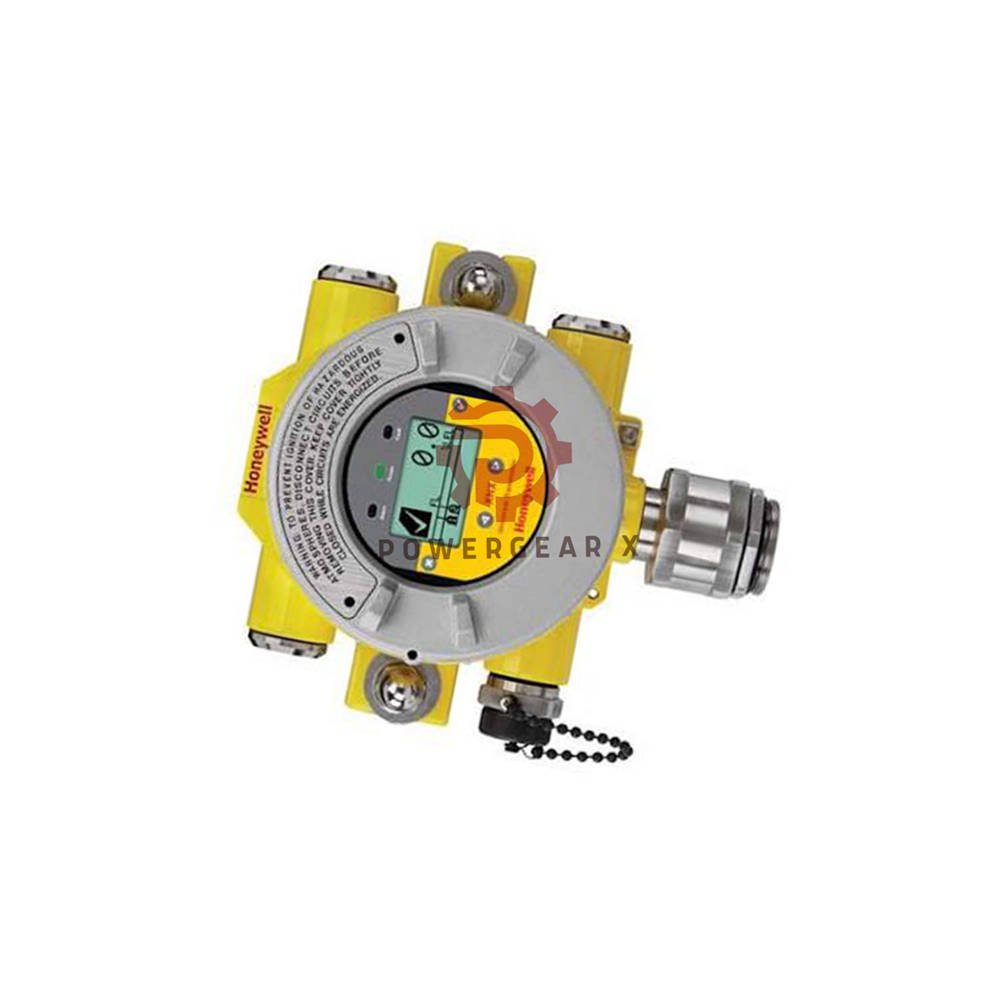

XNX-AMAV-NNNNN – Honeywell XNX Universal Transmitter

Brand: Honeywell Analytics | Type: XNX Series | Model: XNX-AMAV-NNNNN

Short description: The XNX-AMAV-NNNNN is a flexible transmitter for mV sensors. It works with MPD, Sensepoint, and Model 705 HT sensors. This unit has ATEX/IEC approval, M25 entry, and an aluminium housing. It supports HART EDDL for easy health checks.

Key Features – Tree View

• XNX Platform
  • Approval: A = ATEX / IECEx (hazardous areas)
  • Entry: M = M25 conduit
  • Material: A = Aluminium (light, strong)
  • Personality: V = milli-Volt sensor interface
    • Use with MPD, Sensepoint, Model 705 (HT and PPM)
  • Options: N = None installed
  • Local HART: N = None (but HART EDDL ready)
  • Sensor: NNN = None (order separately)

Technical Highlights

• Measurement: Depends on mV sensor (e.g., 0-100% LEL, ppm)
• Response: Fast T90 (sensor specific)
• Accuracy: High sensitivity and linearity
• Environment: -40°C to +65°C, 0-99% RH, 90-110 kPa
• Housing: IP66/67, corrosion resistant
• Digital: HART EDDL for quick status view

Installation & Mounting

• Surface mount: Integral lugs (4 points)
• Pipe mount: Optional kit for Ø100-150 mm (4″-6″)
• Ceiling mount: Optional bracket
• Cable: M25 entry (metric)

Commissioning & Care

• Setup: Simple menu via HART or local push buttons
• Calibration: Non-intrusive magnetic wand
• Diagnostics: Continuous self-test with fault alerts
• Maintenance: Minimal – sensor swap only

Compatibility

• Sensors: MPD, Sensepoint, Model 705 (HT, PPM)
• Outputs: 4-20 mA analog + HART digital
• Systems: PLC, DCS, SCADA
• Accessories: Pipe kit, ceiling bracket, weather cover

Certifications

• ATEX: Ex db IIC T6 Gb
• IECEx: Ex db IIC T6 Gb
• UL/cUL: Class I, Div 1, Groups B,C,D
• IP66/67: Dust and water resistant

Package

• 1 x XNX Transmitter (XNX-AMAV-NNNNN)
• Mounting screws and lugs
• Quick Start Guide (download)
• Calibration certificate

Warranty & Shipping

• Warranty: 12 months (defects)
• Shipping: 12-24 hours after order
• Couriers: FedEx, UPS, DHL

Expert Review – Manager’s Insight

“The XNX-AMAV-NNNNN is a smart choice for mV sensor users. Its HART EDDL gives clear device health at a glance. The aluminium body handles tough conditions well. For plant managers, this means less downtime and simpler maintenance.”

Ideal Uses & Applications

• Oil & gas refineries
• Chemical plants
• Water treatment
• Mining operations
• Pharmaceuticals
• Food processing

Professional FAQs

• Q: Does this unit include a sensor?
  A: No. The sensor (MPD, Sensepoint, or Model 705) is sold separately.
• Q: Can I use a 4-20 mA sensor with this version?
  A: No. This is specifically for milli-Volt sensors. For 4-20 mA, choose a different personality.
• Q: What is HART EDDL?
  A: It is a software that shows detector health and parameters on a handheld or system.
• Q: How do I mount on a 5-inch pipe?
  A: Use the optional pipe mounting kit (part no. XNX-MNT-PIPE). It fits 4-6 inch pipes.
• Q: Is the warranty valid worldwide?
  A: Yes. 12 months from purchase. Shipping is 12-24 hours via FedEx/UPS/DHL.
• Experience-based tip: Always calibrate with the magnetic wand – it avoids opening the enclosure in hazardous zones.
• Selection guide: Check your sensor type first. If you use MPD or Sensepoint, this model fits perfectly. Verify ambient temperature – this unit works from -40°C to +65°C.

Compare with Similar Models

• XNX-UTAI-MHNNN – Universal with Modbus/HART, ¾” NPT, for IR sensors
• XNX-AMAV-NNNNN – ATEX, M25, Aluminium, for mV sensors (this model)
