Overview

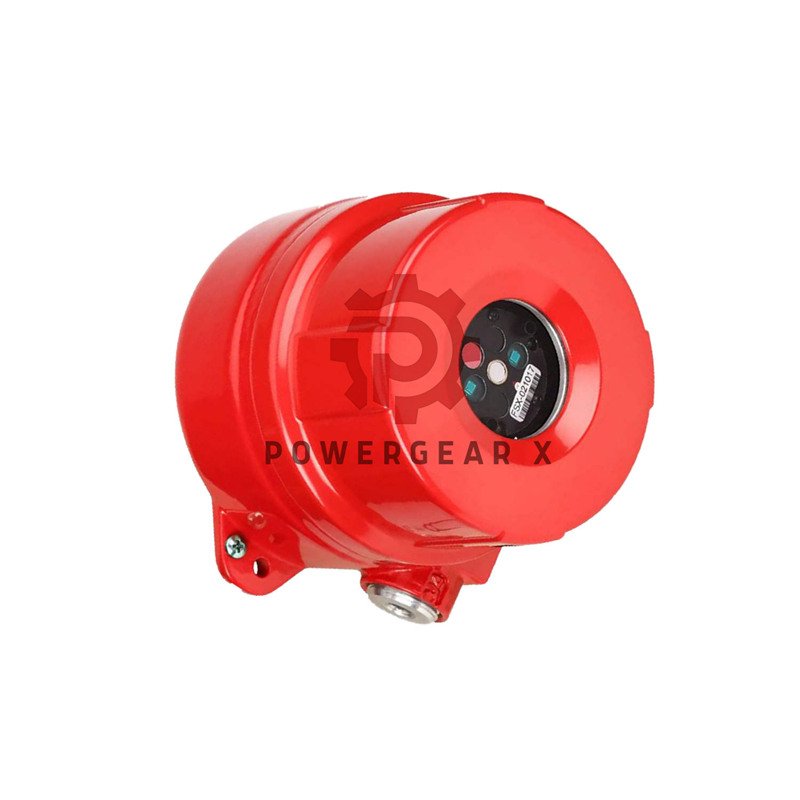

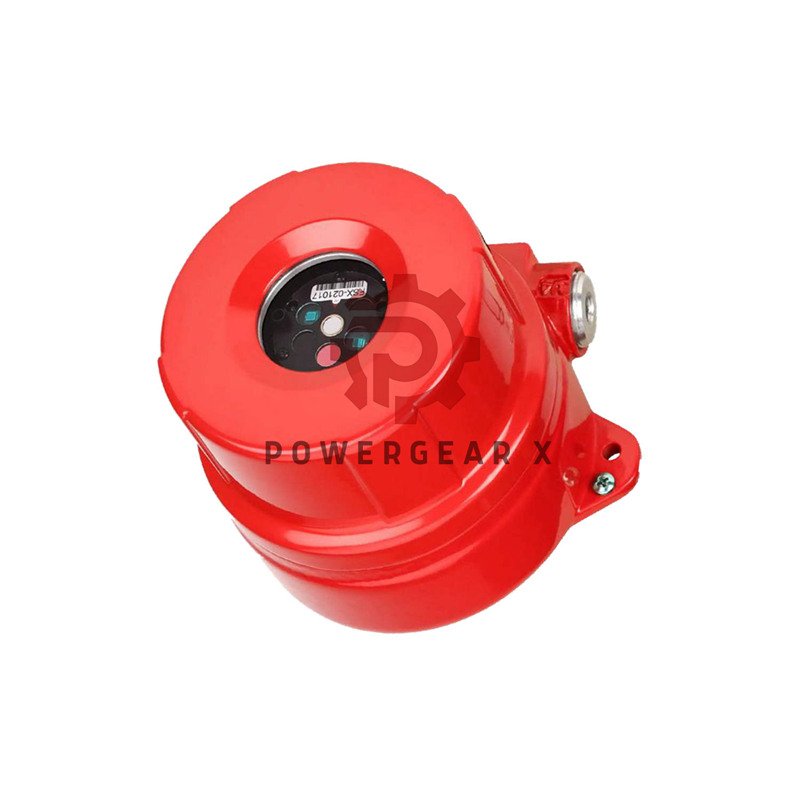

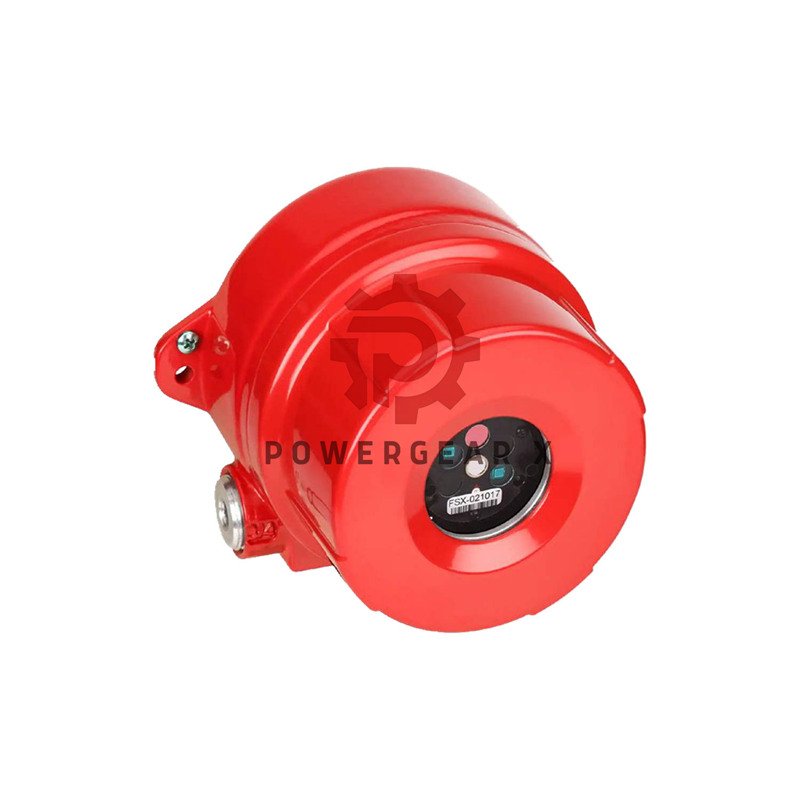

The FS24X-911-21-1 from Honeywell delivers fast and accurate flame detection for industrial safety systems. Powergear X Automation presents this unit with a clear structure that highlights essential specifications for engineers and integrators.
Key Benefits
- The Honeywell FS24X-911-21-1 reacts in 2–5 seconds to support rapid fire response.
- The detector senses a one square foot heptane fire at 200 feet under standard conditions.
- Outputs include relays, 4–20 mA, Modbus RTU, and FireBus for flexible system integration.
Technical Specifications (Brand, Model, Series)
- Brand Honeywell. Model FS24X-911-21-1. Series FS24X. Designed for hazardous applications.
- Spectral sensitivity spans 0.4–5.0 microns for broad IR flame coverage.
- Field of view reaches 90° horizontal and 80° vertical with highest sensitivity at the axis.
- Voltage input supports 18–32 VDC with nominal 60 mA draw.
- Analog output delivers 0–20 mA with defined points for Fault, Dirty Lens, Normal, and Alarm.
- Relay rating reaches 1 A @ 24 VDC for direct alarm control.
Electrical and Environmental Performance
- FS24X-2 operates from -40°C to +85°C. FS24X-9 operates from -60°C to +85°C.
- Enclosure uses copper free aluminum or 316 stainless steel with IP66 and NEMA 4X ratings.
- Humidity tolerance reaches 95% RH with short 100% condensing periods.
- Vibration performance aligns with Mil Spec 810C Method 514.2 Curve AW.
Installation Guide
- Mount using two 1/4-inch holes spaced 5.50 inches center-to-center.
- Route wiring with stranded 12–22 AWG conductors through 3/4-inch NPT entries.
- Maintain a clear line of sight between detector and hazard area.
- Ground the system properly and follow surge protection practices.
Packaging List & Shipping
- Package includes detector, mounting gasket, screws, and installation manual.
- We ship through FedEx, UPS, and DHL worldwide.
- Factory packing protects the device during transit and ensures clean delivery.
FAQ
- Q:How fast does the detector confirm a real flame event?
A:It confirms events within two to five seconds under proper installation. - Q:Can the detector operate in corrosive outdoor environments?
A:Use the stainless steel enclosure and clean the lens routinely for stable long-term performance. - Q:Which output should I use for PLC communication?
A:Select the 0–20 mA output or Modbus RTU depending on your PLC capability.
Compliance and Approvals
- Certifications include FM, cFM, ATEX, and IECEx for Zone 1 hazardous locations.
- Review local site requirements to confirm installation alignment with regulations.
