Honeywell 900SP1-0100 EPM | Expansion Processor Module for ControlEdge 900

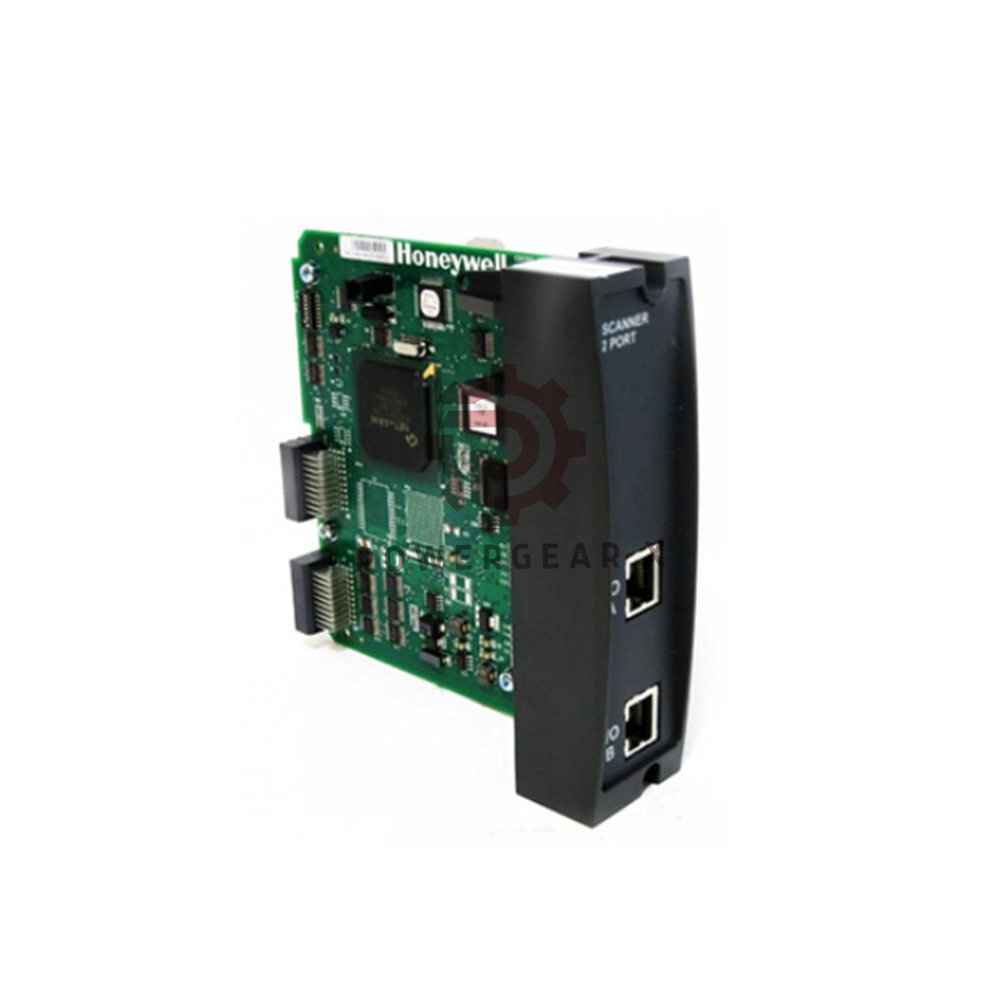

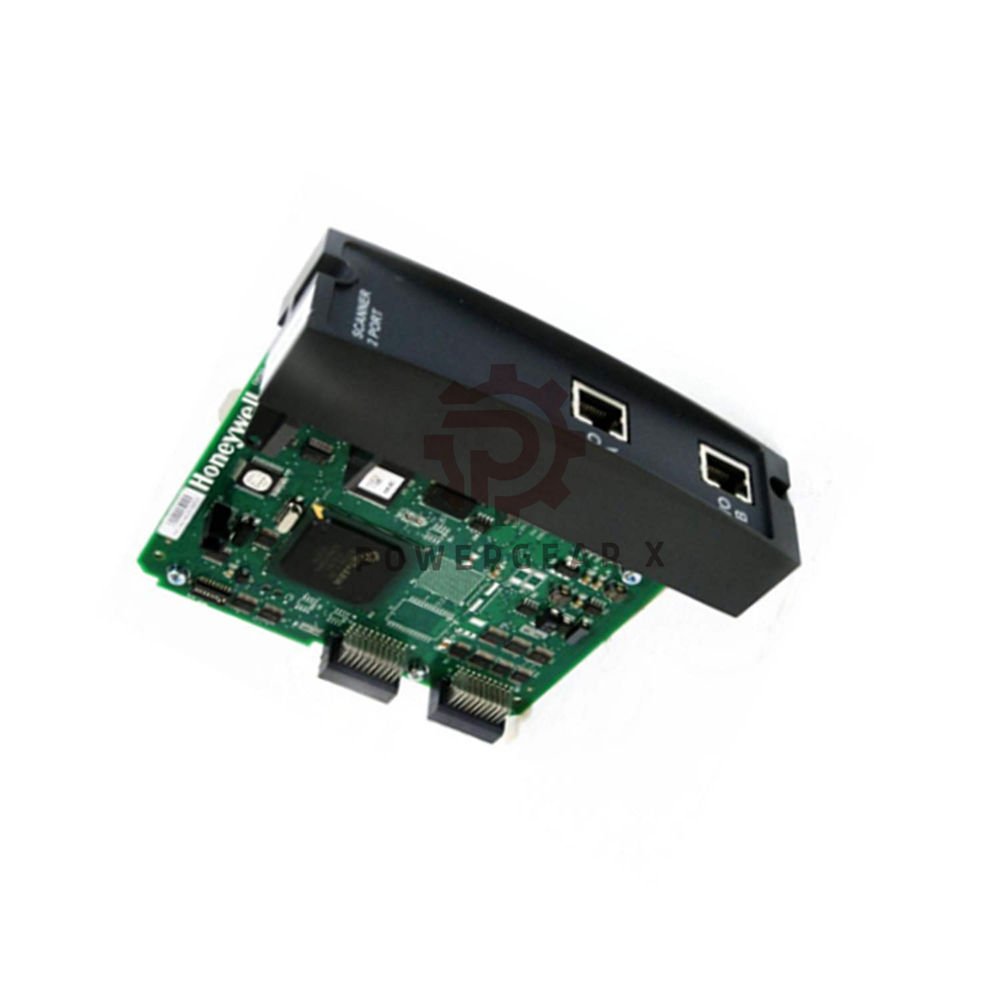

Honeywell 900SP1-0100 Expansion Processor Module (EPM)

The EPM acts as the interface between expansion I/O and the control processor module.
It is required for I/O racks to communicate with CPMs in a different rack.
This module supports both Star and Ring topology for flexible network design.

Technical Specifications

• Brand & Model
  • Brand: Honeywell
  • Model: 900SP1-0100
  • Series: ControlEdge 900 Platform
• Processor
  • Dual Core ARM Cortex-A9 (32 bit) @ 667 MHz
• Addressing & Indicators
  • Rotary Address Switch: Rack address range 1 to 99
  • LEDs: 2 tri-color LEDs for status indication
• Communication Ports
  • Ethernet Ports: 2 x 10/100BaseTx, auto-detecting
  • Connector: Shielded RJ45, auto-crossover
  • Isolation: 1500V RMS for 1 min at 60Hz
  • Transient Suppression: 600W peak pulse (10×1000μs, 0.01% rep rate)
  • Diagnostic LEDs on each port
  • Protocols: I/O Communication (ports 1 & 2)
• Network Topology
  • Star or Ring topology support (up to 100BaseTx)
  • Redundant and non-redundant systems
  • Max cable length (copper): 100 m (328 ft.) CPM to EPM or switch
  • Max cable length (fiber): 5000 m (16404 ft.) with multi-mode duplex 62.5/125, SC connectors
• Compatible Switches & Converters
  • Unmanaged switches: Moxa EDS-308, EDS-308-MM-SC, EDS-316-MM-SC
  • Media converter: Moxa IMC-101-M-SC
  • Requires 24VDC power
• Power & Environment
  • Power Consumption: 2.6W
  • Heat Dissipation: 2.6W
  • Temperature Range: Industrial standard (0~60°C operation)
  • Environmental Tolerance: Compliant with industrial EMC and vibration
  • Immunity: High noise immunity for harsh environments
• Measurements & Performance
  • Measurement Range: Determined by I/O modules connected
  • Frequency Response: Depends on network speed (10/100 Mbps)
  • Linearity & Resolution: Guaranteed by digital communication protocol
  • Isolation & Suppression: As specified above

Installation & Commissioning

• Mounting: Rack mount in expansion I/O chassis
• Wiring: Use shielded CAT5 cable for copper; multi-mode fiber for long distance
• Address Setting: Set rotary switch (1-99) before power-up
• Commissioning: Auto-negotiation for speed and duplex; LEDs confirm status
• Maintenance: No routine maintenance; diagnostic LEDs and port LEDs simplify troubleshooting

Compatibility

• Compatible with ControlEdge 900 CPM (control processor module)
• Works with expansion I/O racks in different chassis
• Supports Moxa unmanaged switches and media converters listed above

Certifications & Packaging

• Certifications: CE, UL, RoHS compliant (industrial control equipment)
• Package Includes: EPM module, quick start guide, warranty card
• Warranty: 12 months from date of purchase

Shipping & Delivery

• Lead Time: 12-24 hours dispatch (stock permitting)
• Carriers: FedEx, UPS, DHL (tracking provided)

Expert Review – Why Choose 900SP1-0100?

• Proven reliability for critical I/O expansion in ControlEdge 900 systems.
• Dual-core ARM processor ensures fast, deterministic communication.
• Star/Ring flexibility reduces network downtime and simplifies wiring.
• Isolation and transient protection guard against electrical noise.
• Compatible with widely available Moxa switches – easy to source and deploy.

Applications

• Industrial automation and process control systems
• Distributed I/O racks in manufacturing plants
• Oil & gas, water/wastewater, power generation
• Any ControlEdge 900 based system requiring remote I/O expansion

Frequently Asked Questions (FAQ)

• Q: Can I use this module with a redundant CPM pair?
• A: Yes, it supports both redundant and non-redundant systems.
• Q: What cable should I use for the I/O network?
• A: Use shielded CAT5 for copper (up to 100m) or multi-mode fiber with SC connectors (up to 5000m).
• Q: How do I know the module is working correctly?
• A: Check the two tri-color LEDs; they indicate power, network link, and activity.
• Q: Can I connect this directly to a CPM without a switch?
• A: Yes, direct CPM-to-EPM connection is supported (copper up to 100m).
• Q: What is the typical power consumption?
• A: 2.6W, matching its heat dissipation.
• Q: Which Moxa switch is recommended?
• A: EDS-308 (8 copper ports) or EDS-308-MM-SC (6 copper + 2 fiber ports) – both 24VDC.

Purchase Guidance & Insider Tips

• Always set the rotary address before installation to avoid address conflicts.
• For long-distance runs (over 100m), use fiber optic with the Moxa IMC-101-M-SC converter.
• Order a spare module to minimize downtime – we offer quick 12-24h dispatch.
• Check your CPM firmware version; this EPM works with all ControlEdge 900 CPMs.
• Need a switch? Choose EDS-316-MM-SC for larger networks (14 copper + 2 fiber ports).
