Product details
Product Overview

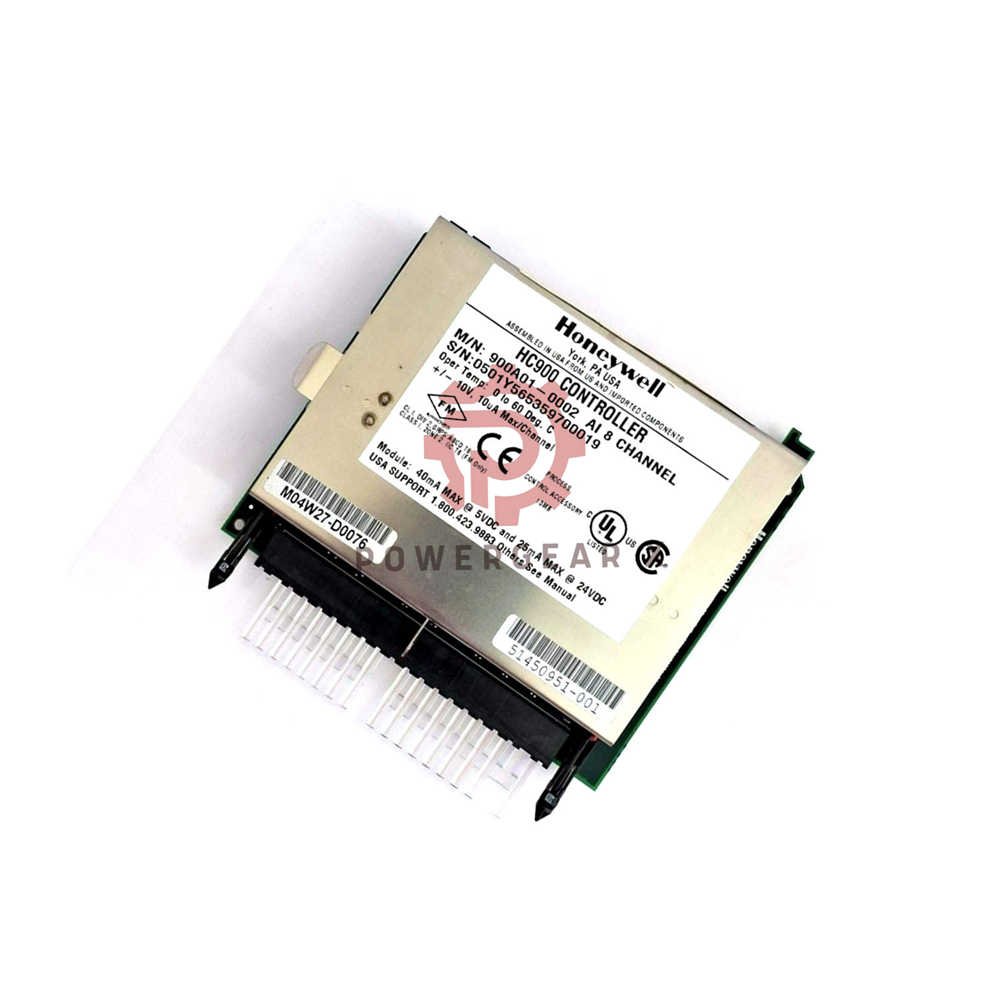

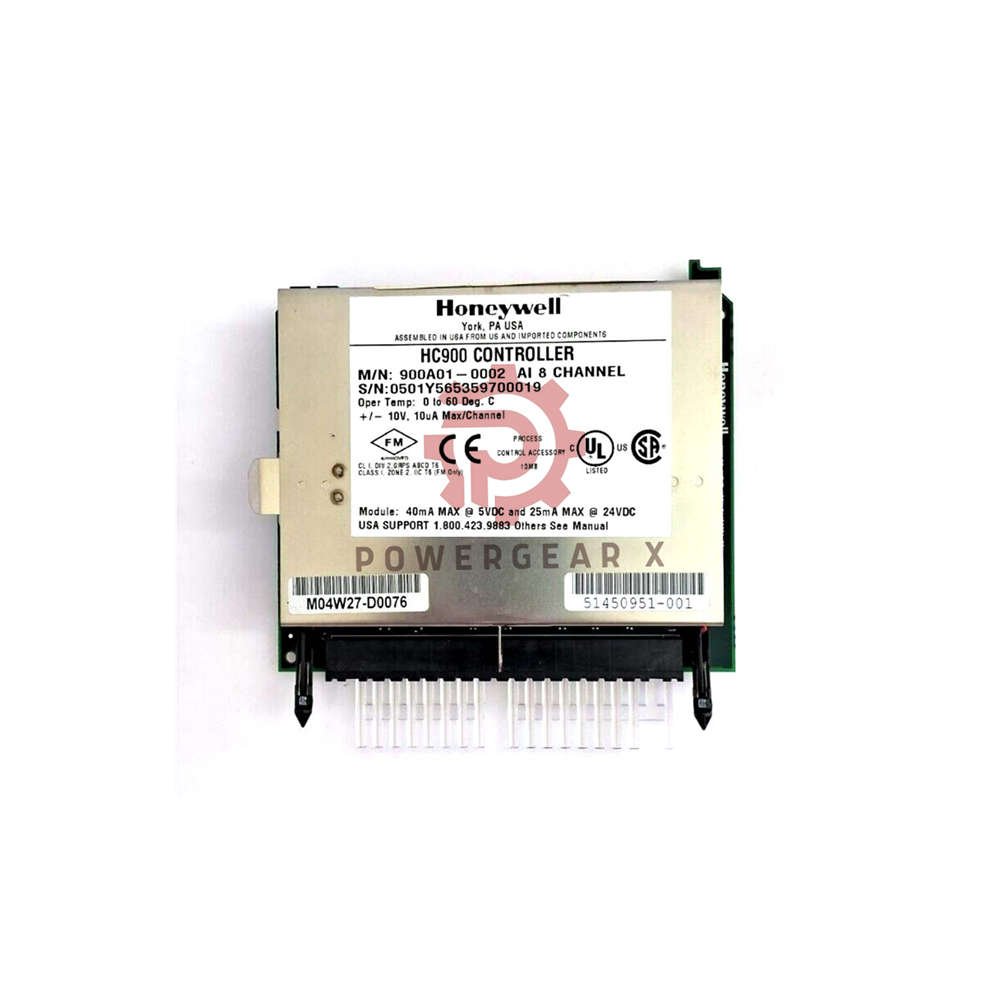

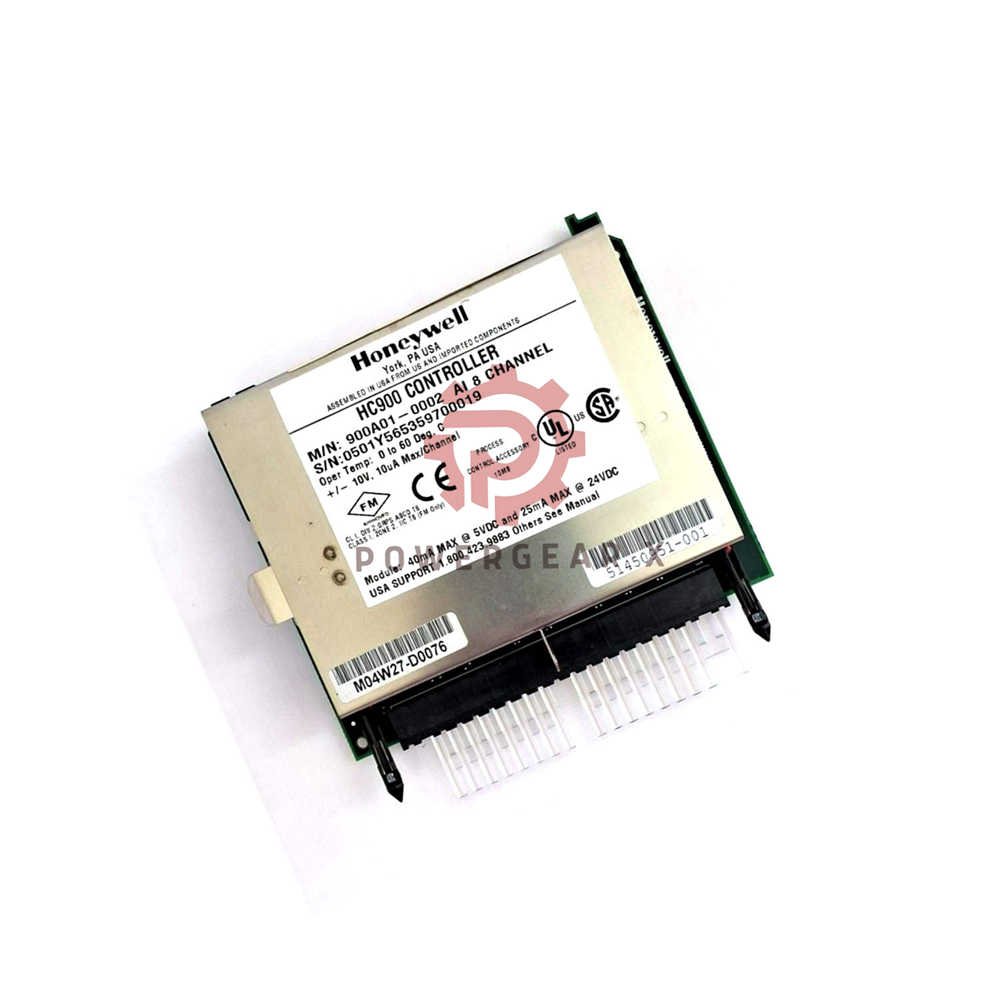

- Honeywell 900A01-0002 – 8-Channel Universal Analog Input Card
- Part of the HC900 series, designed for precise analog signal acquisition
- Each channel supports thermocouple, RTD, resistance, V, mV, mA, or slidewire
- Point‑to‑point and back‑plane isolation ensure signal integrity
- Green blinking LED = scanning active; amber = forced channels; red = diagnostic alert
- Per‑channel failsafe value and sensor warning signals for thermocouple inputs
Key Technical Data
- Brand: Honeywell
- Model: 900A01-0002
- Type: Universal Analog Input Module (8 channels)
- Measurement ranges: V, mV, mA, resistance, RTD, TC, slidewire
- Frequency response: synchronized with CPU cycle – no latency
- Sensitivity & linearity: high accuracy per point configuration
- Resolution: 16‑bit for all input types
- Operating temperature: 0 to 60 °C
- Environmental tolerance: industrial grade, 24 VDC supply
- Immunity: isolation reduces noise and ground loops
Installation & Commissioning
- Direct backplane mounting – no special tools required
- Auto‑detects input type per channel via software
- LED indicators simplify power‑up and fault checks
Maintenance & Serviceability
- Hot‑swappable – replace without powering down the system
- Diagnostic LEDs and warning signals reduce troubleshooting time
- Failsafe values per channel protect against communication loss
Compatibility
- Fully compatible with Honeywell HC900 controller series
- Works with all standard TC, RTD, and 4‑20 mA sensors
- Parallel processing ensures no scan time increase with added modules
Certifications & Compliance
- CE, UL, and CSA certified for industrial safety
- RoHS compliant – meets environmental standards
Package Contents
- 1 × 900A01‑0002 Analog Input Module
- 1 × documentation CD (user manual & quick start)
- Mounting clips and terminal labels included
Warranty & Shipping
- 12‑month warranty against manufacturing defects
- Same‑day dispatch (12‑24 hours) via FedEx, UPS, or DHL
- Tracking number provided within 24 hours
Expert Review – Why Choose This Module?
- “True universal input saves inventory – one card covers all sensor types.”
- “Parallel scanning keeps system fast even with full 8‑channel use.”
- “Isolation and diagnostic LEDs give confidence in harsh plants.”
Manager’s Insight – For Control Engineers
- “Cost‑effective upgrade for legacy HC900 cabinets – plug‑and‑play.”
- “Reduces spare part variety – standardize on one input card.”
- “Early warning for TC drift prevents unplanned downtime.”
Suitable Applications & Equipment
- Oil & gas refineries – temperature, pressure, flow monitoring
- Chemical reactors – RTD and thermocouple inputs
- Power plants – mV and mA signals from transmitters
- Water treatment – slidewire position feedback
- Any HC900‑based DCS or PLC system
Frequently Asked Questions (FAQ)
- Can I mix input types on different channels?
Yes. Each of the 8 channels is independently configurable.
- Does the module support 4‑20 mA with HART?
It reads mA signals, but HART communication requires a separate gateway.
- What happens if a sensor fails?
The card provides a dedicated sensor failure signal per channel.
- Is the module compatible with older HC900 firmware?
Yes, but we recommend updating to the latest version for full features.
- Can I install it while the system is running?
Yes – hot‑swap capability allows installation without shutdown.
- How do I set the failsafe value?
Use the configuration software to set a per‑channel default output.
选购指导 – Selection Tips
- Choose this card if you need flexibility for multiple sensor types.
- For pure TC or RTD applications, this module still offers best value.
- If you require intrinsic safety, consider the isolated version (check datasheet).
- Always verify your HC900 firmware version for full compatibility.
