Introduction

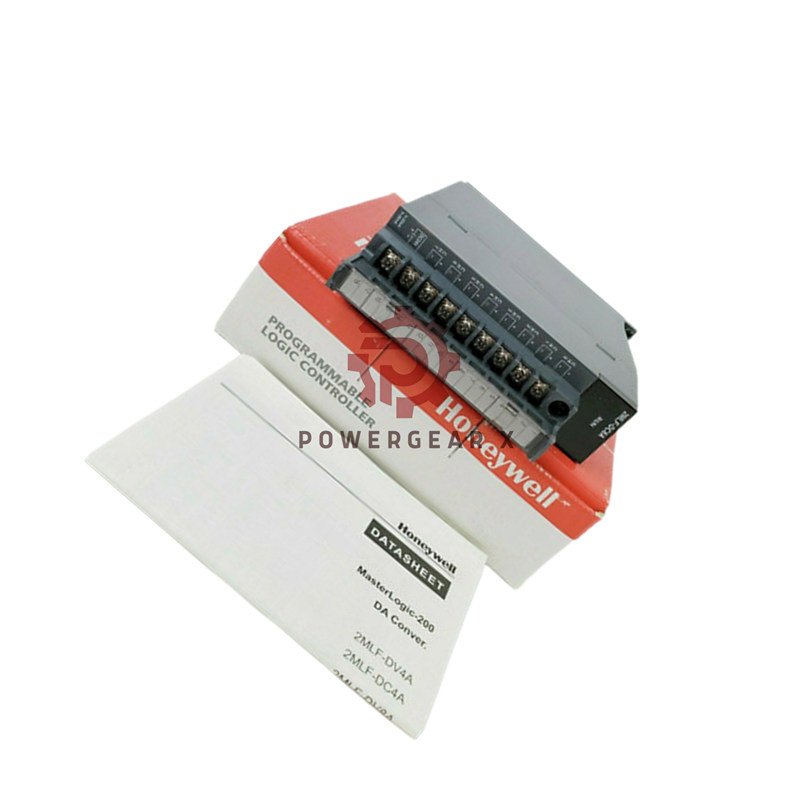

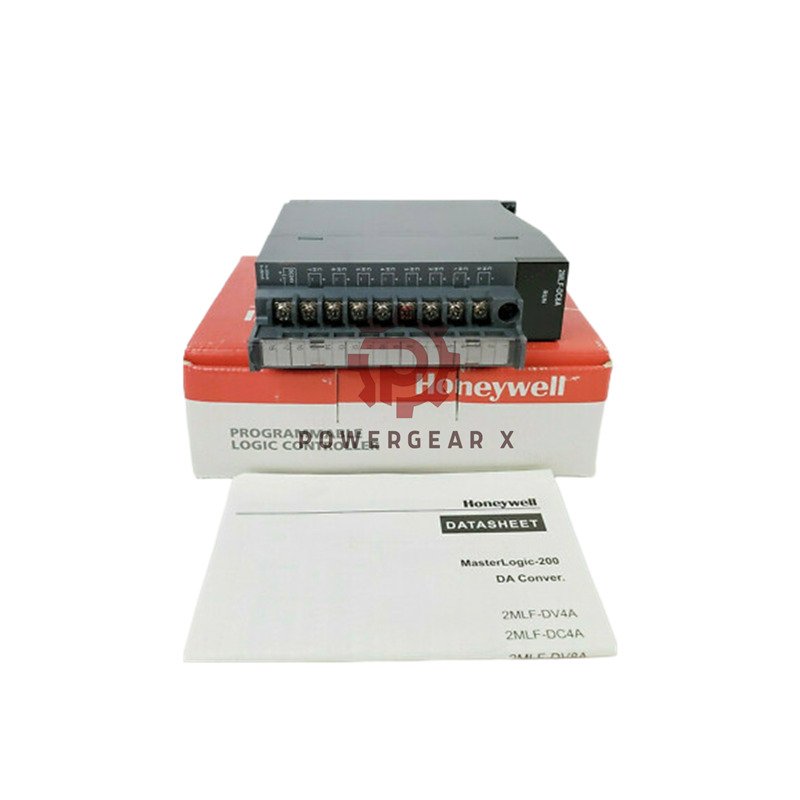

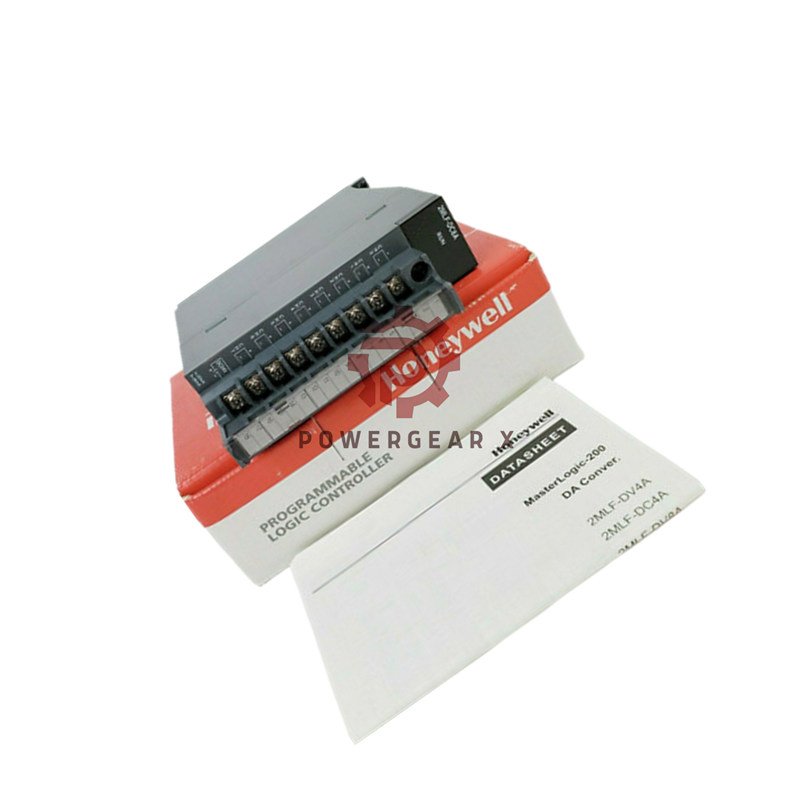

The Honeywell 2MLF-DC8A offers eight precise current outputs for industrial analog control and monitoring systems. Engineers choose 2MLF-DC8A for selectable 4–20mA or 0–20mA ranges and low output impedance supporting long cable runs and loop control.
Technical Specifications
- Brand: Honeywell
- Manufacturer: Honeywell
- Model: 2MLF-DC8A
- Series: MasterLogic-200 Series
- Output Type: DC 4–20mA or DC 0–20mA, selectable per channel through parameters or program.
- Channels: 8 isolated current outputs with load resistance up to 550Ω or less.
- Performance: High resolution and linearity ensure accurate current control for process automation systems.
- Temperature Range: Operating −20°C to +60°C; Storage −40°C to +85°C.
- EMI Resistance: Robust anti-interference design for stable performance in harsh industrial environments.
- Installation Interface: Connects directly to MasterLogic-200 Series backplane with easy integration.
- Output Load: Maintain load resistance 550Ω or less for accurate output current.
Installation Guide
- Disconnect system power before installation to ensure safety and prevent module damage.
- Mount 2MLF-DC8A on the DIN rail and align connectors with the MasterLogic-200 Series backplane.
- Configure channel output range using the controller program or module parameter settings.
- Use shielded twisted-pair cables and ground properly to minimize noise interference.
- Follow Honeywell wiring diagrams to ensure correct polarity and secure terminal connections.
Packaging List
- 1 × 2MLF-DC8A Analog Output Module
- 1 × Terminal Connector Kit
- 1 × Quick Start User Guide
- Mounting Screws and ESD Protective Packaging
- Shipped via FedEx, UPS, or DHL.
FAQ
- Q: How can I set the output range for each channel?
- A: Use the MasterLogic configuration software or controller parameters to select 4–20mA or 0–20mA per channel.
- Q: What is the maximum load resistance supported?
- A: Each channel supports up to 550Ω load for stable current loop accuracy.
- Q: Is this module compatible with all MasterLogic-200 Series controllers?
- A: Yes, 2MLF-DC8A integrates seamlessly with any MasterLogic-200 controller rack.
