Name: Honeywell 2108B2001N Searchpoint Optima Plus Gas Detector | Hydrocarbon
SKU: 2108B2001N
Availability: InStock

Product details

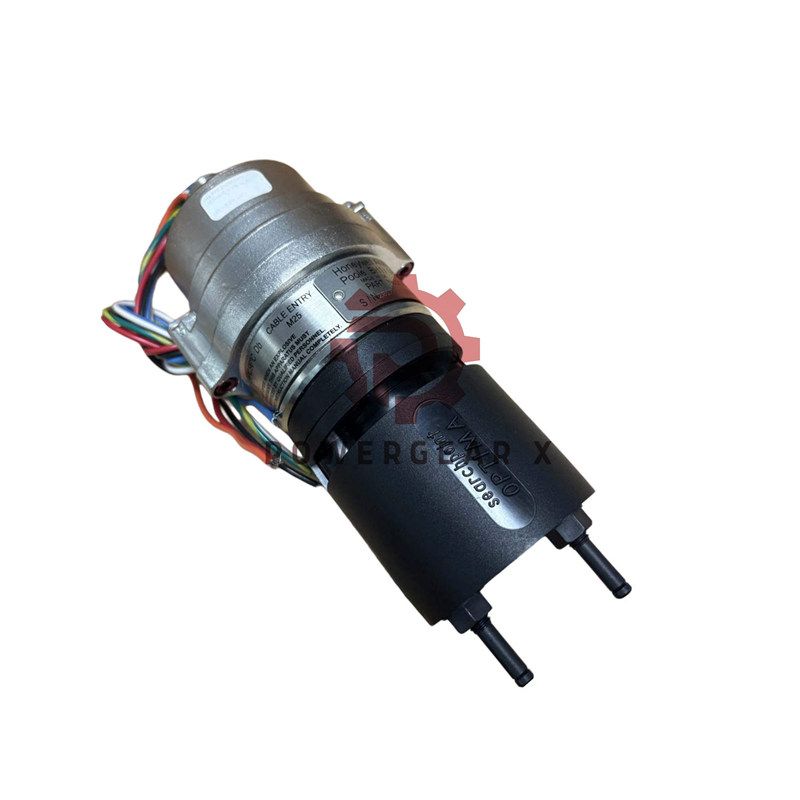

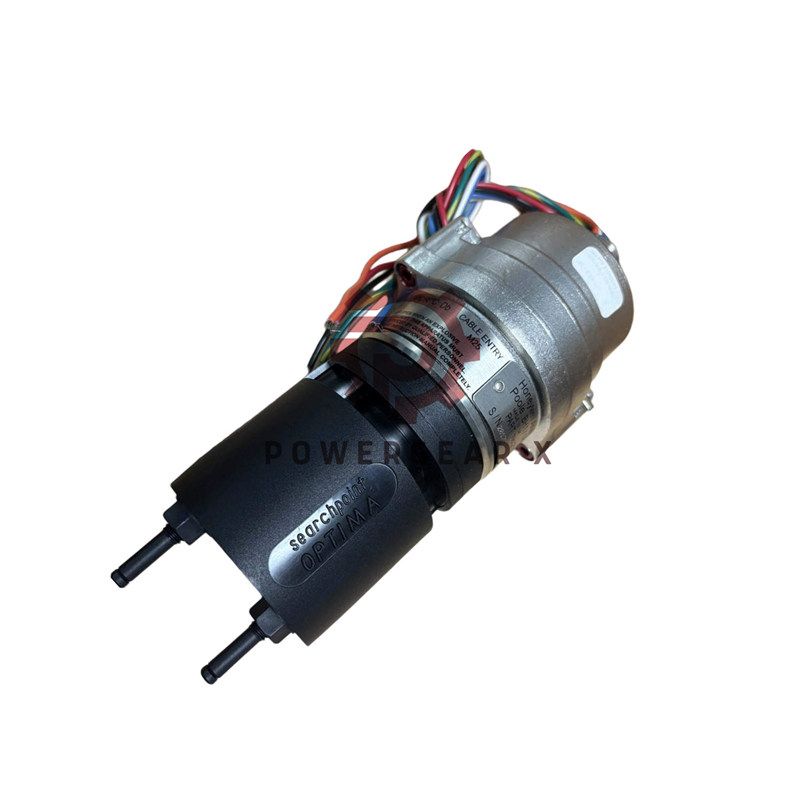

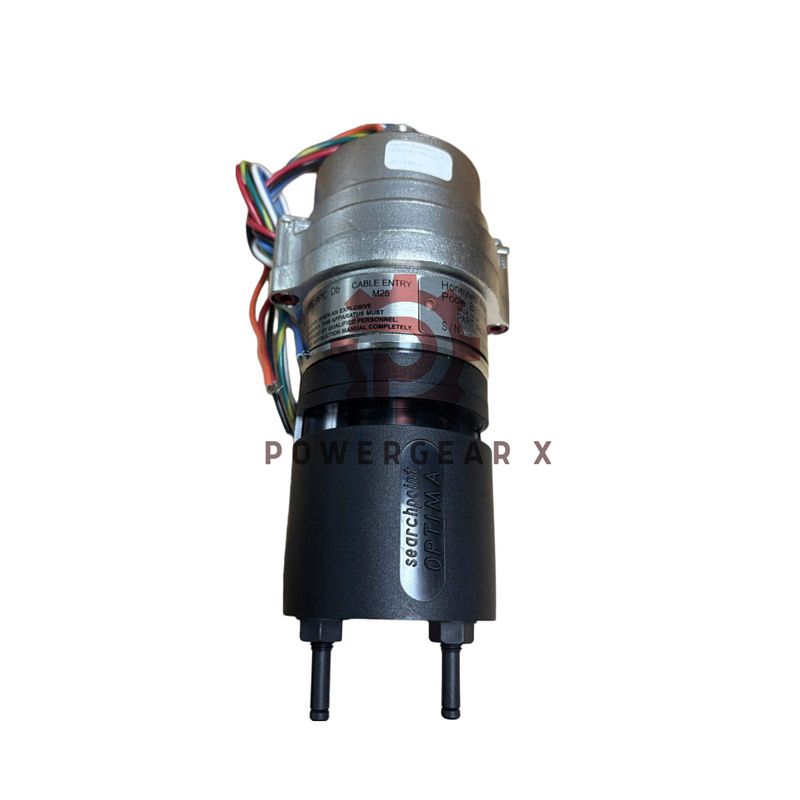

Honeywell 2108B2001N Searchpoint Optima Plus Overview

The Honeywell 2108B2001N gas detector gives fast and stable infrared sensing in harsh sites. It uses strong 316 stainless steel and works in ATEX zones with high accuracy. Powergear X Automation prepared this clear guide for fast reading and easy setup.

Main Highlights

The 2108B2001N reacts fast with T50 under 3 seconds for methane.
It keeps stable output across -40°C to +65°C for outdoor and offshore use.
It supports 0–100% LEL range with many hydrocarbon calibration options.
It uses a strong 316 stainless steel shell for long field life.
Over 100,000 units operate worldwide in tough plants.
Warranty covers 12 months from factory shipment.

Core Technical Data

Measuring Range: 0–100% LEL with multiple gas choices.
Output Signal: 4–20 mA auto-sensing, sink or source.
Digital Options: Modbus RS485 or HART® on selected versions.
Warning Levels: 0–6 mA (default 3 mA).
Over Range: 20–21.5 mA (default 21 mA).
Repeatability: < ±2% FSD at 50% FSD.
Linearity: < 5% FSD.
Variation with Pressure: 0.1% of reading per mbar.
Power Input: 18–32 VDC, max power < 4.5 W.
Environmental Rating: IP66 / IP67.
Weight: 1.6 kg for easier mounting.

Performance Strengths

Fast optical path improves methane and solvent detection response.
Signal stability meets EN 60079-29-1 requirements with low drift.
Temperature drift stays under ±2% FSD across full range.
Robust electronics reduce false alarms in noisy environments.
Supports full recalibration using HART® or handheld tools.

Approvals and Compliance

ATEX: BAS99ATEX2259X II 2 GD Ex d IIC Gb.
IECEx: Ex d IIC and Ex tb IIIC options.
FM / CSA certified for Class I Div 1 groups B, C, D.
Functional Safety: SIL2 under IEC61508.
EMC Compliance: EN 50270:2006.

Shipping and Packaging

Ships in sealed Honeywell factory packing.
Safe delivery via FedEx, UPS, and DHL.
Package contains the device, mounting kit, and quick start sheet.

Professional FAQ

Q:How do I keep the detector stable in areas with big temperature swings?
A:Allow airflow around the housing and follow the calibration cycle recommended for cold and hot sites.
Q:What is the best method to verify correct 4–20 mA wiring during startup?
A:Use a field loop calibrator and check the inhibit and warning levels before gas tests.
Q:Can I use this detector near compressors or vibrating plates?
A:Yes. Mount it with a rigid bracket and reduce cable tension to limit vibration impact on electronics.
Q:How often should I recalibrate when I monitor heavy hydrocarbons?
A:Inspect every three months and adjust based on site experience with similar solvents.
Q:Does dust affect the optical chamber?
A:Wipe the front optics lightly and check signal baseline weekly in dusty zones.
