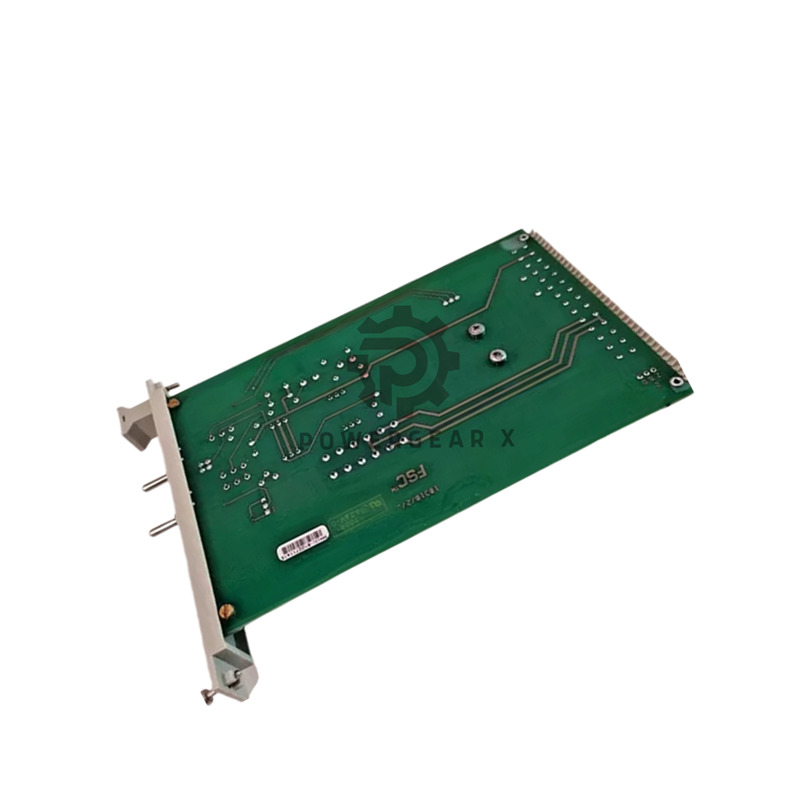

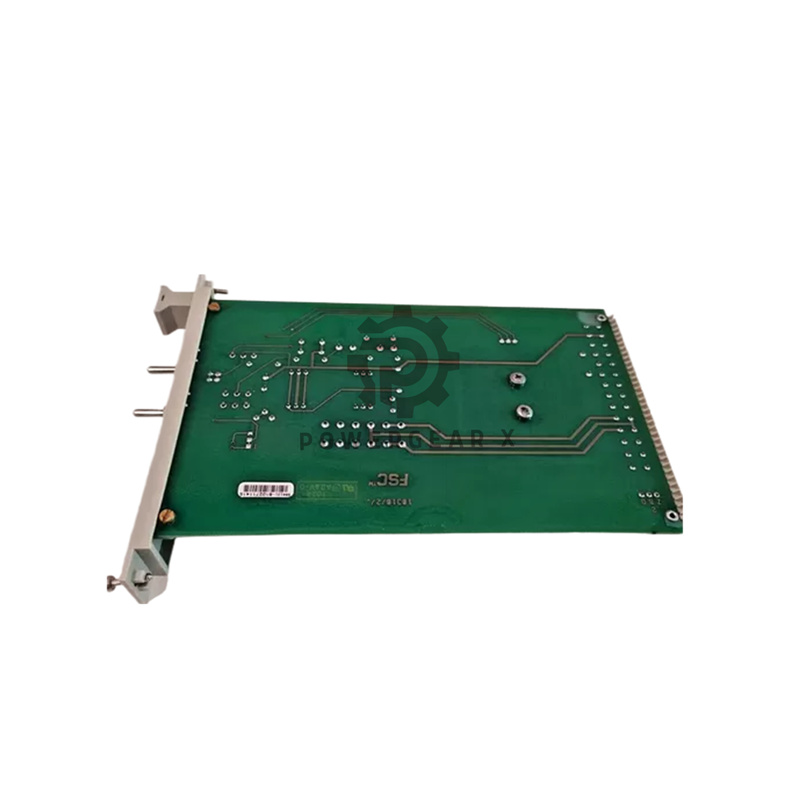

Honeywell 10310/2/1 Earth Leakage Detector
The 10310/2/1 Earth Leakage Detector finds electrical faults in DC power systems. It protects your equipment by monitoring earth connections and detecting problems early.
Key Safety Features
- Finds earth faults in 24V to 110V DC systems
- Tests itself manually to confirm proper operation
- Monitors earth connections continuously or at intervals
- Green LED shows the monitoring mode clearly
- Resets manually or with external control signals
- Works with multiple DC voltage systems simultaneously
Technical Specifications
- Manufacturer: Honeywell
- Model Number: 10310/2/1
- Product Type: Earth Leakage Detector
- Power Requirement: 24V DC (30V DC maximum)
- Current Consumption: Maximum 60 mA
- System Monitoring: 24V, 48V, 60V, 110V DC
- Earth Voltage Normal: -12V DC (no fault condition)
- Fault Detection Range: -30V to +125V DC
- Earth Current Settings: 5.5mA or 25.0mA maximum
- Output Contact Rating: 115V DC, 2A maximum
- Relay Switching Capacity: 5A at 250V DC/AC
- Contact Life: 100,000 electrical operations
- Mechanical Durability: 200 million operations
- Product Weight: 0.2 kilograms
- Safety Approvals: CE, UL certified
- Warranty Period: 12 months coverage
Easy Setup Options
- Mount using A5 and A11 position coding
- Choose continuous or flashing monitoring modes
- Connect reset inputs for remote control
- Select earth current setting for your application
- Test using manual button or external signals
Shipping & Support
- Fast delivery via FedEx, UPS, and DHL
- International shipping available worldwide
- Professional technical support included
- 12-month manufacturer warranty
Common Questions
- What DC voltages can this detector monitor?
The 10310/2/1 works with 24V, 48V, 60V, and 110V DC power systems.
- How do I know if the unit is working properly?
Use the manual test button and check the green LED indicator light.
- What is the maximum load the relay can handle?
The relay switches up to 5A at 250V DC or 250V AC safely.
- How long will the relay contacts last?
They last for 100,000 electrical operations and 200 million mechanical operations.
- What shipping methods do you offer?
We ship worldwide using FedEx, UPS, and DHL express services.
