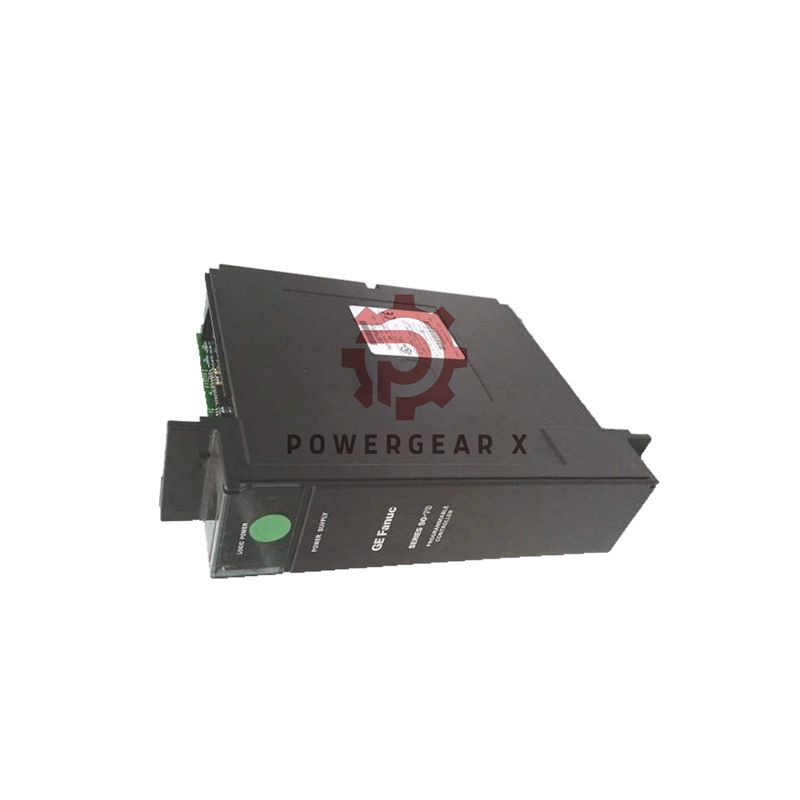

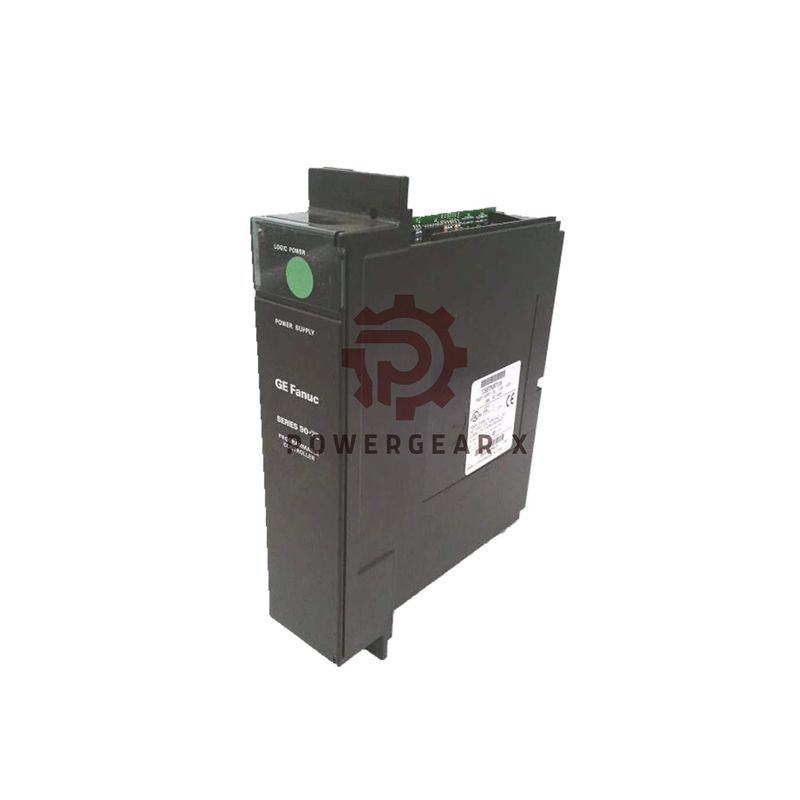

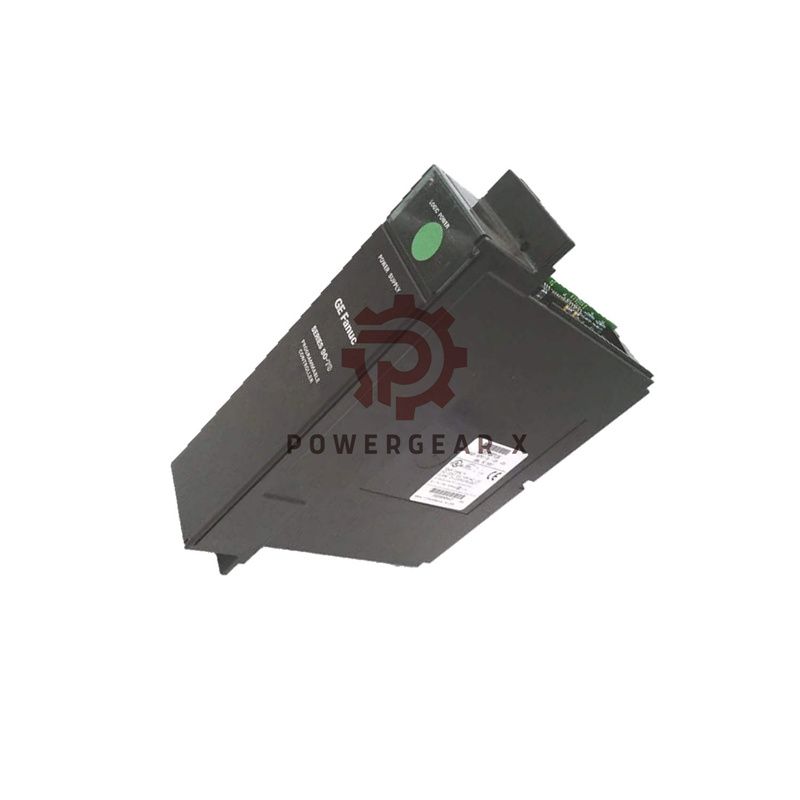

GE Fanuc Emerson Power Supply Module
Powergear X Automation presents the IC697PWR722 for GE Fanuc Emerson Series 90-70 PLC systems. It delivers clean DC power in compact form for demanding control applications.
Main Technical Data
- Brand: GE Fanuc Emerson
- Model: IC697PWR722
- Series: Series 90-70
- Input: 24 VDC nominal
- Range: 21–32 VDC
- Max Module Power: 156 Watts
- Output Power: 90 Watts total
- Regulated Voltages: 5, 12, -12 VDC
- 5V Output Current: 16.5 A
- 12V Output Current: 1.5 A
- -12V Output Current: 1 A
- Inrush Energy: 22 Joules at 32 VDC
- Overvoltage Limit: 6–7 V
- Operating Temperature: 0–60°C
- Shock Resistance: 15 G for 11 ms
- Unit Weight: 3.00 lbs (1.36 kg)
- Warranty: 12 months
Standout Performance
- The IC697PWR722 supplies steady power to critical automation hardware
- Stable regulated outputs support CPU modules and I/O cards
- Output design helps control ripple and noise in industrial cabinets
- High reserve power keeps logic running in heavy load cases
- Overcurrent protection increases electrical safety
Dual Rack Operation
- The module supports one additional rack through a short cable
- The second rack uses the 5 V rail
- Secondary load must remain under 5.2 A
- Keep racks within 3 feet of each other
- Use proper mounting holds for stable connection
Installation Steps
- Place the unit on the left side of the main rack
- Connect to a proper adapter such as PWR720
- The adapter links DC output to the backplane
- The adapter also monitors logic TTL signals
- Users can panel-mount or rack-mount the module
Extra Engineering Details
- Switching frequency ensures smooth DC
- Ripple level stays low for sensitive logic circuits
- Stable performance in 5–85% RH non-condensing
- Electromagnetic tolerance suits industrial floors
- Strong connective latches prevent vibration slip
Packaging & Delivery
- One IC697PWR722 power module
- Quick install instructions
- Protective industrial packaging
- Ships via FedEx, UPS, or DHL
- Sales and support by Powergear X Automation
FAQ
- Q: How many modules can this unit power in one rack?A: It depends on combined current load. Users check each card draw and compare with rated power capacity.
- Q: How do I check if the wiring stays stable?A: Inspect terminal tightness each service cycle and verify temperature stays within rated range.
- Q: Can this unit handle short spikes in start-up power?A: Yes, the 22 J inrush rating supports high surge cases in startup events.
- Q: What should I check before powering a second rack?A: Measure the 5 V load and ensure it stays below 5.2 A, then check cable distance remains within 3 feet.
- Q: How do experienced users extend module lifespan?A: Keep dust away, maintain airflow, check connector tightness yearly, and avoid heat above 60°C.
