HG-SR502J Mitsubishi HG Series 5kW AC Servo Motor – High Torque Monster

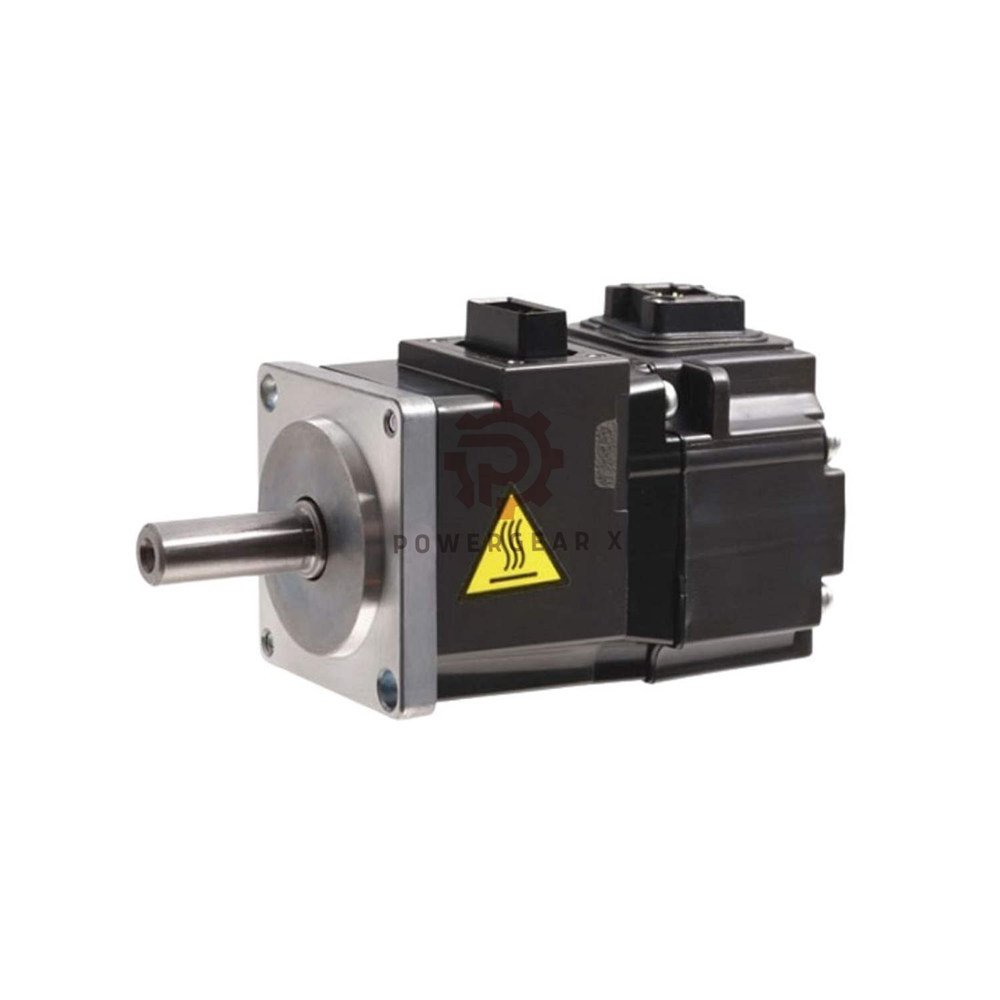

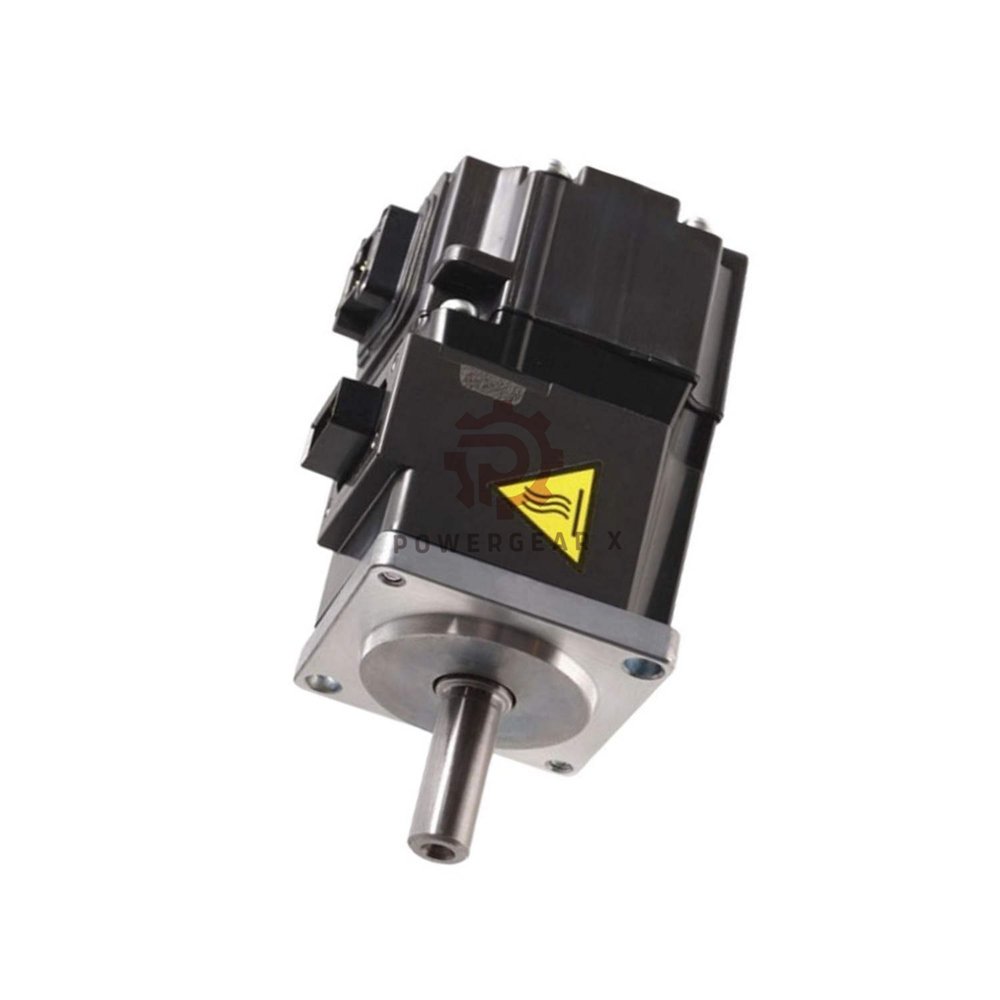

HG-SR502J – Mitsubishi HG Series AC Servo Motor

5 kW output | 2000 rpm rated / 3000 rpm max | 23.9 Nm torque | 200V AC class | oil seal & straight shaft

▶ Product Overview

• ▪ HG-SR502J – strong AC servo motor from Mitsubishi HG Series.
• ▪ Power: 5 kW. Rated speed: 2000 rpm. Max speed: 3000 rpm.
• ▪ Rated torque: 23.9 Nm. Peak torque: 71.6 Nm – handles very heavy loads.
• ▪ Rated current: 22 A. Max current: 70 A – strong power reserve.
• ▪ Oil seal built-in – keeps out dust and oil. Lasts longer in tough jobs.
• ▪ Straight shaft – easy to attach pulleys or couplings.
• ▪ Medium inertia – good balance for smooth speed changes.
• ▪ Works from 0°C to 40°C. Store from -15°C to 70°C.

⎇ Technical Specs – Tree View

• ▸ Motor Identity
  • └─ Manufacturer: Mitsubishi
  • └─ Series: HG Series (medium power capacity)
  • └─ Model: HG-SR502J
  • └─ Type: AC servo motor
• ▸ Power & Speed
  • └─ Output power: 5 kW
  • └─ Rated speed: 2000 rpm
  • └─ Max speed: 3000 rpm
  • └─ Voltage class: 200V AC
• ▸ Torque & Current
  • └─ Rated torque: 23.9 Nm
  • └─ Max torque: 71.6 Nm
  • └─ Rated current: 22 A
  • └─ Max current: 70 A
• ▸ Mechanical & Environment
  • └─ Weight: 4.08 kg (9.00 lbs)
  • └─ Shaft: straight shaft
  • └─ Oil seal: included
  • └─ Inertia type: medium inertia
  • └─ Operating temp: 0°C to +40°C
  • └─ Storage temp: -15°C to +70°C

🔧 Easy Install & Care

• ▪ Mounting: Use flange holes. Tighten with M10 bolts (not included).
• ▪ Connection: Power + encoder cables (MS-type connectors).
• ▪ Oil seal check: Inspect every 12 months. No extra grease needed.
• ▪ Cooling: Keep 50mm free space around fan for airflow.

🔄 Compatible Devices

• ▪ Drives: Mitsubishi MR-J4-70A or MR-JE-70A (for 5kW class).
• ▪ Controllers: iQ-R series, FX5U, L series PLCs.
• ▪ Cables: MR-J3ENCBLxx-M (encoder) + MR-PWCNS3 (power).

✅ Certifications

• ▪ CE (EMC & low voltage)
• ▪ UL 1004-1 recognized
• ▪ RoHS & REACH compliant

🎯 Expert Review & Manager’s Insight

• ▪ Expert Review: “The HG-SR502J delivers amazing torque (71.6 Nm peak) for 5 kW. Oil seal protects in dusty factories. Very reliable for heavy cyclic work.”
• ▪ Manager’s Insight: “We cut downtime by 30% using this motor. Medium inertia means no tuning struggles. Straight shaft saves coupling time.”

⚙️ Best For These Machines & Jobs

• ▸ Equipment that fits
  • └─ Large CNC routers & milling machines
  • └─ Extruders & injection molding robots
  • └─ Heavy conveyors & palletizers
  • └─ Winding machines for coils or cables
• ▸ Use cases
  • └─ Packaging lines (case packers, stretch wrappers)
  • └─ Metal forming presses (auxiliary axes)
  • └─ Woodworking (heavy edge banders, planers)
  • └─ Textile looms & carpet tufting machines

❓ Frequently Asked Questions

• Q1: Can I run HG-SR502J on single-phase 200V?
  A: No. It needs three-phase 200V AC. Use a phase converter if only single-phase is available.
• Q2: The motor runs hot at max torque. Is that safe?
  A: Yes, up to 40°C ambient. For continuous peak torque, add external forced cooling fan.
• Q3 (experience): My load has high inertia. What should I set?
  A: Use MR Configurator2 “auto-tuning” with inertia ratio >10. Add regenerative resistor if deceleration heats the drive.
• Q4 (purchasing guide): Warranty and shipping details?
  A: 12 months warranty. Ships 12-24 hours after order. Carriers: FedEx, UPS, DHL. Tracking provided.
• Q5 (buying tip): Do I need a brake with this motor?
  A: HG-SR502J has no built-in brake. For vertical axis or holding torque, order HG-SR502J-BK (brake version).

🛒 Buying Guide & Support

• ▪ Check inertia: For high acceleration, add external regenerative resistor (MR-RB32).
• ▪ Cable length: Keep encoder cable under 30m. Use ferrite cores for longer runs.
• ▪ Spare recommendation: Keep one MR-J4-70A drive per 4 motors.
• ▪ Need help? Email sales@powergearx.com or WhatsApp +86 18030005825.
