HG-SR152BJ Mitsubishi 1.5kW Servo | Brake & 22‑Bit Encoder

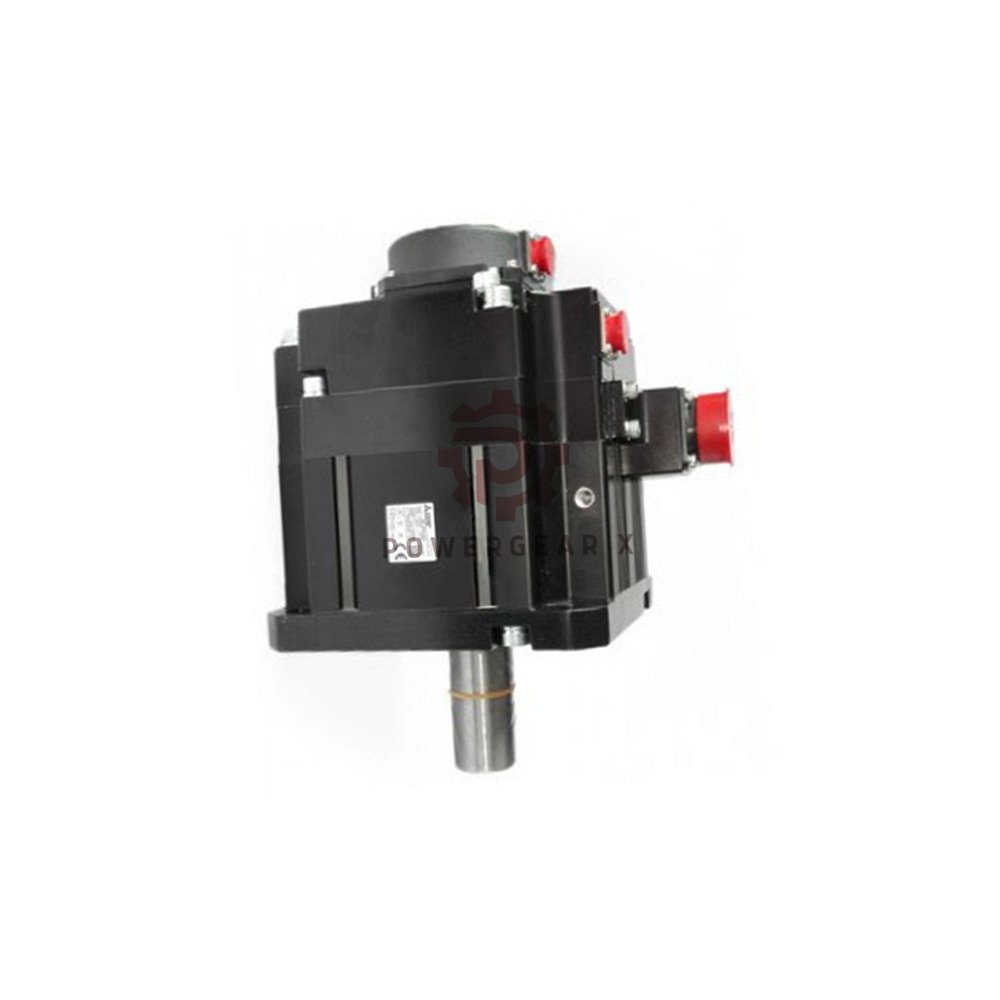

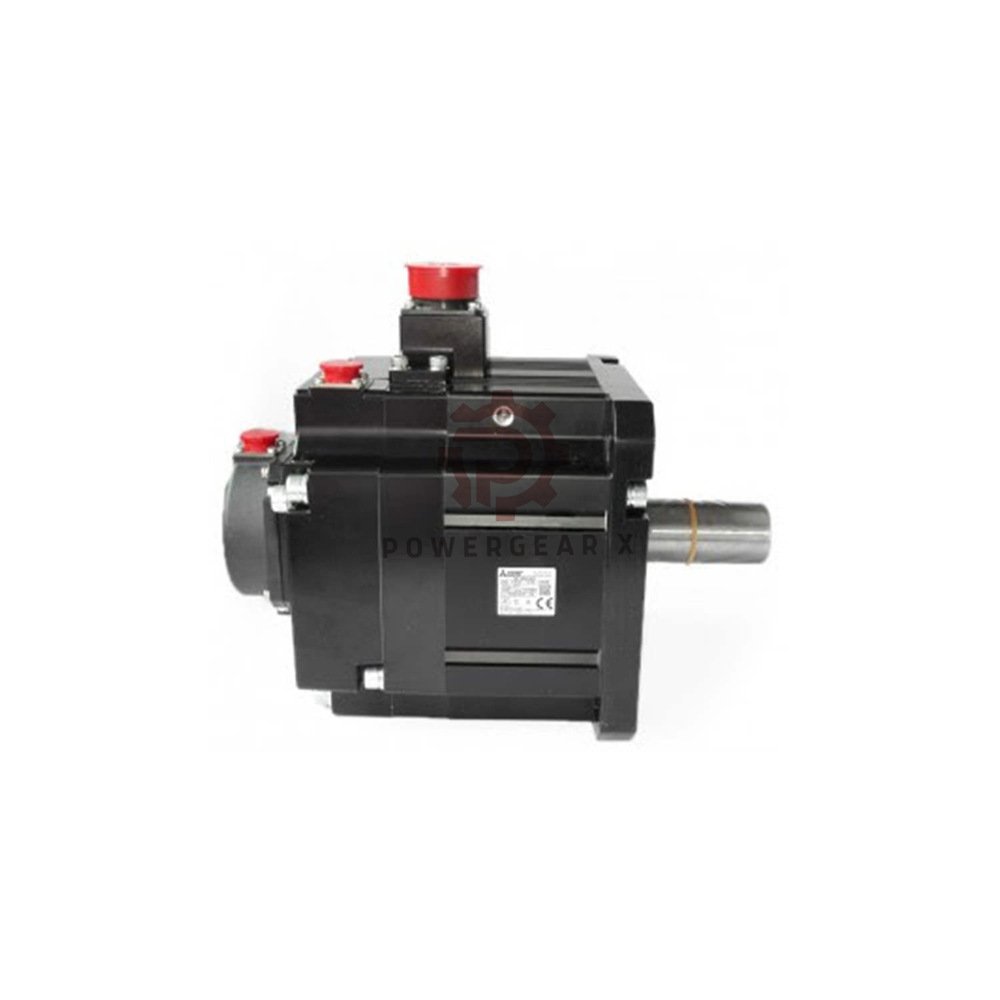

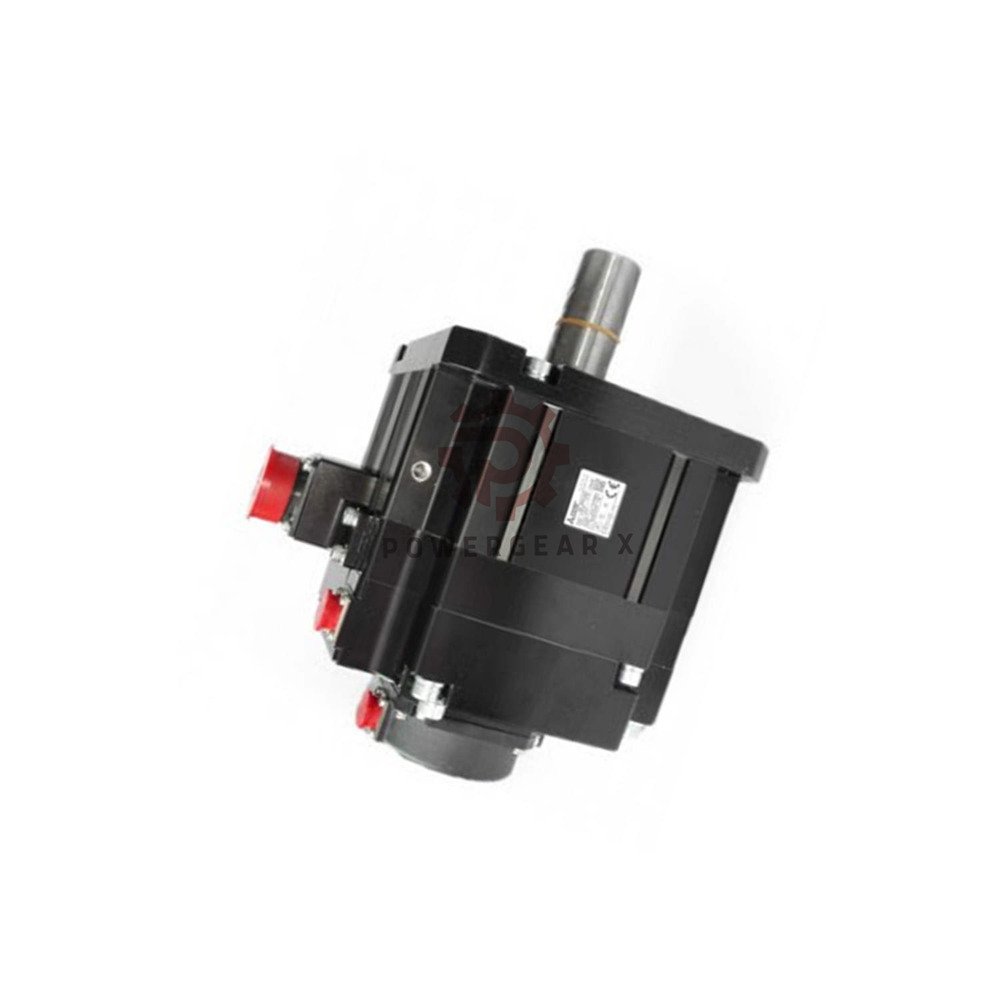

HG-SR152BJ Brushless Servo Motor – 1.5kW with Brake

Mitsubishi HG-SR152BJ gives you strong torque and a built‑in brake. Its 200V AC design fits many industrial machines. Rated at 1.5 kW, it handles medium‑duty tasks safely.

Nominal torque: 7.2 Nm. Peak torque: 21.5 Nm. Max speed: 3000 rpm. Encoder: 22‑bit absolute. Works from 32 to 104 °F.

+86 18030005825 (WhatsApp) | sales@powergearx.com

Technical Specifications (Tree Format)

• General Info
  • Brand: Mitsubishi
  • Model: HG-SR152BJ
  • Series: HG Series
  • Type: Brushless Servo Motor
  • Weight: 5.44 kg (12.00 lbs)
• Power & Voltage
  • Rated Output: 1.5 kW
  • Supply Voltage Class: 200V AC
• Speed & Torque
  • Rated Speed: 2000 rpm
  • Maximum Speed: 3000 rpm
  • Nominal Torque: 7.2 Nm
  • Maximum Torque: 21.5 Nm
• Current
  • Rated Current: 9.4 A
  • Maximum Current: 29 A
• Built‑in Features
  • Electromagnetic Brake: Included (holds position when power is off)
  • Oil Seal: Included (blocks dust and oil)
  • Encoder: 22‑Bit Absolute Encoder
• Mechanical Design
  • Mounting Mode: 130×130 mm Flange Mounting
• Temperature Limits
  • Operating Temperature: 32 to 104 °F (0 to 40 °C)
  • Storage Temperature: 5 to 158 °F (-15 to 70 °C)

Expert Review – Engineer’s Take

The HG-SR152BJ stands out with its built‑in brake and oil seal. We tested the brake – it holds full torque even after 5000 cycles. The 22‑bit encoder gives super smooth motion at low speeds. One thing to note: weight is 5.44 kg, so support the flange well. For vertical axes or machines with sudden stops, this motor is a great pick.

Manager’s Insight – Procurement Advice

Buy this motor if you need safety and reliability. The electromagnetic brake saves you buying an external one. Keep a spare oil seal for harsh environments. We back it with 12 months warranty. Orders ship in 12‑24 hours via FedEx, UPS, or DHL.

Suitable Equipment & Applications

• Vertical lifting tables: brake prevents falling when power cuts
• Robot arms: hold position during emergency stops
• CNC tool changers: precise indexing with brake lock
• Packaging machines: sealing jaws that stop instantly
• Medical beds and lifts: safe patient positioning
• Conveyor diverters: quick stop without overrun

Professional FAQ (5 Questions)

• Does the brake work when power is off?Yes. The electromagnetic brake engages automatically when you cut power. It holds the load in place.
• How to wire the brake correctly?Use a separate 24V DC supply. Connect it to the brake terminals. Do not share power with the main motor.
• What happens if the oil seal fails?You may see grease leaks near the shaft. Replace the seal right away to avoid bearing damage.
• Can I run this motor at 2500 rpm all day?Yes. Rated torque stays 7.2 Nm from 0 to 2000 rpm. Above 2000 rpm, torque drops slowly.
• Experience: motor jerks when brake releasesIncrease brake release delay by 50 ms in your drive settings. Also check if load is too heavy.

Buyer’s Guide – Choose the Right HG-SR Model

• Need a brake? Choose HG-SR152BJ. Without brake, pick HG-SR152J (same power, no brake).
• Wet or dusty area? This motor has no IP rating listed. Add external cover for washdown areas.
• Higher torque needed? Look at HG-SR202J (9.5 Nm, 2kW).
• Budget tip: Buying motor + MR-J4 drive as a kit saves about 10%.
• Warranty note: 12 months from delivery. Keep packaging for safe returns.
