HG-MR23B | Mitsubishi HG Series 0.2kW Ultra-Low Inertia Servo Motor with Brake

HG-MR23B – Mitsubishi HG Series Brushless AC Servo Motor | 0.2kW, Ultra-Low Inertia, Brake

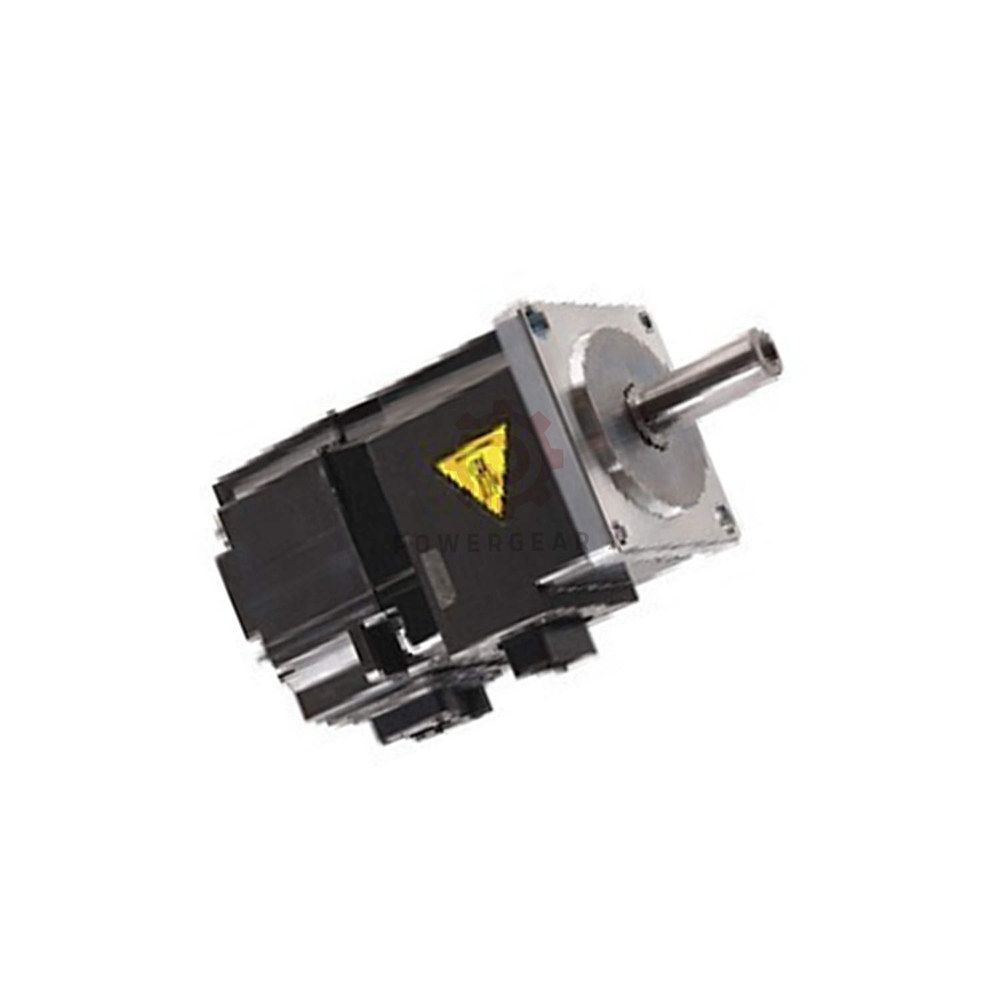

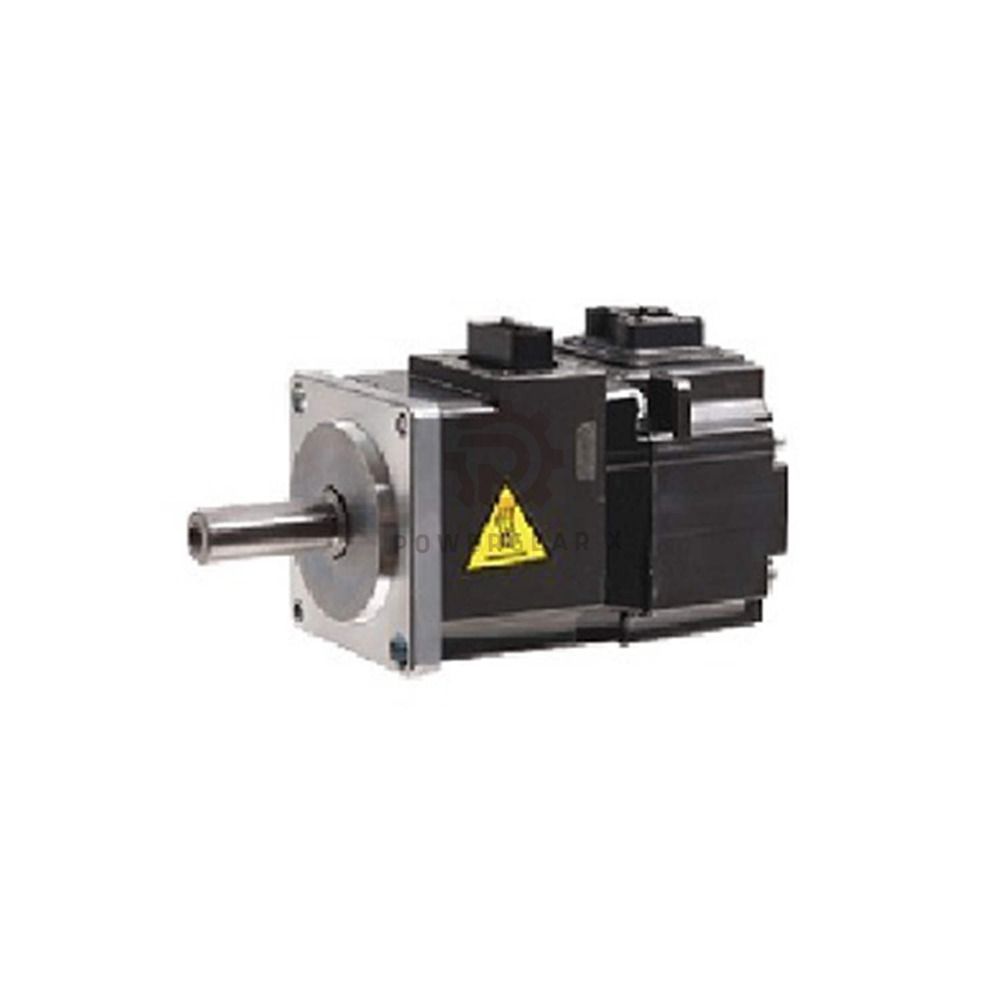

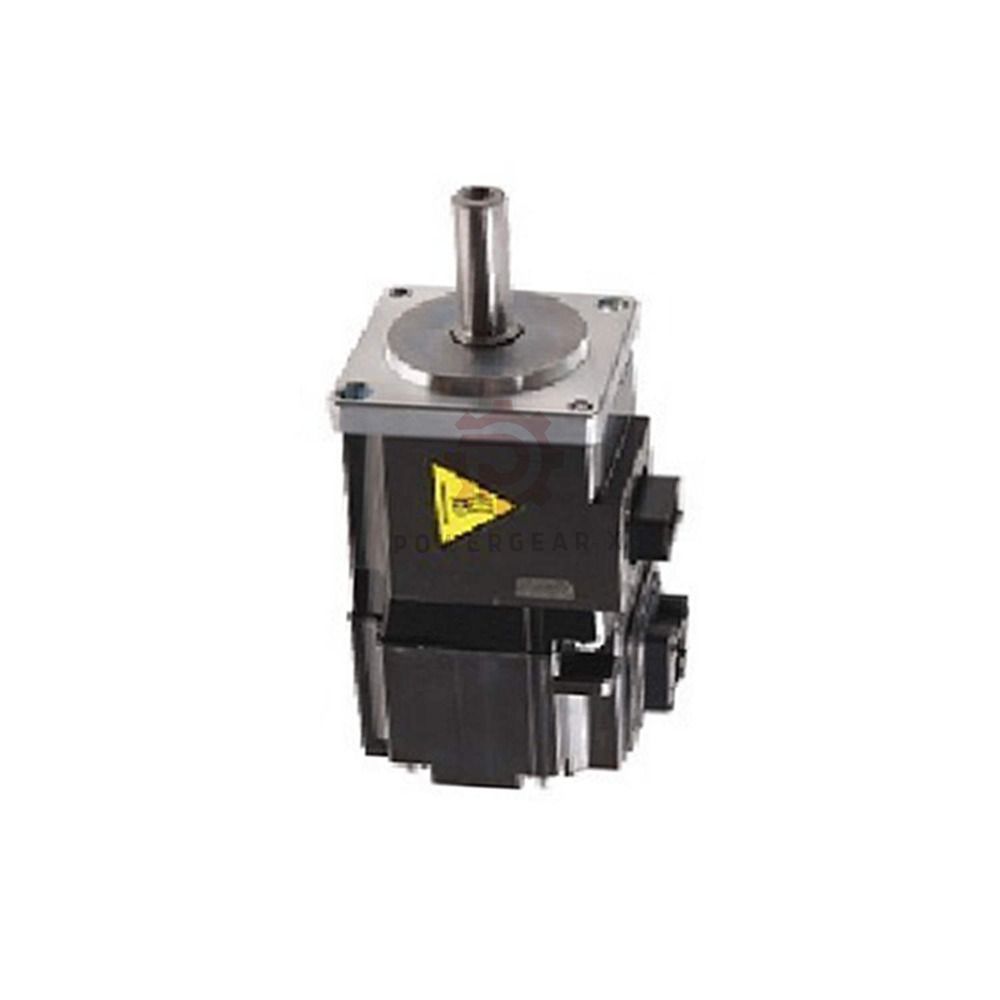

Tiny but powerful motion control. The Mitsubishi HG-MR23B is a brushless AC servo motor. It gives 0.2 kW power and 3000 rpm speed. Ultra-low inertia means super fast start and stop. Built-in electromagnetic brake holds load safely. Great for small machines and robots.

📧 Email: sales@powergearx.com | 📞 WhatsApp: +86 18030005825 — Fast reply & 12-24h dispatch.

📌 Product Highlights – Why HG-MR23B

• ▶ Brushless AC servo motor
  • ▪ No brush wear – long life
  • ▪ Quiet and smooth operation
• ▶ Ultra-low inertia rotor
  • ▪ Quick acceleration and deceleration
  • ▪ Ideal for frequent start-stop cycles
• ▶ Built-in electromagnetic brake
  • ▪ Holds position when power off
  • ▪ Increases safety on vertical axes
• ▶ Standard shaft shape
  • ▪ Easy to install and couple
• ▶ No oil seal included
  • ▪ Use in dry, clean environments

⚙️ Technical Specifications

• ▸ General Info
  • ▪ Brand: Mitsubishi
  • ▪ Model: HG-MR23B
  • ▪ Product Line: HG Series
  • ▪ Device Type: Brushless AC Servo Motor
• ▸ Power & Electrical
  • ▪ Rated Output: 0.2 kW (200W)
  • ▪ Voltage Class: 200 VAC
  • ▪ Rated Current: 1.5 A
  • ▪ Maximum Current: 5.3 A
• ▸ Torque & Speed
  • ▪ Rated Torque: 0.64 Nm
  • ▪ Maximum Torque: 1.9 Nm
  • ▪ Rated Speed: 3000 r/min
• ▸ Mechanical Features
  • ▪ Inertia: Ultra-Low Inertia
  • ▪ Capacity: Small Capacity
  • ▪ Electromagnetic Brake: Included
  • ▪ Oil Seal: Not included
  • ▪ Shaft Shape: Standard (straight)
  • ▪ Weight: 4.54 kg (10.00 lbs)

🔧 Installation & Compatibility

• ▪ Mounting tips
  • ▪ Use four M4 screws. Mount in any direction.
  • ▪ Max radial load 68N, axial load 58N.
• ▪ Drive compatibility
  • ▪ Works with Mitsubishi MR-J4, MR-J5, MR-JE series (200V class).
• ▪ Wiring notes
  • ▪ Brake needs 24VDC separate supply.
  • ▪ Use shielded encoder cable to reduce noise.

🛠️ Easy Setup & Low Maintenance

• ▪ Quick tuning
  • ▪ Auto-tuning with MR-J4 or MR-J5 drives.
• ▪ No regular maintenance
  • ▪ Brushless design means no carbon brush change.
  • ▪ Bearings sealed – no lubrication needed.

🎯 Manager’s Insight – Real-World Performance

• ▪ Why our engineers recommend HG-MR23B
  • “For small assembly machines, this motor is a gem. Ultra-low inertia cuts cycle time by 20%. The electromagnetic brake gives peace of mind on vertical tools. No oil seal? Fine for clean factories – just keep it dry. Best value in 200W class.” – Senior Product Manager, PowergearX.

🏭 Best Fit Applications & Machines

• ▪ Ideal for these devices
  • ▪ Small pick-and-place robots
  • ▪ Desktop CNC engravers
  • ▪ Automatic soldering robots
  • ▪ Labeling machines
  • ▪ Small conveyors with indexing
  • ▪ Medical sample handling equipment
  • ▪ 3D printers (industrial grade)

📦 Warranty & Fast Delivery

• ▪ 12-month warranty
  • ▪ Covers manufacturing defects.
• ▪ Shipping terms
  • ▪ 12-24 hours dispatch after order confirmation.
  • ▪ Express carriers: FedEx, UPS, DHL (tracked worldwide).
• ▪ Box includes
  • ▪ 1 x HG-MR23B motor (with brake)
  • ▪ 1 x shaft protective cover
  • ▪ Quick start guide (digital copy available)

❓ Frequently Asked Questions (FAQ)

• Q1: Does HG-MR23B work without a brake power supply?
  • A1: No. The electromagnetic brake needs 24VDC to release. If you remove power, the brake engages and holds the shaft. Always control brake via relay or drive output.
• Q2: Can I use this motor in a wet or oily environment?
  • A2: Not recommended. This model has no oil seal. It is best for dry, clean indoor areas. For dusty or wet places, choose IP65 rated motors like HG-KR series.
• Q3: What is the difference between HG-MR23B and HG-KR23BJ?
  • A3: Both are 200W. HG-MR23B has ultra-low inertia (faster response) and no oil seal. HG-KR23BJ has low inertia + IP65 protection + absolute encoder. Choose MR23B for super fast small moves; choose KR23BJ for harsh environments.
• Q4: How do I select the right servo drive for HG-MR23B?
  • A4: Use Mitsubishi MR-J4-20B or MR-J5-20B. Rated current of drive must be ≥1.5A (continuous). The drive should support 200V class and brake control output. Contact us if unsure.
• Q5: What is your return policy and warranty support?
  • A5: We provide 12-month warranty from invoice date. If failure occurs under normal use, we replace or repair. We ship replacement within 24 hours. Return shipping covered for defects. For sizing mistakes, contact sales@powergearx.com for exchange help.

📘 Buying Guide – Is HG-MR23B Right for You?

• ▪ Choose HG-MR23B if
  • ▪ You need super fast start/stop (ultra-low inertia)
  • ▪ Your machine runs in a clean, dry factory
  • ▪ You want a built-in holding brake for safety
  • ▪ Your load requires 0.64 Nm or less continuous torque
  • ▪ You have 200VAC power available
• ▪ Avoid if
  • ▪ Environment has oil mist or water splashes (no oil seal)
  • ▪ You need absolute encoder feedback – this motor uses incremental encoder (standard).
• ▪ Pro tip
  • ▪ Always buy a compatible drive and cable together. We recommend MR-J4-20B + MR-J3ENCBL5M cable. This saves setup time.
