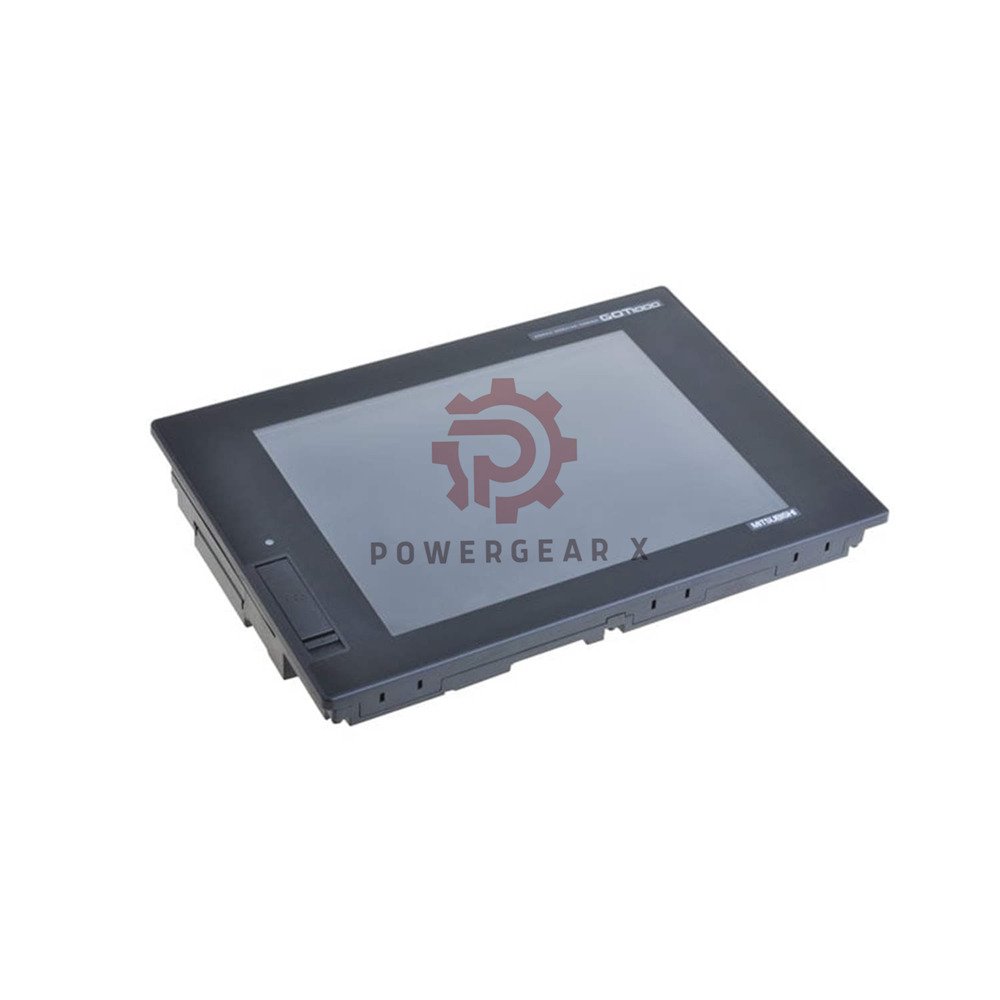

GT1685M-STBA Mitsubishi GOT1000 HMI 12.1 in TFT Touch Panel

GT1685M-STBA Mitsubishi GOT1000 12.1″ HMI Panel

• Brand: Mitsubishi Electric
• Model: GT1685M-STBA
• Series: GOT1000 (GT16)
• This interface panel delivers high-performance visualization for industrial control systems.
• It integrates a 12.1-inch high-brightness TFT display with wide viewing angles.
• Designed for reliability, it performs consistently in demanding environments.
• The panel supports large-scale projects with advanced screen management.

Visual Performance Highlights

• SVGA resolution ensures detailed and clear process visualization.
• Displays up to 65,536 colors for rich graphics.
• Brightness reaches 470 cd/m² for strong visibility.
• Wide viewing angle improves usability from multiple positions.
• Supports up to 4096 screens for complex applications.

Technical Specifications

• Display Type: TFT color LCD
• Screen Size: 12.1 inch
• Resolution: 800 × 600 (SVGA)
• Touch Technology: Analog resistive
• Brightness: 470 cd/m²
• Viewing Angle: Wide-angle design
• Memory: 15 MB built-in flash
• Touch Life: Over 1 million operations
• Backlight Life: Approx. 50,000 hours
• Detection Sensor: Human sensor up to 1 meter
• Environmental Resistance: Industrial-grade durability
• Compliance: UL, CE, KC, marine certifications

Operational Advantages

• Backlight supports replacement and failure detection.
• Energy-saving modes extend panel lifespan.
• Supports large project data storage and OS management.
• Touch panel ensures precise and responsive control.

Installation Considerations

• Install in a stable industrial control cabinet.
• Ensure sufficient space for heat dissipation.
• Avoid direct exposure to extreme humidity or vibration.
• Follow manufacturer cutout and mounting guidelines.

Maintenance & Reliability

• Replaceable backlight simplifies maintenance.
• High endurance touch panel reduces downtime.
• Flash memory supports long-term data retention.
• Diagnostic features assist system monitoring.

Application Scenarios

• Manufacturing automation lines
• Machine control interfaces
• Energy and infrastructure systems
• Process visualization platforms

Powergear X Automation’s Insight

• This model offers strong display clarity and long operational lifespan.
• It suits equipment requiring stable, large-format visualization.
• Best applied in systems demanding high visibility and durability.
• Ideal for Mitsubishi PLC-based automation and integrated control systems.

FAQ

• What makes this panel suitable for long-term use?
• Its durable touch layer and long backlight life ensure stable operation.
• Can this model handle large visualization projects?
• Yes, it supports thousands of screens for complex system design.
• What should users check before purchasing?
• Confirm display size, resolution, and compatibility with existing systems.
• What delivery and warranty terms apply?
• Includes 12-month warranty with dispatch in 12–48 hours.
• How to place an order quickly?
• Contact sales directly via email or WhatsApp for fast processing.
