Product details

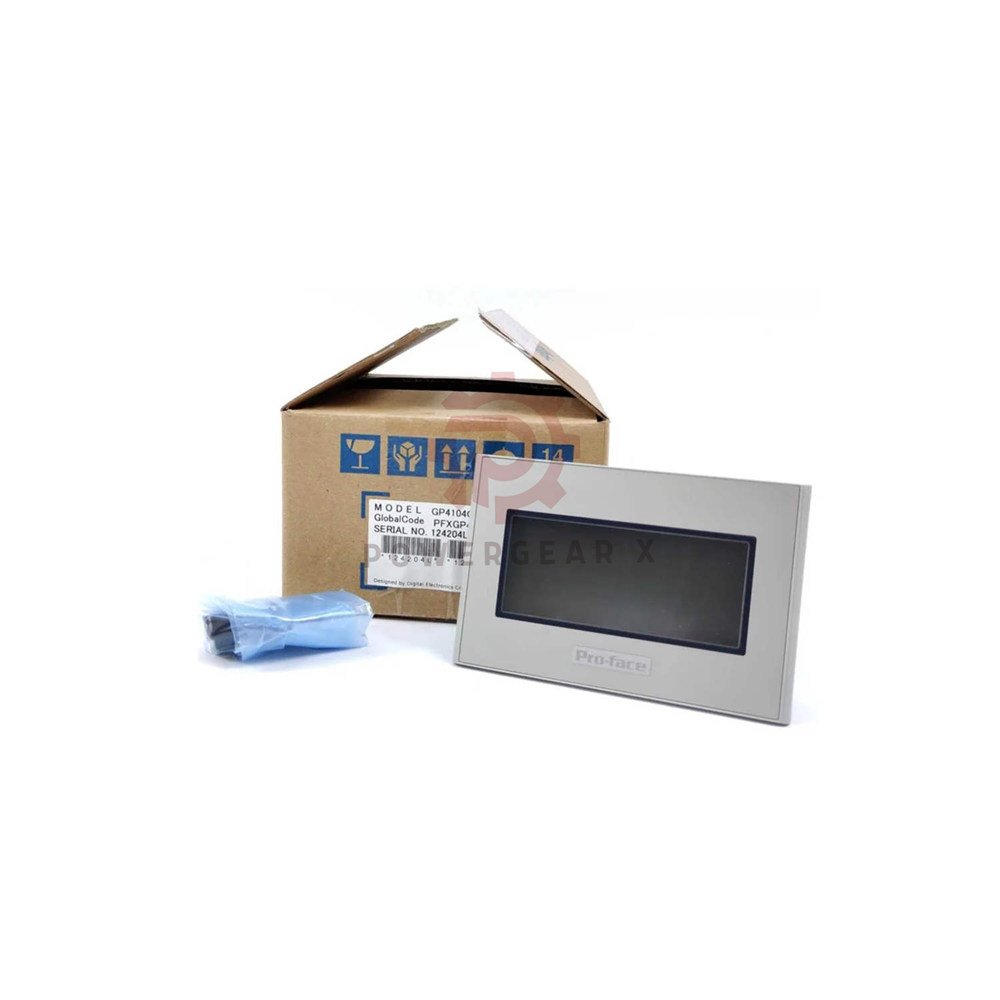

GP4104G1D Pro-face Xycom Monochrome HMI

Product ID: PFXGP4104G1D | Model: 3910017-11 | Brand: Pro-face / Schneider Electric

Display
- Size: 3.4-inch STN monochrome
- Resolution: 200 x 80 dots (dot pitch W0.4 x H0.4 mm)
- Colors: Green / Orange / Red (16 levels)
- Backlight: Green/Red LED (non‑replaceable)
- Backlight life: ≥50,000 h (green) / ≥10,000 h (red)
Electrical
- Input voltage: DC24V
- Power connector on rear panel
Communication
- Ethernet 10Base‑T/100Base‑TX (RJ45)
- Supports multiple fonts: ASCII, Thai, Cyrillic, Korean, Chinese (simplified & traditional)
Mechanical
- External dimensions: 116.5 x 77.5 x 28 mm (W x H x D)
- Panel cutout: refer to manual
- Gasket included for IP protection
Environmental
- Operating temperature: 0 to +50 °C
- Storage temperature: -20 to +60 °C
- Humidity: 10% to 90% RH (non‑condensing)
- Vibration resistance: 10 to 25 Hz, 2G
- Noise immunity: meets EN61000‑6‑2 standard
Software
- GP-Pro EX (version V3.0 or later)

Compatible with: Proface GP‑4000 series, Schneider Electric PLCs, and Modbus TCP/IP.
Certifications: CE, UL (cULus), and RoHS compliant.
Global code: PFXGP4104G1D.

Box contains: HMI unit, installation gasket, power connector, and quick start guide.
Warranty: 12 months against manufacturing defects.
Dispatch: 12‑24 hours from order confirmation.
Carriers: FedEx, UPS, DHL – tracking provided.

“The GP4104G1D is a reliable workhorse for small‑scale HMI tasks. Its tri‑color display gives clear status at a glance, and the Ethernet port simplifies remote access. For legacy system upgrades, this unit is a drop‑in replacement that keeps production running.”

“We stock hundreds of these units because customers trust their durability. The non‑replaceable LED is a known trade‑off, but 50,000 hours of green backlight means years of service in most factories. Pair it with GP‑Pro EX for quick project migration.”

Can I replace the backlight LED?No. The LED is non‑user‑replaceable. The unit provides 50,000 h (green) typical life.
What software do I need?GP-Pro EX (V3.0 or later). Free trial available from Schneider Electric.
Is the Ethernet port for programming or runtime?Both. You can transfer projects and communicate with controllers.
Does it support Chinese fonts?Yes. Simplified and Traditional Chinese fonts are built‑in.
How do I mount it securely?Use the provided gasket and follow the panel cutout dimensions in the manual.
Is this a drop‑in replacement for older Proface models?Yes. It matches the footprint of many GP‑4100 series units. Check your cutout size.

Choose GP4104G1D if you need a small monochrome display with Ethernet.
Prefer this for budget‑conscious projects that don’t require color graphics.
Ideal for remote diagnostics – the Ethernet port allows access via PC.
If you need long backlight life, use green mode (50k h) instead of red (10k h).
Stock this model to standardize your legacy machine HMI replacements.
