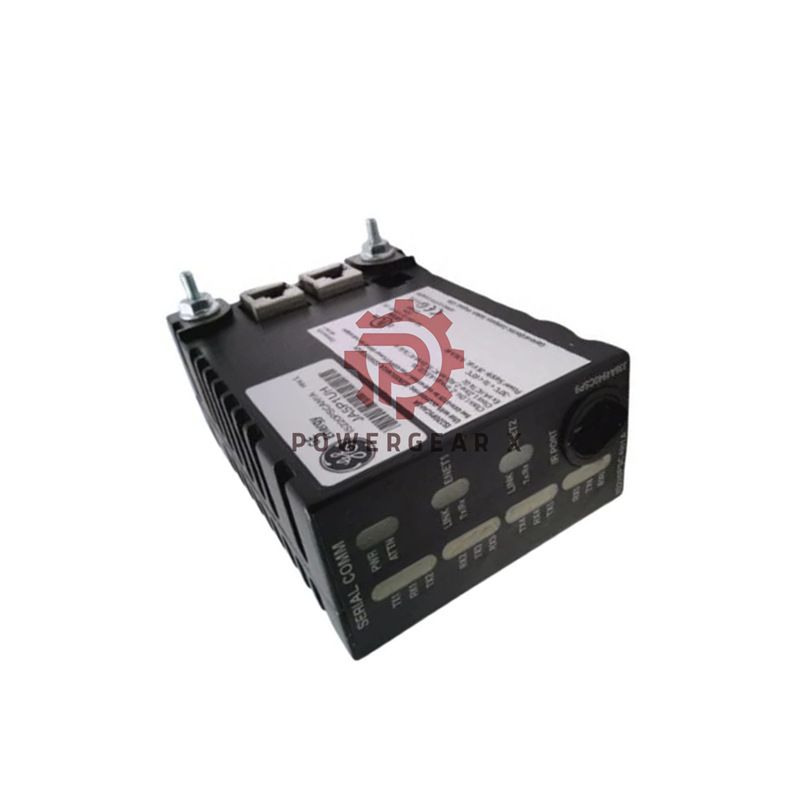

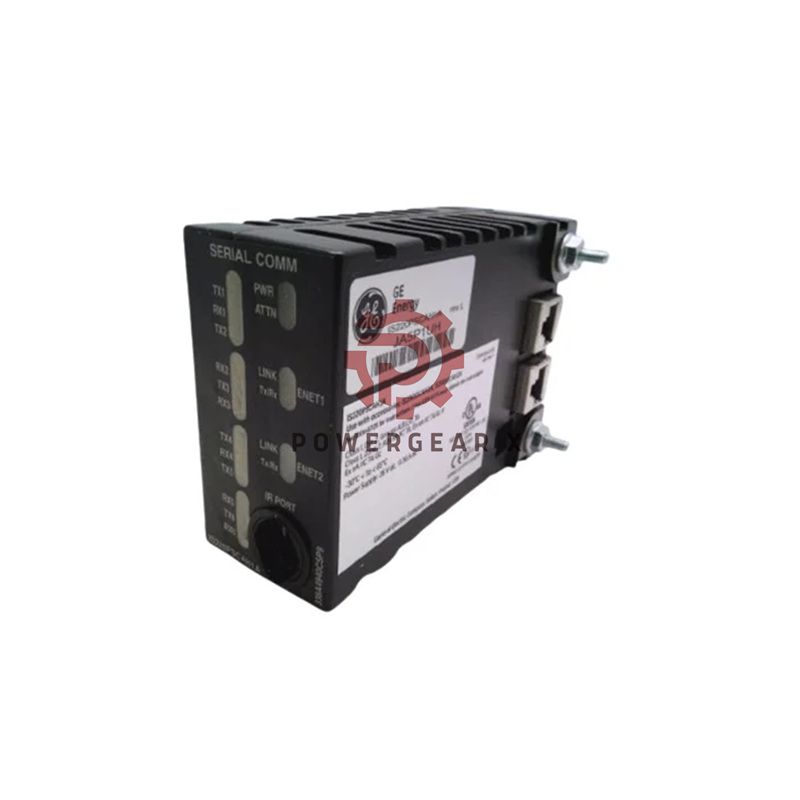

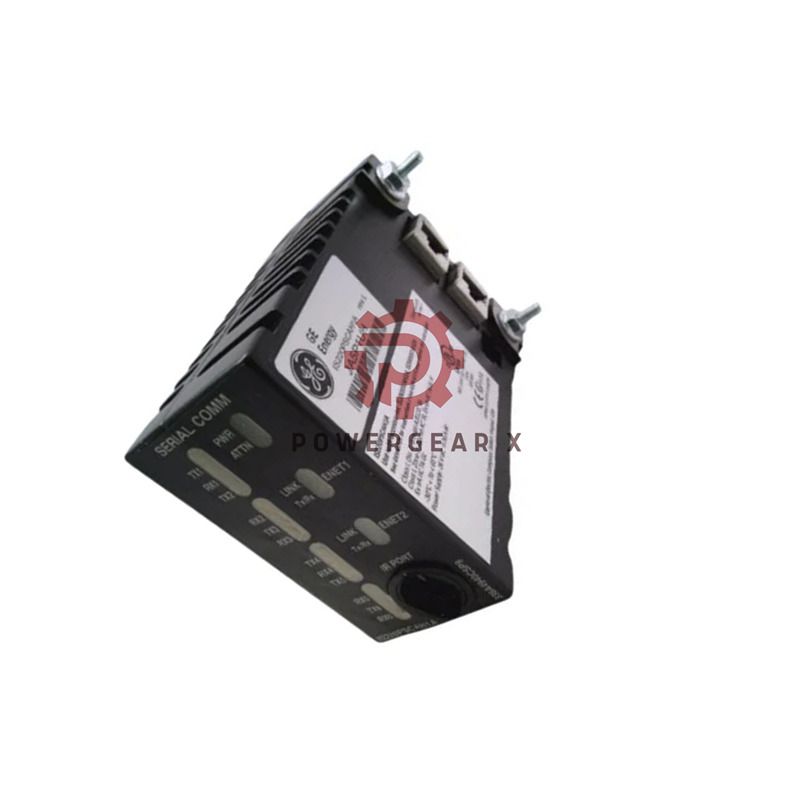

GE IS220PSCAH1A Serial Modbus Communication I/O Pack | Mark VIe Series
GE IS220PSCAH1A is a high-performance Serial Modbus Communication I/O Module designed for the Mark VIe Series turbine control systems. Built by General Electric, it provides robust, reliable, and precise serial data communication for industrial automation and turbine control applications. Its compact, surface-mount design and advanced diagnostics make it ideal for complex systems requiring accuracy and long-term stability.
Technical Highlights
- Model: IS220PSCAH1A
- Manufacturer: General Electric
- Product Type: Serial Modbus I/O Pack
- Series: Mark VIe
- Operating System: QNX
- Input Channels: 12
- Output Channels: 3 trip solenoids, 125 VDC
- Transceiver Modes: RS-232 / RS-422 / RS-485 half-duplex
- Baud Rate: 300 to 115200
- Power Input: 24/28 VDC
- Mounting: DIN-rail with removable connectors
- Isolation: Optical isolation to 1500V
- Dimensions: 17.8 cm × 33.02 cm
- Operating Temperature: -40 to 65°C
- Technology: Surface-mount
- Country of Origin: USA
Core Features & Benefits
- Provides fast and accurate Serial Modbus communication.
- Integrates easily with Ethernet networks for flexible data exchange.
- High electromagnetic compatibility ensures stable operation.
- Constant-current short circuit protection prevents device damage.
- Durable construction for harsh industrial environments.
- Auto-recovery after short circuit correction.
- Low power loss and minimal heat generation.
Installation Guidelines
- Mount the terminal board securely before connecting the module.
- Plug one I/O pack directly into the SSCA terminal connector.
- Use threaded inserts to avoid connector stress.
- Attach one or two Ethernet cables depending on system setup.
- Power up directly; soft-start prevents surge damage.
- Configure devices via ToolboxST software for optimal performance.
Performance and Communication
- Handles both fixed and Modbus I/O signals efficiently.
- Processes smart transducer data with high accuracy.
- Supports Ethernet Modbus communication on Simplex networks.
- Includes six configurable serial channels with independent settings.
- Built-in LEDs display real-time status and diagnostics.
Technical Advantages
- Self-diagnostic monitoring for position and pressure signals.
- Configurable high/low limits for safety and reliability.
- Compatible with RS485, RS232, and RS422 protocols.
- Compact footprint for space-constrained installations.
- Fully compliant with UL/cUL industrial safety standards.
Warranty & Delivery
- Warranty: 12 months
- Shipping via FedEx, UPS, or DHL worldwide
- Lead time for repair: 3–7 business days
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Author
- Written by Powergear X Automation
FAQ
- What is the function of the GE IS220PSCAH1A module?
The module manages Serial Modbus communication between Ethernet networks and serial devices within the Mark VIe control system.
- Can IS220PSCAH1A operate in high-temperature environments?
Yes, it performs reliably from -40°C to 65°C.
- Which communication protocols are supported?
It supports RS-232, RS-422, and RS-485 half-duplex standards.
- How is the IS220PSCAH1A powered?
It runs on a 24/28 VDC power supply with constant-current protection.
- Is the module suitable for safety-critical systems?
Yes, it integrates with the Mark VIe Functional Safety System for industrial protection and monitoring.
