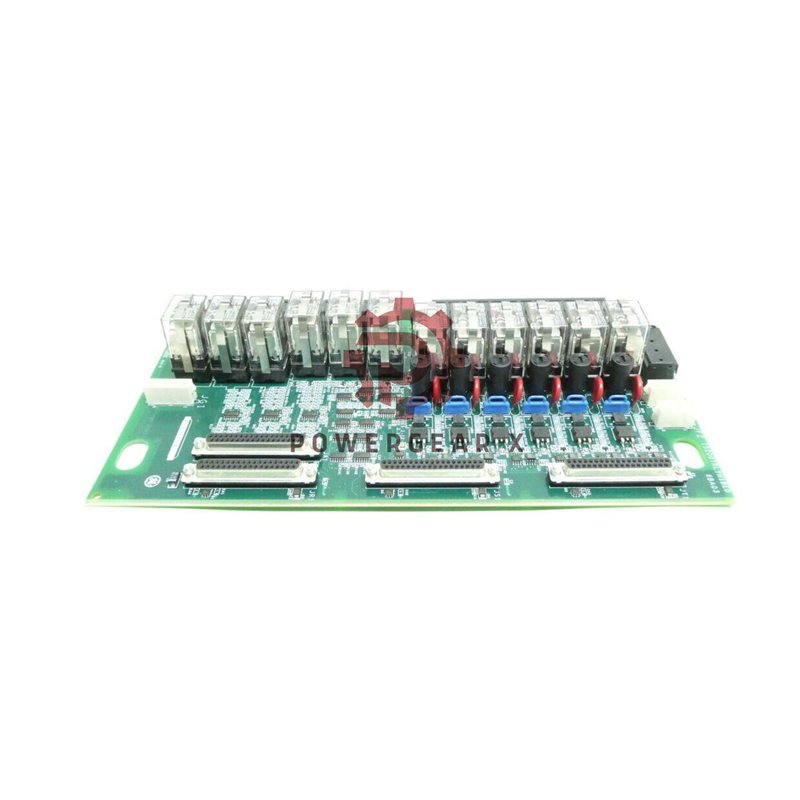

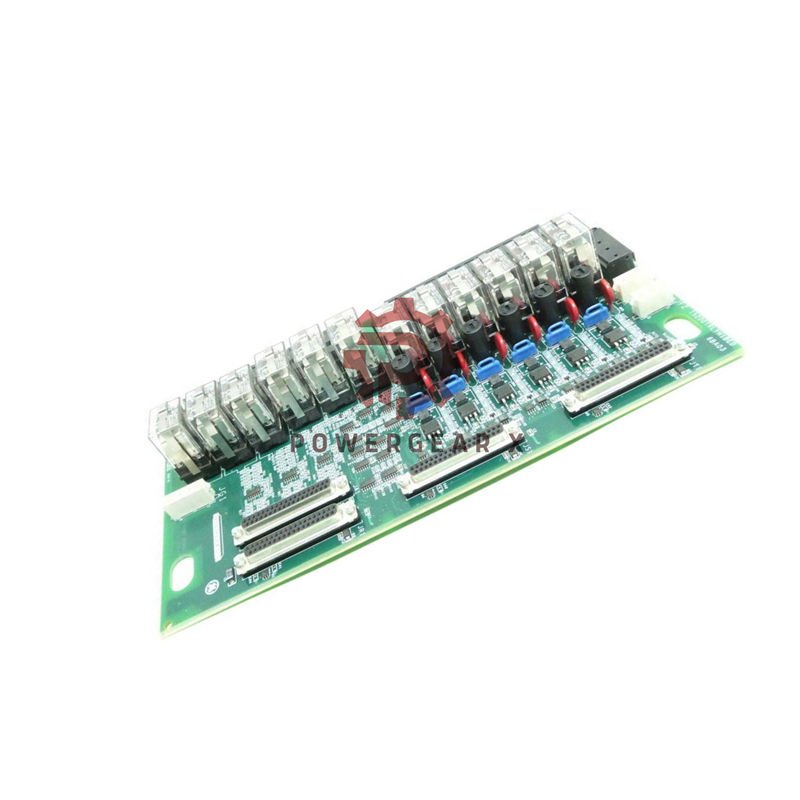

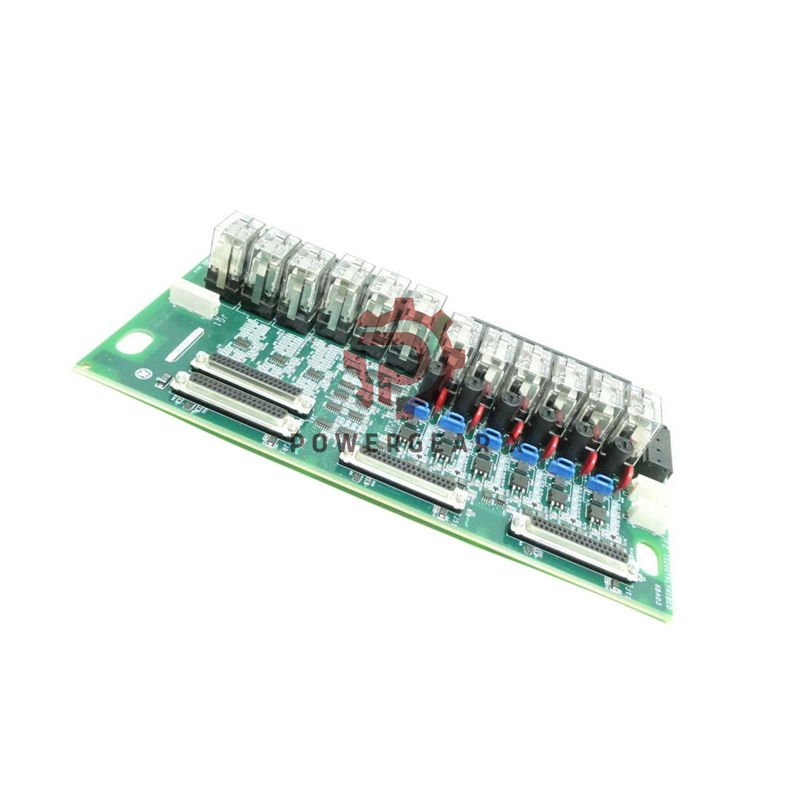

General Electric IS200TRLYH1BFD Relay Output Terminal Board
Powergear X Automation introduces the GE IS200TRLYH1BFD, a reliable and efficient relay output terminal board from the advanced Mark VIe Series. It is designed for industrial turbine control systems requiring fast relay switching, durable contacts, and flexible power options.
Key Product Features
- High Output Capacity: 16-channel relay output for robust turbine control.
- Versatile Power: Supports 12V or 24V input and 125V DC/230V AC solenoid power.
- Fast Response: Relay actuation time of only 10 ms.
- High Endurance: Rated contact-to-contact isolation up to 500V AC.
- Compact Design: Mounts easily on standard DIN rails for fast installation.
Technical Specifications
- Part Number: IS200TRLYH1BFD
- Manufacturer: General Electric (GE)
- Series: Mark VIe
- Type: Relay Output Terminal Board
- Channels: 16
- Relay Contact Rating: 10A
- Input Voltage Range: 12V / 24V
- Output Type: Form-C contacts
- Switching Current: Max 10A
- Analog Output: 0–20 mA
- Resolution: 12-bit
- Output Impedance: 10Ω
- Mounting: DIN Rail
- Size: 17.8 cm x 33.02 cm
- Operating Temp: -30°C to +65°C
- Relay Coil Voltage: 24V DC typical
- Dielectric Strength: 1500V AC coil-to-contact
- Fuse Protection: Individual jumper selectable fuses
- Noise Protection: 250V MOV transient suppression
- Technology: Surface Mount
- Manual: GEH-6721D
- Repair Time: 3–7 Days
- Warranty: 12 Months Full Coverage
- Country of Origin: United States
- Shipping: FedEx, UPS, or DHL worldwide
- Availability: In Stock
Operation & Design
- Equipped with 12 plug-in magnetic relays for flexible output control.
- First six relays support dry contact or solenoid drive configurations.
- Built-in transient suppression to protect field circuits from surges.
- Outputs include failsafe mode if processor communication is lost.
- Compatible with PDOA I/O packs through DC-37 pin connectors (JA1, JR1, JS1, JT1).
Installation Notes
- Includes two terminal blocks (24 terminals each) for direct wiring.
- Accepts up to #12 AWG wiring for secure connections.
- Jumpers JP1–JP6 allow for flexible power routing and solenoid control.
- Shield terminal strips connect to chassis ground for noise reduction.
- Power can be linked via JF1/JF2 plugs or wired directly to TB3.
Performance Highlights
- Contact Voltage: Rated 500V AC contact-to-contact for 1 minute.
- Coil Isolation: 1500V AC coil-to-contact rating.
- Relay Speed: Operates in 10 milliseconds typical.
- Failsafe Mode: Relays de-energize if control signal is lost.
- Durable Build: Designed for harsh industrial and turbine environments.
FAQ
- Q: What voltage inputs are supported by the IS200TRLYH1BFD?
A: It supports 12V and 24V DC inputs, with jumper-selectable fuses for flexibility. - Q: Can it handle AC and DC solenoid power?
A: Yes, it supports 115/230V AC and 125V DC standard sources for solenoid outputs. - Q: How many relays are plug-in type?
A: All 12 relays on the board are plug-in magnetic type for easy replacement. - Q: What happens if the control cable is disconnected?
A: The relays will automatically de-energize in failsafe mode. - Q: What warranty and delivery options are available?
A: The product comes with a 12-month warranty and global delivery via FedEx, UPS, or DHL.
