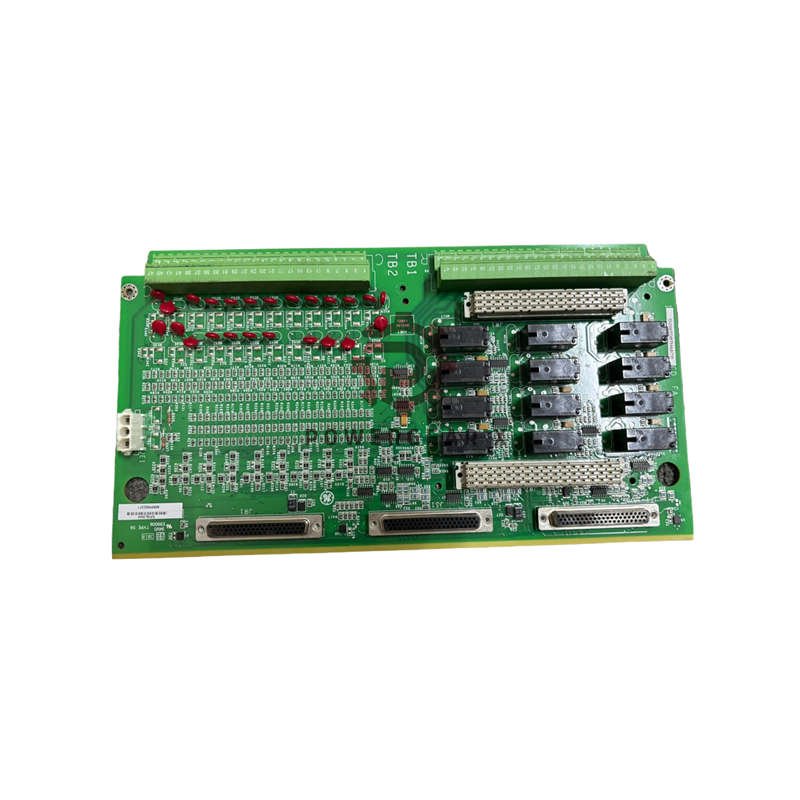

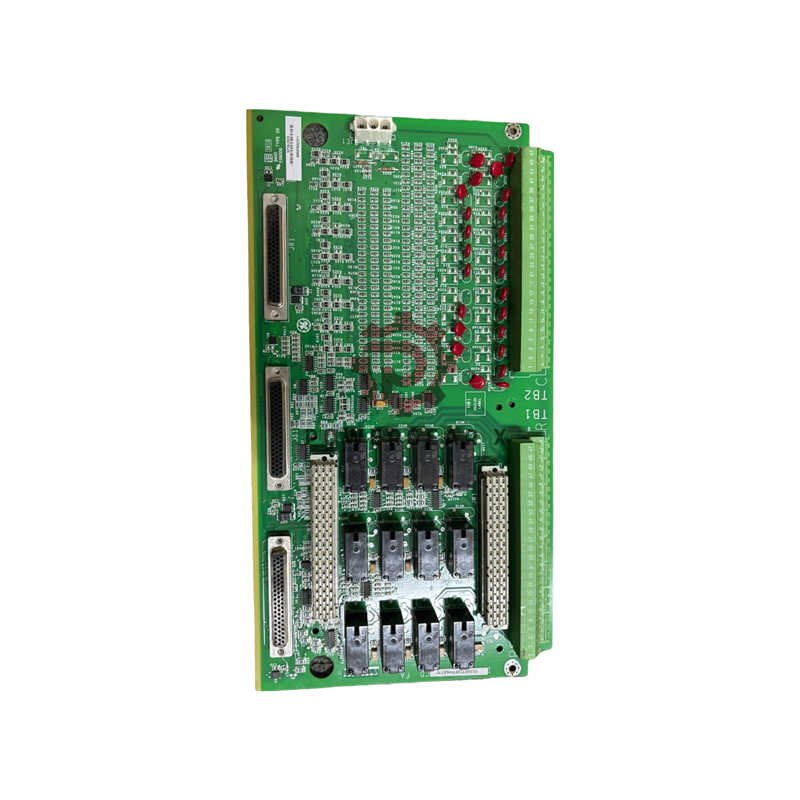

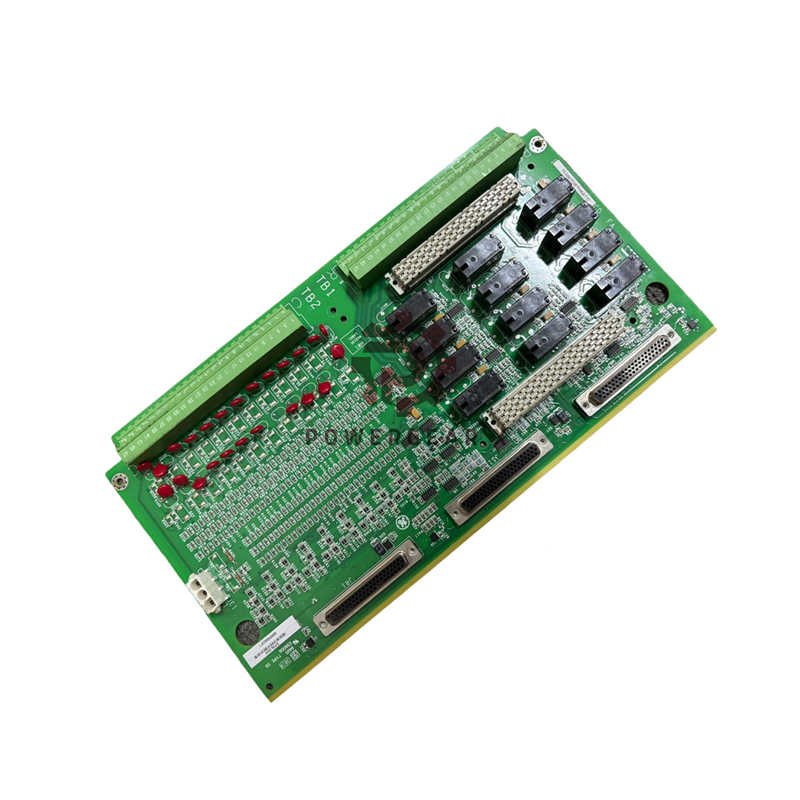

General Electric IS200TDBTH6ACD Mark VIe TDBT Terminal Board

Overview

• The IS200TDBTH6ACD integrates 24 isolated input channels and 12 form-C relay outputs.
• The board supports Mark VIe systems and connects through PDIO I/O packs on D-type connectors.
• The TDBT protects inputs with hardware noise suppression and AC rejection to enhance reliability.

Key Technical Specifications

• Brand: General Electric
• Model: IS200TDBTH6ACD
• Series: Mark VIe
• Category: Discrete I/O Terminal Board
• Channels: 24 isolated input channels, 12 relay channels.
• Input Voltage: Nominal 24 V dc wetting voltage, ranges for 24/48/125 V systems.
• Input Current: Contact input currents limit to 2.5 mA and 10 mA per group.
• Power: +5 V dc logic supply; 24 V dc supply limited by PTC fuses to 0.5 A.
• AC Rejection: 12 V RMS AC voltage rejection improves noise immunity.
• Operating Temperature: -30 to +65 °C for harsh environments.
• Mounting: DIN-rail or sheet metal carrier mounting options for cabinet installation.
• Size: 17.8 cm wide by 33.02 cm long for compact installations.
• Repair Lead Time: 3-7 Day repair availability.
• Country of Origin: United States (Salem, Virginia)
• Manual: GEH-6721L

Performance & Environmental Resistance

• The board uses hardware filters to suppress spikes and high-frequency noise on inputs.
• The device provides robust surge and transient protection via input conditioning circuits.
• The conformal PCB coating increases humidity and contaminant tolerance in rugged environments.

Installation Guide

• Mount the TDBT on a DIN rail or secure the sheet metal carrier inside a control cabinet.
• Wire input circuits to the lower terminal block TB2 and relay outputs to upper TB1 terminals.
• Use #18 AWG conductors for direct wiring to terminal blocks and maintain shield grounding per practice.

Relay Options & Configuration

• Install the relay option board into connectors JW1 and JW2 to enable 12 form-C relays.
• Option-board jumpers control relay contact types and factory assembly includes all six jumpers.
• Remove specific jumpers when you require dry contacts and no internal power distribution.

Packaging List

• One factory-tested IS200TDBTH6ACD terminal board packaged with protective padding.
• One plastic insulator and sheet metal carrier for DIN-rail or cabinet mounting.
• One printed copy of manual GEH-6721L and mounting screw kit included.
• Shipping methods: FedEx, UPS, DHL for global delivery options.

FAQ

• Q: How many channels does this board support?
  A: The board supports 24 isolated inputs and 12 relay outputs.
• Q: What wetting voltages can the TDBT accept?
  A: The TDBT accepts nominal 24, 48, or 125 V dc wetting voltages.
• Q: Where does this product manufacture originate?
  A: General Electric manufactures this PCB in Salem, Virginia, United States.
• Q: What mounting options exist for installation?
  A: Use DIN-rail mounting or attach the sheet metal carrier in a cabinet.
