Product details
Overview

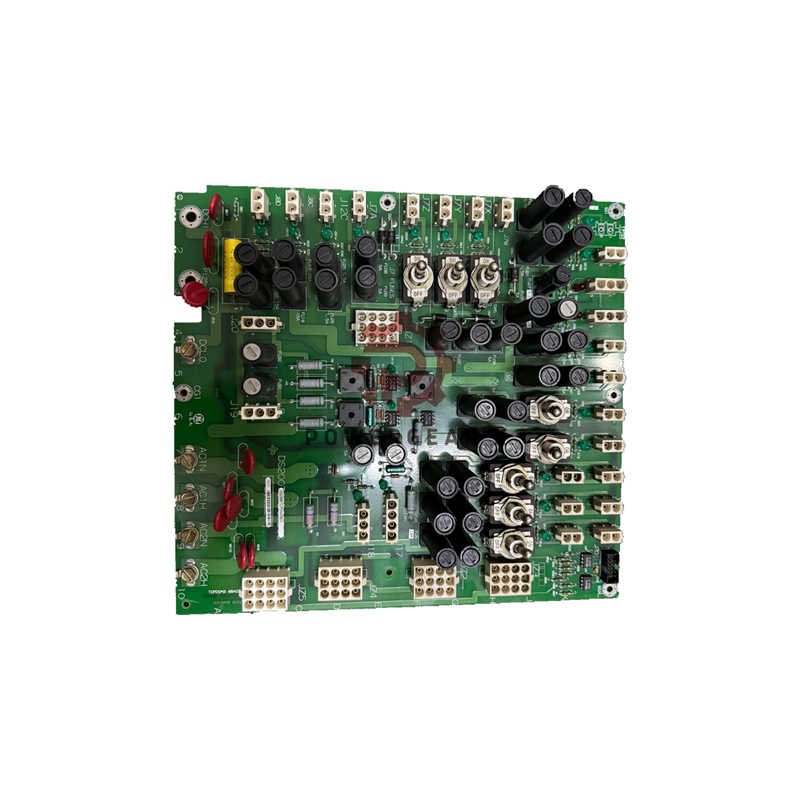

Powergear X Automation presents the DS200TCPDG2BEC Power Distribution Module — a reliable component from General Electric designed for Mark VI control systems. This board efficiently distributes 125 V dc and 115/230 V ac power to various control cores and terminal boards, ensuring stable turbine system operation.
Technical Specifications
- Brand: General Electric
- Model: DS200TCPDG2BEC
- Product Type: Power Distribution Module
- Series: Mark VI
- Input Voltage: 115/230 V ac or 125 V dc
- Output: 125 V dc distributed to TCPS, TCEA, and DTBC/DTBD boards
- Isolation: BJS hardware jumper for external reference ground
- Switches: SW1–SW8 control individual core power zones
- Environment: Designed for industrial Mark VI control enclosures
- Manufactured in: United States (USA)
Connectors & Power Control
- J1R–J1D: Supply 125 V dc to R1–R5 TCPS boards
- J7W/J7X/J7Z: Power the P1 TCTG and TCEA boards
- J8A–J8D: Provide solenoid output power to DTBC/DTBD boards
- JPD: Feeds CTBA in R5 for PD power monitoring
- JZ2: AC input to DACA converter for AC–DC conversion
- JZ3: Optional lower-voltage supply for contact #18 on DTBC (Q51)
- JZ5: AC output for ignition transformer connections
- Switch Bank: SW1–SW8 toggle power ON/OFF for each core individually
Installation Guide
- Label every signal wire with terminal IDs (AC1N, AC1H, AC2N, AC2H) before removal.
- Loosen terminal screws, remove old wires, and insert labeled wires into identical terminals.
- Confirm secure tightening and correct polarity before powering up the system.
- Insert the BJS jumper when an external reference ground is required.
- Use SW1–SW8 switches to power individual cores during system verification.
- Always check voltage levels at output terminals after installation.
Power and Conditioning
- Incoming 115/230 V ac enters through TB1 and converts to 125 V dc via the DACA converter.
- 125 V dc distribution powers IO, control, and solenoid boards in Mark VI systems.
- Optional resistive conditioning through JZ1 ensures stable voltage for TCEA and contact inputs.
- Ignition transformer circuits receive AC feed via JZ5 for dependable operation.
Packaging & Shipping
- Includes one DS200TCPDG2BEC board and terminal ID quick-install guide.
- Protective anti-static and foam packaging ensures safe transit.
- Ships globally via Fedex, UPS, or DHL with full tracking support.
- No certificates or warranty documentation included inside the package.
FAQ
- Q: How do I select between AC and DC input?
- A: Choose AC when DACA conversion is needed, or DC for direct 125 V dc systems.
- Q: What is the function of the BJS jumper?
- A: It connects external reference ground to PD chassis when isolation is required.
- Q: Can solenoids connect directly without DTBC or DTBD boards?
- A: No, always route solenoid connections through DTBC/DTBD for isolation safety.
- Q: Does the module require software setup?
- A: No software configuration is needed; this module operates through hardware only.
Key Benefits
- Centralized 125 V dc and 115/230 V ac power for Mark VI turbine systems.
- Manual switch control (SW1–SW8) enables safe core isolation during service.
- Engineered by General Electric for dependable industrial power distribution.
- Simple replacement procedure reduces downtime during maintenance.
Contact Information
- Inquiries: sales@powergearx.com
- WhatsApp: +86 18030005825
