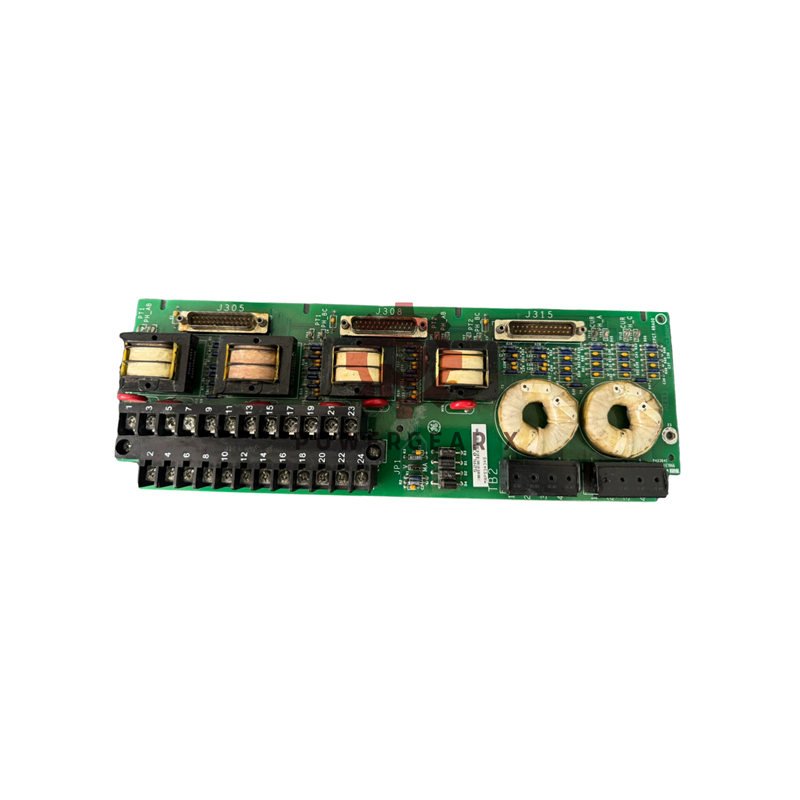

Product Overview: GE IS200EPCTG1A Exciter PT/CT Terminal Board
The IS200EPCTG1A from General Electric is a critical component in the EX2100 excitation control system. This simplex servo I/O terminal board conditions generator voltage and current feedback for reliable power management. It ensures accurate measurement and isolation for safe operation.
Technical Specifications
- Brand: General Electric
- Model: IS200EPCTG1A
- Series: EX2100
- Function: Exciter PT/CT Terminal Board
- Power Supply: 28 V dc
- Operating Temperature: -30°C to 65°C
- PT Input Voltage: 115 V rms, 50/60 Hz
- CT Input Current: 1 A to 5 A
- Analog Input: 0-10 V dc or 4-20 mA
- Board Size: 23.8 cm x 8.6 cm
- Weight: 0.45 kg
- Terminal Blocks: 3 non-removable blocks for safety
Installation and Wiring Guidelines
- Use #10 or #12 AWG wire for connections with up to 1000 feet cable length.
- For analog input, maximum two-way cable resistance is 15 ohms over 300 meters.
- Configure input type using jumper JP1 on the board.
- Mount the board securely in the control rack using provided fixtures.
- Ensure all PT and CT inputs are properly fused before powering the system.
Packaging Information
- One IS200EPCTG1A terminal board
- Installation manual (GEI-100459)
- Required mounting hardware
- Shipping via FedEx, UPS, or DHL based on customer preference
Frequently Asked Questions
- What is the primary role of the IS200EPCTG1A board?
- It conditions generator PT and CT signals for the EX2100 excitation system.
- Can this board handle high-voltage inputs directly?
- Yes, it accepts PT voltages up to 115 V rms through isolated transformers.
- How many analog inputs does the board support?
- It provides one configurable analog input for voltage or current signals.
For technical support or purchasing the IS200EPCTG1A, contact us at sales@powergearx.com or +86 18030005825.
