Product Overview

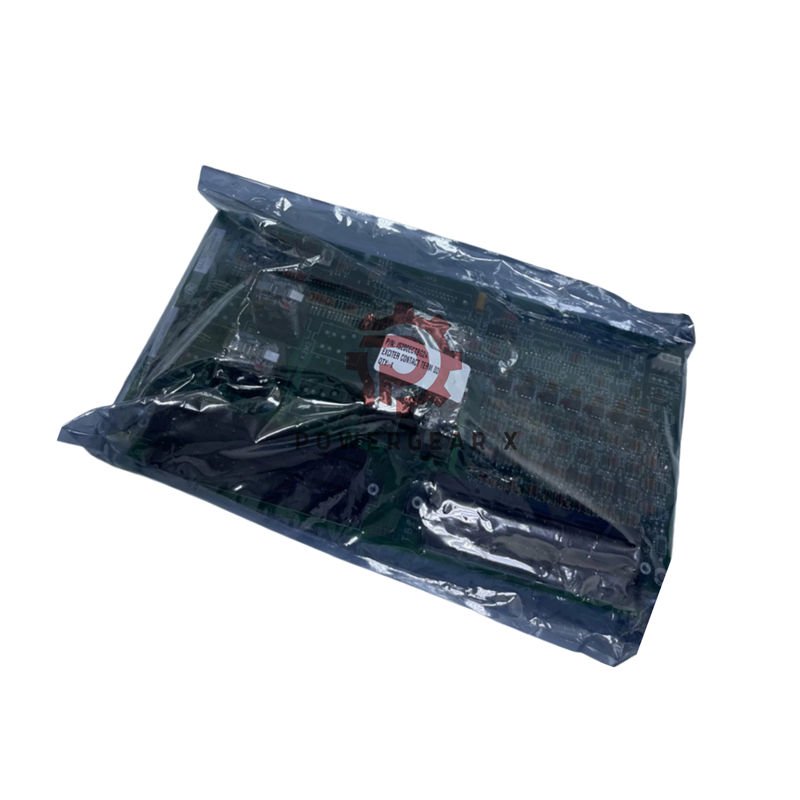

The IS200ECTBG2A is an Exciter Contact Terminal Board made by General Electric for the EX2100 series. This component plays a vital role in excitation control systems by managing contact inputs and outputs. It operates solely in simplex mode to ensure high reliability and performance.
Key Technical Specifications
- Brand: General Electric
- Model: IS200ECTBG2A (Full Suffix: ECTBG2A)
- Series: EX2100
- Use Mode: Simplex Only
- Relay Break Characteristic: 28 V DC
- Customer Power: 125 V DC
- Relay Control Voltage: 24 V DC
- Wetting Voltage: 70 V DC
- Weight: 0.34 kg
- Dimensions: 150 x 76 x 90 mm
- Country of Manufacture: United States
Installation Guidelines
- Confirm the system is set to simplex mode before installation.
- Connect the board to the EMIO board via the designated backplane cables.
- Apply the correct voltage sources for relay control and contact wetting.
- Refer to manual GEI-100457A for detailed wiring and setup instructions.
- Test all connections thoroughly before powering the system.
Packaging List
- IS200ECTBG2A Exciter Contact Terminal Board
- Necessary mounting hardware and screws
- Product specification and documentation sheet
- Shipping options include FedEx, UPS, and DHL for fast delivery
Frequently Asked Questions
- What is the main function of the IS200ECTBG2A?
It handles exciter contact outputs and inputs in General Electric EX2100 systems. - Can this model be used in redundant mode?
No, the IS200ECTBG2A is designed only for simplex mode operation. - What voltages does the board support?
It uses 24V DC for relay control and 70V DC for contact wetting.
