Name: GE IS215UCVGM06A Mark VI Controller | Universal Control Module
SKU: IS215UCVGM06A
Availability: InStock

Product details

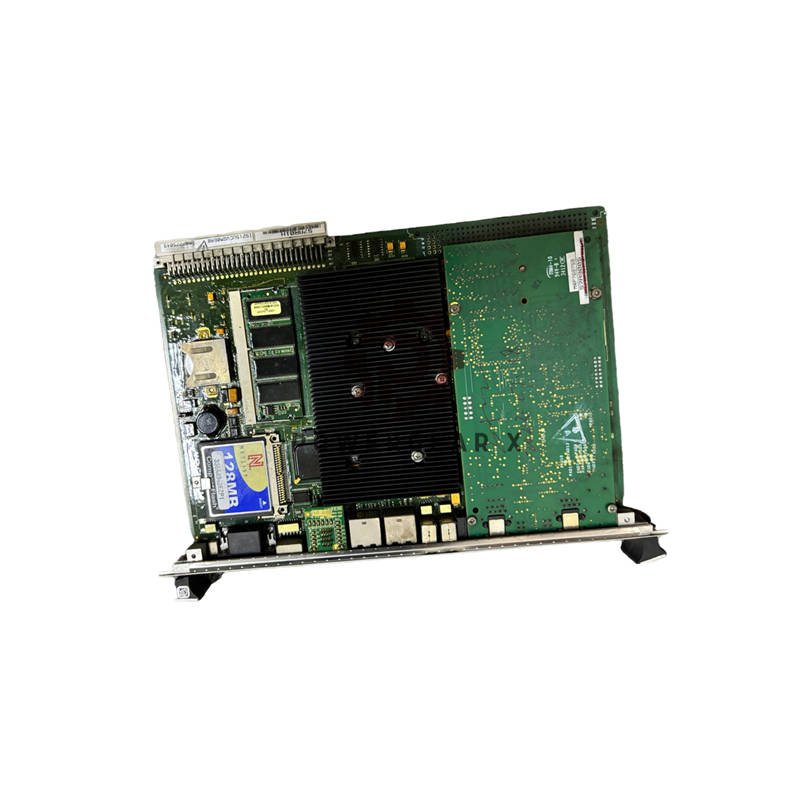

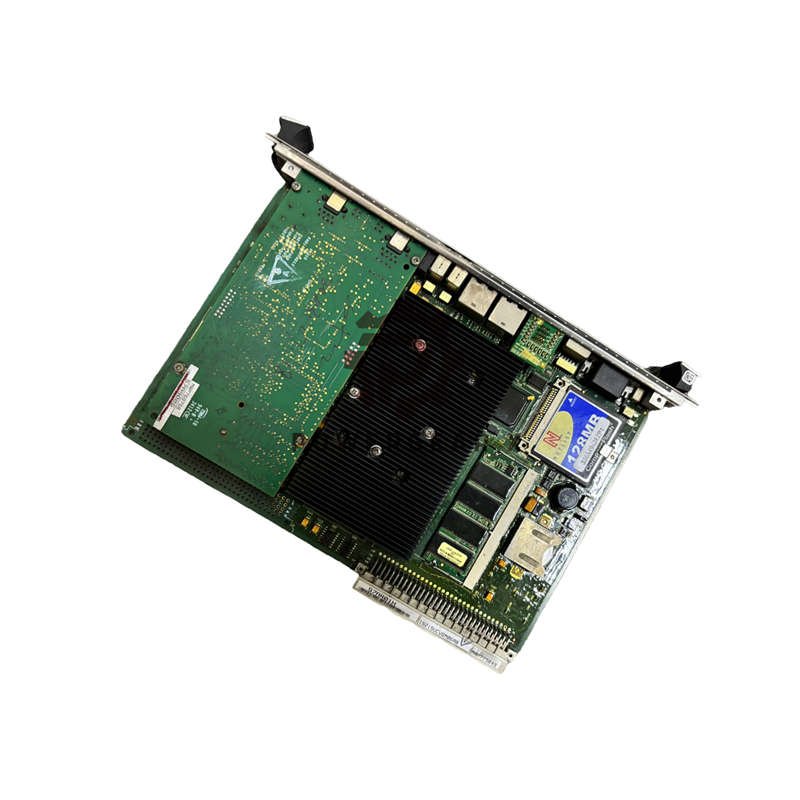

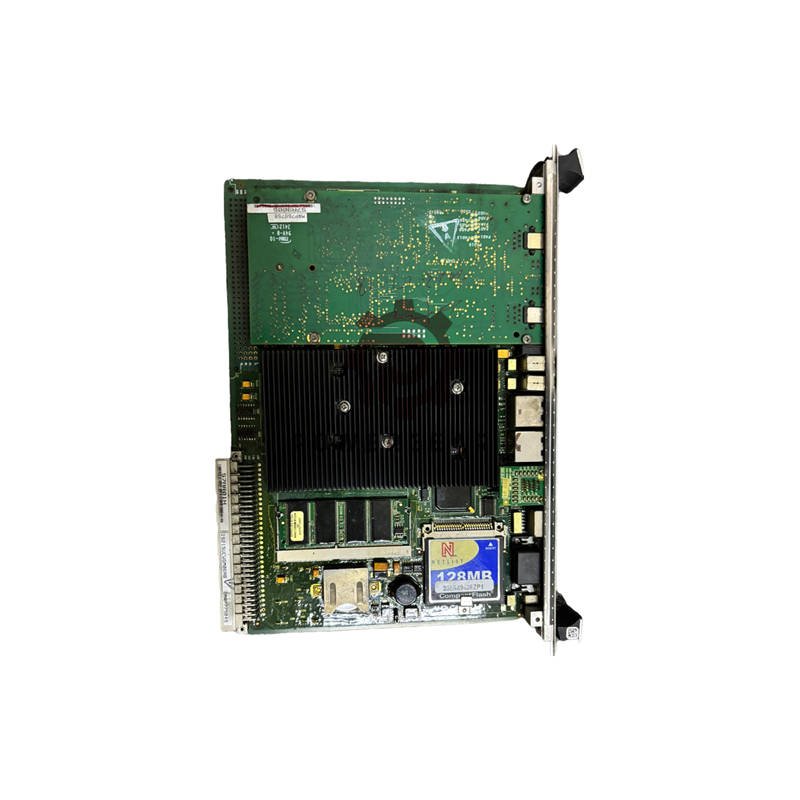

GE IS215UCVGM06A Universal Control Variable Generator | Mark VI Speedtronic

IS215UCVGM06A is a Universal Control Variable Generator (UCVG) module made by General Electric for the Mark VI Speedtronic turbine control system. It runs turbine and plant applications with stable, real-time control using the QNX operating system.

Core Highlights

Built with Intel Ultra Low Voltage Celeron 650 MHz processor for reliable control performance.
Uses QNX real-time OS for fast, stable multitasking operations.
Features 128 MB SDRAM and 128 MB Flash Memory for high-speed data handling.
Two Ethernet ports (10BaseT/100BaseTX) for UDH, Modbus, or EGD connections.
Operates from 14–32 V DC voltage range for flexibility and efficiency.
Compact board size: 16.2 cm x 8.6 cm; lightweight and efficient.

Performance Advantages

Processes up to 100,000 logic blocks per second.
Synchronizes with VCMI board within ±100 μs for precise timing.
Operates from 0°C to 70°C, suited for harsh environments.
Advanced surface-mount design for durability and high density.
Designed for gas, steam, and BOP applications in turbine systems.

Technical Specifications

Part Number: IS215UCVGM06A
Processor: Intel Celeron 650 MHz
Memory: 128 MB SDRAM / 128 MB Flash
Ethernet Interface: Dual RJ-45 (10/100 Mbps)
Operating Voltage: 14–32 V DC
Max Lead Resistance: 15 Ω
Temperature Range: 0–70°C
Technology: Surface Mount
Repair Time: 3–7 Days
Manual: GEH-6421J

Applications

GE Speedtronic Gas & Steam Turbine Control
Land and Marine Aero-Derivative Turbines
BoP (Balance of Plant) Process Automation
Industrial Energy Management Systems

Installation Tips

Mount the controller securely within Mark VI rack slots.
Ensure proper airflow with cooling fan placement.
Use VDSK board when installing in standalone GE Fanuc racks.
Check Ethernet and PMC connections before startup.

Product Benefits

High-speed VME bus communication for real-time data transfer.
Low-power design reduces heat generation and maintenance.
Simplex and TMR compatible for redundancy and safety.
Fast configuration and diagnostics via GE Toolbox software.

FAQ

Q: What does the IS215UCVGM06A module do?
A: It runs the main turbine control logic and manages I/O communication in Mark VI systems.
Q: Which operating system does it use?
A: It runs on the QNX real-time OS for fast and stable control.
Q: Is IS215UCVGM06A compatible with TMR systems?
A: Yes, it supports simplex and triple modular redundancy configurations.
Q: How many Ethernet ports are available?
A: There are two independent Ethernet ports for control and communication networks.
