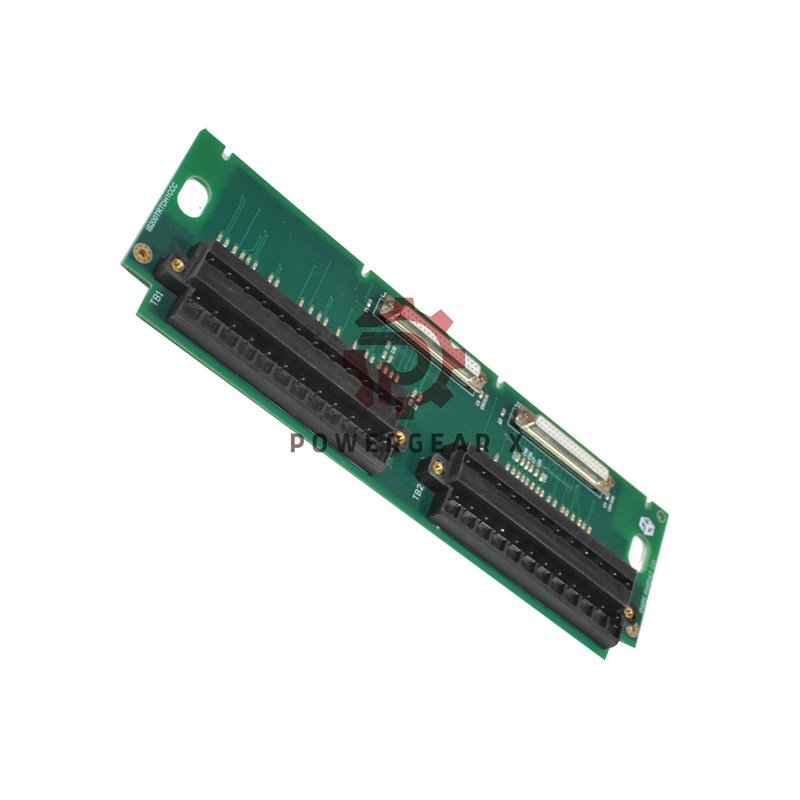

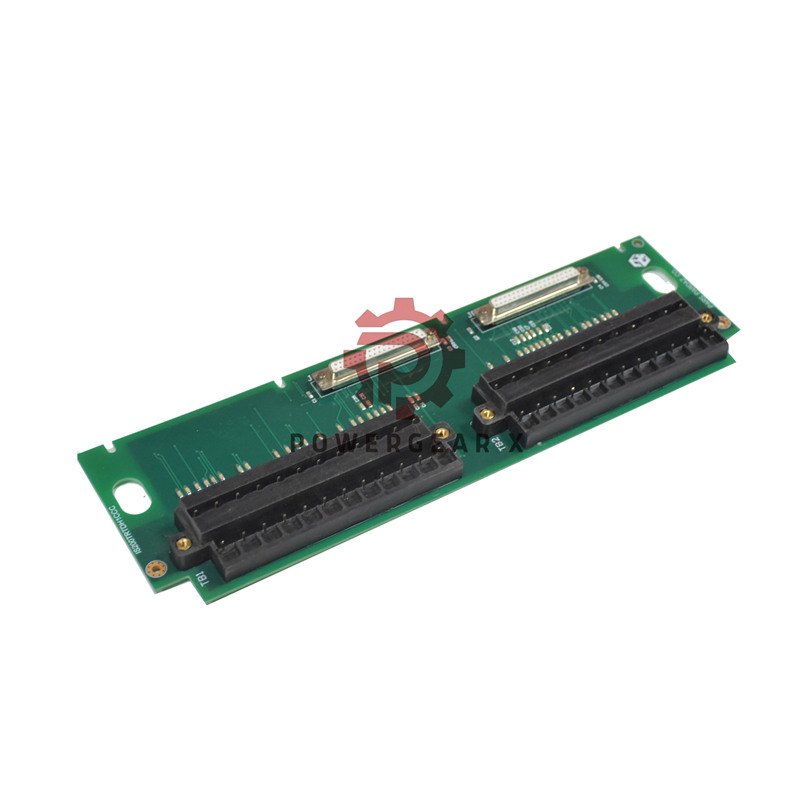

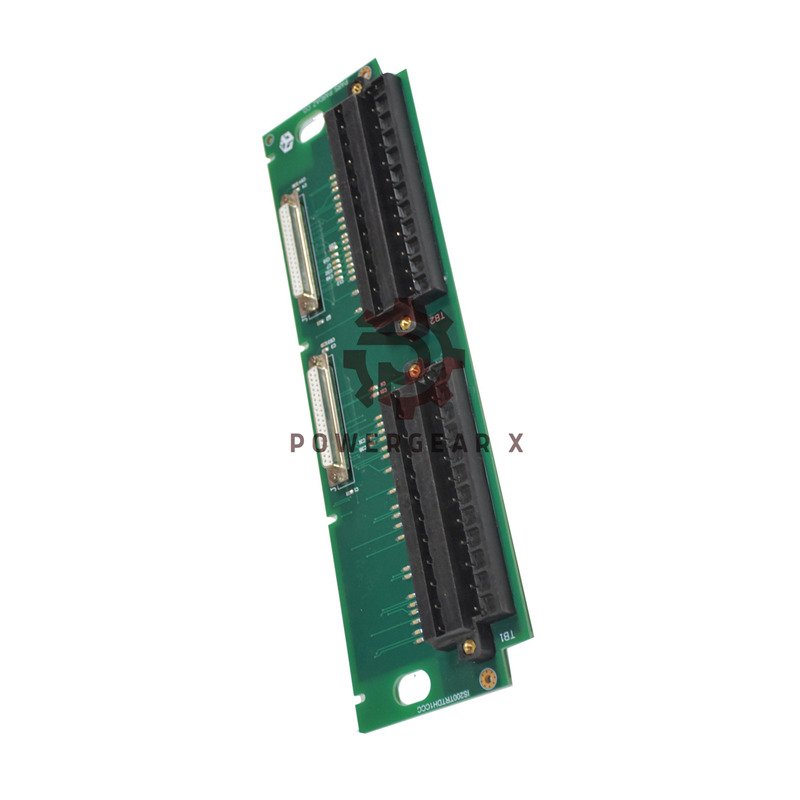

GE IS200TRTDH1CCC RTD Terminal Board
- Part No.: IS200TRTDH1CCC
- Manufacturer: General Electric (GE)
- Product Type: Resistance Temperature Device (RTD)
- Country of Manufacture: United States
- Series: Mark VI
- Availability: In Stock
- Warranty: 12 Months
- Shipping: FedEx / UPS / DHL
Author: Powergear X Automation
Quick Overview
The GE IS200TRTDH1CCC board supports 16 three-wire RTD inputs. It ensures precise and stable temperature readings with built-in noise suppression and reliable grounding. The compact layout and shielded connections guarantee clean signals even in industrial conditions.
Technical Highlights
- 8-channel configuration per terminal board
- Input Span: 0.3532–4.054 V
- Temperature Range: -30°C to +65°C
- Max Lead Resistance: 15 Ω total (two-way)
- RTD Types: Platinum (10/100/200 Ω), Copper (10 Ω), Nickel (120 Ω)
- Signal Accuracy: ±0.1% of full scale
- Resolution: 16-bit ADC for temperature conversion
- Response Time: <10 ms typical
- Mounting: Barrier-type terminal blocks (24 terminals each)
- Wire Size Support: Up to #12 AWG
- Noise Protection: Built-in suppression for EMI/RFI
- ID Fault Detection: Automatic failure recognition
- Material: Industrial-grade epoxy-coated PCB
Product Benefits
- Easy installation with dual terminal blocks
- Stable signal with shield grounding
- Compact and lightweight for control cabinets
- High accuracy for demanding temperature control
- Compatible with Mark VI systems
Model Options
- TRTDH1B – TMR type, six DC connectors for VRTD
- TRTDH1C – Simplex, two DC connectors for VRTD
- TRTDH1D – Simplex, two PRTD normal scan connectors
- TRTDH2D – Simplex, two PRTD quick-scan connectors
FAQs
What does IS200TRTDH1CCC do?
It converts RTD input signals to precise temperature data for GE Mark VI control systems.
How many RTDs can it support?
It supports 16 three-wire RTDs through barrier-type terminals.
What power range does it use?
The board operates within 0.35 to 4.05 V input span, ensuring accurate readings.
How does it handle electrical noise?
It includes built-in suppression circuitry and shield terminals grounded to chassis for clean signals.
