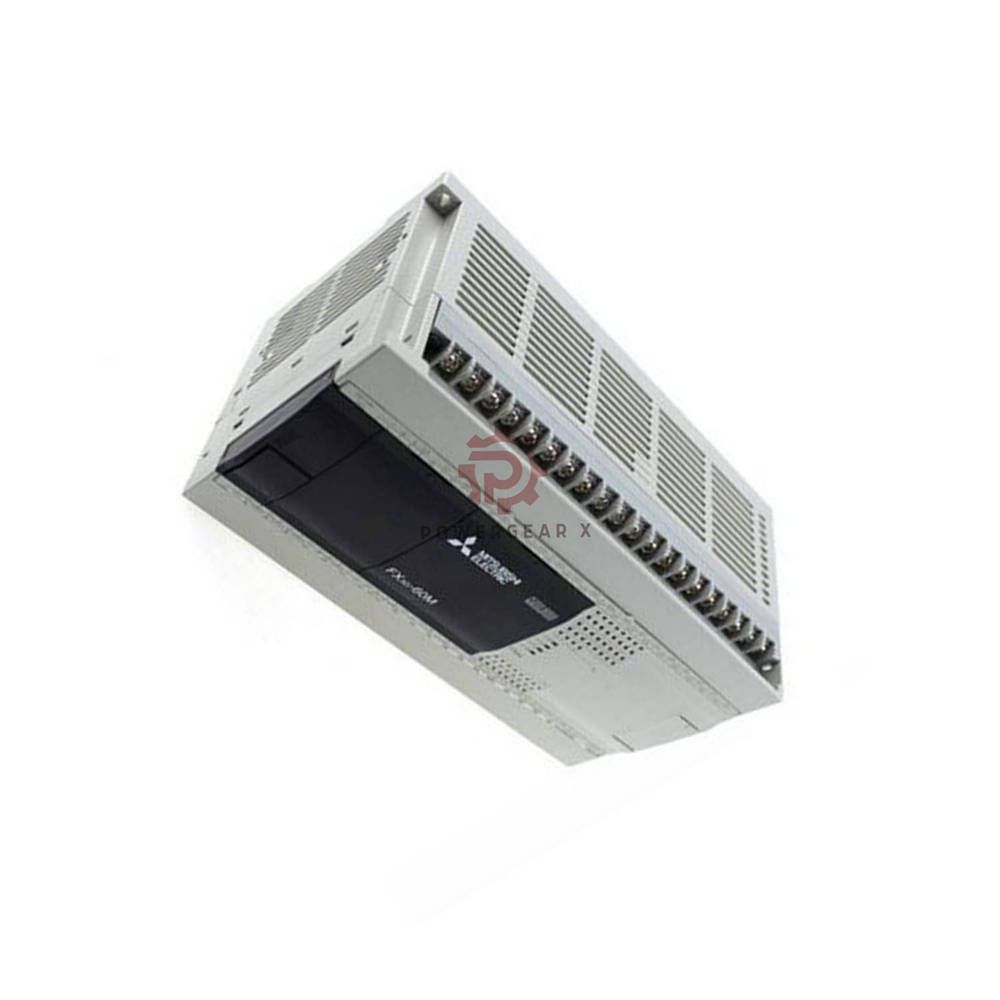

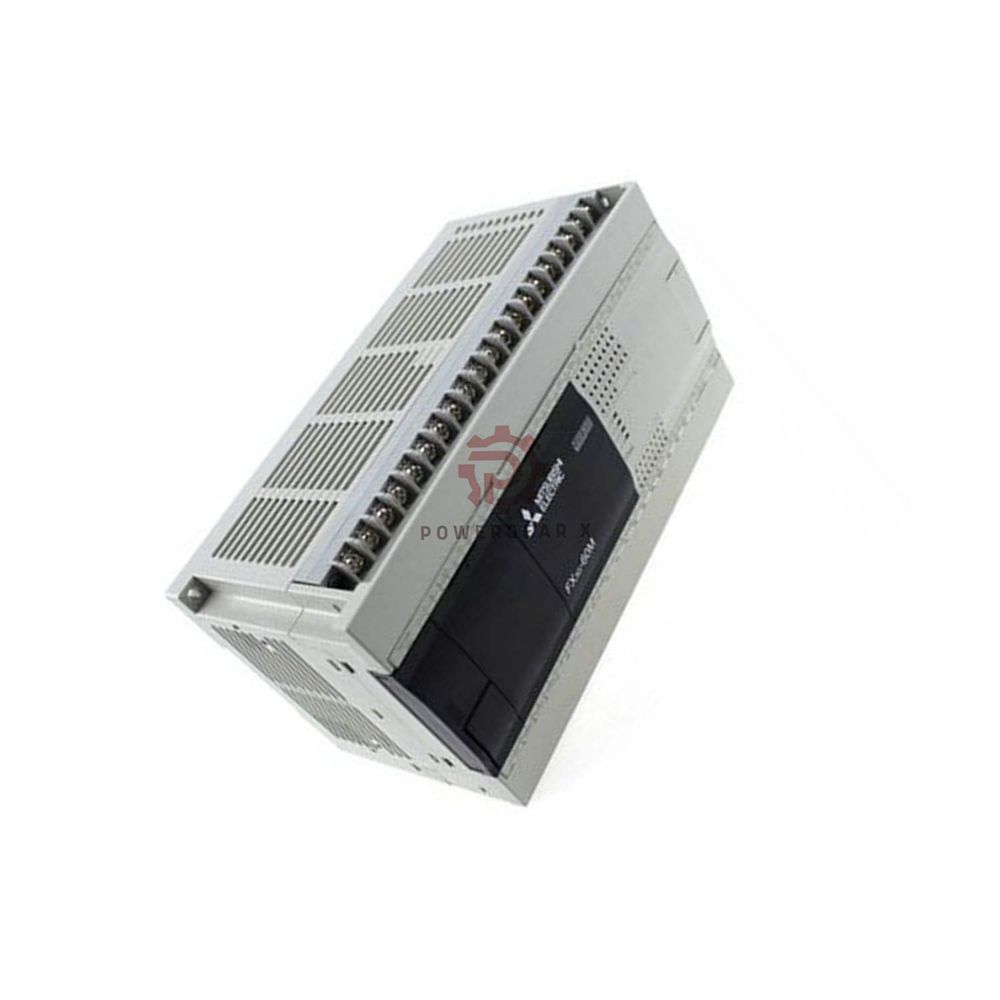

FX3GA-60MT-CM | Mitsubishi FX3GA Series PLC with 60 I/O Points for Servo Motor Control

Product Overview

The Mitsubishi FX3GA-60MT-CM is a third-generation standard PLC from the FX3 series.
It offers 60 I/O points with transistor outputs for high-speed switching.
Built-in 32K steps memory and fast processing make it ideal for small to mid-size control tasks.
Simple to use, flexible to expand, and ready for servo or stepper motor control.

Technical Specifications

• Brand & Model
  • Brand: Mitsubishi Electric
  • Series: FX3GA (Third Generation Standard Model)
  • Model: FX3GA-60MT-CM
  • Type: Programmable Logic Controller (PLC)
  • Output Form: Transistor output (drain type)
• Power Supply
  • Voltage: AC100-240V
  • Power Consumption: 40W
• I/O Configuration
  • Total I/O Points: 60 points
  • Input Points: 36 points
  • Output Points: 24 points
• Memory & Speed
  • Program Memory: 32,000 steps (built-in)
  • Memory Type: EEPROM with program transfer
  • Basic Instruction Speed: 0.21 µs per instruction
  • Application Instruction Speed: 0.5 µs per instruction
• Internal Components
  • Auxiliary Relay: 7,680 points
  • Timer: 320 points
  • Counter: 235 points
  • Data Register: 8,000 points
  • Extended Register: 24,000 points
  • Extended File Register: 24,000 points
• Motion Control
  • High-speed pulse output: 2 channels at 100KHz
  • Direct drive for servo or stepper motors
• Expandability
  • Max Local I/O: 128 points
  • Max with CC-Link Remote I/O: 256 points
  • BD board support for I/O expansion
  • Communication via RS232, RS485, RS422 with BD board
• Physical Dimensions
  • Width: 175 mm
  • Height: 90 mm
  • Depth: 86 mm
  • Weight: 0.85 kg

Expert Review & Manager’s Insight

Expert Review: The FX3GA-60MT-CM delivers excellent value with its high-speed transistor outputs.
The built-in 100KHz pulse outputs directly drive servo motors without extra modules.
Large memory and fast processing handle complex logic with ease.
A solid choice for motion control applications.

Manager’s Insight: This PLC simplifies system design with flexible expansion options.
The EEPROM memory needs no battery, reducing maintenance.
Quick 12-24 hour shipping and 12-month warranty keep projects moving.
Perfect for small-scale automation with high performance needs.

Suitable Devices & Applications

• Suitable Devices
  • Servo motor positioning systems
  • Stepper motor drives
  • Small robotic arms
  • Packaging machinery
  • Assembly line equipment
  • Textile machines
• Application Scenarios
  • High-speed positioning control
  • Simple manipulator control
  • Digital input/output control systems
  • CC-Link remote I/O networks
  • Small to mid-size factory automation

Frequently Asked Questions

• What is the power requirement for FX3GA-60MT-CM?It operates on AC100-240V power. The unit consumes 40W during normal operation.
• Can this PLC drive servo motors directly?Yes. The transistor output model provides two 100KHz high-speed pulse outputs. These can directly drive servo or stepper motors.
• Does it support expansion modules?This base unit supports BD board expansion for additional I/O. For larger expansions, use CC-Link remote I/O up to 256 points.
• What communication options are available?You can add BD series boards for RS232, RS485, or RS422 communication. This enables connection to HMIs, drives, and other devices.
• What is the warranty and shipping policy?The FX3GA-60MT-CM comes with a 12-month warranty. Orders ship within 12-24 hours via FedEx, UPS, or DHL.

Selection Guide

• Choose FX3GA-60MT-CM if you need:
  • 60 I/O points with transistor outputs
  • High-speed pulse output for servo or stepper control
  • 32K steps memory for medium-sized programs
  • Battery-free EEPROM memory for easy maintenance
• Consider other FX3GA models for:
  • 14, 24, or 40 I/O point configurations
  • Relay output versions for AC load switching
  • Built-in analog or Ethernet (FX3GE series)

Package Contents

• FX3GA-60MT-CM main unit ×1
• Quick start guide
• Terminal labels
• Mounting hardware
