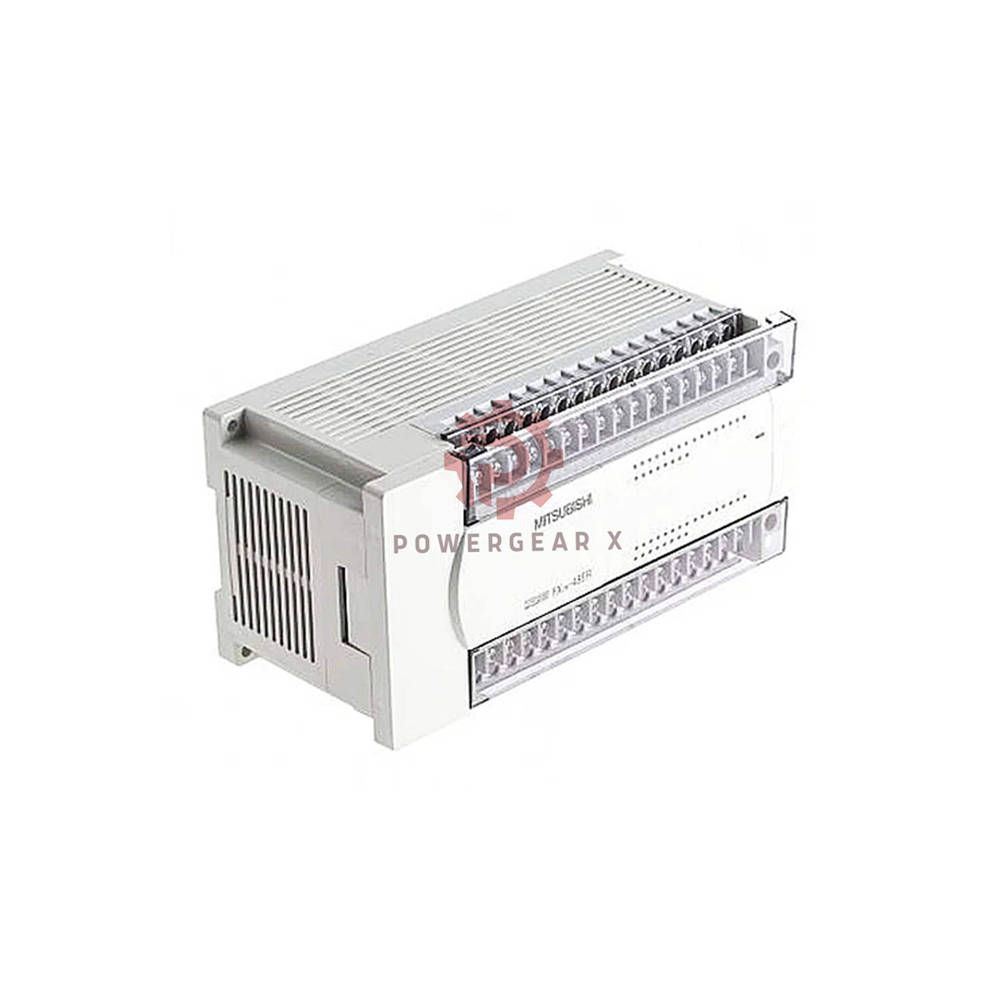

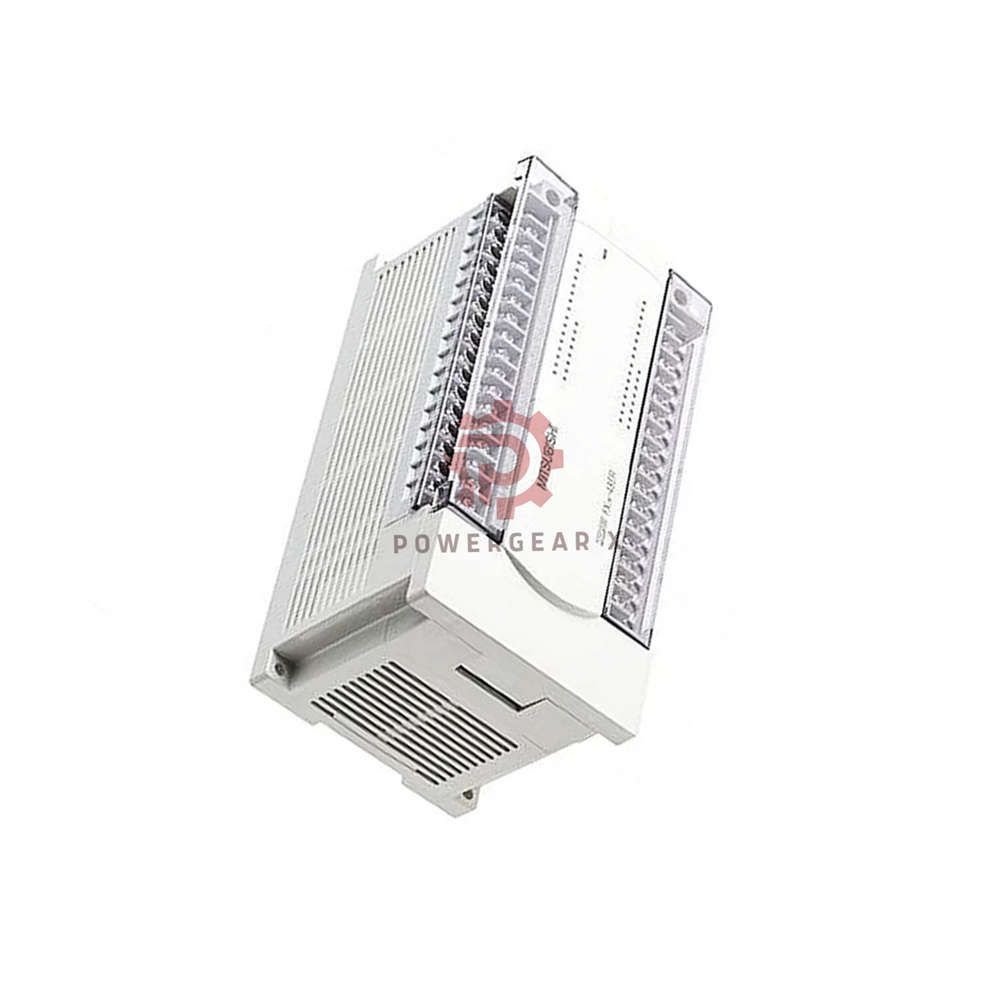

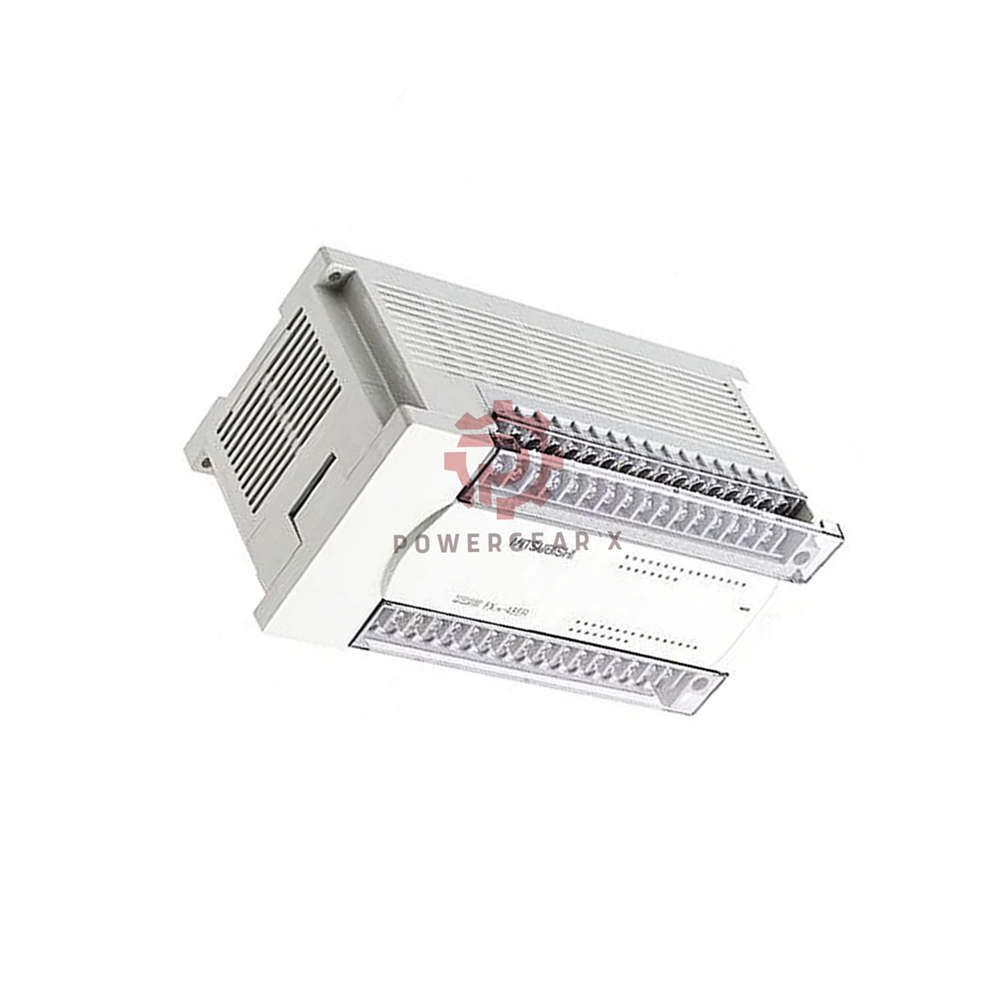

FX2N-48MT-001 Mitsubishi PLC | 48 I/O Transistor Output | High-Speed Pulse Controller

Core Features at a Glance

• FX2N-48MT-001 – High-capacity transistor output main unit
• 24 inputs / 24 transistor outputs
• 85-264V AC wide power supply, works worldwide
• Transistor output, ideal for high-speed pulses and servo control
• Expandable to 256 I/O points

Technical Specs · Hierarchical Tree Structure

• Brand & Model
  • Brand: Mitsubishi Electric
  • Model: FX2N-48MT-001
  • Series: MELSEC-F Series / FX2N Type
  • Unit Type: MPU Main Unit
• Power & Consumption
  • Rated Supply: 85-264V AC (50/60 Hz)
  • Power Consumption: 50 VA
• Integrated I/O Configuration
  • Total I/O Points: 48 points
  • Digital Inputs: 24 points
  • Digital Outputs: 24 points
  • Output Type: Transistor (suitable for high-speed switching and pulse output)
• Memory & Performance
  • Program Capacity: 8K steps RAM (expandable to 16K)
  • Basic Instruction Speed: 0.08 μs per instruction
• Expansion Capability
  • Max I/O Points: 256 points
  • Expandable: Yes, connects to I/O expansion and special function modules
  • Positioning Function: Built-in 2-axis independent positioning, max 20 kHz pulse output
• Physical & Environment
  • Operating Temperature: 0 °C to 55 °C
  • Dimensions (W×H×D): 182 × 90 × 87 mm (approx.)
  • Weight: 0.8 kg (approx.)

Key Advantages

• High-Speed Pulse Output – 2-axis independent 20 kHz pulses, drives servo or stepper motors directly
• Wide Voltage Input – 85-264V AC adapts to global power grids, no voltage adjustment needed
• Large I/O Capacity – 48 built-in I/O points, meets mid-size equipment needs
• Flexible Expansion – Connect various expansion modules on the right side, up to 256 points total

Expert Review

The FX2N-48MT-001 is a transistor output model with ample I/O in the FX2N series. The 24-input, 24-output configuration handles most mid-size automation equipment. Transistor outputs respond quickly and support 20 kHz high-speed pulses, making them ideal for controlling servo and stepper motors. With 0.08 μs instruction speed, it performs reliably in positioning control and multi-axis applications. Rich expansion options include analog and communication modules.

Manager’s Insight

From a selection standpoint, this PLC offers strong value. The built-in 48 I/O points reduce the need for expansion modules, saving panel space and wiring costs. Wide voltage input simplifies equipment export since no adjustment is needed for different countries. Transistor outputs have long service life, suitable for high-frequency operations. If communication or analog control is needed later, expansion slots on the right side are ready for additional modules.

Typical Applications

• Positioning Control Equipment – Auto dispensers, pick-and-place machines, cutting machines
• Packaging Machinery – High-speed packing lines, filling machines, sealing machines
• Electronics Assembly Lines – Auto screwdrivers, insertion machines, testing equipment
• Material Handling Systems – Conveyors, stackers, sorting systems
• Special Purpose Machines – CNC drills, winding machines, press automation

Frequently Asked Questions (FAQ)

• What pulse frequency can the FX2N-48MT-001 output?
  Supports 2-axis independent pulse output, up to 20 kHz per axis. Suitable for controlling stepper motors and servo drives.
• What load can the transistor outputs handle?
  Each output handles up to 0.5 A (DC 24V). Use intermediate relays for larger loads or connect small loads directly.
• Will the program be lost after power loss?
  The main unit uses RAM for program storage. Program is lost after power loss. Add an EEPROM cassette or battery for program retention.
• How do I add more I/O or functions?
  Connect FX2N series expansion modules to the right side of the main unit. Options include I/O modules, analog modules, and communication modules. Max I/O reaches 256 points.
• What are the purchase and delivery policies?
  A 12-month warranty covers non-artificial defects. Orders ship within 12-24 hours after payment. Shipping via FedEx, UPS, or DHL with tracking available worldwide.

Selection Guide

• Step 1 – Confirm I/O Count
  If you need 24 inputs and 24 outputs, this model works directly. Add expansion modules for more I/O points.
• Step 2 – Confirm Output Type
  Transistor outputs suit high-speed pulses and frequent switching. For AC loads or high current, choose the relay output model.
• Step 3 – Confirm Pulse Axis Requirements
  If servo control is needed, this model provides 2-axis 20 kHz pulse output, meeting most single or dual-axis positioning needs.
• Step 4 – Confirm Program Retention Method
  For program retention without a battery, select the EEPROM cassette to avoid regular battery replacement.
• Step 5 – Verify Stock & Technical Support
  Contact sales to confirm availability before ordering. Technical support is available for programming and application questions.
