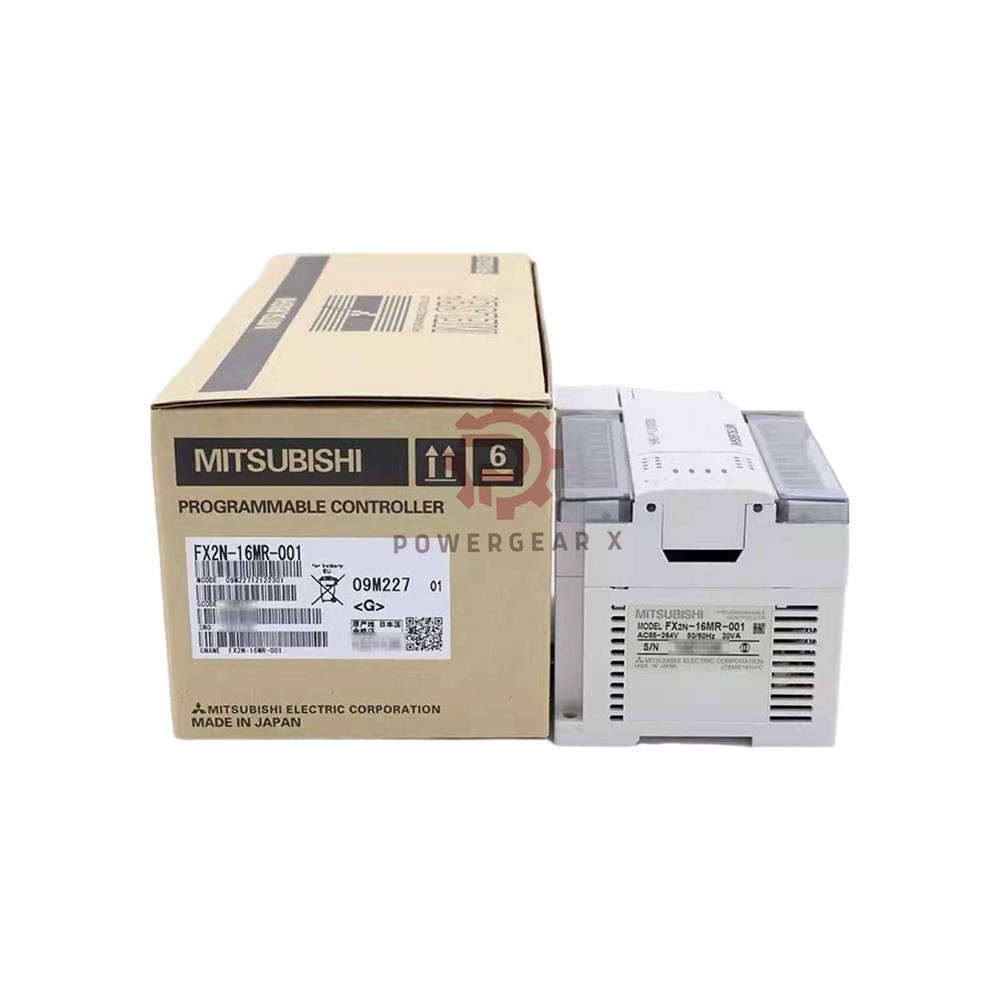

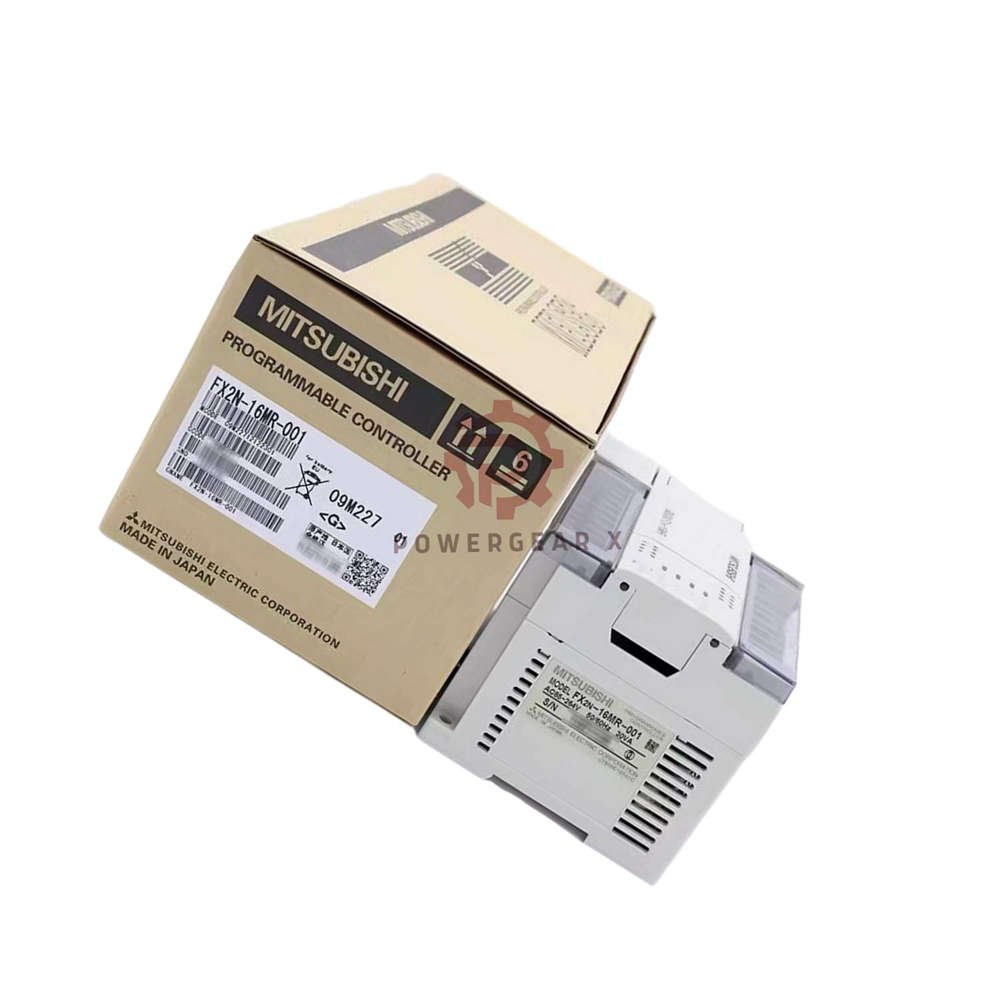

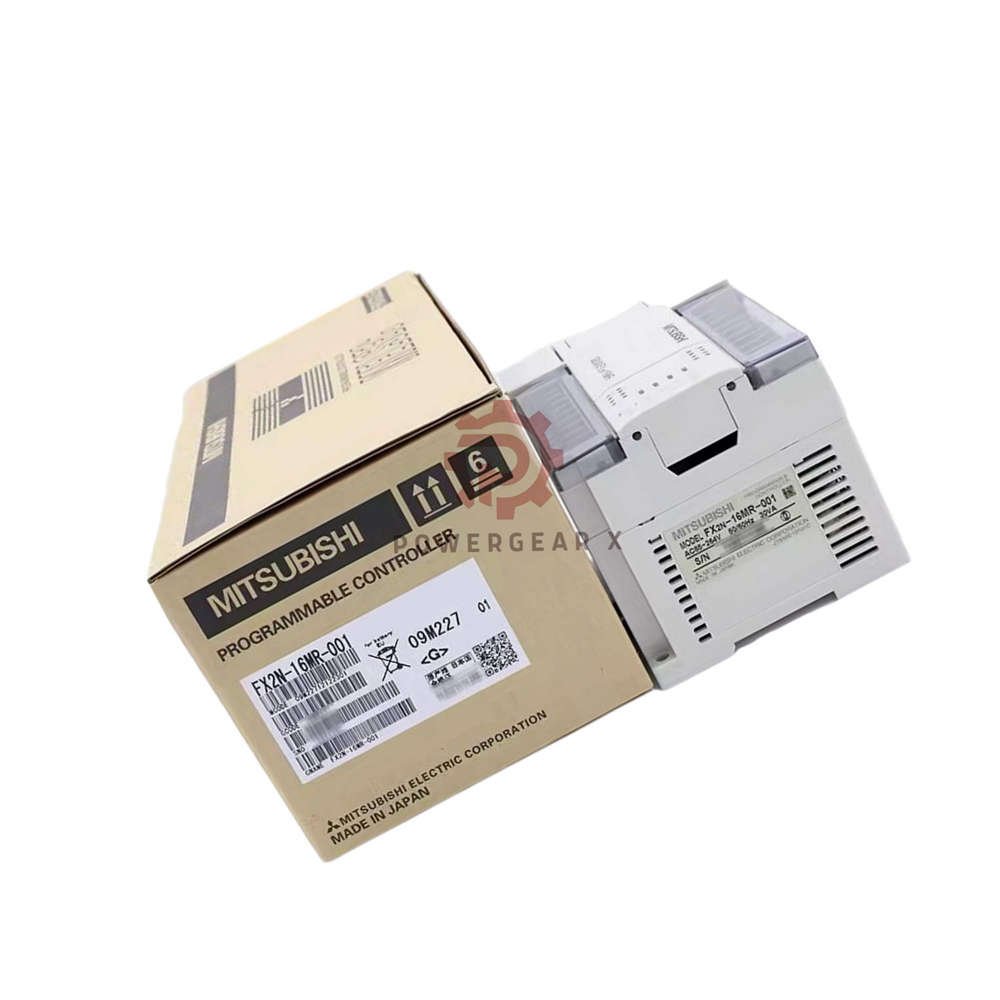

FX2N-16MR-001 Mitsubishi PLC | 16 I/O Relay Output | MELSEC-F Series Controller

Core Features at a Glance

• FX2N-16MR-001 – Compact base unit
• 8 inputs / 8 relay outputs
• 100-240V AC wide power supply
• Built-in 8K steps RAM memory, expandable to 16K steps
• Quick disconnect terminal block for easier maintenance

Technical Specs · Hierarchical Tree Structure

• Brand & Model
  • Brand: Mitsubishi Electric
  • Model: FX2N-16MR-001
  • Series: MELSEC-F Series / FX2N Type
  • Unit Type: MPU Main Unit
• Power & Consumption
  • Rated Supply: 100-240V AC
  • Current Type: AC
  • Power Consumption: 20 W
• Integrated I/O Configuration
  • Total I/O Points: 16 points
  • Digital Inputs: 8 points
  • Digital Outputs: 8 points (relay)
  • Output Type: Relay, suitable for AC and DC loads
• Memory & Performance
  • Program Capacity: 8K steps RAM (expandable to 16K max)
  • Basic Instruction Speed: 0.08 μs per instruction
• Expansion Capability
  • Max I/O Points: 256 points
  • Expandable: Yes, connects to I/O expansion and special function modules
  • BD Board Expansion: Adds small I/O or communication ports via BD board
• Communication Features
  • Built-in Communication: Supports RS-232, RS-485, RS-422 (via BD board)
  • Programming Port: Standard interface
• Positioning Function (transistor output models only)
  • 2-axis independent positioning
  • Max output frequency: 20 kHz
• Physical & Environment
  • Protection Class: Suitable for control panel installation
  • Operating Temperature: 0 °C to 55 °C
  • Dimensions (W×H×D): 130 × 90 × 87 mm
  • Weight: 0.6 kg

Maintenance Convenience

• Quick Disconnect Terminal – Terminal block detaches quickly, no rewiring when replacing cables
• EEPROM Memory Option – Optional EEPROM cassette retains program without battery
• Modular Structure – Expansion modules connect directly to the right side of main unit, easy to install

Expert Review

The FX2N-16MR-001 is a classic entry-level model in the FX2N series. With 8 inputs and 8 relay outputs, it is well suited for controlling motors, indicator lights, and contactors in small machines. The 0.08 μs instruction processing speed performs well among small PLCs. By adding expansion modules on the right side, I/O points can grow to 256, supporting future production line upgrades. The quick disconnect terminal block saves time during on-site maintenance.

Manager’s Insight

From a project perspective, this PLC offers excellent value. It connects directly to 220V mains power, eliminating the need for an additional power supply. The built-in 8K steps of memory handle most small to medium programs. If communication functions are needed later, adding a BD board provides RS-485 or RS-232 without replacing the main unit. Reliable and stable, it is a solid choice for long-term automation applications.

Typical Applications

• Small Packaging Equipment – Sealing machines, labeling machines, simple packing lines
• Conveyor Systems – Belt conveyors, sorting stop control
• HVAC Control – Fans, pumps, valve control
• Special Purpose Machines – Drilling machines, cutting machines, welding equipment
• Training & Education Platforms – PLC programming and logic control teaching

Frequently Asked Questions (FAQ)

• Does the FX2N-16MR-001 need a battery?
  The main unit uses RAM memory, so programs are lost after power loss. To retain programs, add an EEPROM cassette or a battery. An EEPROM cassette is recommended for maintenance-free operation.
• What load can the relay outputs handle?
  Each output handles up to 2A (250V AC or 30V DC). Suitable for contactors, solenoid valves, and indicator lights. Add a surge suppressor for inductive loads.
• Can it connect to an HMI?
  Yes. Add a BD board for RS-422 or RS-485 to connect to Mitsubishi or other brand HMIs. The programming port can also be used for communication.
• How do I add more I/O points?
  Connect FX2N series expansion modules to the right side of the main unit. Options include input modules, output modules, and mixed modules. Maximum I/O reaches 256 points.
• What are the purchase and delivery policies?
  A 12-month warranty covers non-artificial defects. Orders ship within 12-24 hours after payment. Shipping via FedEx, UPS, or DHL with tracking available worldwide.

Selection Guide

• Step 1 – Confirm I/O Count
  If your machine requires 8 inputs and 8 outputs or less, this model fits directly. Add expansion modules for more I/O points.
• Step 2 – Confirm Output Type
  Relay outputs suit AC loads or applications with low switching frequency. For high-speed pulse output to control servo or stepper motors, choose the transistor output model (MT).
• Step 3 – Confirm Communication Needs
  If communication with a host system or HMI is required, verify the needed interface (RS-232/RS-485) and select the appropriate BD board.
• Step 4 – Confirm Program Retention Method
  For program retention without a battery, select the EEPROM cassette to avoid regular battery replacement.
• Step 5 – Verify Stock & Lead Time
  Contact sales to confirm availability before ordering. Technical support is available for application questions.
