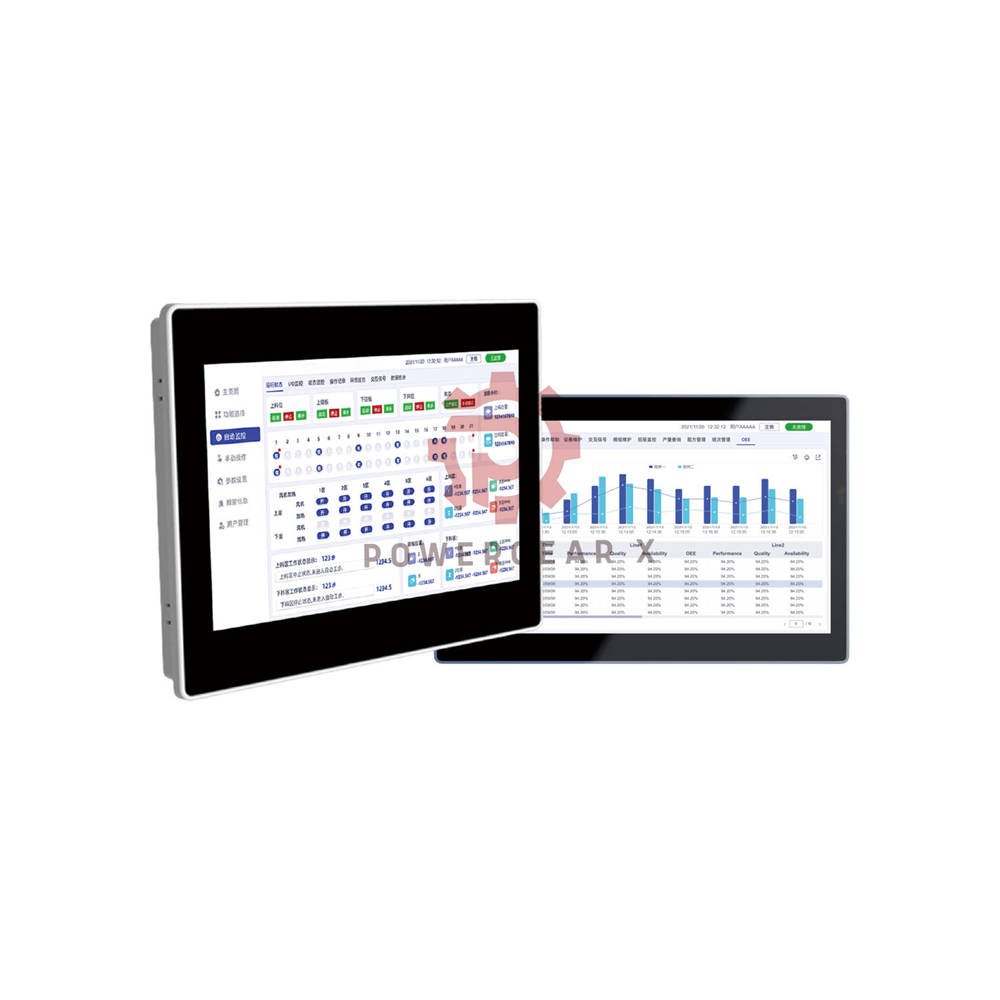

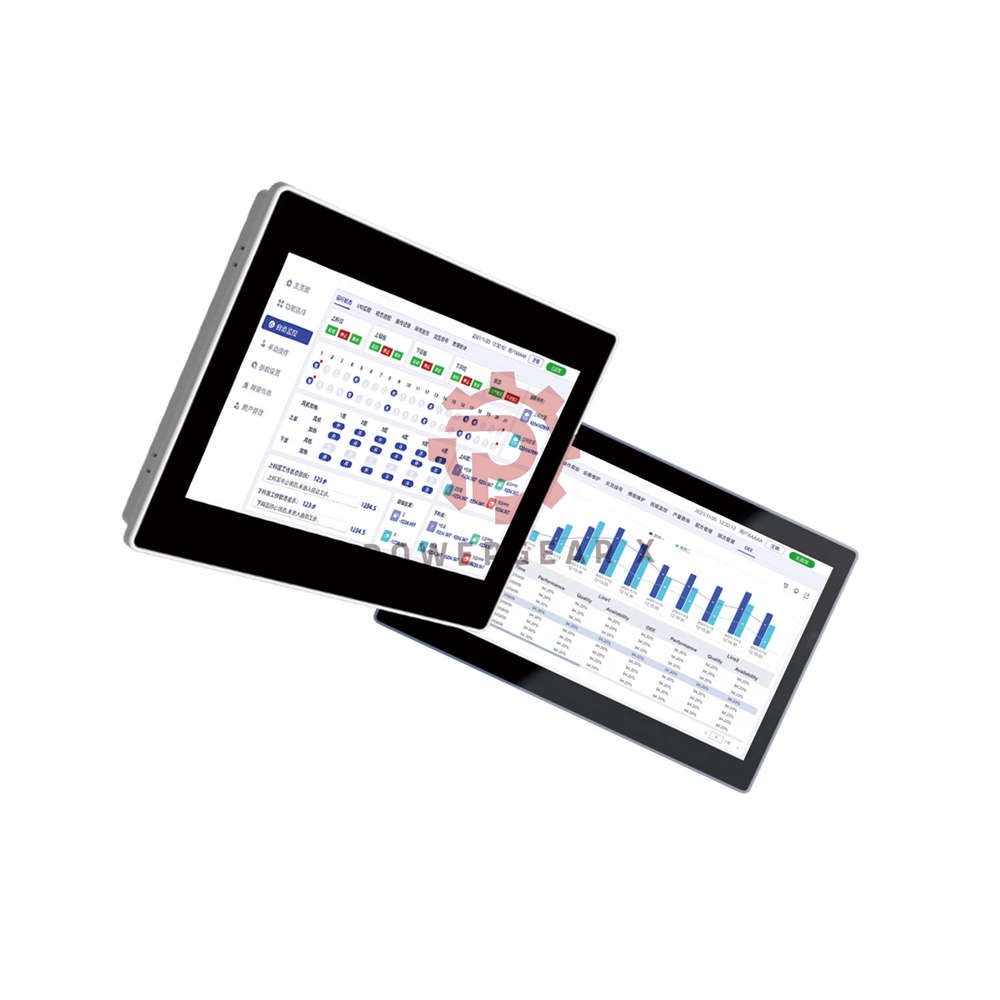

FPad716 Flexem Industrial Touch Screen 1080P HDMI Serial Communication

FPad716 – intelligent IoT HMI

• Flexem FPad716 combines a 15.6″ full-HD industrial display with a quad-core 2.0 GHz CPU
• Designed for smooth video playback and fast machine communication in automation
• Wide application fit: packaging lines, CNC monitoring, smart factories, and remote equipment
• Runs on Linux, offers 2× Gigabit Ethernet and versatile serial connectivity
• Front IP65 protection, isolated power, and 24‑bit colour touch interface

Technical specifications

• Brand & model
  • Brand: Flexem
  • Model: FPad716 – next‑gen IoT HMI
• Display & touch
  • Size: 15.6″ TFT LCD, 16:9, 1920×1080 – Full HD
  • Viewing angles: 85°/85°/85°/85° – top/bottom/left/right
  • Brightness: 250 cd/m², LED backlight – 50 kh lifetime
  • Touch: 4‑wire industrial resistive – gloved-hand compatible
• Core performance
  • CPU: 4‑core 64‑bit Cortex‑A55 @ 2.0 GHz – high-speed processing
  • GPU: Mali‑G52 – 1080p video acceleration
  • Storage: 16 GB eMMC + 2 GB DDR4 – ample for apps and data
  • RTC: battery‑backed – time-stamping even when off
• Connectivity & I/O
  • Ethernet: 2× Gigabit ports (10/100/1000M) – redundant fast comms
  • USB: 2× USB 3.0 (Type‑A, rear) – high-speed data transfer
  • Video out: HDMI 2.0a – supports 1080p external display
  • Serial: COM1 RS232/485/422; COM2 RS485/422; COM3 RS232 – multi-protocol
  • Wireless: WiFi & 4G optional – field‑installable modules
• Electrical & protection
  • Input voltage: DC 24 V (18…28 V) – wide working range
  • Power: < 18 W – energy efficient
  • Isolation: isolated power adapter – with lightning surge protection
  • Interruption tolerance: < 5 ms – maintains operation during dips
• Environmental & durability
  • Operating temperature: –10…60 °C – industrial grade
  • Storage temperature: –20…70 °C – extended range
  • Humidity: 10…90 % RH – non‑condensing
  • Vibration: 10…25 Hz, 2 G / 30 min each axis – ruggedized
  • UV resistance: not allowed – avoid high‑UV environments
  • Cooling: natural convection – fanless reliability
• Protection & mechanics
  • Front panel: IP65 (NEMA compliant) – dust/water resistant
  • Rear: IP20 – protected against solid objects
  • Housing: non‑ferrous alloy – lightweight and durable
  • Mounting: flush‑mount – clean panel integration
  • Dimensions: 394×256×31 mm – compact footprint
  • Cutout: 380×245 mm – standard panel prep
  • Weight: approx. 2500 g (2.5 kg) – easy handling
• Certifications & compliance
  • CE, RoHS certified – meets EU standards
  • Front IP65 – with NEMA panel
  • Rear IP20 – basic ingress protection

Installation & maintenance

• Flush mounting – cutout 380×245 mm, rear clamps included
• Natural cooling – keep ventilation space around housing
• Front IP65 allows hose‑down – clean-in-place areas
• Debug & maintenance – USB and Ethernet ports easily accessible
• Linux OS simplifies remote diagnostics – and custom scripting
• Compatible with Flexem IoT Studio – and third‑party SCADA via OPC UA

Applications & diagnostics

• Use cases – machine builder HMIs, production line monitoring, packaging, CNC retrofits, and energy dashboards
• Diagnostic ability – built‑in RTC, Ethernet for remote PLC access, and serial port for direct controller debugging
• Supports video playback – for operator training or camera feed overlay

Frequently asked questions

• Can I use this HMI outdoors?
  The FPad716 is not rated for high UV. Use indoors or shaded areas. Brightness 250 cd/m² suits most factory lighting.
• Which serial protocols are supported?
  COM1: RS232/485/422; COM2: RS485/422; COM3: RS232. Works with Modbus RTU, Allen‑Bradley DF1, Siemens PPI, and custom Linux drivers.
• What is the real‑world video performance?
  Mali‑G52 GPU handles 1080p@60 Hz smoothly. Use H.264/H.265 clips for low CPU load.
• Does it include pre‑installed software?
  Ships with Linux BSP and Flexem runtime. You can install Node‑RED, Python, or Qt applications.
• How to choose between 4G and WiFi?
  If your plant has cabling limits, pick 4G for remote areas. WiFi is cost‑effective for local wireless. Both are optional – order with the unit.
• What is the typical lead time?
  Stock models ship within 48 h via FedEx/UPS/DHL. Customised versions (4G/WiFi) take 7‑10 days.

Package, warranty & delivery

• In the box: FPad716 unit, terminal plugs, mounting clamps, quick start guide
• Warranty: 12 months from invoice date – covers material and workmanship
• Shipping: Expedited via FedEx, UPS, or DHL – tracked and insured
• Compatibility note: Works with CODESYS, Node‑RED, and custom C++/Python apps. Optional 4G/WiFi modules require separate order
