Name: FMBA-01 Modbus RTU Adapter Module | ABB Drive Option Slot
SKU: FMBA-01
Price: 277.00 USD
Availability: InStock

Product details

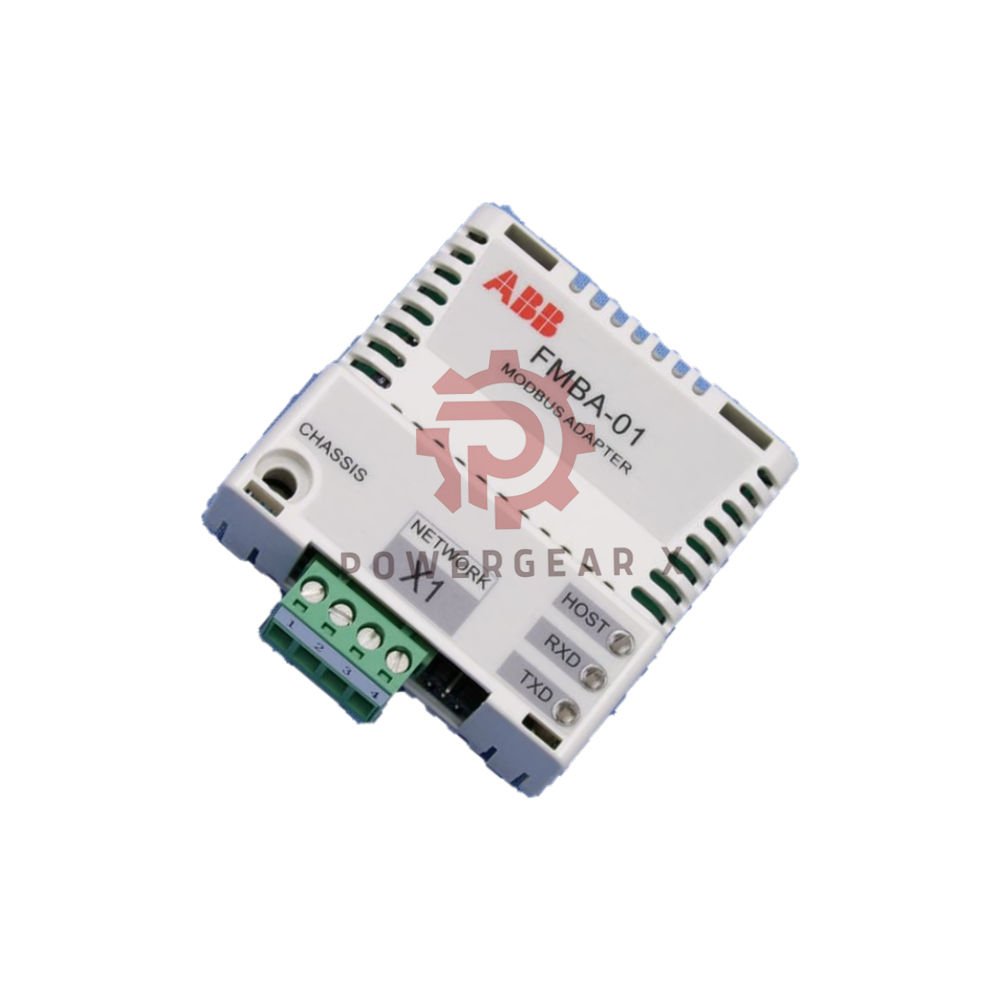

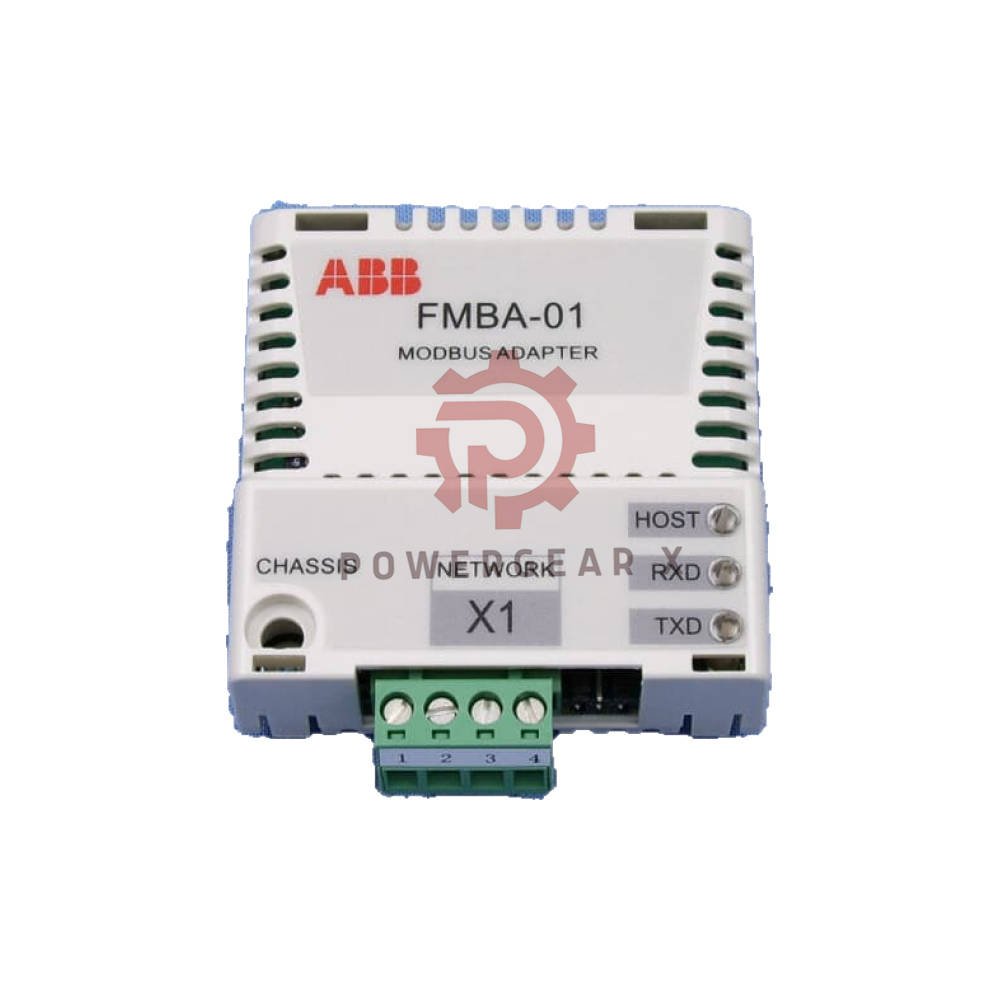

FMBA-01 Modbus RTU Adapter Module – Plug-In Bus Communication for ABB Drives

The FMBA-01 is a compact Modbus RTU adapter module from ABB. It plugs straight into the option slot on the drive. The module adds an RS-485 bus link. It supports asynchronous, half-duplex serial communication. Transfer rate reaches 5 Mb/s. A built-in 120 ohm termination resistor simplifies wiring. The FMBA-01 is functionally isolated from the drive. This keeps bus noise away from drive electronics.

Technical Data

Brand: ABB
Model: FMBA-01
Type: Modbus RTU adapter module
Mounting
- Fits into the option slot on the drive
Protection
- Degree of protection: IP20
- Ambient conditions follow the drive manual
Power
- +3.3 V ±5%, max. 150 mA
- Supplied by the drive
Indicators
- Three green LEDs: HOST, RXD, TXD
- HOST – steady: module is powered up
- RXD – blinking: module receives bus data (blinks for all traffic, addressed or not)
- TXD – blinking: module sends data to the bus
Connectors
- X2: 20-pin connector to drive
- X1: 4-pin detachable screw connector to bus
- J1: 6-pin jumper block for bus termination setup
RS-485 Link
- Works with all RS-485 compliant devices
- Medium: shielded twisted pair cable, 100–150 ohm impedance
- Termination: 120 ohms, built into the module
- Topology: trunk line, drop lines allowed
- Transfer rate: 5 Mb/s max.
- Serial type: asynchronous, half-duplex
- Protocol: depends on the application; typically Modbus
Reliability and Compliance
- Estimated min. lifetime: 100 000 h
- All materials UL/CSA-approved
- Meets EMC standards EN 50081-2 and EN 50082-2
- Bus interface functionally isolated from drive

Manager’s Insight

The FMBA-01 solves one common headache: messy bus wiring. The built-in 120 ohm termination and jumper block cut setup time. Isolation protects drive electronics from ground loops. The 100 000 h lifetime estimate shows ABB built this for long service. For plant engineers, the module is a low-risk add-on. It uses drive power, so no extra supply is needed.

Expert Review

In review, the FMBA-01 shines for simplicity. It fits the option slot with no tools beyond a screwdriver. Three LEDs give clear status at a glance. The RXD LED blinks for all bus traffic, which helps with fault finding. The 5 Mb/s rate is fast for most Modbus jobs. One tip: plan the trunk line before wiring. Drop lines are allowed, but keep them short. The module meets EMC standards, so it suits noisy plants. Overall, a solid pick for ABB drive networks.

Ideal Equipment and Application Scenarios

ABB drives with an open option slot
Factory automation cells using Modbus RTU
Conveyor and material handling lines
Pump and fan control panels
Packaging machines with RS-485 networks
Water treatment plants with long cable runs
Any RS-485 compliant device needing a bus link

FAQ

Q: Can I add the module to a running drive?
A: Power down the drive first. Then fit the module into the option slot. Restore power after the cover is back on.
Q: Do I need an external power supply?
A: No. The drive supplies +3.3 V at up to 150 mA. Just plug in and go.
Q: How do I set bus termination?
A: Use the J1 jumper block. The 120 ohm resistor is already inside. Set jumpers for end-of-line nodes only.
Q: What cable works best?
A: Pick shielded twisted pair with 100–150 ohm impedance. Shielded cable cuts noise in busy plants.
Q: Is the module isolated from the drive?
A: Yes. The bus interface is functionally isolated. This protects the drive from bus-side faults.
Q: What warranty and shipping terms apply?
A: Each unit carries a 12-month warranty. In-stock orders leave our warehouse in 12–24 hours. We ship by FedEx, UPS, or DHL.
Q: How do I choose the right adapter for my drive?
A: Check your drive manual for the option slot type. Confirm the network uses RS-485 and Modbus. Then pick the FMBA-01 and order spares for critical lines.
