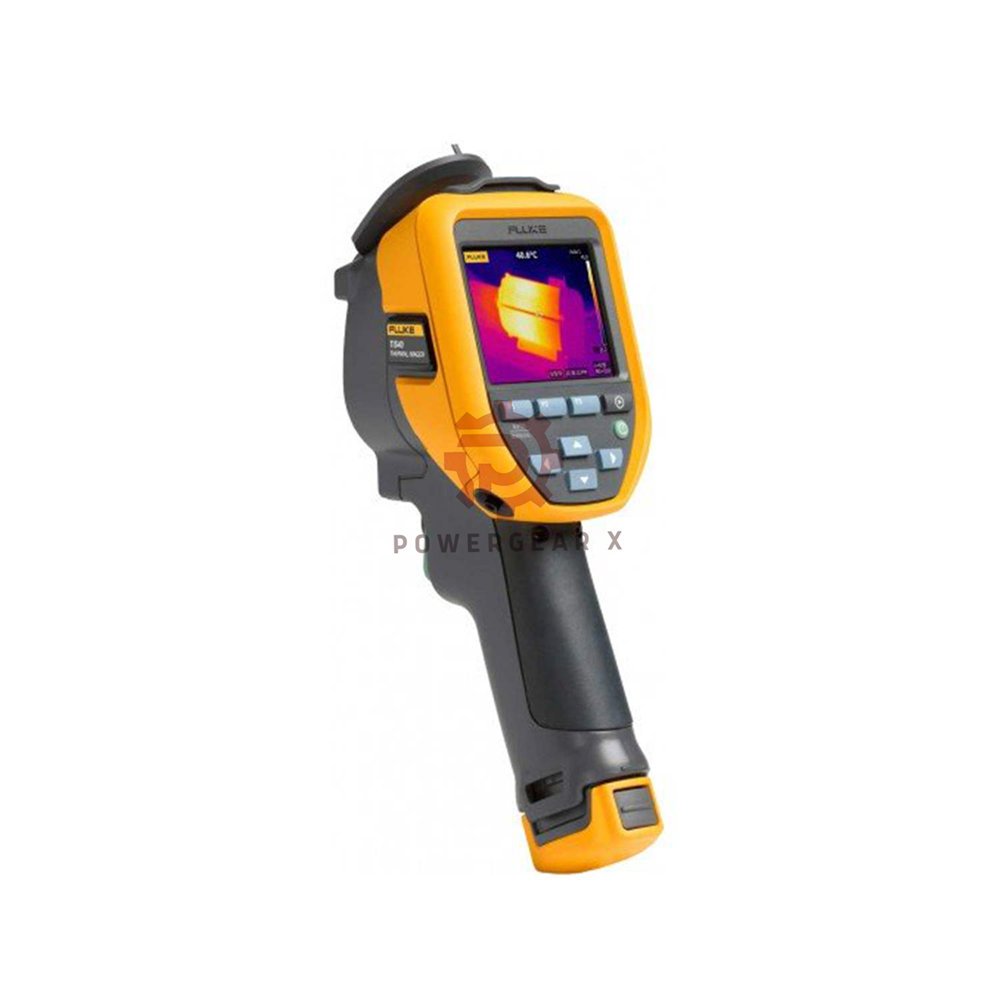

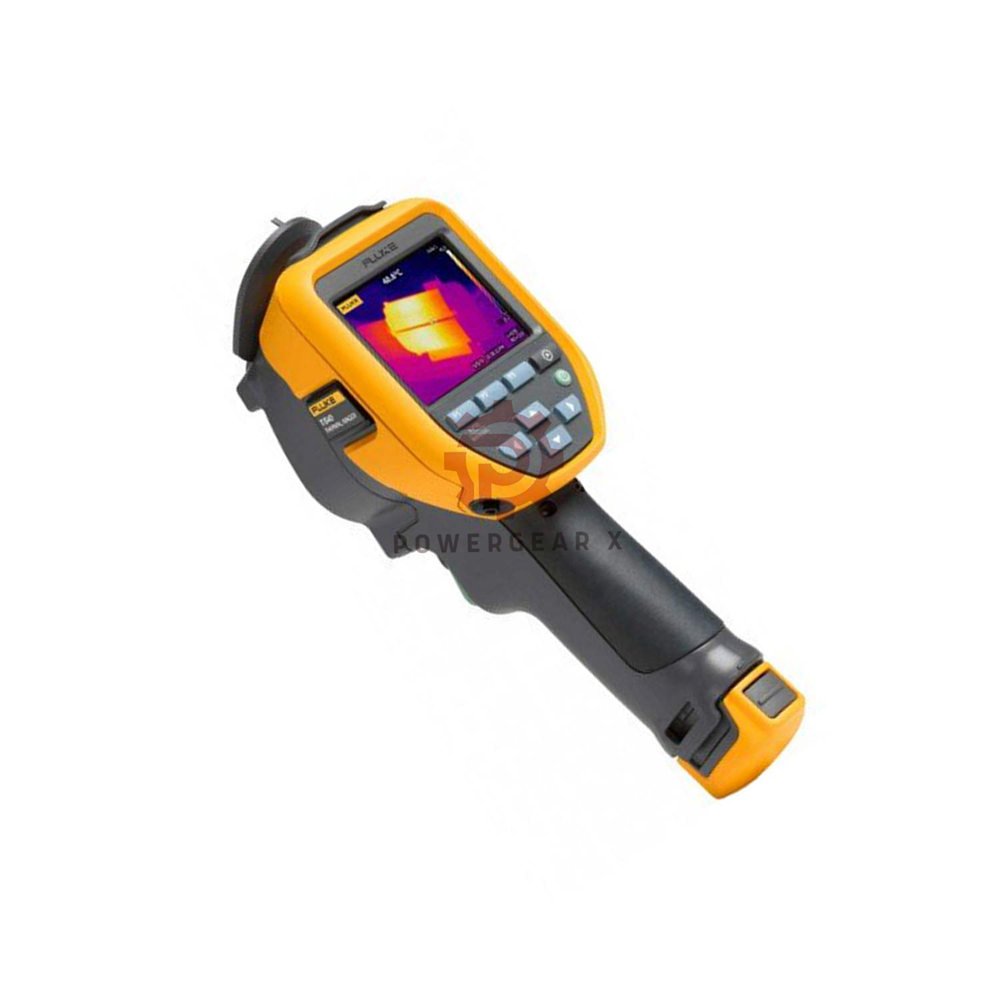

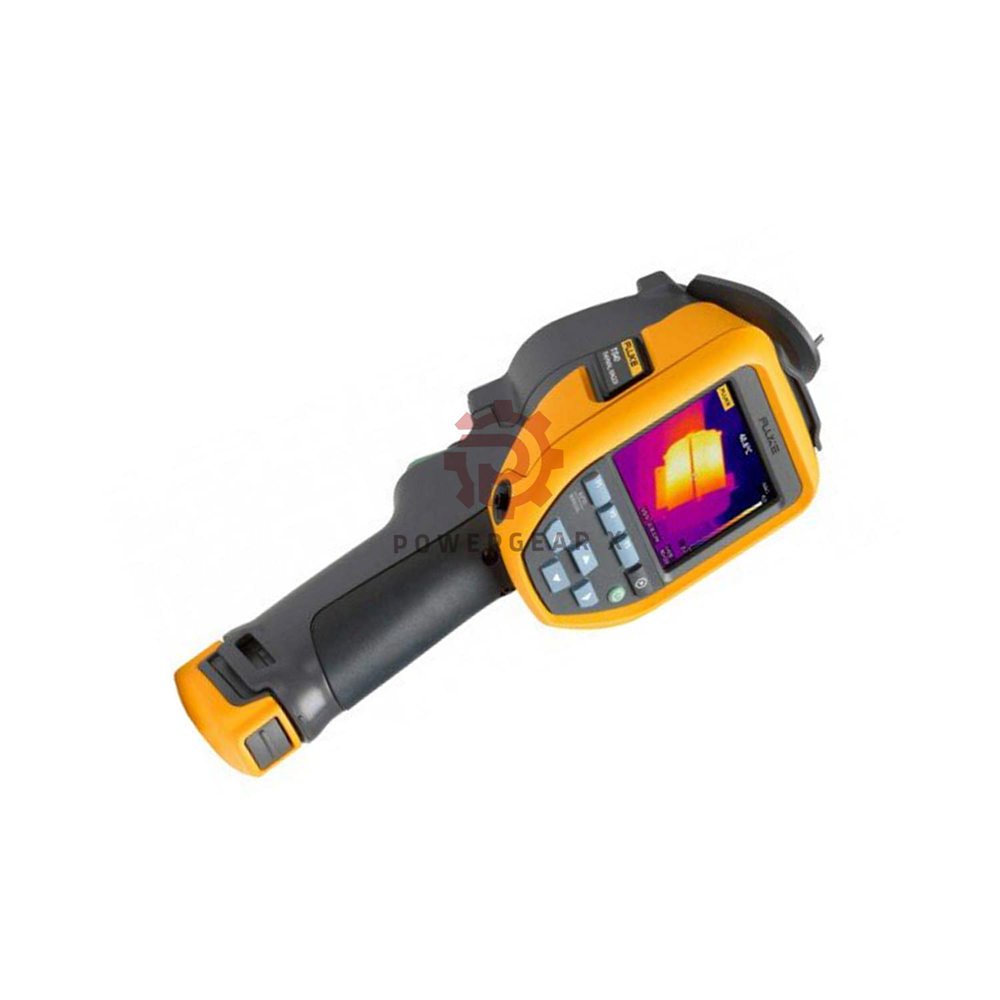

FLK-TIS40 9HZ Fluke Thermal Imager | -20 to 350°C 9Hz Industrial

FLK-TIS40 9HZ – Thermal Imaging Camera by Fluke

FLK-TIS40 9HZ is a rugged thermal imager built for industrial inspections. It delivers clear thermal images with a 19,200 pixel resolution and a wide temperature range. This camera combines visible light and thermal imaging with IR-Fusion® technology. It withstands drops, dust, and water, making it reliable for daily use. The 3.5-inch LCD screen shows sharp images and on-screen data. Create and share reports on-site using the Fluke Connect app.

Key Features & Benefits

• Wide temperature range: -20 to 350 °C (-4 to 662 °F)
• High resolution: 19,200 pixels (160 x 120) for clear images
• IR-Fusion® with 5 AutoBlend™ modes – overlay thermal and visual images
• Rugged design: survives 2-meter drop and has IP54 rating
• Large 3.5-inch LCD display (320 x 240) with landscape view
• Built-in 5MP digital camera for visible light photos
• Voice annotation to add comments to images
• On-site reporting: create and email reports via Fluke Connect
• Internal 4GB memory plus optional micro SD slot

Technical Specifications (Tree View)

• Brand: Fluke
  • Model: FLK-TIS40 9HZ
• Measurement
  • Range: -20 to 350 °C (–4 to 662 °F)
  • Accuracy: ±2 °C or 2 % (at 25 °C, whichever is greater)
  • Thermal sensitivity: ≤0.09 °C at 30 °C (90 mK)
• Optics & Imaging
  • Spatial resolution: 3.9 mRad
  • Pixel resolution: 19,200 (160 x 120)
  • Frame rate: 9 Hz
  • Field of view: 35.7° x 26.8°
  • Distance-to-spot ratio: 257:1
  • Focus: Fixed, min focus distance 0.45 m (1.5 ft)
  • Spectral band: 7.5 to 14 μm
• Display & Camera
  • Display: 3.5-inch LCD (320 x 240), landscape
  • Visible camera: 5 MP with built-in LED
• Environment & Durability
  • Drop test: 2 m (6.5 ft)
  • Enclosure rating: IP54 (dust and water resistant)
• Memory & Connectivity
  • Internal memory: 4 GB
  • External memory: Optional 4 GB micro SD
  • Connectivity: USB cable included
  • Software: Fluke Connect for report creation and email

Expert Review

“This camera is a workhorse. The IR-Fusion feature helps pinpoint problems quickly. The 9 Hz frame rate is smooth for most inspections. We like the rugged build – it’s survived drops on site with no issues. For the price, it’s a great entry-level industrial tool.” – Senior Thermal Imaging Specialist

Manager’s Insight

“We use this imager for electrical and mechanical checks. The voice annotation saves time during reporting. The 5MP camera adds clarity. The IP54 rating gives us confidence in dusty plants. It’s a dependable tool that our team trusts.” – Maintenance Manager

Applications & Suitable Devices

• Electrical inspections: Switchgear, panels, connections
• Mechanical equipment: Motors, bearings, pumps
• HVAC systems: Ductwork, compressors, coils
• Building diagnostics: Insulation, leaks, moisture
• Industrial maintenance: Predictive and preventive checks
• Compatible devices: Use with Fluke Connect software and mobile app

Frequently Asked Questions (FAQ)

• What is the temperature range?
  -20 to 350 °C (–4 to 662 °F).
• Can I add a micro SD card?
  Yes, up to 4 GB (sold separately).
• How durable is the camera?
  IP54 rated and survives 2-meter drops.
• What software comes with it?
  Fluke Connect for creating and emailing reports.
• Is the focus adjustable?
  No, it has a fixed focus with a minimum distance of 0.45 m.
• How do I charge the battery?
  Using the included AC charger/power supply.
• What file formats does it support?
  It saves images in standard formats for easy sharing.

Selection & Experience Guide

• Best for: Technicians who need quick thermal scans and on-site reporting.
• Consider if: You work in dusty or wet environments – IP54 offers good protection.
• Tip: Use the IR-Fusion modes to blend thermal and visible images for clearer reporting.
• Memory: Internal 4 GB stores many images; add micro SD for extra capacity.
• First time users: The fixed focus simplifies operation – just point and shoot.

Ordering, Shipping & Warranty

• Availability: In stock – ready to ship.
• Shipping: 12–24 hours handling via FedEx, UPS, or DHL.
• Warranty: 12 months against defects.
• Box includes: Camera, charger with adapters, Li-ion battery, USB cable, soft bag, hand strap, hard case, calibration statement, quick guide, safety sheet.
• Demo request: Interested in a free demo? Call 1-800-884-4967 or use the form.

Compare with Other Models

• Fluke TiS20+ – Lower resolution, lower price point.
• Fluke TiS55 – Higher resolution, more advanced features.
• Fluke TiS75 – Superior thermal sensitivity for demanding tasks.
• Fluke Ti401 PRO – Professional series with ultra-high resolution.
