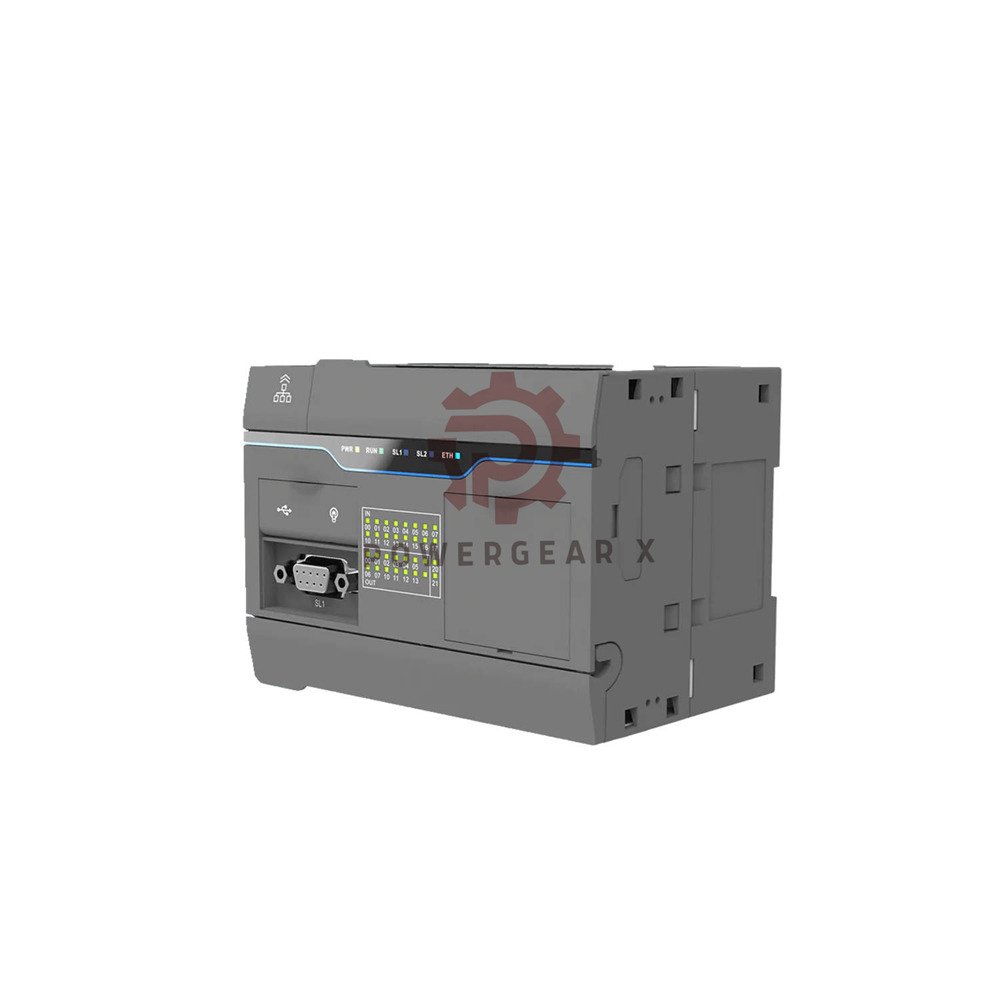

FC5M-30MN-DC Flexem Programmable Logic Controller 18 Inputs 12 Outputs

Product Overview

• Flexem FC5M-30MN-DC – a high-performance PLC from the FC5 series. It runs on DC 24V and offers 18 inputs / 12 NPN outputs with 7 fast inputs (HSC) and 6 fast outputs (PTO).
• Built with IEC 61131‑3 architecture and PLCopen standard instruction set. Supports electronic cam, gear, interpolation and other motion control functions.
• Features object‑oriented programming concept. Includes built‑in Ethernet, dual serial ports, and USB Type‑C. Extremely cost‑effective for advanced motion applications.

Model & Ordering Tree (Hierarchical Suffix)

• FC5M (FC5 Series Advanced PLC)
  • -30 (I/O Capacity: 30 points)
    • MN (Mixed I/O, NPN Transistor Output)
      • -DC (Power Supply: DC24V)
• Full model: FC5M-30MN-DC – 18 inputs (7 fast HSC), 12 NPN outputs (6 fast PTO), DC power, built‑in Ethernet, motion control ready.

Core Technical Data

• Power supply: DC 24V, reverse polarity protected.
• Inputs (18 total – 7 fast HSC capable):
  • Type: NPN/PNP (source/sink), works with 2‑wire/3‑wire sensors.
  • Rated values: 24VDC, 7mA. ON >15V / >2.5mA ; OFF <5V / <1.0mA.
  • Filter: default 1ms, adjustable (unfiltered to 100ms, 16 levels).
  • Isolation: optocoupler, impedance 3.3kΩ.
  • Cable: max 100m shielded / 50m unshielded.
• Fast HSC inputs (7 points):
  • Max frequency: A/B phase 100kHz, pulse/direction 200kHz, single phase 200kHz.
  • Modes: A/B count, pulse/direction, single/dual phase.
  • Special cabling: shielded, max 5m (include 24V DC supply).
  • Impedance: 2.8kΩ, current 0.1A.
• Outputs (12 total – 6 fast PTO capable):
  • Type: NPN (sinking). Rated voltage 24VDC.
  • Current: 2A per point, 4A per common group.
  • Protection: short circuit protection, self‑recovery every 10ms.
  • Switching speed (normal): ON <34μs, OFF <250μs, max 1kHz.
  • Clamping: 39V±1V for inductive loads.
  • Cable (normal): unshielded up to 50m.
• Fast PTO outputs (6 points):
  • Max frequency: 100kHz (PTO/PWM).
  • Output current (high‑speed mode): 0.1A (normal output mode 0.5A).
  • Duty cycle: 0%‑100%, resolution <0.5%.
  • Mode: pulse + direction output.
  • Special cabling: shielded, max 5m (include 24V DC).
  • Reverse protection: yes on PTO power.
• Communication ports:
  • Ethernet: 1×RJ45, 10/100M adaptive – supports Modbus TCP.
  • Serial 1: RS485/RS232 (DB9) – baud rate 4800‑115200 bps.
  • Serial 2: RS485 (terminal block) – same baud rate range.
  • USB Type‑C: program download/upload, online monitoring, firmware upgrade.
• Modbus communication: 2 channels (one per serial port) – master/slave capable.
• Expansion ability: Up to 31 I/O modules (depends on CPU power) + 1 expansion board.
• RTC: Built‑in real‑time clock.

Environmental Ratings

• Temperature: operate -10°C to 60°C, store -20°C to 70°C.
• Humidity: 55%‑95% RH, no condensation.
• Protection: IP20, conformal coating.
• Vibration/shock: meets industrial standards.
• Pollution degree: 2 (IEC 60664).

Quick Installation Guide

• Mount on 35mm DIN rail. Keep 60mm clearance for cooling.
• Connect DC24V to +24V and 0V terminals.
• For HSC/PTO: use shielded cable ≤5m, include 24V DC for sensors.
• NPN outputs sink current – connect load between +24V and output.
• Removable terminal blocks for easy wiring.

Diagnostics & Maintenance

• LED indicators: power, RUN/ERR, I/O status per point.
• Monitor via programming software (USB/Ethernet).
• Firmware upgrade over USB – no wiring disturbance.
• No routine calibration. Keep clean and dry.

Compatibility & Certifications

• Fully compatible with FC5 series expansion modules.
• Supports Modbus RTU (serial) and Modbus TCP (Ethernet).
• Certified: CE, RoHS compliant.

Package & Warranty

• Includes: FC5M-30MN-DC unit, mating connectors, quick guide.
• Warranty: 12 months against defects. Extended options available.

Professional FAQ (Experience-based & Selection Guide)

• I need 12 outputs but only 6 are fast – can the other 6 handle small motors?
  Yes. The 6 standard outputs handle up to 2A each – suitable for contactors, relays or small motors. The 6 fast outputs are for precise pulse control.
• What is the advantage of 18 inputs on this model?
  You can connect many sensors (proximity, limit, encoders) without extra modules. 7 of them handle high‑speed counting up to 200kHz.
• Can I use the fast outputs as normal outputs when not doing motion control?
  Yes. In normal mode they provide 0.5A per point. Great for indicators or small relays when not used for high‑speed pulses.
• Which shipping carriers do you use for international orders?
  We ship worldwide via FedEx, UPS, DHL. All services include tracking. Contact us for bulk shipping discounts.
• How do I choose between FC5M-30MN-DC and the 20-point version?
  Choose the 30MN if you need more sensors (18 inputs) or more actuators (12 outputs) in one unit. It saves cost compared to adding expansion modules later.

Typical Applications

• Packaging machines – high‑speed counting and motor control.
• CNC routers – pulse/direction control up to 100kHz.
• Assembly lines – 18 sensor inputs, 12 actuator outputs.
• Labeling systems – fast encoder feedback.
• Retrofit projects – replace relay panels with compact PLC.
