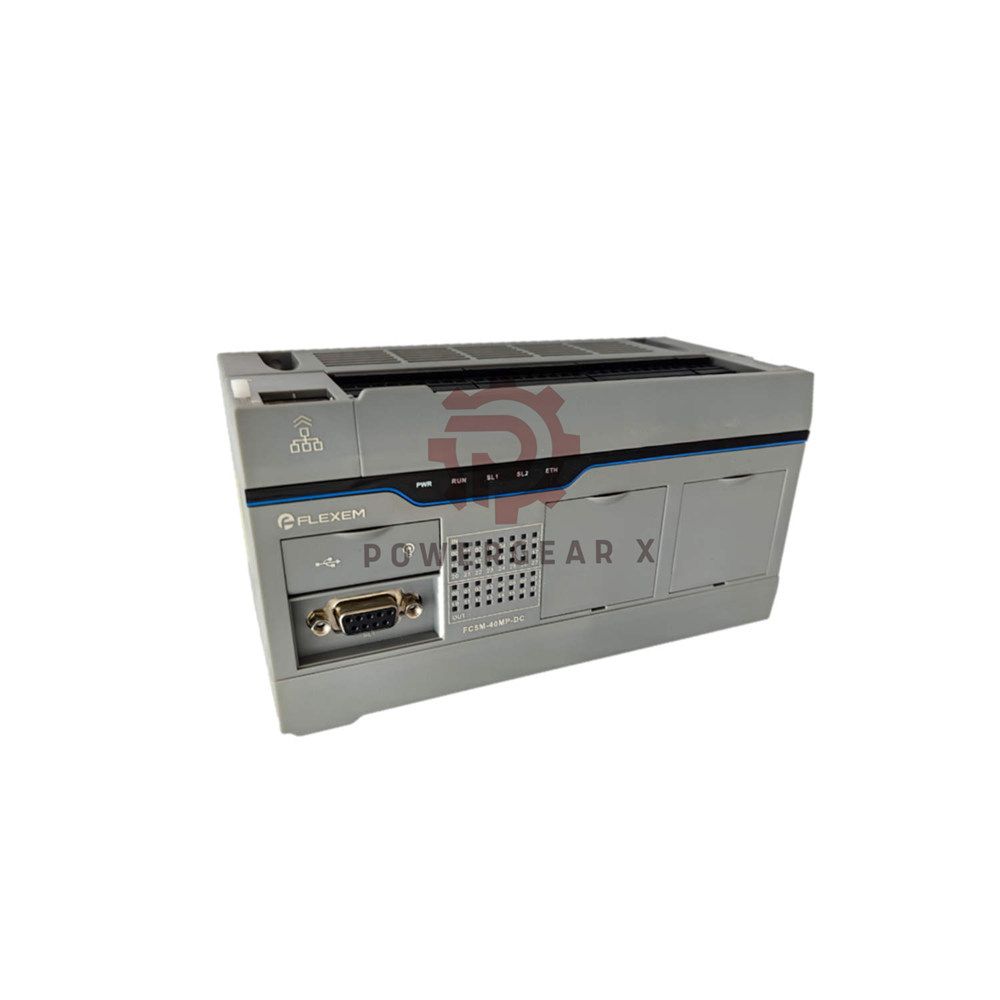

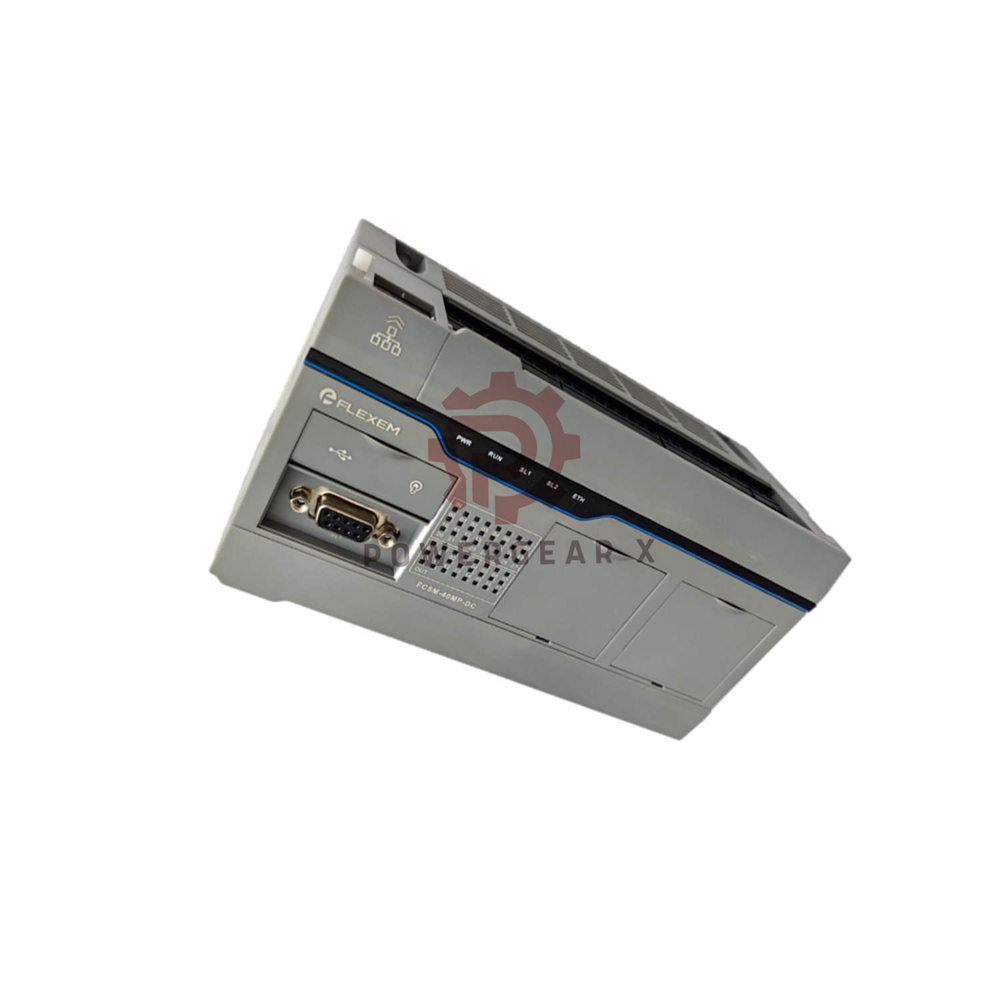

FC5-40MP-DC Flexem PLC 24 Inputs 16 PNP Outputs Ethernet Transistor Controller

🔧 Product Datasheet – Flexem FC5‑40MP‑DC

Flexem FC5‑40MP‑DC is a powerful PLC with 24 inputs and 16 PNP transistor outputs. It features a built‑Ethernet port for fast communication. Designed for 24V DC systems, this controller delivers high‑speed switching and reliable control. Ideal for automation tasks requiring source‑type outputs and expandable I/O.

📋 Technical tree – detailed specs

• Series & type
  • Series: FC5
  • Type: Logic controller (PLC)
  • Model: FC5‑40MP‑DC (PNP transistor, Ethernet)
• Power supply
  • Rated voltage: 24V DC (Us)
  • Range: 19.2…28.8V DC
• Digital inputs – 24 channels
  • Type: Source/Sink (PNP/NPN compatible)
  • Rated voltage: 24V DC (range 0…28.8V)
  • Rated current: 7 mA
  • Peak voltage: 30V (max 1h/day)
  • State 1 voltage: >15V | State 0: <5V
  • State 1 current: >2.5 mA | State 0: <1.0 mA
  • Isolation: Optocoupler
  • Impedance: 3.3 kΩ
  • Filter time: 1 ms default, 16 steps up to 100 ms
  • Compatible with: 2‑wire / 3‑wire sensors
  • Cable length: 100 m shielded, 50 m unshielded
  • Wiring: Removable terminal block
• Digital outputs – 16 PNP channels
  • Output type: Transistor PNP
  • Voltage range: 5…30V DC
  • Rated current per point: 2 A (max)
  • Current per group: 4 A max
  • Voltage drop: ≤1V DC
  • Leakage current (off): <5 μA
  • Max lamp load: 2.4 W
  • Turn‑on time: ≤34 μs
  • Turn‑off time: ≤250 μs
  • Max output frequency: 1 kHz
  • Short circuit protection: Yes (self‑recovery every 10 ms)
  • Peak short‑circuit current: 1.3 A
  • Clamping voltage: 39V ±1V DC
  • Isolation: 500V AC (output to logic)
  • Cable: Unshielded, max 50 m
  • Terminal: Removable block
• Environmental & mechanical
  • Operating temp: –10°C … +60°C
  • Storage temp: –20°C … +70°C
  • Humidity: 55…95% non‑condensing
  • Pollution degree: 2 (IEC60664)
  • Protection: IP20
  • Coating: Conformal coating (dry film ≥20μm; reinforced ≥40μm)
  • Altitude: Operation 0…3000m, transport ≤6000m
  • Vibration: 5…13.2Hz / 7mm ; 13…100Hz / 2G (20 cycles/axis)
  • Shock: 15G / 11ms half‑sine (6 times/axis)

❓ Professional FAQ – experience & selection

• 1. Can I use the FC5‑40MP‑DC with NPN sensors?
  Yes. Inputs are source/sink type, so they work with both NPN and PNP sensors. Just connect accordingly.
• 2. What is the maximum output frequency for high‑speed applications?
  The transistor outputs switch up to 1 kHz. For higher speeds, consider the FC5‑MN series with 100 kHz pulse outputs.
• 3. How do I protect outputs from short circuits?
  Built‑in protection limits current to 1.3A and auto‑recovers every 10ms. No external fuse needed for most cases.
• 4. What is the warranty and shipping?
  12‑month warranty against defects. We ship via FedEx, UPS, or DHL – worldwide express. Same‑day dispatch if ordered before 2pm UTC+8.
• 5. Which model should I choose: FC5‑40MP‑DC or FC5‑40MR‑AC?
  Choose MP‑DC if you need fast transistor outputs (PNP) and 24V DC supply. Choose MR‑AC for relay outputs and 220V AC power. MP‑DC is better for high‑speed switching.
