Product details
Product Overview

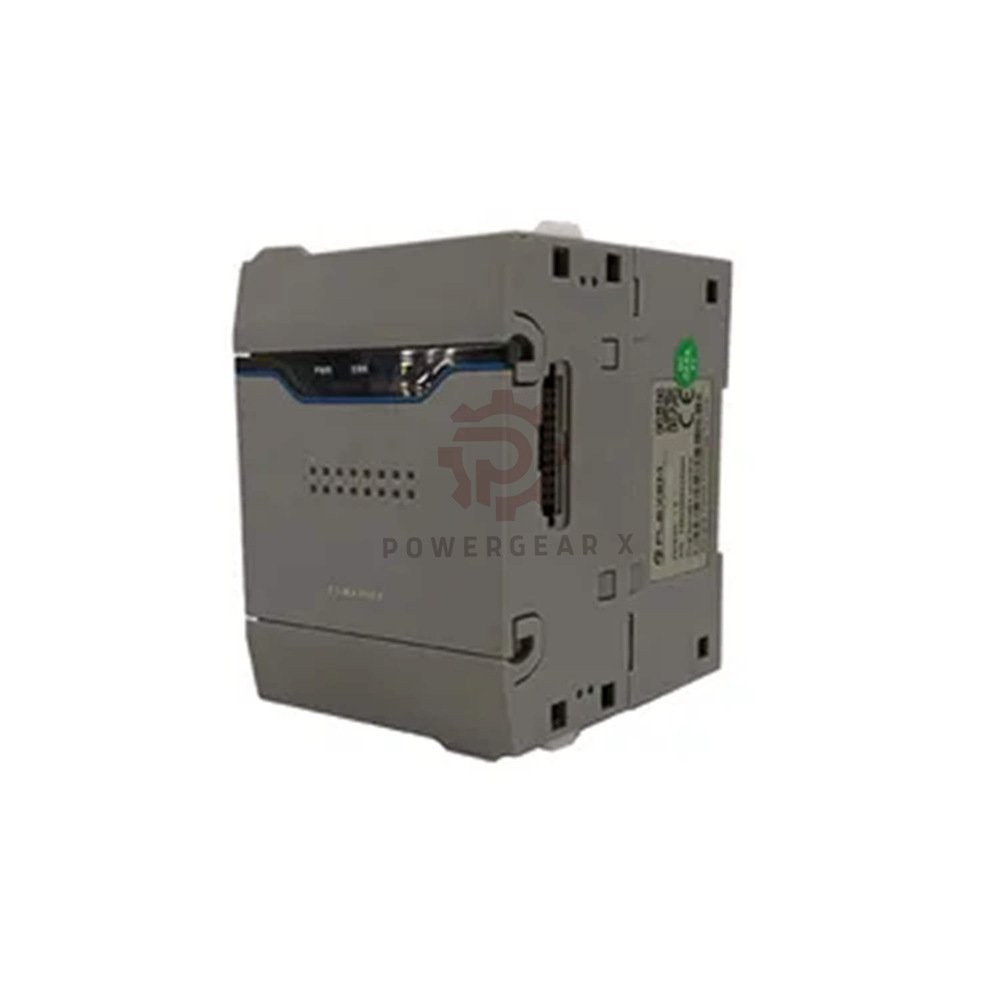

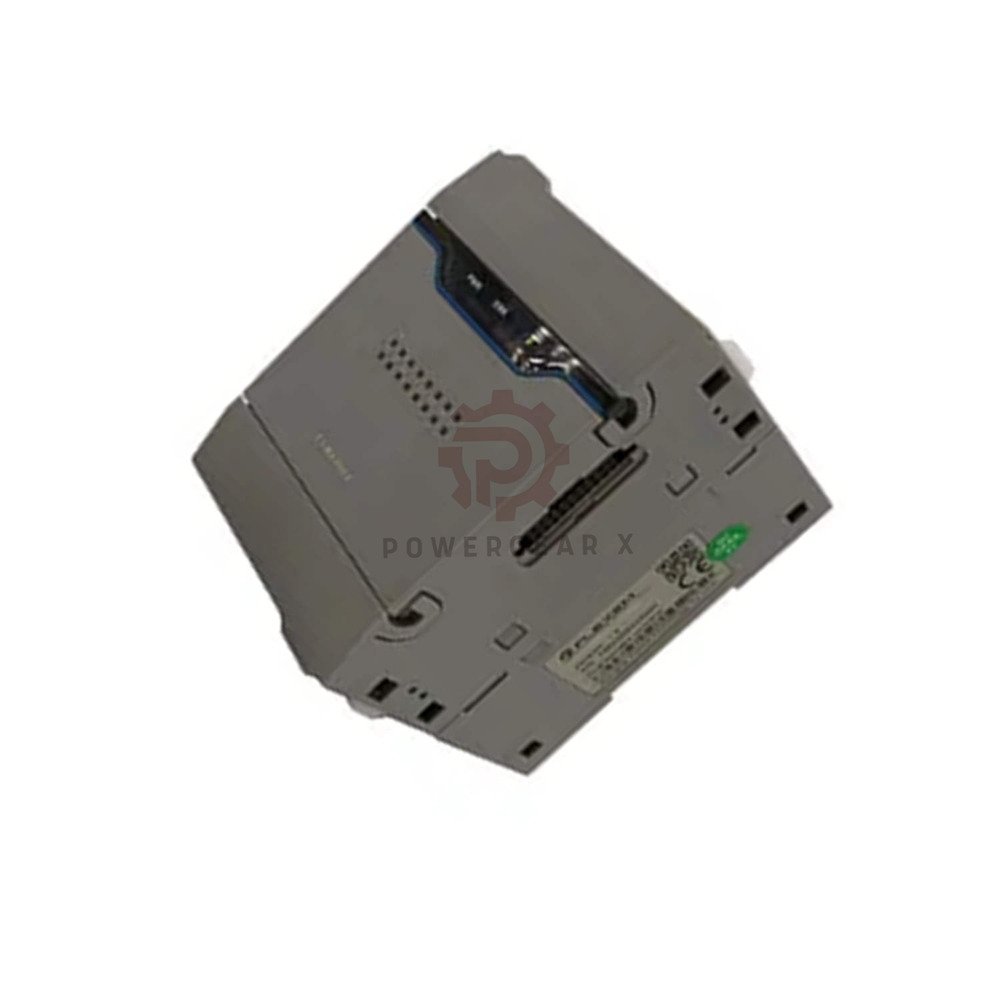

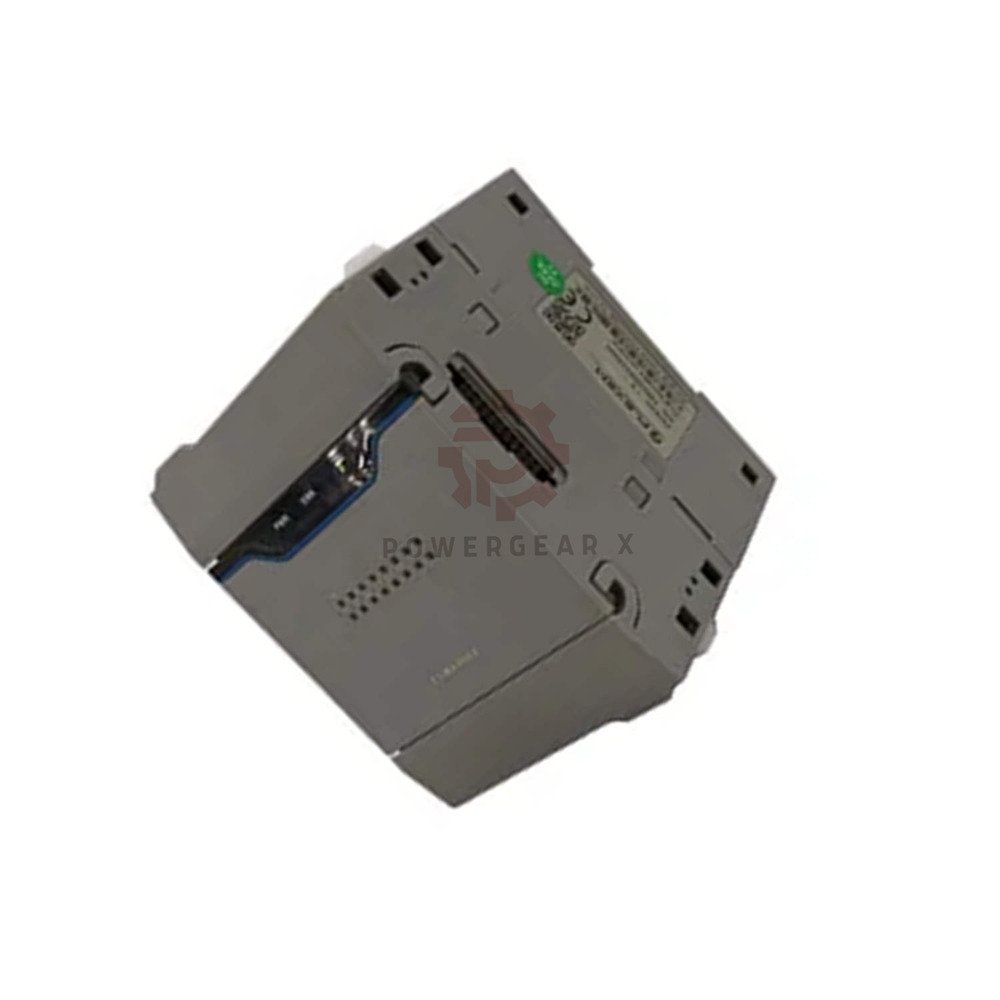

- Flexem F5-MD1600 – a high-density digital input module from the FC5 series. It runs on 24VDC and offers 16 bipolar digital inputs for expanding your PLC system.
- Designed for industrial automation. Provides reliable signal acquisition from 2-wire or 3-wire sensors (NPN/PNP compatible).
- Features adjustable input filtering (1ms default, up to 100ms) and optical isolation for noise immunity. Simple to install and configure.
Model & Ordering Tree (Hierarchical Suffix)
- F5 (FC5 Series Digital Module)
- -MD (Digital Input Module)
- 1600 (16 Inputs, 0 Outputs)
- 24VDC (Power Supply)
- 1600 (16 Inputs, 0 Outputs)
- -MD (Digital Input Module)
- Full model: F5-MD1600 – 16 digital inputs, 24VDC, IP20, FC5 series expansion module.
Core Technical Data
- Power supply: 24VDC (rated), input range 0‑28.8V DC.
- Inputs: 16 digital inputs, bipolar (source/sink type).
- Rated current: 7mA per input (typical).
- ON state: voltage >15V (15‑28.8V), current >2.5mA.
- OFF state: voltage <5V (0‑5V), current <1.0mA.
- Isolation: optical coupler, input impedance 3.3kΩ.
- Filter time: default 1ms, adjustable (unfiltered to 100ms, 16 levels).
- Compatibility: works with 2‑wire and 3‑wire sensors.
- Cable: max 100m shielded / 50m unshielded.
- Overvoltage protection: 30V max (limited to 1 hour/day).
- Wiring: removable terminal block.
- Dimension: Dimension B (standard FC5 module size).
Environmental & Immunity
- Operating temperature: -10°C to 60°C.
- Protection: IP20 (finger safe).
- Compliance: RoHS, REACH. Meets industrial standards.
Quick Installation Guide
- Mount on 35mm DIN rail next to FC5 series CPU.
- Connect 24VDC power to module terminals.
- Wire digital sensors (NPN or PNP) to input terminals 0‑15.
- Module automatically detected by CPU – no complex setup.
- Removable terminal blocks for easy wiring.
Diagnostics & Maintenance
- LED indicators: power and input status per point.
- Monitor input status via PLC programming software.
- Adjust filter time in software if needed.
- No routine calibration required. Keep clean and dry.
Compatibility & Certifications
- Fully compatible with all FC5 series PLCs (FC5, FC5M).
- Works with FC5 expansion backplane and power supply.
- Certified: RoHS compliant, REACH unaffected.
Package & Warranty
- Includes: F5-MD1600 module, mating connector, quick guide.
- Warranty: 12 months against defects. Extended options available.
Professional FAQ (Experience-based & Selection Guide)
- Can I mix NPN and PNP sensors on this module?
Yes. Inputs are bipolar (source/sink type). They work with both NPN (sinking) and PNP (sourcing) sensors – just wire correctly. - How do I adjust the input filter time?
Use the FC5 programming software. Select from 16 levels (unfiltered to 100ms). Default is 1ms for most applications. - What is the maximum cable length for sensors?
Up to 100m with shielded cable, or 50m with unshielded cable. For long runs, use shielded twisted pair. - Which shipping carriers do you use for international orders?
We ship worldwide via FedEx, UPS, DHL. All services include tracking. Contact us for bulk discounts. - How do I choose between F5-MD1600 and MD0800?
Choose MD1600 if you need 16 inputs in one module (saves space). Choose MD0800 if you only need 8 inputs or want to distribute inputs across multiple slots.
Typical Applications
- Expand I/O capacity of FC5 PLC systems.
- Add many sensors to machines – proximity, limit, photoelectric.
- Upgrade old relay panels with digital monitoring.
- Distributed I/O in industrial automation.
- Educational PLC training systems.
Contact & Inquiries
- Sales: sales@powergearx.com
- WhatsApp: +86 18030005825 (click to chat)
- For technical support, include your model number and order details.
