Product details

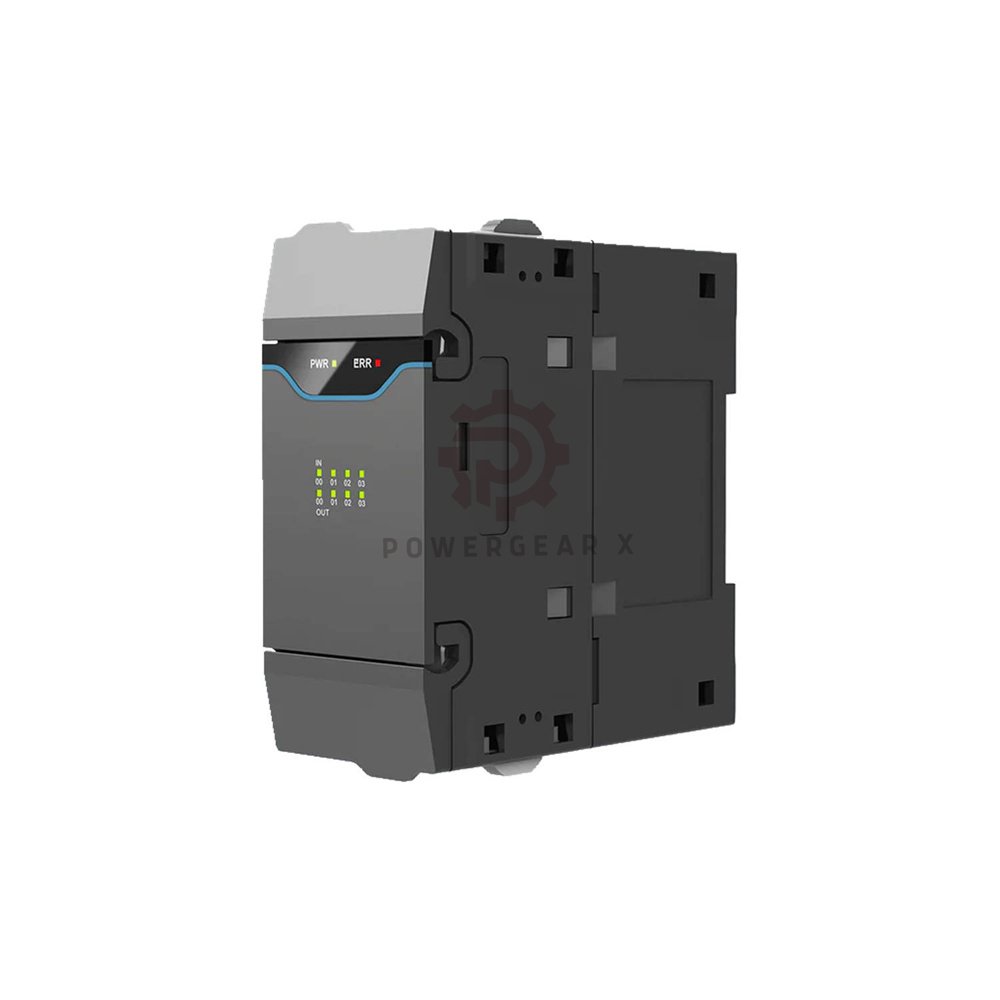

Flexem F5-MD0404N – Compact 24V Digital I/O
- F5-MD0404N – 4‑point digital combo module
- Inputs: 4 bipolar (source/sink), 24 VDC, 7 mA
- Outputs: 4 transistor (NPN), 0.5 A per point, 24 VDC
- Protection: Short‑circuit with auto‑recovery every 10ms
- Isolation: Optocoupler, 500 VAC between field and logic
📥 Input Side – 4 Points Bipolar
- Electrical ratings
- Rated voltage: 24 VDC (range 0…28.8 V)
- Rated current: 7 mA at 24 V
- Peak voltage: 30 V (max 1 hour/day)
- Input impedance: 3.3 kΩ
- Switching thresholds
- State 1 (ON): >15 V (2.5…9 mA)
- State 0 (OFF): <5 V (0…1.0 mA)
- Signal processing
- Filter time: Default 1ms (16 steps up to 100ms, incl. unfiltered)
- Sensor compatibility: 2‑wire or 3‑wire, sink/source type
- Cable guidelines
- Shielded cable: Max 100 m
- Unshielded cable: Max 50 m
📤 Output Side – 4 Transistor (NPN)
- Power specs
- Rated voltage: 24 VDC (range 19.2…28.8 V)
- Rated current: 0.5 A per point, 0.5 A per group
- Voltage drop: ≤1 V at full load
- Leakage current (off): <5 μA
- Load handling
- Lamp load: Max 2.4 W
- Derating: None (full current over temperature range)
- Switching performance
- Turn‑on time: <34 μs
- Turn‑off time: <250 μs
- Max output frequency: 1 kHz (resistive load)
- Protection features
- Short‑circuit: Yes (peak 1.3 A, self‑recovery every 10ms)
- Clamping voltage: 39 VDC ±1 V
- Wiring
- Unshielded cable: Max 50 m
- Isolation: 500 VAC between output and internal logic
🌡️ Environmental & General Data
- Temperature ranges
- Operating: -20…+60 °C
- Storage: -40…+85 °C
- Protection & immunity
- Degree: IP20
- EMC: According to IEC 61000-6-2
🔧 Installation & Setup
- Mounting
- DIN rail: TS35, width 50 mm
- Terminals: Spring‑cage, 0.2…1.5 mm² (removable)
- Wiring notes
- Power supply: 24 VDC to upper terminals
- Inputs: Bipolar – common to GND or +24 V
- Outputs: NPN (sinking) – load between +24 V and output
⚙️ Diagnostics & User Tips
- LED indicators
- Input LEDs: ON when signal >15 V
- Output LEDs: ON when transistor conducts
- Error LED: Flashes on short‑circuit/overload
- Filter adjustment
- 16 levels: From unfiltered to 100 ms (default 1 ms)
- Use: Longer filter for noisy environments
📦 Package, Warranty & Shipping
- In the box
- 1x Flexem F5-MD0404N module
- Quick start guide
- Removable terminal blocks (pre‑fitted)
- Warranty
- 12 months from shipment date
- Covers manufacturing defects
- Shipping carriers
- FedEx / UPS / DHL Express
- Tracking provided within 24 hours
🏭 Where to Use F5-MD0404N
- Conveyor systems: Detect items and control actuators
- Packaging machines: Sensor feedback + cylinder control
- HVAC: Damper positioning and valve on/off
- Water treatment: Pump monitoring and alarm outputs
- Material handling: Remote I/O in distribution panels
❓ Expert FAQ – Selection & Experience
- How do I choose between F5-MD0404N and F5-MD0404P?
- Answer: Choose F5-MD0404N if your loads connect to +24V (NPN sinking). Choose F5-MD0404P for loads connected to 0V (PNP sourcing). Inputs are identical.
- Can this module replace two separate input/output modules?
- Answer: Yes, F5-MD0404N combines 4 inputs and 4 outputs in one slim housing. Saves DIN rail space and wiring time.
- What happens if I short an output for a long time?
- Answer: The module limits current to 1.3A and tries to recover every 10ms. It will not be damaged, but the load won’t operate until the short is removed.
- Is the 12-month warranty extendable?
- Answer: Yes, contact sales@powergearx.com for extended warranty options. Standard is 12 months from invoice date.
- How fast can I get the module delivered?
- Answer: We ship via FedEx, UPS, or DHL express. Most orders arrive in 3-5 business days. Tracking is provided immediately.
