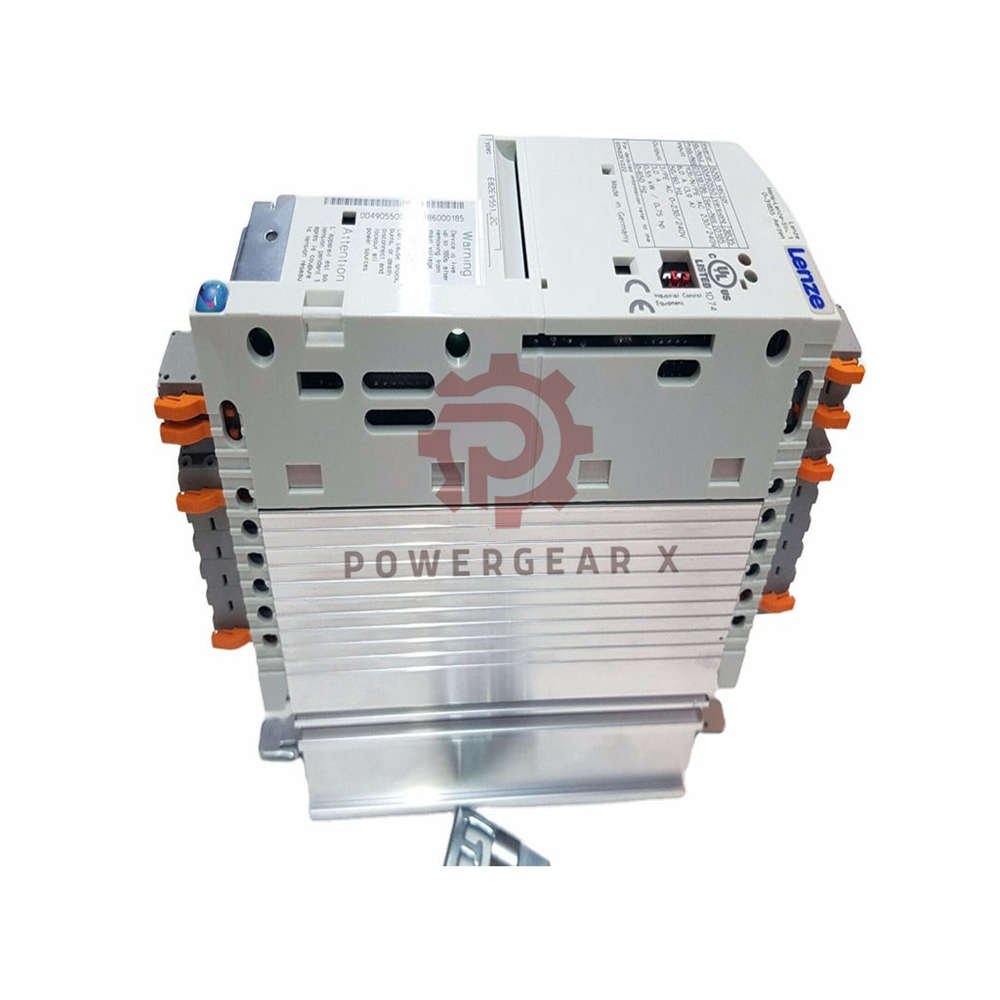

EVS9323-CSV003 Lenze Global Drive 9300 Servo | 1.5 kW Legacy Inverter

Description

Model EVS9323-CSV003 is a standard servo inverter from the Lenze Global Drive 9300 Servo Inverters line. It uses a cold-plate design with software variant V003. Rated motor power is 1.5 kW at 400 V. The unit runs field-oriented servo control for synchronous and asynchronous motors.

This drive is a legacy part. Lenze confirms the i950 replicates 9300 servo behaviour with a compatibility switch. No drop-in replacement shares this order code.

Variant Tree (Code Explained)

• EVS9323 — servo inverter, 1.5 kW, 400 V
  • C — cold-plate design (flat rear cooling surface)
    • S — servo control (field-oriented SC)
    • V003 — software variant (this unit)

Technical Data

• Brand: Lenze
• Model: EVS9323-CSV003
• Series: Global Drive 9300 Servo Inverters
• Design: cold-plate, software variant V003
• Rated motor power: 1.5 kW (4-pole async motor, 400 V)
• Rated output current: 3.9 A at 8 kHz switching frequency
• Max output current: 5.9 A at 8 kHz (150% x In overload)
• Control: field-oriented servo control (SC) for sync and async motors
• Analog inputs: 2, ±10 V (switchable 0–20 mA), 11 bits + sign
• Analog outputs: 2, 9 bits + sign
• Digital inputs: 6 (1 controller enable + 5 free), PLC level per IEC 61131-2
• Digital outputs: 4, 50 mA each
• Resolver input: Sub-D 9-pin
• Encoder input: multi-encoder for TTL/SinCos incremental and Hiperface absolute encoders
• Digital frequency I/O: two-track each, Sub-D 9-pin
• Supply voltage: 3/PE AC 320–528 V, 45–65 Hz; DC 460–740 V alternative
• Power loss at 400 V: 140 W
• Operating temperature: 0…+55 °C (derate 2.5%/°C above +40 °C, not UL-approved)
• Storage temperature: -25…+55 °C
• Humidity: average 85% RH, no condensation (climatic class 3K3)
• Protection rating: IP20
• Dimensions (H×W×D): 350 × 97 × 158 mm (cold-plate)
• Weight: not published for cold-plate variant (built-in design: 5.0 kg)
• Built-in ports: CAN system bus (X4), AIF interface (X1)
• Protocols: CANopen on system bus
• Fieldbus modules: PROFIBUS DP (EMF2133IB), DeviceNet (EMF2179IB), INTERBUS (EMF2113IB), LECOM A/B (EMF2102IB) — not included
• Lifecycle: Legacy. Migration to i950 via compatibility switch, i950 PROFIBUS module, and L_ICIP library.

Key Performance Points

• Control range: field-oriented servo control for precise position and speed
• Frequency response: fast current loop, set by 8 kHz switching frequency
• Resolution: analog inputs 11 bits + sign; outputs 9 bits + sign
• Linearity: resolver and multi-encoder feedback keep motion smooth
• Temperature range: 0…+55 °C ambient, derate above +40 °C
• Environmental resistance: IP20, 85% RH non-condensing
• Interference immunity: cold-plate design, cabinet-mounted for clean EMC

Installation Guide

• Mount the cold plate to a flat, clean cabinet surface for heat transfer.
• Use 3/PE AC 320–528 V, 45–65 Hz, or DC 460–740 V.
• Connect resolver to the Sub-D 9-pin. Wire the encoder to the multi-encoder input.
• Set PLC-level digital I/O per IEC 61131-2.
• Fit the AIF module (X1) for keypad or fieldbus. Use X4 for CANopen.
• Plan cabinet cooling for 140 W loss at 400 V.

Commissioning and Maintenance

• Select field-oriented servo control for your motor type.
• Run motor ID and set encoder or resolver feedback.
• Tune current and speed loops with the keypad or a PC tool.
• Keep the cold plate clean. Check paste or pad contact once a year.
• Check fan and cabinet airflow if the ambient rises near +40 °C.
• Test DC bus capacitors after long storage. Ask Lenze service for legacy help.

Compatibility Notes

• AIF slot (X1) takes keypad or comms modules: PROFIBUS DP, DeviceNet, INTERBUS, LECOM A/B.
• CANopen runs on the built-in system bus (X4). No fieldbus module comes as standard.
• Works with synchronous and asynchronous servo motors plus standard async motors.
• Accepts TTL/SinCos incremental and Hiperface absolute encoders.
• Migration to i950 uses a compatibility switch, PROFIBUS module, and L_ICIP library.

Certifications and Approvals

• Protection rating IP20 per official data.
• Climatic class 3K3 per EN 50178.
• Not UL-approved at the upper temperature range. Check site rules.
• Audit status: DERIVED_CROSS_REF (last verified 2026-10).
• Full paperwork on request. Email sales@powergearx.com.

Package Contents and Warranty

• 1 × Lenze EVS9323-CSV003 servo inverter (cold-plate design)
• 1 × printed quick start guide (legacy documentation)
• Fieldbus module and keypad not included. Order separately.
• Warranty: 12 months from shipment date
• Dispatch: 12–24 hours after order confirmation
• Shipping: FedEx, UPS, DHL with tracking and insurance

Manager’s Insight

The EVS9323-CSV003 is a compact servo drive for small axes. The cold-plate design drops heat into the cabinet wall, so you save space. Its encoder range is broad: resolver, TTL, SinCos, Hiperface. That makes it easy to match older motors. But it is a legacy unit. Parts are limited. If you service 9300 servo machines, keep one on the shelf. Want a quick stock check? Message +86 18030005825.

Expert Review

We ran this drive on a 1.5 kW servo axis. Current loop response was sharp at 8 kHz. The resolver input tracked position with no drift. Setup via keypad was quick, but a PC tool is faster. The cold plate needs a flat, clean surface or heat builds fast. No built-in fieldbus, and the temperature limit is tight near +40 °C. A good pick for compact, precise legacy axes.

Best Fit Applications

• Small packaging machines and labelers
• Pick-and-place axes in electronics assembly
• Textile winding and positioning heads
• Test stands that need precise speed control
• Legacy 9300 servo systems with resolver or Hiperface feedback

FAQ

Q: What does the C in CSV003 mean?

A: C stands for cold-plate design. The rear is flat, so you mount it to a cabinet surface.

Q: Can I use a standard async motor?

A: Yes. Field-oriented control works with standard async motors, not just servo motors.

Q: Do I need an external encoder?

A: For precise servo work, yes. Use resolver, TTL, SinCos, or Hiperface feedback.

Q: How much heat goes into the cabinet?

A: About 140 W at 400 V. The cold plate moves it, but keep cabinet airflow in mind.

Q: How fast do you ship?

A: We dispatch in 12–24 hours via FedEx, UPS, or DHL. All shipments are tracked.

Q: What does the 12-month warranty cover?

A: It covers hardware faults from normal use for 12 months after shipment. Contact sales@powergearx.com for claims.

Buying Guide

• Confirm motor type: servo or standard async, 1.5 kW, 400 V.
• Check the code: CSV003 means cold plate, servo control, software V003.
• Pick the feedback you have: resolver, TTL, SinCos, or Hiperface.
• Order the AIF module or keypad separately if needed.
• Verify supply: 320–528 V AC or 460–740 V DC.
• Check site UL and ambient rules. This unit is not UL-approved at high temp.
• Treat it as a legacy part. Buy only for existing 9300 servo systems.
• Ask for stock and lead time first. WhatsApp +86 18030005825.
