EL3164 4-Channel Analog Input – BECKHOFF EtherCAT 16-Bit Voltage Terminal

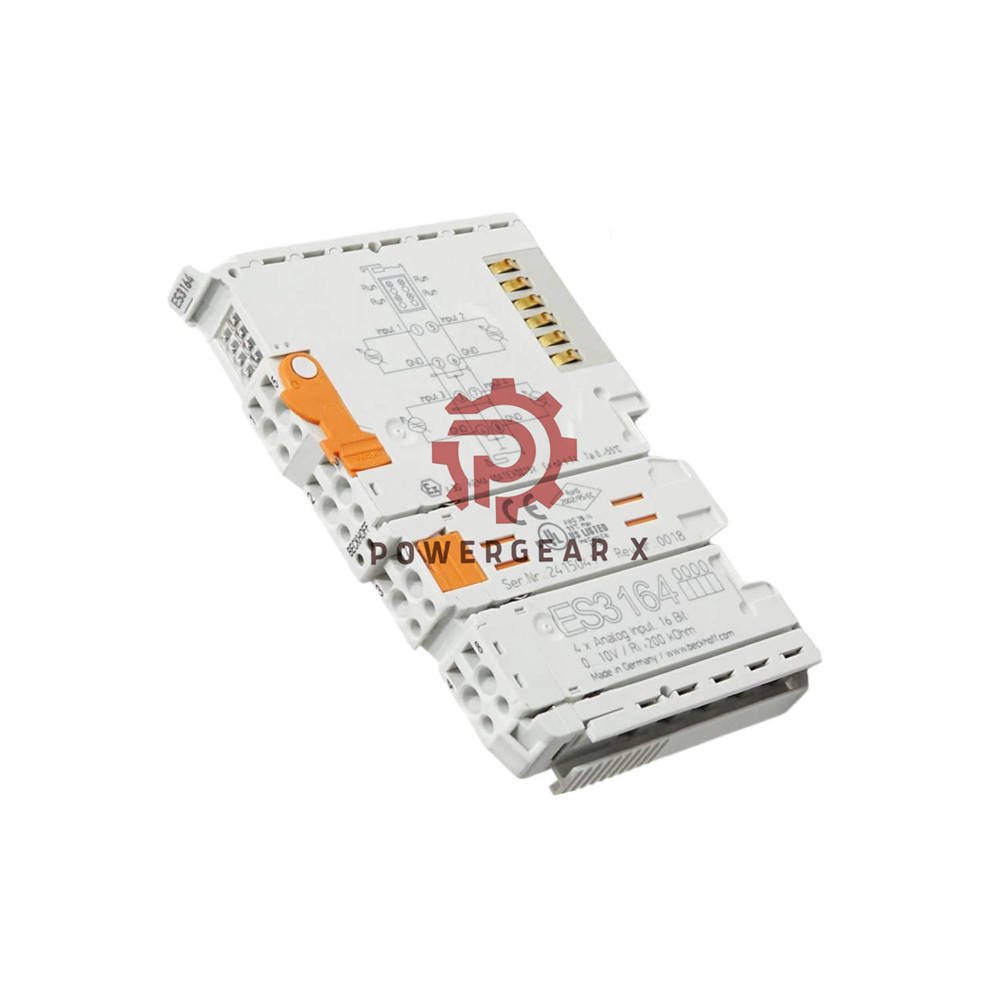

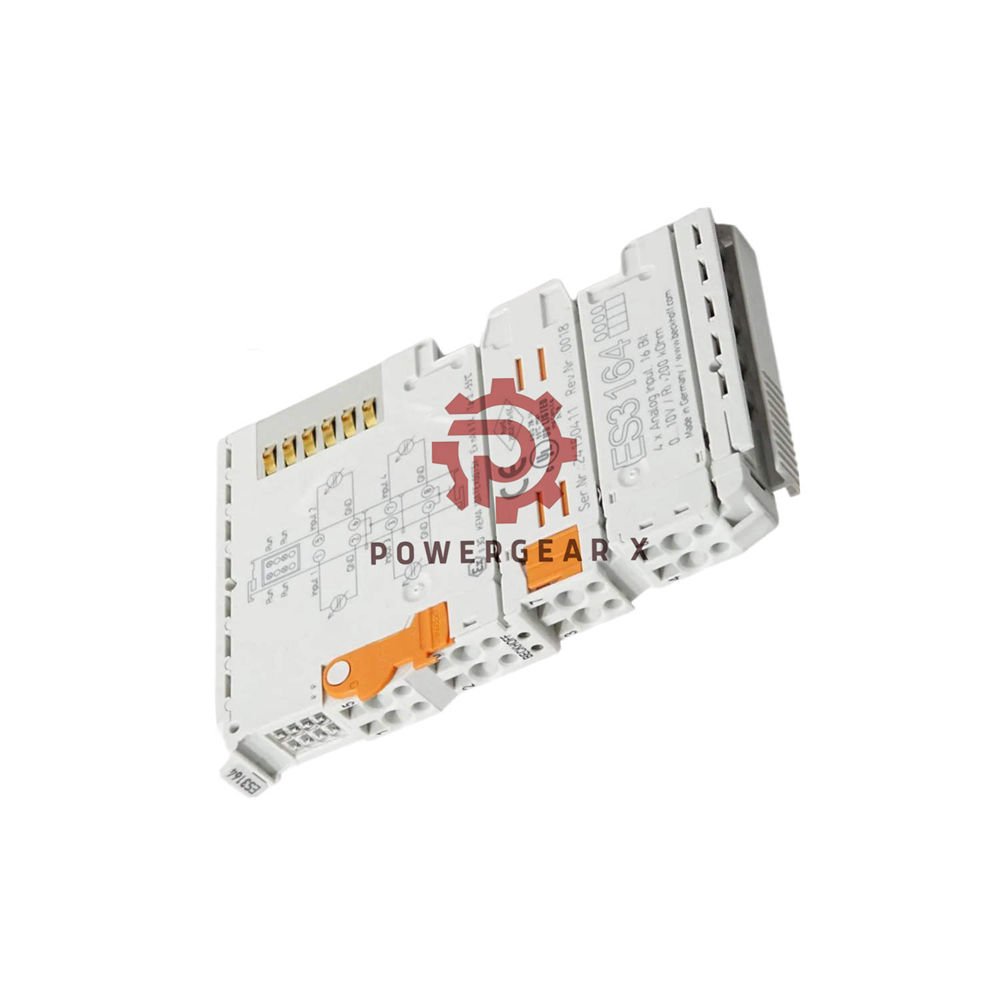

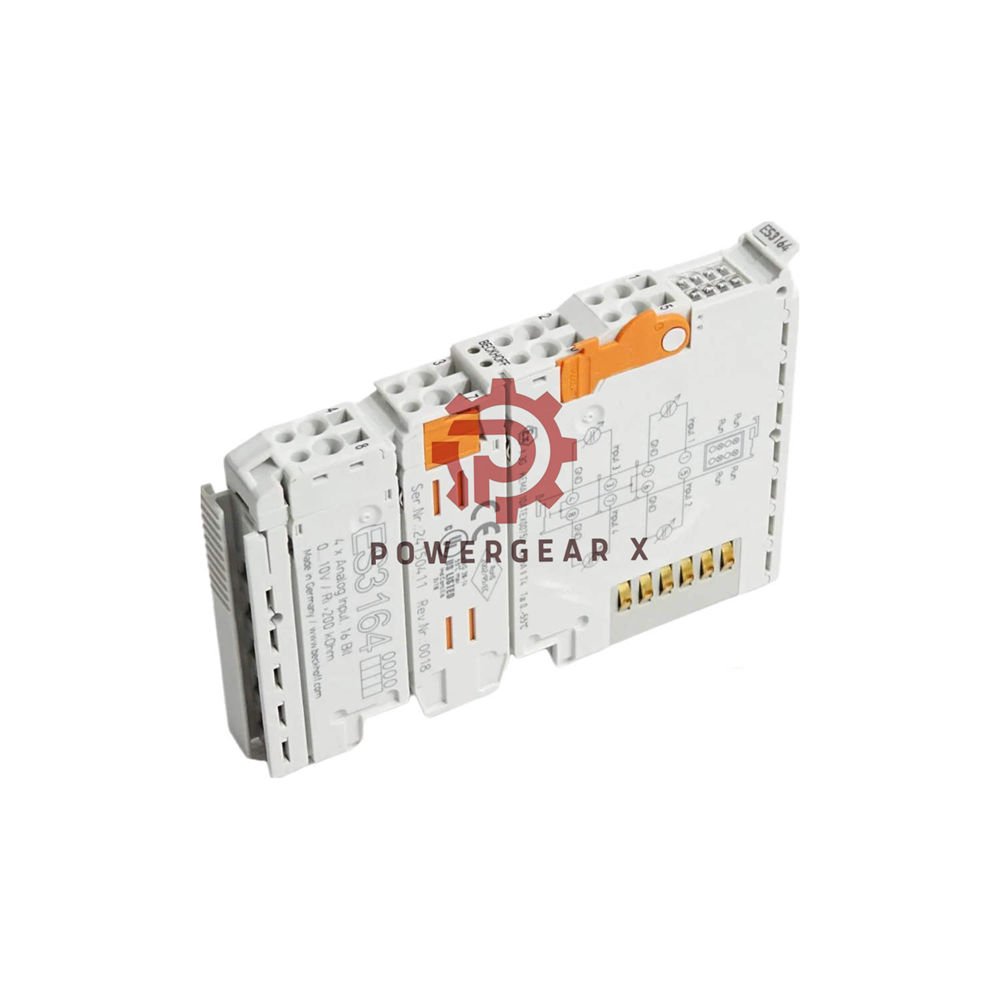

EL3164 – 4-Channel Analog Input 0…10 V, 16-Bit, Single-Ended

The BECKHOFF EL3164 is a 4‑channel analog input terminal for 0…10 V signals. It digitizes voltage with 16‑bit resolution. The terminal transfers data electrically isolated to the automation system. It uses 2‑wire single‑ended inputs with common ground. LEDs indicate the signal state for each channel.

Key Features

• 4 analog inputs – single‑ended, 0…10 V range
• 16‑bit resolution – high precision measurement
• Distributed clocks – supports synchronous operation
• Input filter – 5 kHz limit frequency
• Fast conversion – ~100 µs per channel
• Electrical isolation – 500 V between E‑bus and signal
• Compact process image – standard and compact modes
• Built‑in diagnostics – limit value monitoring, FIR/IIR filters

Technical Data

• Brand: BECKHOFF
• Model: EL3164
• Series: EtherCAT Terminal
• Type: Analog Input (4-channel)
• Inputs: 4 (single‑ended)
• Signal voltage: 0…10 V
• Internal resistance: > 200 kΩ
• Input filter limit frequency: 5 kHz
• Dielectric strength: max. 30 V
• Conversion time: ~100 µs
• Resolution: 16 bit (incl. sign)
• Measuring error: < ±0.3 % (full scale)
• Electrical isolation: 500 V (E‑bus/signal)
• E‑bus current consumption: typ. 130 mA
• Bit width in process image: 16 byte (inputs)
• Distributed clocks: yes
• Special features: standard/compact image, FIR/IIR filters, limit monitoring
• Weight: approx. 65 g
• Operating temperature: 0…+55 °C
• Storage temperature: -25…+85 °C
• Relative humidity: 95 % (non‑condensing)
• Vibration/shock: EN 60068‑2‑6 / EN 60068‑2‑27
• EMC immunity/emission: EN 61000‑6‑2 / EN 61000‑6‑4
• Protection class: IP20
• Installation position: variable
• Approvals: CE, UL, Ex

Expert Review

The EL3164 delivers reliable 0‑10 V analog acquisition with 16‑bit accuracy. The 100‑µs conversion time suits fast control loops. The built‑in FIR/IIR filters help reduce noise in industrial environments. The terminal supports distributed clocks for precise synchronisation. Its compact design and simple wiring make it a practical choice for analog measurements.

Manager’s Insight

For system integrators, the EL3164 offers a cost‑effective solution for analog voltage monitoring. The 4 channels share a common ground, simplifying field wiring. The limit value monitoring feature reduces PLC programming effort. With CE, UL, and Ex approvals, this terminal fits global projects. The flexible process image (standard or compact) allows memory optimisation.

Applicable Devices & Scenarios

• PLC systems: BECKHOFF CX, CP, and any EtherCAT master
• Process control: pressure, temperature, level sensors (0‑10 V)
• Machine automation: position feedback, speed monitoring
• Test & measurement: data acquisition systems
• Building automation: HVAC, lighting control, energy monitoring
• Hazardous areas: Ex‑approved for Zone 2 (ATEX/IECEx)

Installation & Commissioning Guide

• Mount the EL3164 on a DIN rail (EN 60715) next to the bus coupler.
• Connect the 0‑10 V signal wires to the input terminals (2‑wire).
• The common ground is internally connected – no extra ground wire needed.
• Power is supplied via the E‑bus – no separate power connection.
• Configure the terminal in TwinCAT or your EtherCAT master.
• Choose standard or compact process image as needed.
• Activate FIR/IIR filters or limit monitoring via the master.
• Check the LEDs for channel activity and error status.

Maintenance & Service Convenience

• IP20 housing protects against dust and accidental touch.
• LEDs per channel simplify troubleshooting.
• No calibration required – factory‑adjusted accuracy.
• Pluggable wiring options available for ESxxxx terminals.
• Compact size saves cabinet space.

Compatibility & System Integration

• Master: Any EtherCAT master (TwinCAT, other PLCs).
• Bus system: EtherCAT (E‑bus).
• Signal type: 0…10 V single‑ended.
• Isolation: 500 V between E‑bus and inputs.
• Input resistance: > 200 kΩ – suitable for most sensors.

Certifications & Safety Standards

• CE – meets EU standards.
• UL – recognized for US/Canada.
• Ex – approved for hazardous locations (ATEX/IECEx).
• EMC: EN 61000‑6‑2 (immunity) & EN 61000‑6‑4 (emission).
• Environmental: EN 60068‑2‑6 / EN 60068‑2‑27.

Package Contents

• 1 × BECKHOFF EL3164 analog input terminal.
• Documentation leaflet.
• No cables or connectors included (order separately).

Warranty & Shipping

• Warranty: 12 months against manufacturing defects.
• Shipping: 12‑24 hours dispatch (business days).
• Carriers: FedEx, UPS, DHL – worldwide express.
• Tracking number provided upon shipment.

Frequently Asked Questions (FAQ)

• What is the maximum input voltage for the EL3164?

  The maximum dielectric strength is 30 V. Do not exceed this.

• Can I use this terminal with 4‑20 mA sensors?

  No, it only accepts 0‑10 V signals. Use EL3124 for current inputs.

• How do I activate the built‑in filter?

  Enable FIR/IIR filters via the EtherCAT master (TwinCAT) configuration.

• Is the EL3164 suitable for Ex‑rated environments?

  Yes, it has Ex approval for Zone 2 hazardous areas.

• What does the “compact process image” do?

  It packs the data into fewer bytes, saving memory.

• What is the temperature range for operation?

  0…+55 °C. Storage: -25…+85 °C.

Experience‑Based Buying Guide

• Choose the EL3164 for standard 0‑10 V analog sensors.
• If you need 4‑20 mA, consider the EL3124 instead.
• For higher accuracy, look at the EL3162 (2‑channel, 16‑bit).
• For differential inputs, select the EL3168.
• Always verify the common ground matches your sensor wiring.
• Use shielded cables for long distances to reduce noise.

Comparison with Similar Models

• EL3162 – 2‑channel version, same 16‑bit resolution, smaller footprint.
• EL3168 – 8‑channel single‑ended, 16‑bit, higher density.
• EL3124 – 4‑channel analog input for 4‑20 mA (current).
• EL3104 – 4‑channel ±10 V input, bipolar range.
• All terminals are compatible with the same EtherCAT system.

SEO Meta Description

BECKHOFF EL3164 4-channel analog input terminal for 0-10 V, 16-bit, single-ended, with Ex approval. Ideal for precise voltage measurement in industrial automation.

SEO Titles

BECKHOFF EL3164 Analog Input Terminal – 4-Ch 0-10V 16-Bit EtherCAT

EL3164 4-Channel Analog Input – BECKHOFF EtherCAT 16-Bit Voltage Module
