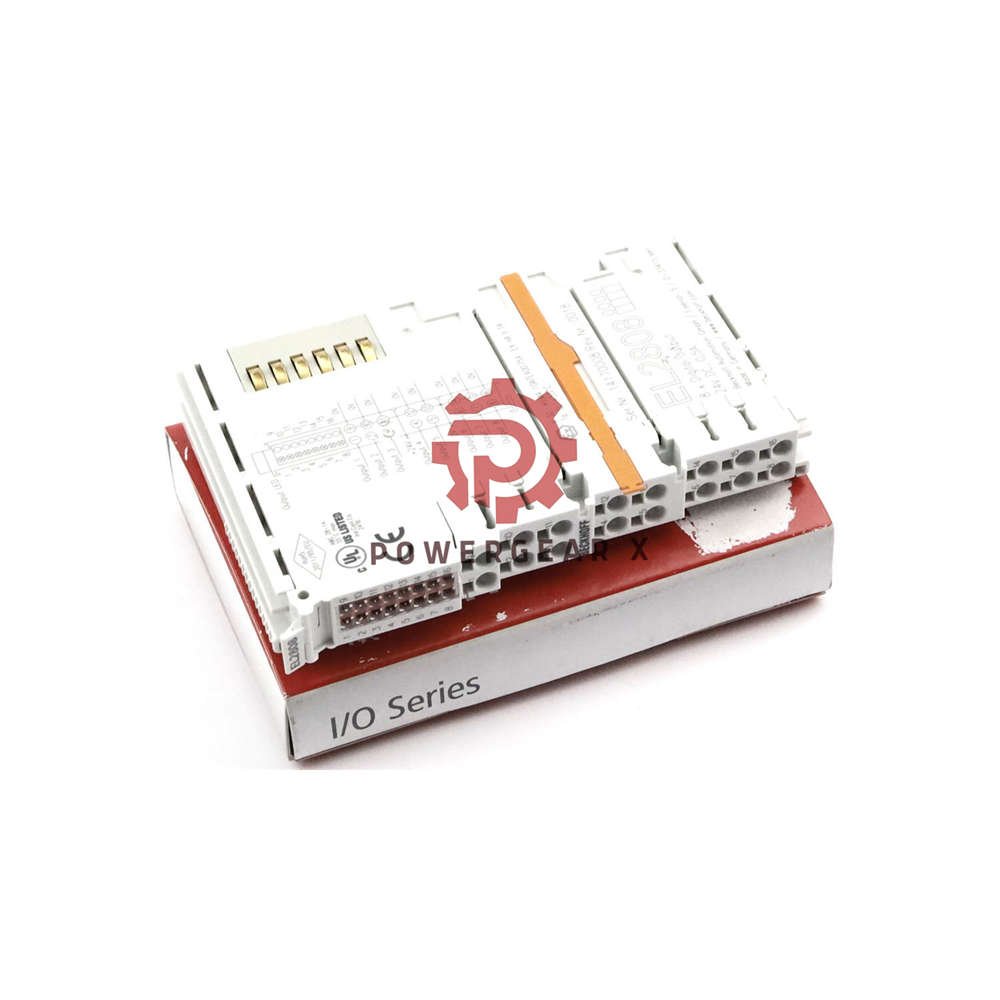

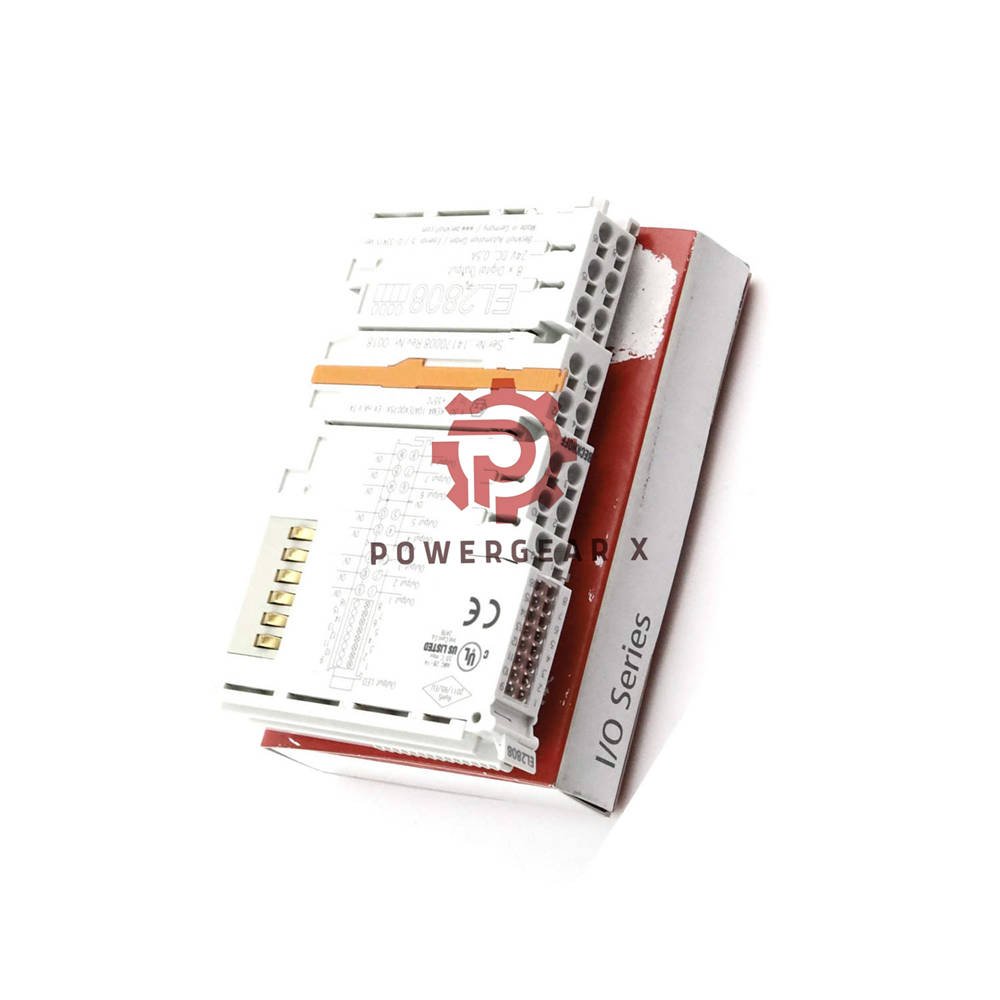

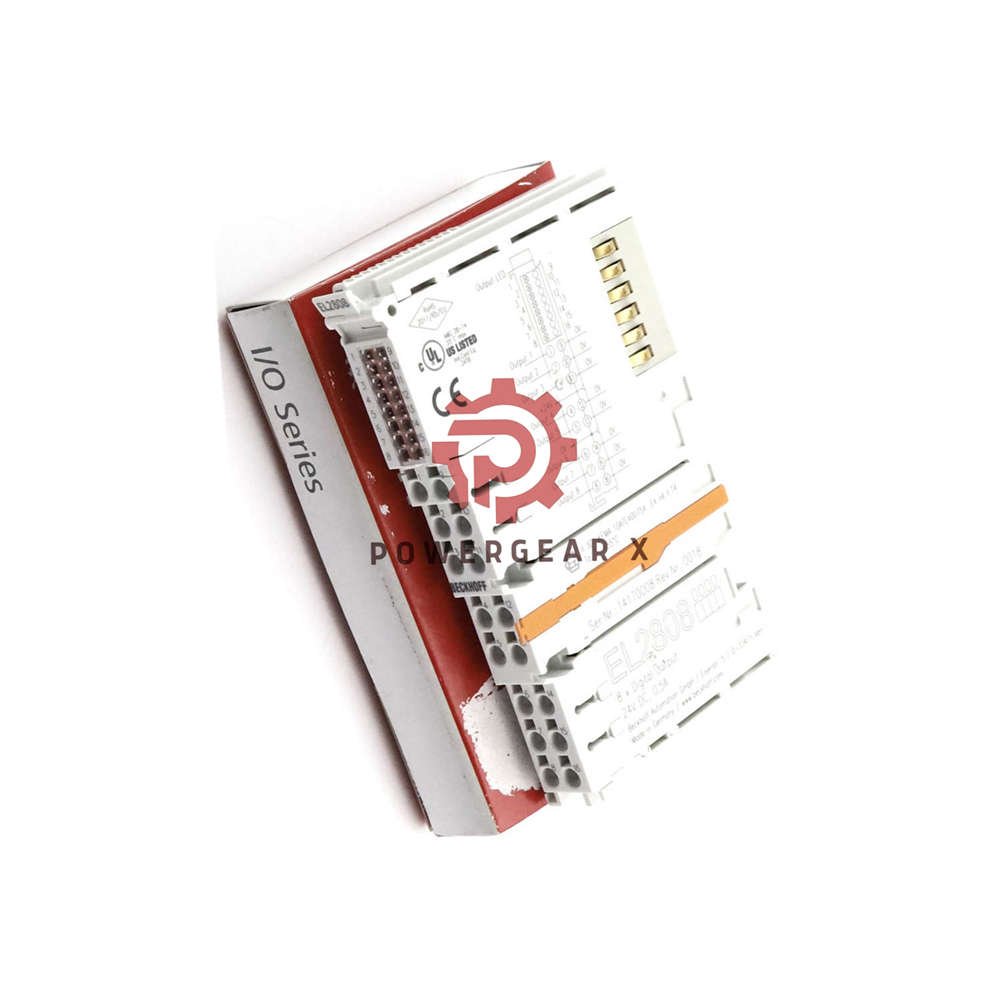

Name: EL2808 Beckhoff 8-Channel Output | EtherCAT Terminal 24V 0.5A
SKU: EL2808
Price: 234.00 USD
Availability: InStock

Product details

Beckhoff EL2808 | 8-Channel Digital Output

24 V DC, 0.5 A, 2-wire connection – Regular delivery. The EL2808 connects binary 24 V DC control signals to actuators. It has eight channels with LED status. Power contacts are passed through. Outputs are supplied via the 24 V DC power contact.

Key Features

Supports ohmic, inductive, and lamp loads
Max. 0.5 A per channel (short-circuit proof)
Overload, short-circuit, and reverse polarity protection
Tool-free connection for solid wires
16 connection points in a 12 mm housing

Technical Data – Hierarchical View

General
- Brand: Beckhoff
- Model: EL2808
- Series: EtherCAT Terminal
- Type: 8-Channel Digital Output
Outputs
- Number: 8
- Nominal voltage: 24 V DC (-15 % / +20 %)
- Max. output current: 0.5 A per channel
- Short-circuit current: typ. < 2 A
- Reverse voltage protection: yes
- Breaking energy: < 150 mJ/channel
- Switching times: TON 60 µs, TOFF 300 µs
Load Types
- Ohmic
- Inductive
- Lamp load
Power & Isolation
- E-bus current: typ. 110 mA
- Power contacts current: typ. 15 mA + load
- Electrical isolation: 500 V (E-bus/field)
Process Image
- Bit width: 8 outputs
- Configuration: none required
Environment & Approvals
- Operating temp: -25…+60 °C
- Storage temp: -40…+85 °C
- Humidity: 95 %, no condensation
- Vibration/shock: EN 60068-2-6 / EN 60068-2-27
- EMC: EN 61000-6-2 / EN 61000-6-4
- Protection: IP20
- Approvals: CE, UL, ATEX, IECEx
- Ex marking: II 3 G Ex ec IIC T4 Gc (ATEX) / Ex ec IIC T4 Gc (IECEx)
Physical
- Weight: approx. 65 g
- Housing: HD (High Density) with LEDs
- Material: polycarbonate
- Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
- Mounting: 35 mm DIN rail (EN 60715)
- Connection: 2-wire, tool-free for solid wires
- Cross-section: 0.08…1.5 mm² (solid), 0.25…1.5 mm² (stranded), 0.14…0.75 mm² (ferrule)
- AWG: 28…16 (solid), 22…16 (stranded), 26…19 (ferrule)
- Stripping length: 8…9 mm
- Power contacts current load: Imax 10 A

Expert Review

The EL2808 is a reliable 8-channel output terminal. It handles various loads like lamps and solenoids. The short-circuit proof outputs and reverse polarity protection ensure safety. Switching is fast (60 µs ON). Tool-free wiring saves time. It’s a solid choice for standard digital output tasks.

Manager’s Insight

This terminal offers high density with 8 channels in a 12 mm housing. It saves space in the cabinet. The wide temperature range (-25…+60 °C) suits harsh environments. ATEX and IECEx approvals allow use in hazardous areas. It is simple to install and requires no configuration.

Typical Applications

Actuator control (valves, relays)
Lamp and indicator control
Small motor starters
General purpose digital outputs
Industrial automation systems

Comparison with Similar Models

EL2809 – 8-channel output with different features. View EL2809
EL2818 – 8-channel output with diagnostics. View EL2818
EL2828 – 8-channel output with high-side drivers. View EL2828

Frequently Asked Questions (FAQ)

What types of loads can the EL2808 drive?
It drives ohmic, inductive, and lamp loads.
Is the output short-circuit proof?
Yes, each channel is short-circuit proof and overload protected.
What is the switching speed?
Typical TON is 60 µs, TOFF is 300 µs.
Does it have reverse polarity protection?
Yes, reverse voltage protection is built in.
What approvals does it have?
It has CE, UL, ATEX, and IECEx approvals.
What is the warranty?
We offer 12 months warranty.
How fast is shipping?
We ship within 12–24 hours.
Which couriers do you use?
We ship via FedEx, UPS, or DHL.

Selection Guide

Choose EL2808 if: You need 8 standard digital outputs with protection and ATEX approval.
Choose EL2809 if: You need additional diagnostic features.
Choose EL2818 if: You require high-side drivers.
Choose EL2828 if: You need a different output configuration.
