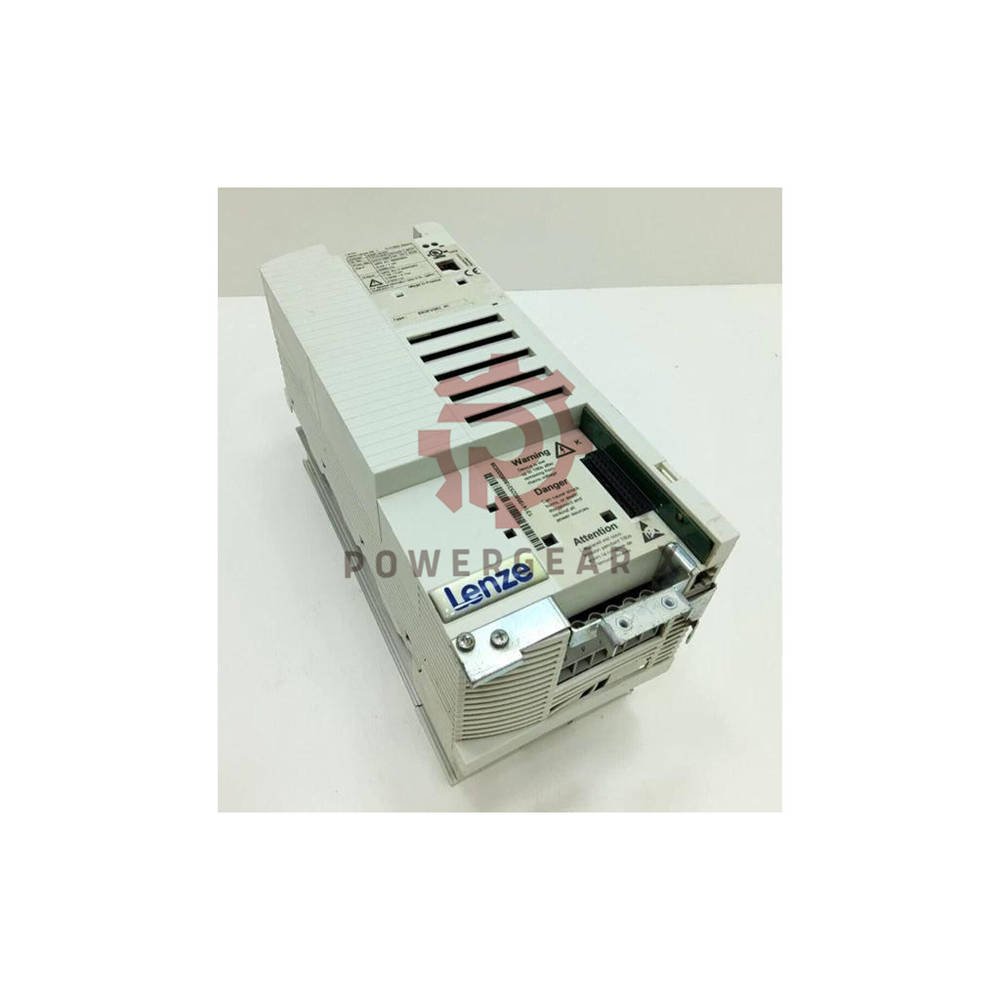

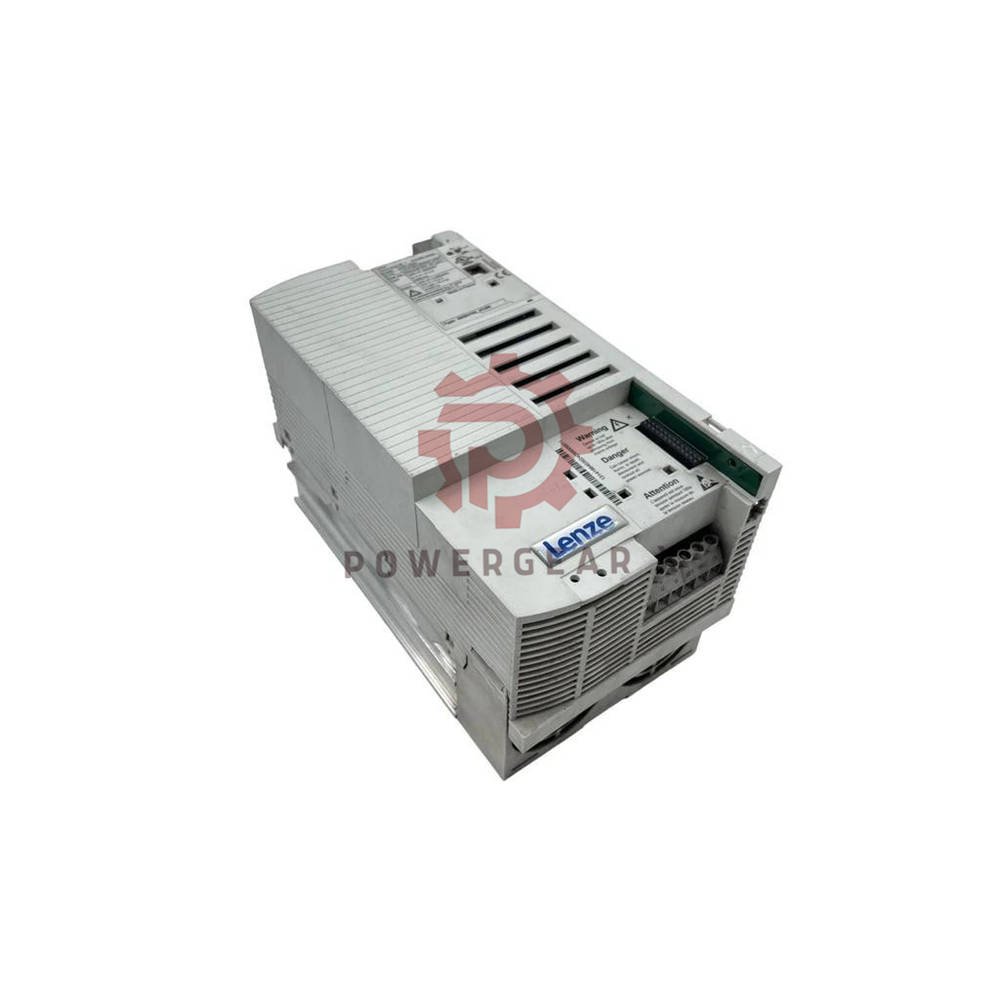

E82EV302-4C Lenze 8200 Vector Frequency Inverter 3.0 kW RS485 Fieldbus

Product Overview

Lenze E82EV302-4C is a built-in vector-controlled frequency inverter from the 8200 vector series. It delivers reliable motor control for 3.0 kW four-pole asynchronous motors in the 400 V class. This unit combines integrated EMC filtering and a built-in brake chopper in a compact housing.

The drive suits demanding industrial tasks. It supports RS232/485 system bus communication and accepts plug-in fieldbus modules. Engineers value its robust overload capacity and flexible switching frequency. The product is officially verified and has a clear migration path to newer Lenze generations.

Technical Specifications

• Brand: Lenze
• Model: E82EV302-4C
• Series: 8200 vector
• Rated motor power: 3.0 kW (typical, 4-pole async motor)
• Rated output current: 7.3 A at 8 kHz switching frequency
• Max. output current: 11.0 A for 60 s (periodic cycle)
• Output frequency range: 0 to 650 Hz
• Switching frequency: 2 / 4 / 8 / 16 kHz selectable (8 kHz factory set)
• Mains voltage class: 400 V (3/PE 320–550 V AC, 45–65 Hz; DC 450–775 V)
• Integrated EMC filter: Yes (C0xx base code)
• Integrated brake transistor: Yes (chopper up to 11 kW)
• Overload capability: 1.8 x rated torque for 60 s
• Power loss: 145 W at rated current / 8 kHz
• Operating temperature: -10 to +55 °C (derate 2.5%/°C above +40 °C)
• Storage temperature: -25 to +60 °C
• Relative humidity: 85% average, no condensation (3K3 per EN 50178)
• Protection rating: IP20
• Dimensions (H×W×D): 240 × 100 × 140 mm
• Weight: 2.9 kg

Communication and Expansion

• Built-in ports: RS232 / RS485 serial system bus
• Protocols: Lenze system bus; fieldbus via plug-in modules (PROFIBUS DP, CANopen, DeviceNet, INTERBUS, AS-Interface)
• Expansion slots: 2 control interfaces (3 for units above 15 kW)

Installation Guide

• Mount the drive vertically on a flat surface. Keep clearance for airflow above and below.
• Connect mains to L1/L2/L3 and motor to U/V/W. Use shielded cable for EMC compliance.
• For DC supply, use terminals +UG / -UG. Observe polarity and voltage range.
• Wire the brake resistor to +UG / -UG if dynamic braking is needed.
• Set the switching frequency via parameter. Factory value is 8 kHz for quiet operation.
• Use the RS232/485 port for PC setup or system bus connection.
• Insert a plug-in communication module for fieldbus networks. Two slots are available.
• Check ambient temperature. Derate output above +40 °C by 2.5% per °C.

Commissioning and Maintenance

• Easy setup: Lenze parameter structure allows quick motor identification.
• Diagnostics: Built-in status LEDs and serial interface support fast fault finding.
• Maintenance: No regular servicing needed. Clean cooling fins with dry air.
• Fan check: Inspect fan every 6 months in dusty environments.

Compatibility and Lifecycle

• Fieldbus flexibility: Works with major industrial networks through plug-in modules.
• Migration path: Lenze i950 emulates 8200 vector behavior via PROFIBUS module / L_ICIP library (AKB 321231/316137). No drop-in same-order-code replacement.
• Legacy status: Official “previous products” page active. Last verified: 2026-10.

Certifications and Standards

• Climatic class 3K3 per EN 50178.
• Integrated EMC filter meets C0xx base code requirements.
• CE conformity for industrial environments.

Packaging List

• 1 x Lenze E82EV302-4C frequency inverter
• 1 x Printed quick start guide
• 1 x Safety and compliance note

Warranty: 12 months from shipment date. Covers manufacturing defects only.

Shipping: Ships within 12–24 hours. Express via FedEx, UPS, or DHL. Tracking provided.

Manager’s Insight

This drive is a solid choice for retrofits and spare parts. Its integrated brake chopper saves panel space. The dual communication slots give engineers freedom to adapt to different plant networks. However, plan for the i950 migration path if long-term availability matters. The 1.8x overload for 60 seconds handles tough starts without oversizing. Keep the 8 kHz default for low noise; switch to 4 kHz only if derating is acceptable.

Expert Review

I have commissioned several 8200 vector drives. The E82EV302-4C is predictable and robust. Motor auto-tuning is fast. The built-in EMC filter cuts wiring time. One weak point: the serial port uses a non-standard connector, so keep an adapter handy. The migration to i950 is real but needs parameter mapping. For new projects, consider the i950. For existing 8200 vector systems, this unit is a reliable replacement.

Ideal Applications and Equipment

• Conveyor systems with frequent starts and stops.
• Packaging machines requiring precise speed control.
• Material handling equipment with dynamic braking needs.
• Fans and pumps in building automation.
• Textile machinery with variable speed demands.
• Retrofits of older 8200 vector installations.

FAQ

• Q: Can this drive run a 3.0 kW motor on 400 V?
  A: Yes. The rated output is 7.3 A at 8 kHz. Check motor current does not exceed this value.
• Q: Does it have a built-in brake chopper?
  A: Yes. The integrated chopper handles up to 11 kW. Connect an external brake resistor for energy dissipation.
• Q: What fieldbus options are available?
  A: Plug-in modules support PROFIBUS DP, CANopen, DeviceNet, INTERBUS, and AS-Interface. Two slots are available.
• Q: How do I migrate to a newer Lenze drive?
  A: Lenze i950 emulates 8200 vector behavior. Use the i950 PROFIBUS module and L_ICIP library. No drop-in code match exists.
• Q: What is the shipping time?
  A: We ship within 12–24 hours. Express carriers are FedEx, UPS, and DHL.
• Q: Is technical support available?
  A: Contact our team at sales@powergearx.com or +86 18030005825 (WhatsApp).
• Q: Can I use this drive at 50 °C ambient?
  A: Yes, but derate output by 2.5% per °C above +40 °C. At 50 °C, reduce continuous current by 25%.
• Q: What is the warranty period?
  A: 12 months from the shipment date. Covers manufacturing defects only.

Buying Guide

• Verify your motor current. The 7.3 A rated output suits most 3.0 kW 4-pole motors.
• Check your fieldbus needs. Add the correct plug-in module before ordering.
• Confirm the ambient temperature. Use derating if above +40 °C.
• Plan for braking. Choose an external resistor if high inertia loads are present.
• Consider the i950 path for new designs. This 8200 vector unit is best for spares or existing systems.
