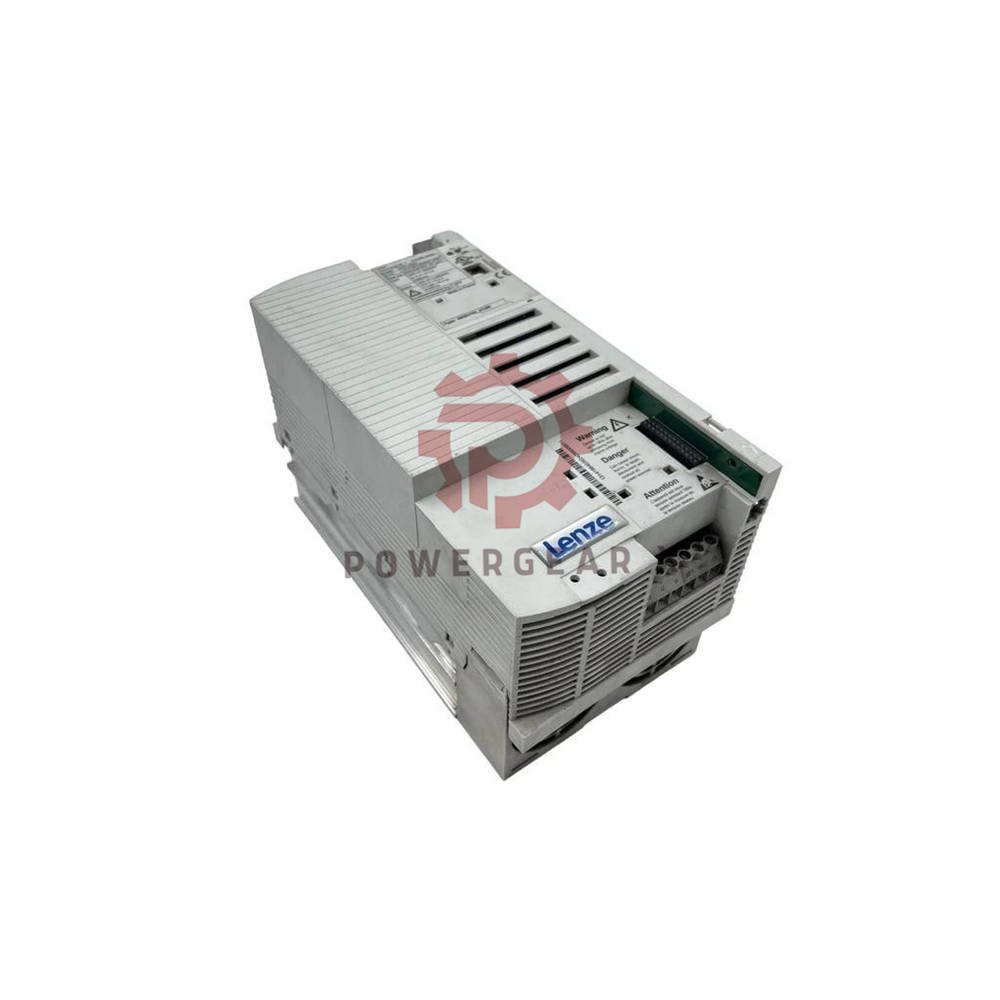

E82EV223K4B302 Lenze 8200 Vector 22kW Inverter with EMC Filter

Product Overview

• E82EV223K4B302 is a 22 kW built-in vector drive from the Lenze 8200 vector family.
• It runs standard four-pole motors on a 400 V class supply.
• The B302 suffix means a mains EMC filter is mounted. You save panel space.
• A brake chopper is built in. It handles generator-mode braking without extra parts.
• This unit is a proven legacy drive. Lenze offers a clear upgrade path to the i950 series.

Technical Data

• Brand: Lenze
• Model: E82EV223K4B302
• Series: 8200 vector
• Rated motor power: 22.0 kW (four-pole async motor)
• Rated output current: 47.0 A at 8 kHz
• Max. output current: 70.5 A for 60 s
• Overload: 1.8 × rated torque for 60 s
• Extra boost: 2.1 × rated torque for 3 s (after enable)
• Output frequency: 0…650 Hz
• Switching frequency: 2 / 4 / 8 / 16 kHz (8 kHz default)
• Mains voltage: 3/PE 320…550 V AC, 45…65 Hz (or DC 450…775 V)
• Power loss: 640 W at rated current / 8 kHz
• Built-in ports: RS232/485 serial system bus
• Fieldbus: via plug-in modules (PROFIBUS DP, CANopen, DeviceNet, INTERBUS, AS-Interface)
• Operating temp.: -10…+50 °C (derate 2.5 %/°C above +40 °C)
• Storage temp.: -25…+60 °C
• Humidity: 85 % RH average, no condensation (3K3 per EN 50178)
• Protection: IP20
• Size (H×W×D): 350 × 250 × 340 mm
• Weight: 34.0 kg

Option Structure (Suffix Tree)

• E82EV223K4B302
  • B3 — EMC filter fitted
    • 02 — version code for mains filter layout
  • K4 — 400 V class, 22 kW frame
  • 223 — 22.3 kW power index
  • E82EV — 8200 vector series, panel-mount

Installation Guide

• Mount the drive vertically on a flat panel. Keep air space above and below.
• Use the built-in EMC filter to meet mains noise limits. No extra filter box is needed.
• Connect the brake resistor to the chopper terminals if you need fast stops.
• Keep motor and mains cables apart. Use shielded motor cable.
• Add a plug-in module before power-on if you need fieldbus.
• Check heatsink temperature after 30 minutes at full load.

Commissioning and Care

• Enter motor plate data in the parameter menu. Choose vector mode for strong low-speed torque.
• Set switching frequency to 8 kHz for a balance of noise and loss.
• Clean cooling fins every 6 months in dusty rooms.
• Replace the fan if it gets loud or stops. This protects the drive.
• Store spare units dry at -25…+60 °C.

Compatibility

• Works with standard four-pole motors up to 22 kW.
• Fieldbus choice: PROFIBUS DP, CANopen, DeviceNet, INTERBUS, AS-Interface via plug-in modules.
• Two control interface slots (three on units above 15 kW).
• Lenze confirms the i950 can emulate 8200 vector behaviour with a PROFIBUS module and L_ICIP library.
• No same-order-code drop-in replacement. Plan a migration if you need long-term supply.

Certifications and Compliance

• Climatic class 3K3 per EN 50178.
• Protection rating IP20 per EN 60529.
• EMC filter mounted per the B302 design (check unit label for CE details).
• Lenze provides official migration notes for the i950 series.

Packing List

• 1 × E82EV223K4B302 inverter
• 1 × quick start guide
• Warranty card (12-month cover)
• Orders ship in 12–24 hours via FedEx, UPS, or DHL.

Warranty and Shipping

• 12-month warranty on manufacturing defects.
• Dispatch within 12–24 hours after payment clears.
• Express carriers: FedEx, UPS, DHL. Tracking sent after pickup.
• Questions? Email sales@powergearx.com or chat on +86 18030005825 (WhatsApp).

Expert Review

• The E82EV223K4B302 is a strong pick for 22 kW retrofit jobs where panel space matters.
• The built-in EMC filter and brake chopper cut wiring time and part count.
• Vector control gives good torque at low speed without an encoder.
• Legacy status is the main drawback. Keep a spare if uptime is critical.

Manager’s Insight

• Most buyers use this drive to replace a failed 8200 vector unit on an existing line.
• Check the B302 suffix carefully. B-variants include the filter; others do not.
• For new builds, quote the i950 series. For spares, the E82EV223K4B302 still offers good value.
• Stock two units if your plant runs several 22 kW motors.

Best Fit Applications

• Conveyors and transport lines in warehouses.
• Centrifugal pumps and fans in water or HVAC systems.
• Mixers, agitators, and extruders with moderate shock loads.
• Retrofit projects replacing older 8200 vector drives.
• Panels with tight space thanks to the integrated filter and chopper.

FAQ

Buying Guide

• Confirm the motor is 22 kW or less with current under 47 A.
• Decide if you need a built-in EMC filter. The B302 has one.
• List fieldbus needs. Add the right plug-in module.
• Check panel depth: the unit is 340 mm deep.
• For long-term builds, compare the i950 series. For spares, this model is a sound choice.
• Orders ship in 12–24 hours by FedEx, UPS, or DHL with a 12-month warranty.
