Product details

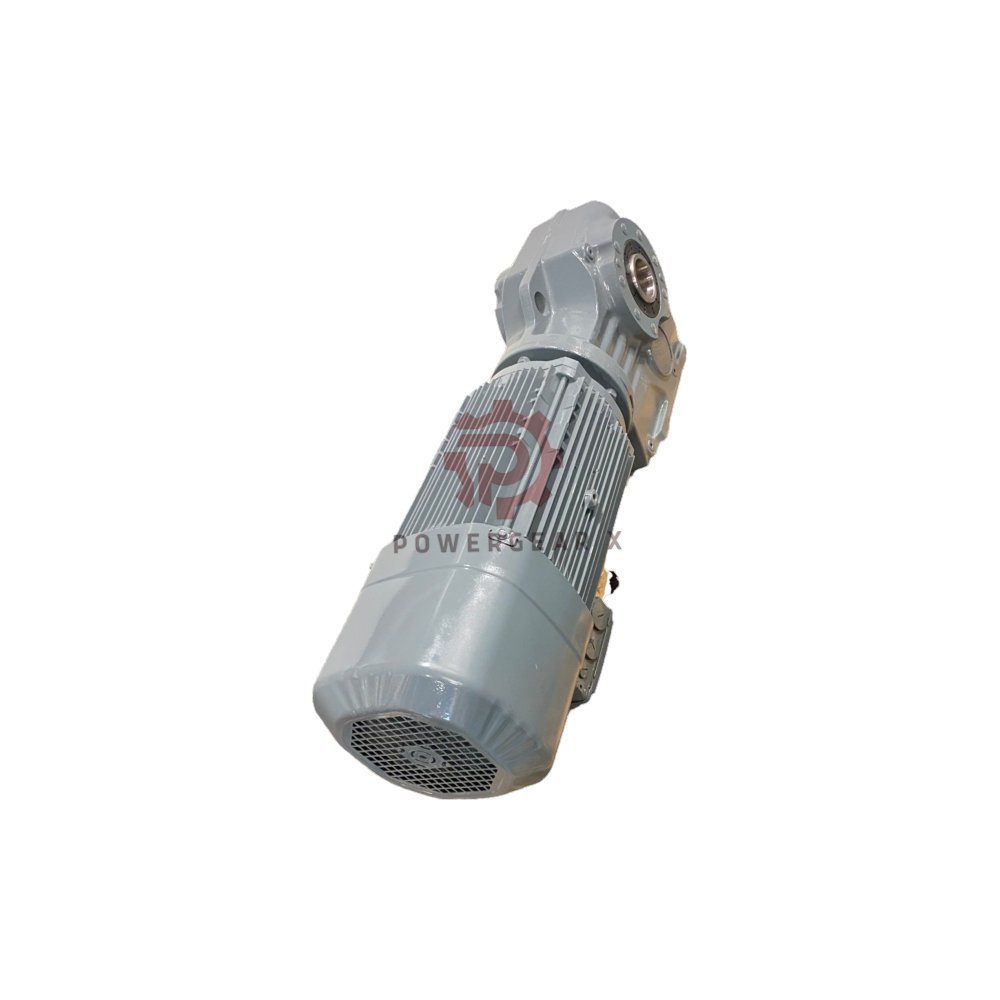

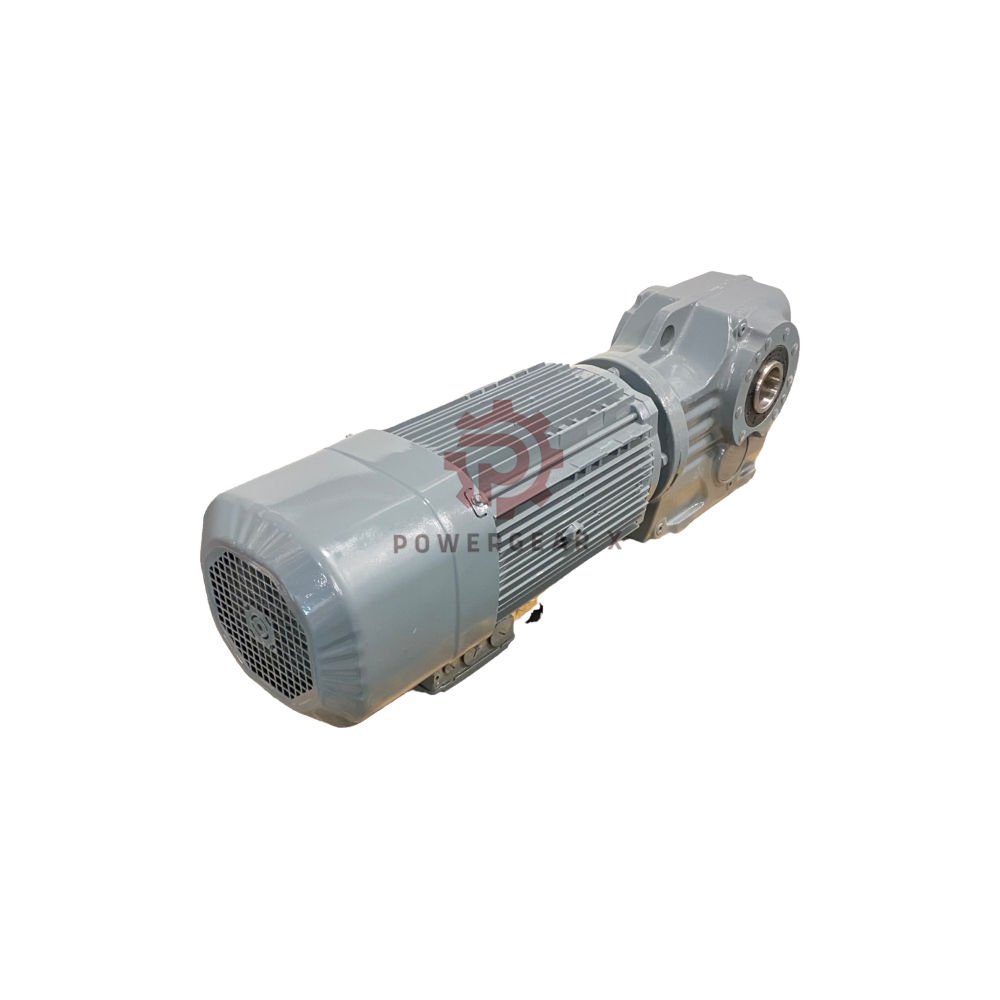

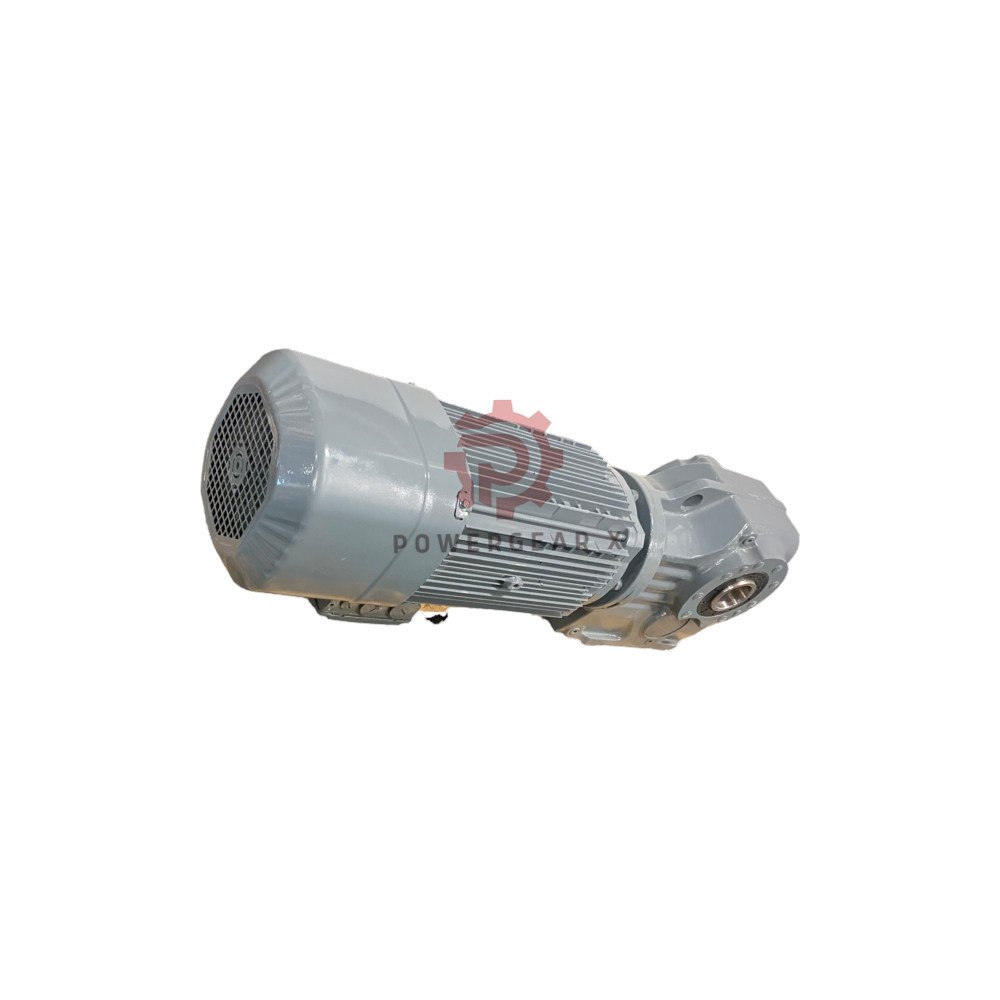

DRN132L4 SEW-EURODRIVE IE3 Motor
DRN132L4 is a 4-pole IE3 three-phase asynchronous motor from SEW-EURODRIVE. It delivers 9.2 kW at 400 V, 50 Hz. This DRN series motor runs continuously in S1 duty. It suits line and inverter operation. The TEFC design saves space and cuts maintenance. It is the IE3 successor to the DRS and DR2S series.
Technical Specifications
- Brand: SEW-EURODRIVE
- Model: DRN132L4
- Series: DRN Three-Phase Asynchronous Motor
- Motor type: Squirrel-cage three-phase asynchronous, TEFC
- Poles: 4
- Rated power: 9.2 kW
- Rated voltage: 400 V nominal, 3-phase, 50 Hz
- Connection: Delta; star/delta changeover for 230/400 V or 400/690 V per size
- Rated current: 18.7 A at 400 V, 50 Hz
- Rated speed: 1470 min⁻¹ at rated load
- Rated torque: 60 Nm
- Efficiency: IE3 Premium Efficiency per IEC 60034-30-1
- Efficiency at 100% load: 91.0 %
- Efficiency at 75% load: 91.6 %
- Efficiency at 50% load: 90.8 %
- Power factor: cos φ = 0.77
- Insulation class: Thermal class 155 (F) per IEC 60034-1
- Optional insulation: Thermal class 180 (H) on request
- Cooling method: TEFC, IC 411 per IEC 60034-6
- Duty type: S1 continuous operation
- Inverter duty: VPWM per IEC 60034
- Mounting: IM B35 foot-mounted with flange standard
- Optional mounting: IM B3, IM B5, IM B14 per order
- Operating temperature: -20 to +40 °C ambient
- Rated output condition: max +40 °C and ≤1000 m above sea level
- Storage temperature: -15 to +70 °C
- Protection rating: IP55 per IEC 60034-5
- Optional protection: up to IP66 on request
- Relative humidity: Non-condensing
- Weight: 81 kg
- Dimensions: Not published as numerical table; consult SEW dimension sheets
- Lifecycle: Current SEW-EURODRIVE product line
- Last verified: 2026-09
Expert Review
This DRN132L4 motor balances power and efficiency. The IE3 rating cuts energy loss. The IP55 housing resists dust and water. The TEFC cooling keeps heat under control. It works well with pumps, fans, and conveyors. The 81 kg weight needs a solid base. The 60 Nm torque handles steady loads. The 1470 rpm speed fits many gearboxes. It is a strong pick for continuous duty.
Manager’s Insight
Buyers often ask for a motor that runs all day. The DRN132L4 does that with low loss. The S1 duty rating means no rest cycle. The IE3 class lowers power bills. The IP55 seal cuts downtime. Stock this model for food, water, and logistics lines. Pair it with a SEW gearbox for a full drive. Lead time is short. Shipping runs 12-24 hours by Fedex, UPS, or DHL.
Best Applications
- Pumps and water treatment
- Fans and air handling
- Conveyors and logistics
- Mixers and agitators
- Packaging machines
- Food and beverage lines
- Material handling systems
Installation Guide
- Check the nameplate before wiring.
- Use the IM B35 foot and flange mount.
- Keep the motor level and aligned.
- Leave space for airflow around the fan cover.
- Tighten all bolts to the SEW torque spec.
- Ground the frame before power-on.
- Match the supply to 400 V, 50 Hz.
- Confirm the delta or star link per supply.
Setup and Maintenance
- Run a no-load test first.
- Check current draw at full load.
- Keep the fan cover clean.
- Inspect the shaft seal each month.
- Lubricate bearings per SEW schedule.
- Watch for noise or vibration.
- Log temperature and current values.
- Use soft starts with inverter duty.
Compatibility
- Works with SEW gearboxes and inverters.
- Fits IM B3, IM B5, and IM B14 mounts.
- Runs on 230/400 V or 400/690 V per size.
- Supports VPWM inverter control.
- Replaces DRS and DR2S IE3 units.
Certifications
- IEC 60034-1 thermal class
- IEC 60034-5 protection rating
- IEC 60034-6 cooling method
- IEC 60034-30-1 efficiency class
- IE3 Premium Efficiency
Packing List
- 1 x DRN132L4 motor
- 1 x terminal box cover
- 1 x fan cover
- 1 x nameplate data sheet
- 1 x SEW documentation set
Warranty and Shipping
- Warranty: 12 months
- Dispatch: 12-24 hours
- Courier: Fedex, UPS, DHL
- Contact: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQ
Q: What does IE3 mean for this motor?
A: IE3 is a high efficiency class. It cuts energy loss and lowers running cost.
Q: Can I run this motor on an inverter?
A: Yes. It supports VPWM inverter duty per IEC 60034.
Q: What is the frame size?
A: The model is DRN132L4. SEW publishes full dimensions in its dimension sheets.
Q: How much does it weigh?
A: The motor weighs 81 kg.
Q: What is the rated torque?
A: It delivers 60 Nm at rated load.
Q: What protection rating does it have?
A: It comes with IP55. You can order up to IP66.
Q: What is the ambient temperature range?
A: It runs from -20 to +40 °C.
Q: How fast do you ship?
A: We dispatch in 12-24 hours by Fedex, UPS, or DHL.
Q: Does it come with a warranty?
A: Yes. It has a 12 month warranty.
Q: Which devices use this motor?
A: Pumps, fans, conveyors, mixers, and packaging machines use it.
Q: How do I pick the right motor for my line?
A: Check power, speed, torque, and mount. Then match the supply voltage and duty cycle.
Q: Is this a current SEW product?
A: Yes. DRN is the current IE3 line from SEW-EURODRIVE.
Buying Guide
- Match 9.2 kW to your load demand.
- Check 400 V and 50 Hz supply.
- Confirm 1470 rpm fits your gearbox.
- Use 60 Nm torque for steady loads.
- Pick IP55 for dusty or wet areas.
- Choose IM B35 for foot and flange mount.
- Order IP66 for harsh washdown.
- Ask for class H insulation if heat is high.
- Keep a spare for critical lines.
- Contact us for stock and lead time.
