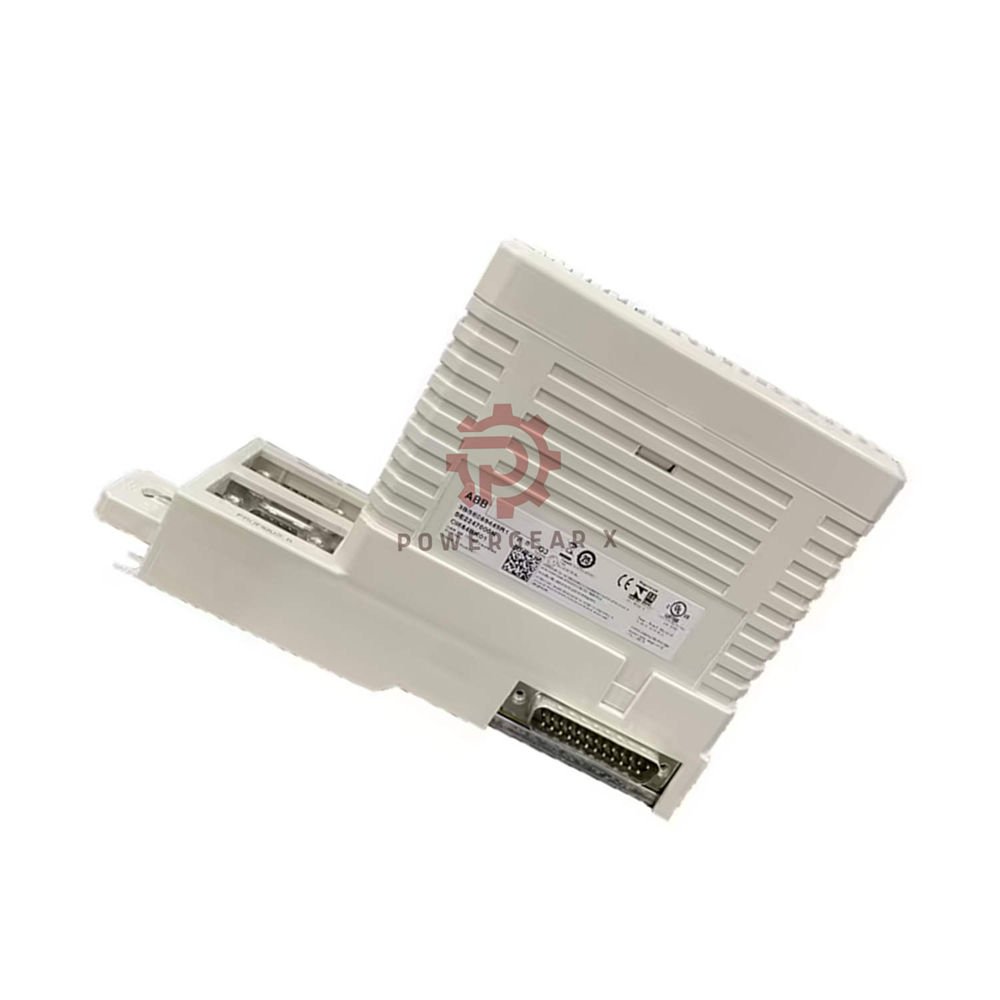

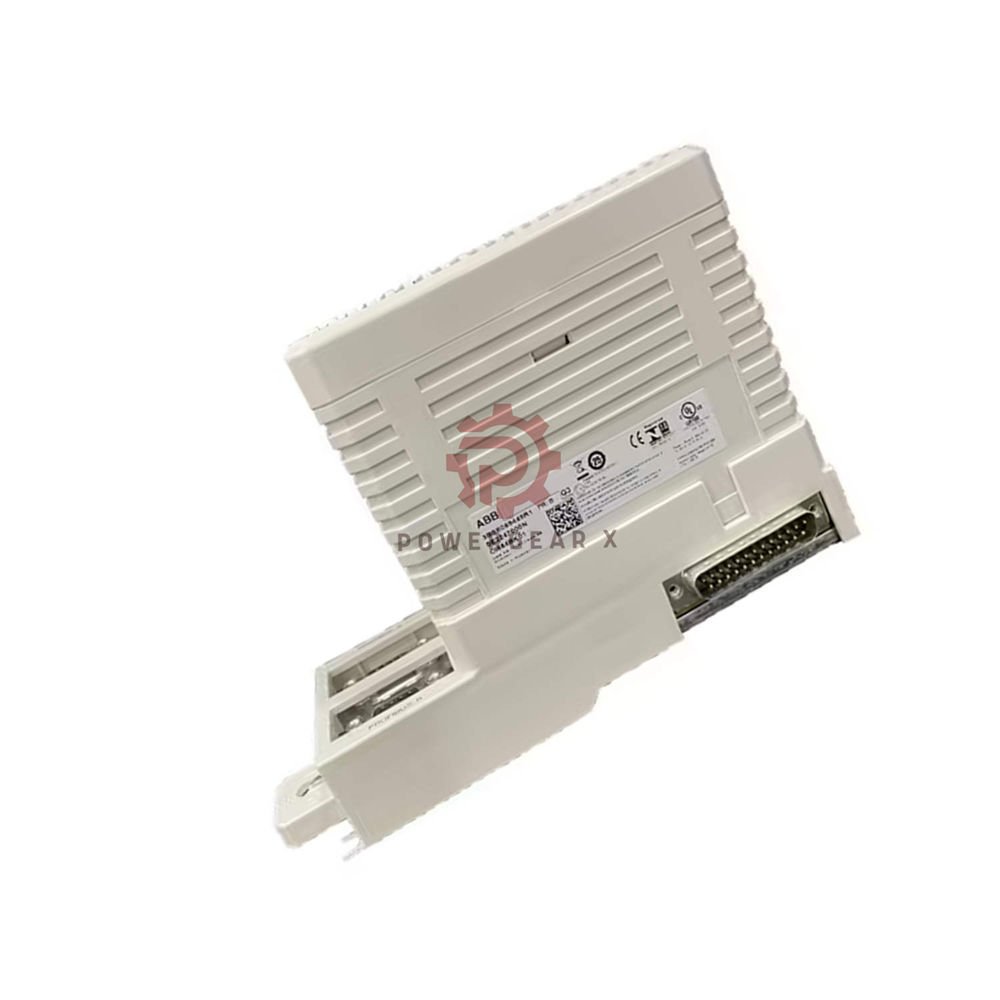

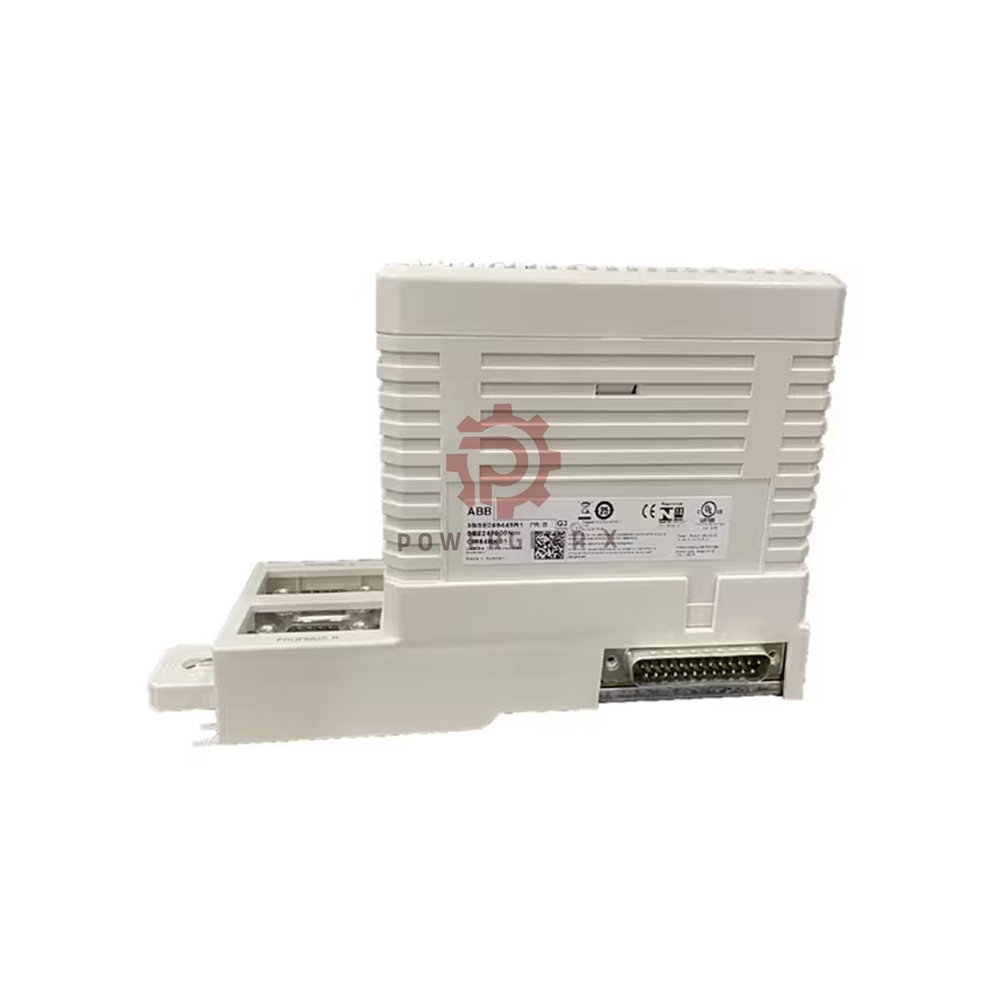

CI854BK01 ABB 3BSE069449R1 PROFIBUS DP-V1 Interface with Redundancy Support

Product Overview CI854BK01

• 3BSE069449R1 (CI854BK01) ABB PROFIBUS DP Communication Interface
  • Connects AC 800M controllers to PROFIBUS DP networks up to 12 Mbit/s
  • Package includes: CI854BK01 module + TP854 baseplate
  • Dual PROFIBUS ports for line redundancy and master redundancy support
  • Works with remote I/O, drives, and field devices
• Key requirement: Requires System 800xA 6.0.3.2 and Compact Control Builder 6.0.0-2 or newer

Core Architecture CI854BK01

• Communication features
  • Two PROFIBUS DP ports (9-pin DB female connectors)
  • Transmission speed: 9.6 kbit/s to 12 Mbit/s auto-detecting
  • Supports PROFIBUS DP-V1 protocol
  • Line redundancy and module redundancy both supported
• Redundancy capabilities
  • Master redundancy using two CI854B modules
  • Combine with CPU redundancy and CEXbus redundancy (BC810)
  • Hot Swap supported – replace without system shutdown
  • Works with HI Controller for high integrity systems

Technical Specifications 3BSE069449R1

• System integration
  • Max units on CEX bus: 12 modules
  • Interfaces directly with S800 I/O system
  • Works with all PROFIBUS DP/DP-V1 devices
  • Connect PROFIBUS PA via LD 800P linking device
• Electrical data
  • 24V consumption: 190 mA typical
  • Power supplied via CEX-Bus from +24V
  • Mounts on DIN rail with TP854 baseplate

Network Requirements

• PROFIBUS termination
  • Must terminate at both outermost nodes
  • Use connectors with built-in termination
  • Termination needs power supply to work correctly
  • Without proper termination, communication fails
• Wiring guidelines
  • Use standard PROFIBUS cable (type A recommended)
  • Maximum segment length depends on baud rate
  • At 12 Mbit/s: max 100 meters per segment
  • Add repeaters for longer distances

Environmental & Certifications

• Operating conditions
  • Temperature: 0 to +55°C (operating) · Storage: -40 to +70°C
  • Pollution degree 2 per IEC/EN61131-2
  • Corrosion protection: G3 compliant to ISA 71.04
  • Protection class: IP20 (finger-safe)
• Certifications & compliance
  • CE marking · Marine certificates: ABS, BV, DNV-GL, LR
  • RoHS compliance: EU, UAE, CN RoHS
  • WEEE compliant (DIRECTIVE/2012/19/EU)

Physical Specifications

• Dimensions & weight
  • Width: 59 mm · Height: 185 mm · Depth: 127.5 mm
  • Weight (including base): 700 g (1.5 lbs)
• Mounting
  • Snap onto TP854 baseplate (included)
  • DIN rail mount via baseplate
  • Hot Swap capable – replace without power down

System Compatibility

• Software requirements
  • System 800xA 6.0.3.2 or later
  • Compact Control Builder 6.0.0-2 or later
  • Check Product Update for detailed compatibility
• I/O system support
  • S800 I/O direct connection
  • All PROFIBUS DP proficient systems
  • FOUNDATION Fieldbus via linking devices

Shipping & Contact

• Fast delivery options
  • FedEx · UPS · DHL (expedited shipping available)
  • Global warehouse stocking
• Technical inquiries: sales@powergearx.com | +86 18030005825 (WhatsApp)

Typical Applications

• Connecting S800 remote I/O to AC 800M via PROFIBUS DP
• Integrating PROFIBUS drives and motor controllers
• High-availability systems with full redundancy (CPU + CEX + PROFIBUS)
• Marine and offshore automation (ABS, BV, DNV-GL, LR certified)
• Process plants with PROFIBUS PA instruments (via LD 800P)
• Hot-swappable applications requiring minimal downtime

Professional FAQ (CI854BK01)

• Q: What is included in the package?
• A: Package includes CI854BK01 communication interface module and TP854 baseplate. Ready to mount on DIN rail.
• Q: Can I use two CI854B modules for redundancy?
• A: Yes. Master redundancy uses two CI854B modules. You can also add CPU redundancy and CEXbus redundancy (BC810) for full system redundancy.
• Q: How do I terminate the PROFIBUS network?
• A: Use connectors with built-in termination at both ends. The termination must be powered to work correctly. Without termination, communication will have errors.
• Q: What is the maximum speed with CI854BK01?
• A: It supports up to 12 Mbit/s. Speed is auto-detecting from 9.6 kbit/s to 12 Mbit/s. Cable length must match selected speed.
• Q: Is this module approved for marine use?
• A: Yes, it has full marine certifications: ABS, BV, DNV-GL, and LR. Suitable for ship and offshore installations.
• Q: What software version do I need?
• A: You need System 800xA 6.0.3.2 or later and Compact Control Builder 6.0.0-2 or later. Check Product Update for exact requirements.
• Q: Can I connect PROFIBUS PA devices?
• A: Yes, use LD 800P PROFIBUS linking device between CI854B and PROFIBUS PA segment. CI854B handles DP protocol, LD 800P converts to PA.
• Q: What warranty do you offer on CI854BK01?
• A: 12 months from shipment date covering manufacturing defects. Extended options available on request.
