Product Overview

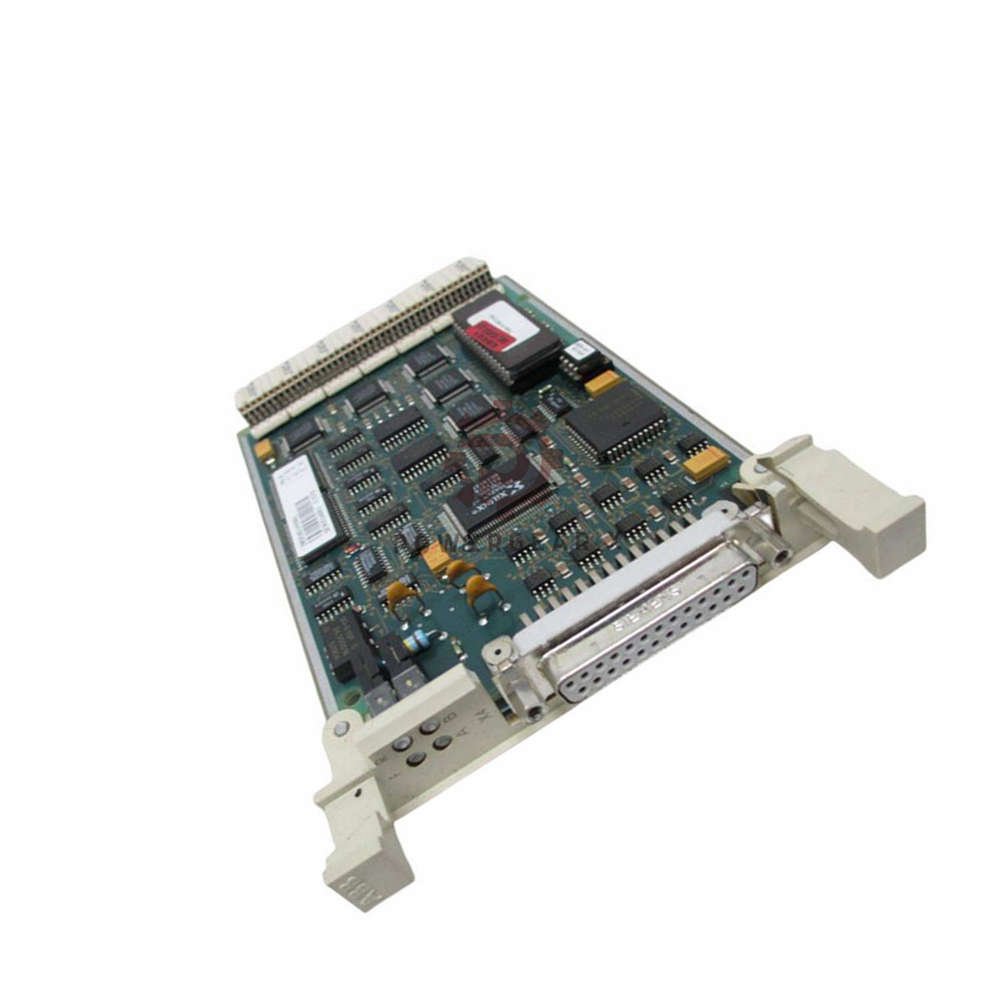

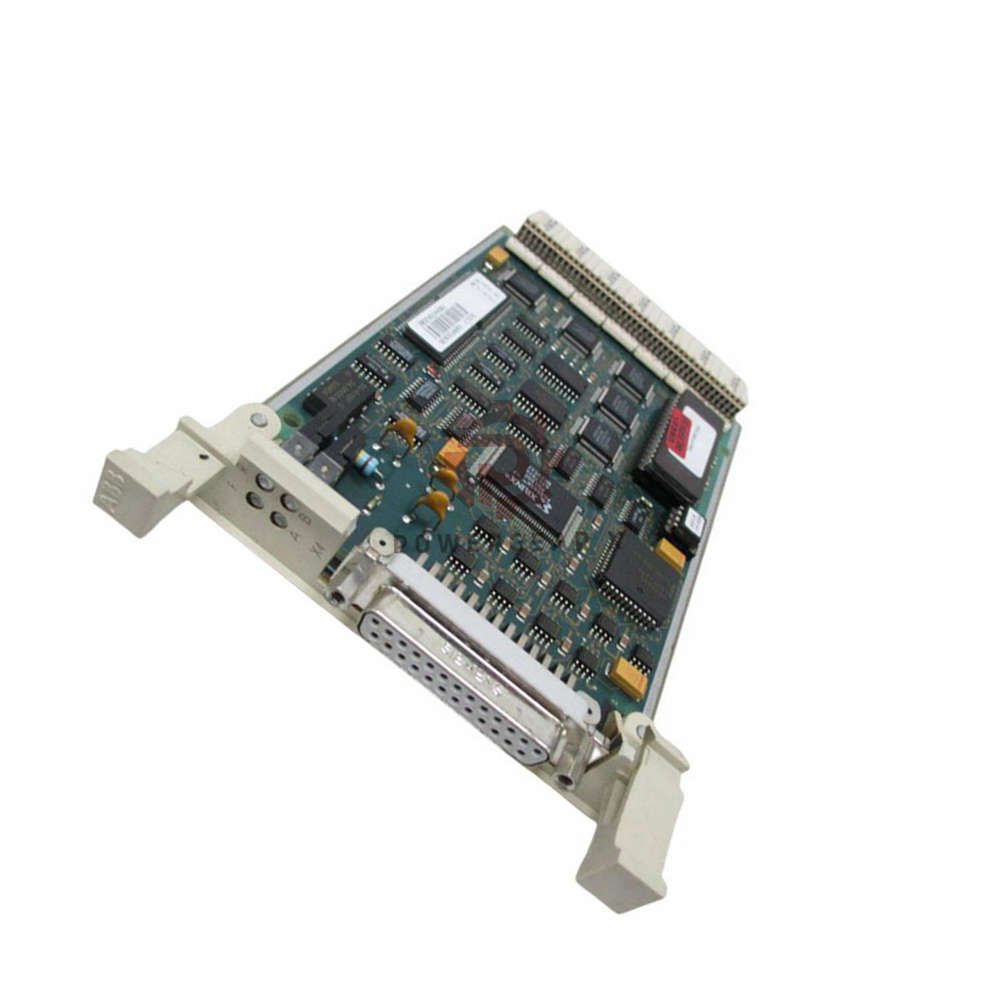

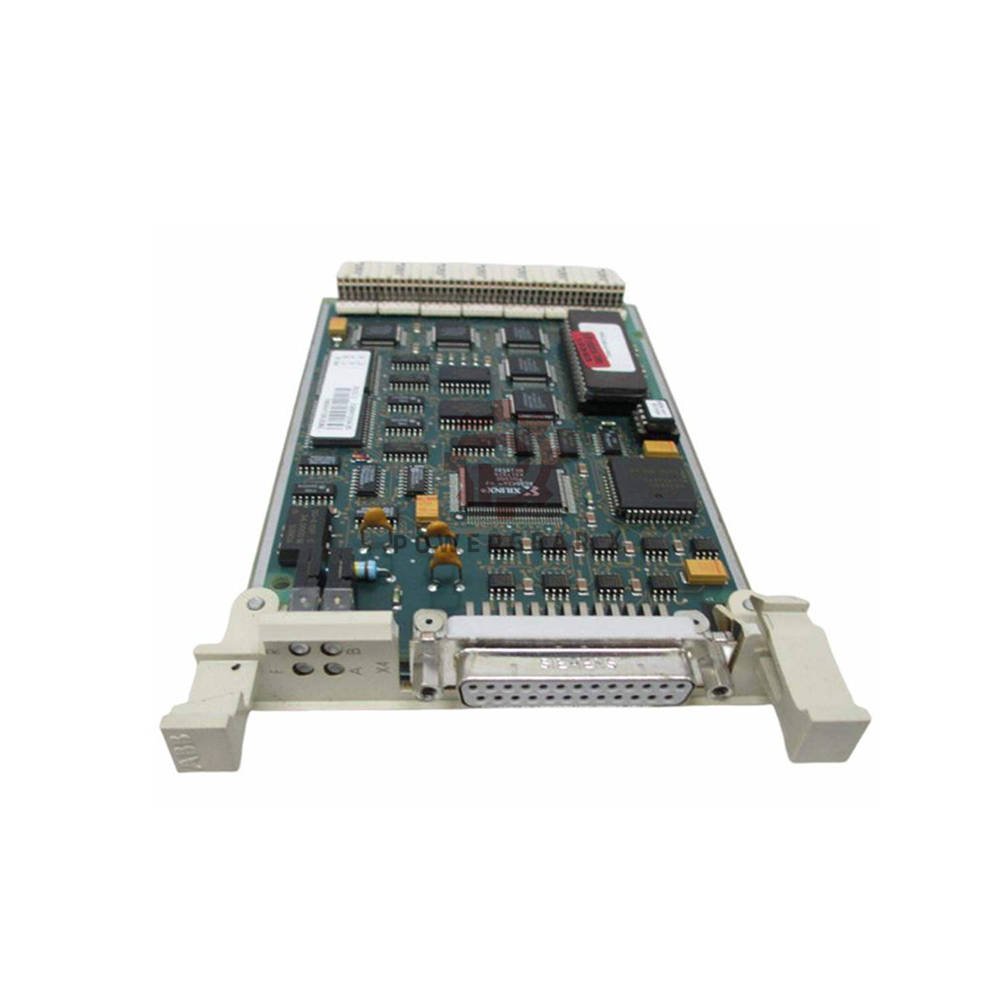

The ABB CI570 (3BSE001440R1) is a MasterFieldbus Controller for Advant Master Process Control Systems. It handles communication between field devices and the control network. This module is reliable and compact. It is exempt from RoHS per EU Directive 2011/65/EU Article 2(4). Use it in industrial automation environments.
Model Number & Suffix Tree
- ABB CI570 (Complete communication module)
- Ordering references:
- 3BSE001440R1 (main ordering code)
- 7650 055-432 (exchange number)
- Compatible systems:
- ABB Advant Master Process Control
- MasterFieldbus networks
Key Technical Data
- Brand: ABB
- Model: CI570 (3BSE001440R1)
- Type Designation: CI570 MasterFieldbus Controller
- Product Type: Communication Module
- System: Advant Master Process Control
- HS Code: 853890
- Customs Tariff: 85389091
- Dimensions (LxHxW): 234 mm x 27 mm x 112.5 mm
- Weight: 0.4 kg (light, easy to mount)
- RoHS: Exempt per 2011/65/EU Article 2(4)
- WEEE Category: 5 (Small Equipment)
- Batteries: 0 (no battery disposal needed)
- SCIP number: cc503942-e367-4bfb-890e-2d2cbc5ae357
Communication Features
- Protocol: MasterFieldbus (ABB proprietary)
- Function: Connects field devices to controllers
- Data transfer: High-speed deterministic communication
- Diagnostics: LED indicators for status
- Redundancy: Supports redundant configurations
Installation & Mounting
- Mounting: Plugs into Advant Master backplane
- Connectors: Front-panel D-sub for fieldbus
- Space needed: Single slot width (27 mm)
- Cooling: Convection, no fan required
- Environment: Industrial control cabinets
Applications
- Advant Master 110/115/215 systems
- Process control in pulp and paper
- Power generation monitoring
- Chemical plant automation
- Water treatment facilities
Package & Warranty
- Includes: CI570 module, anti-static bag, documentation
- Condition: New original ABB
- Warranty: 12 months against defects
- Shipping: FedEx, UPS, DHL express (tracking provided)
Frequently Asked Questions (FAQ)
- Q: What does the CI570 do in an Advant Master system?A: It acts as the MasterFieldbus controller. It manages communication between field devices and the main CPU. Think of it as the traffic manager for field data.
- Q: Is the CI570 still supported by ABB?A: ABB considers it a legacy product. However, we stock new units with full 12-month warranty. It remains widely used in existing plants.
- Q: Can I use the CI570 with newer ABB systems like 800xA?A: Not directly. It is designed for Advant Master. For 800xA, you need gateways or different fieldbus modules.
- Q: What does the RoHS exemption mean?A: This module contains small amounts of lead in certain components. It is exempt because it is industrial control equipment. It is still safe and compliant.
- Q: How do I know if this fits my existing rack?A: Check your backplane type. CI570 fits Advant Master 100 series racks. Send your system details to sales@powergearx.com for verification.
Buying Guide & Selection Advice
- Verify your system: Must be ABB Advant Master.
- Check slot availability: Needs one standard slot.
- Need redundancy? Order two units for redundant pairs.
- Spare parts: Keep one in stock for critical lines.
- Order now for fast FedEx/UPS/DHL delivery.
